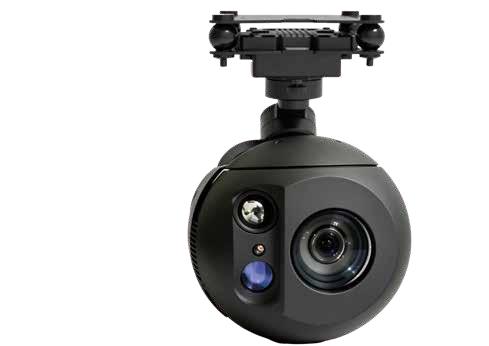

Exceed GC30 Dual Sensor Gimbal Camera with 40x Optical Zoom

Exceed GC30 combines a 40x optical-zoom visible camera with a 640 x 512 uncooled long-wave infrared thermal imager. Its three-axis gimbal, video interfaces and recording functions support evaluation for civilian UAV inspection and emergency-response imaging projects.

The catalogue also describes an integrated laser rangefinder and optional infrared temperature measurement. For power-line inspection or equipment temperature monitoring, confirm whether the proposed configuration includes the required measurement functions.

Visible and thermal channels: The visible camera provides optical zoom, while the thermal imager supplies an additional imaging channel for inspection under different lighting conditions.

Three-axis gimbal: Review mounting, vibration conditions and available payload capacity when integrating the stabilised camera assembly.

Video and recording: Micro-HDMI and IP video outputs are listed, together with TF-card storage for JPG images and MP4 video.

Control interfaces: PWM, S.BUS, UART (TTL), TCP and UDP are listed. Confirm the interface and control functions required by the selected platform.

Model: Exceed GC30
Visible camera: 40x optical zoom
Thermal imager: 640 x 512 uncooled LWIR
Product weight: 1020 g
Input voltage: 14.8-25.2 V
Temperature measurement: Optional; confirm configuration

Define the inspection application and required visible or thermal imagery.
Confirm payload capacity, mounting arrangement and electrical compatibility.
Select video output, recording and control interfaces.
Confirm any temperature-measurement option and agree an inspection demonstration.

Final specifications and included functions should follow the documents agreed for the selected configuration.

Does the GC30 combine visible and thermal cameras?

Yes. The catalogue identifies a 40x optical-zoom visible camera and a 640 x 512 thermal imager.

Is temperature measurement included in every unit?

It is described as optional. Confirm the ordered configuration and applicable measurement specifications.

What video connections are listed?

Micro-HDMI and IP video, including RTSP/UDP. Confirm settings and compatibility with the receiving equipment.

Send your platform payload limit, mounting requirements, preferred video output and temperature-measurement needs to request current technical documentation.
