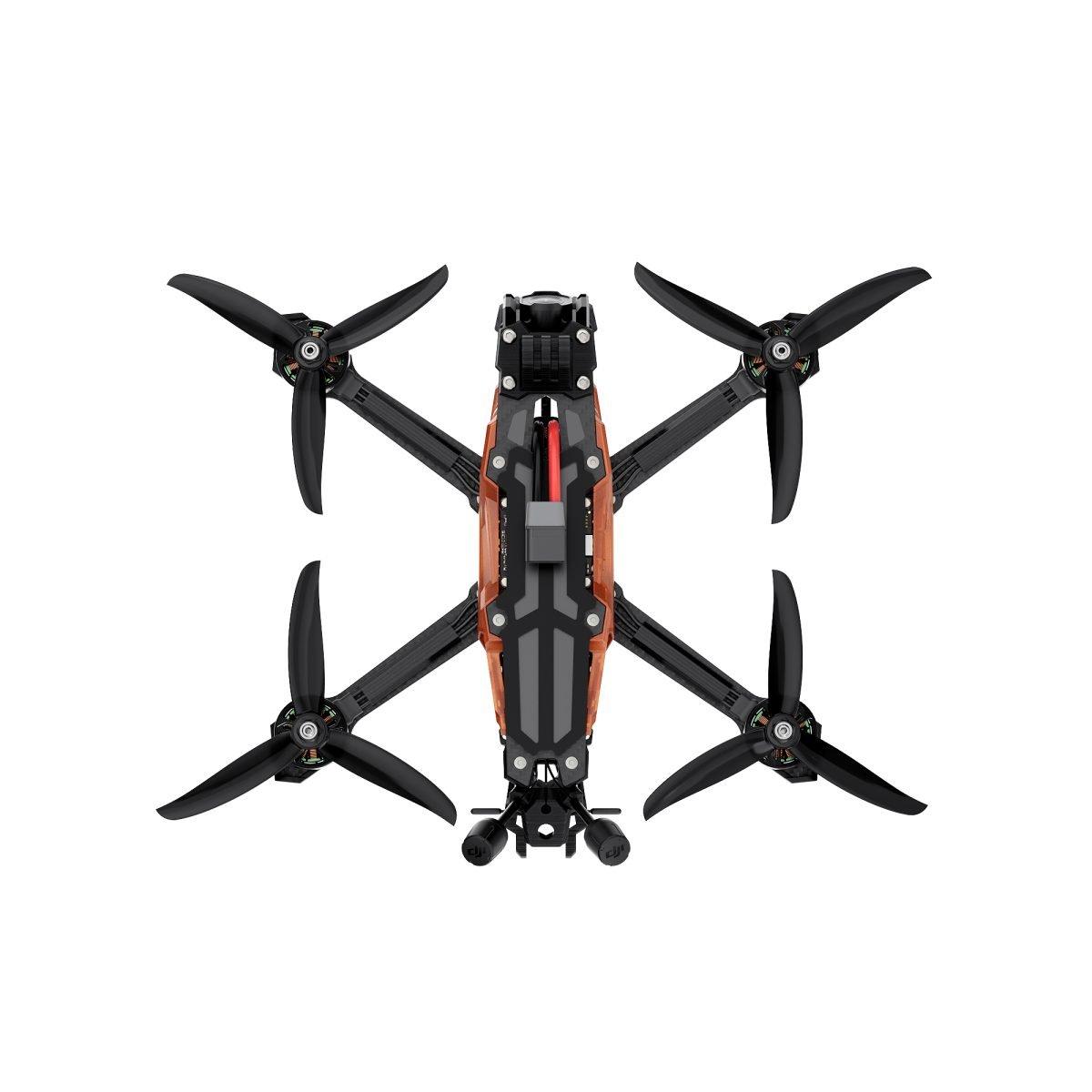

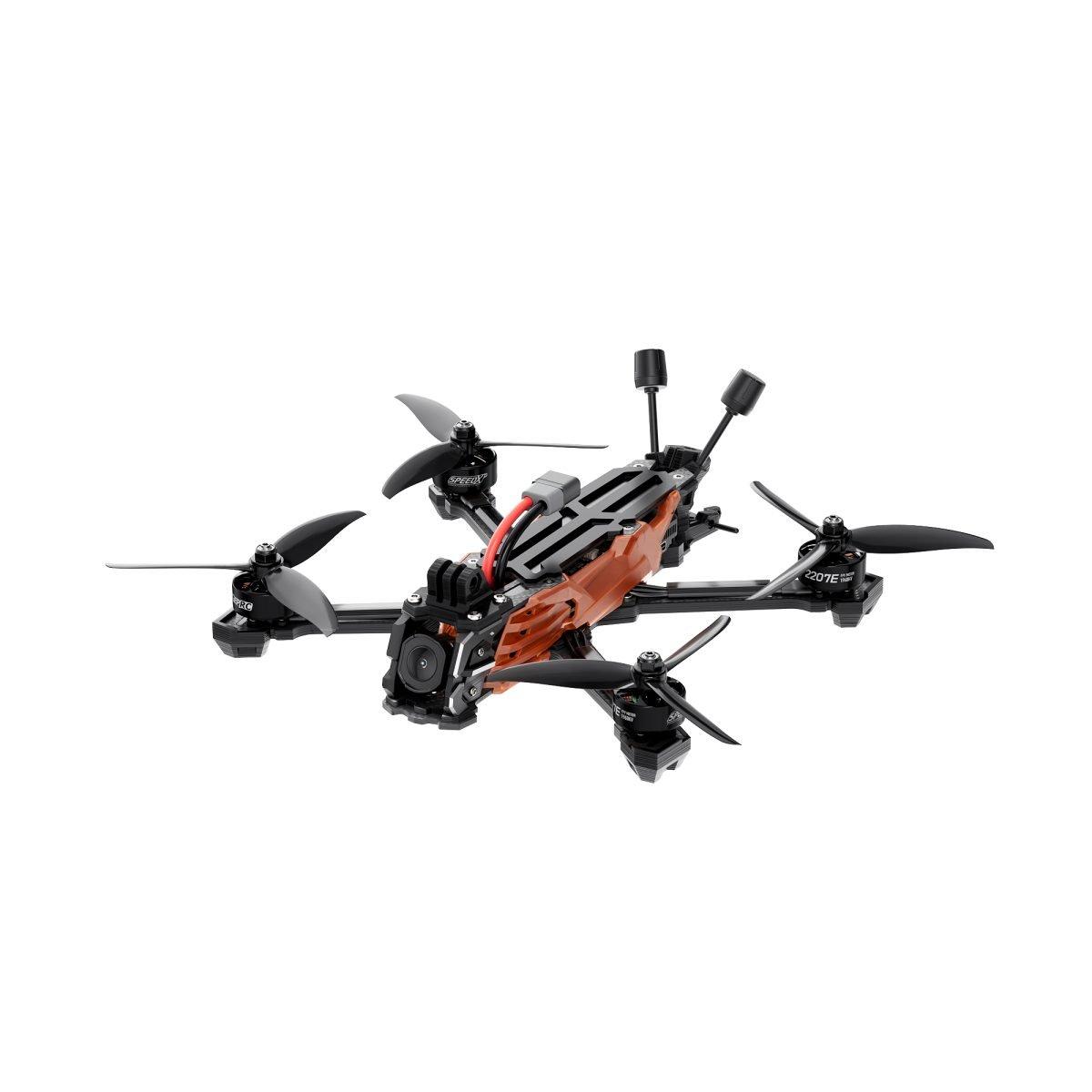

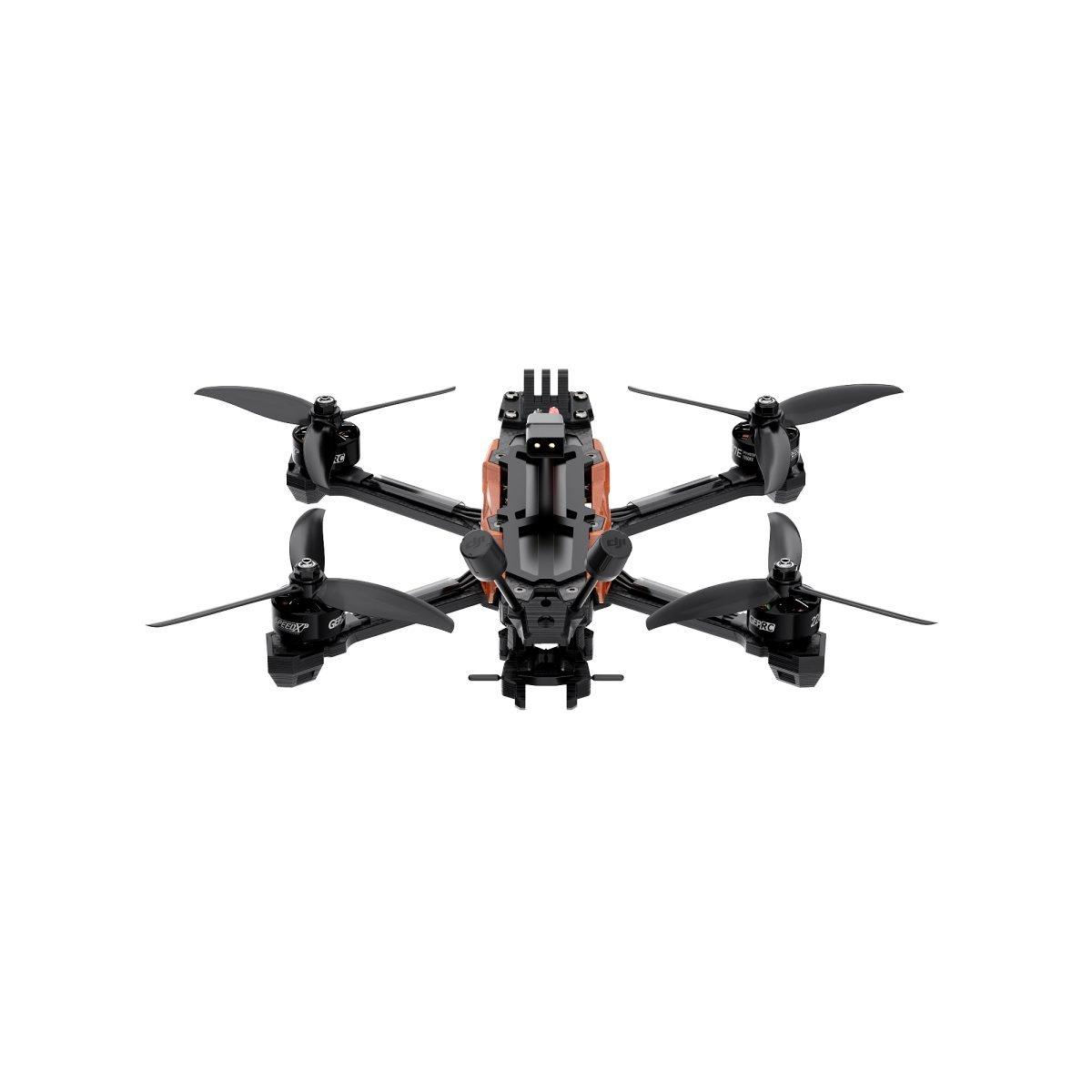

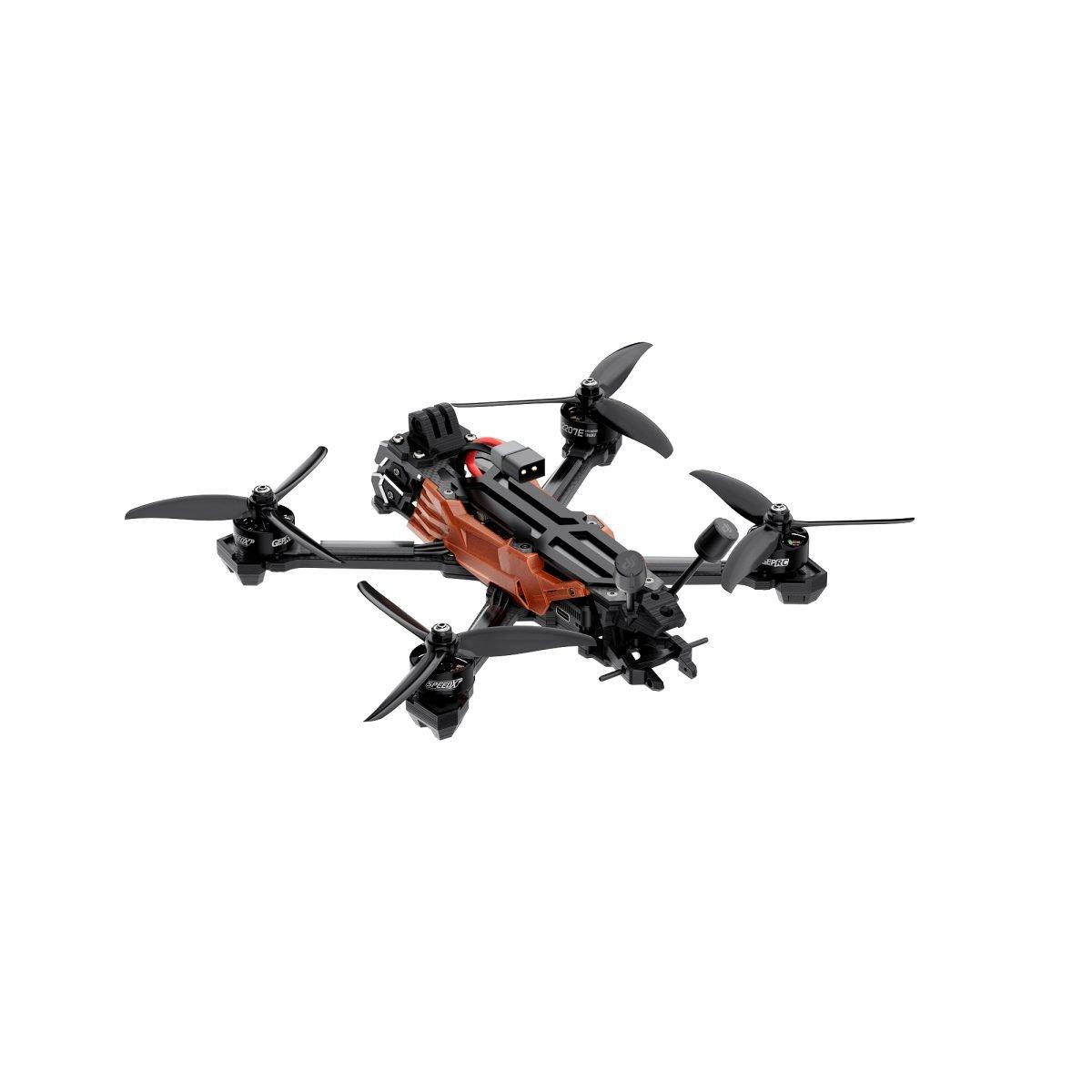

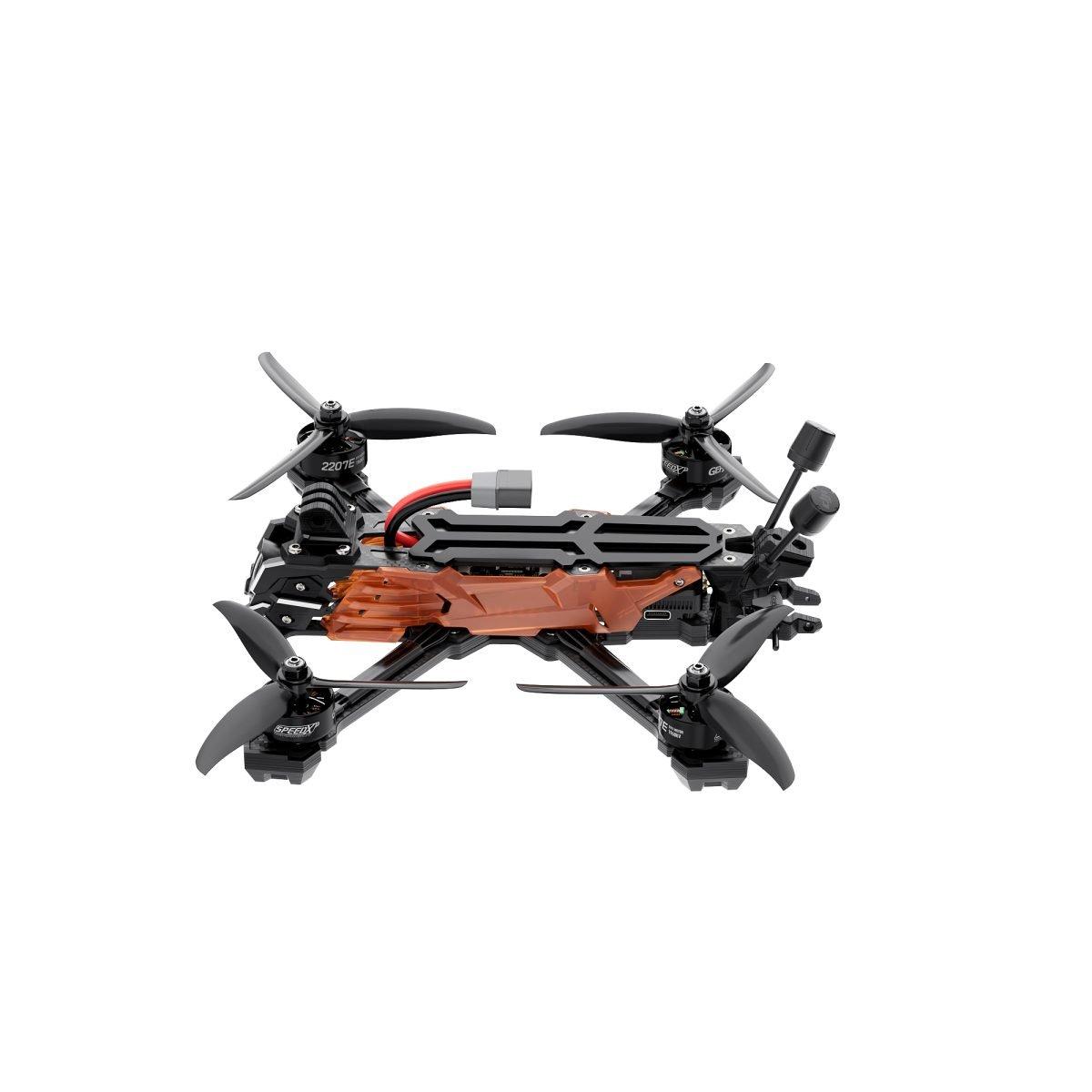

GEPRC Vapor-X5 HD O4 Pro FPV Drone with DJI O4 Air Unit

Summary

The GEPRC team has redesigned the Vapor series for perfect compatibility with the DJI O4 Air Unit Pro VTX.

The upgraded aluminum lens housing and silicone shock absorbers effectively reduce vibrations during flight. The newly designed mech-inspired side panels give the frame a tougher, more aggressive look. Equipped with the larger CMOS sensor of the DJI O4 Air Unit Pro, the drone delivers sharper details and improved low-light performance. Combined with GEPRC’s professionally tuned PID settings, pilots can enjoy a smooth and immersive flight experience.

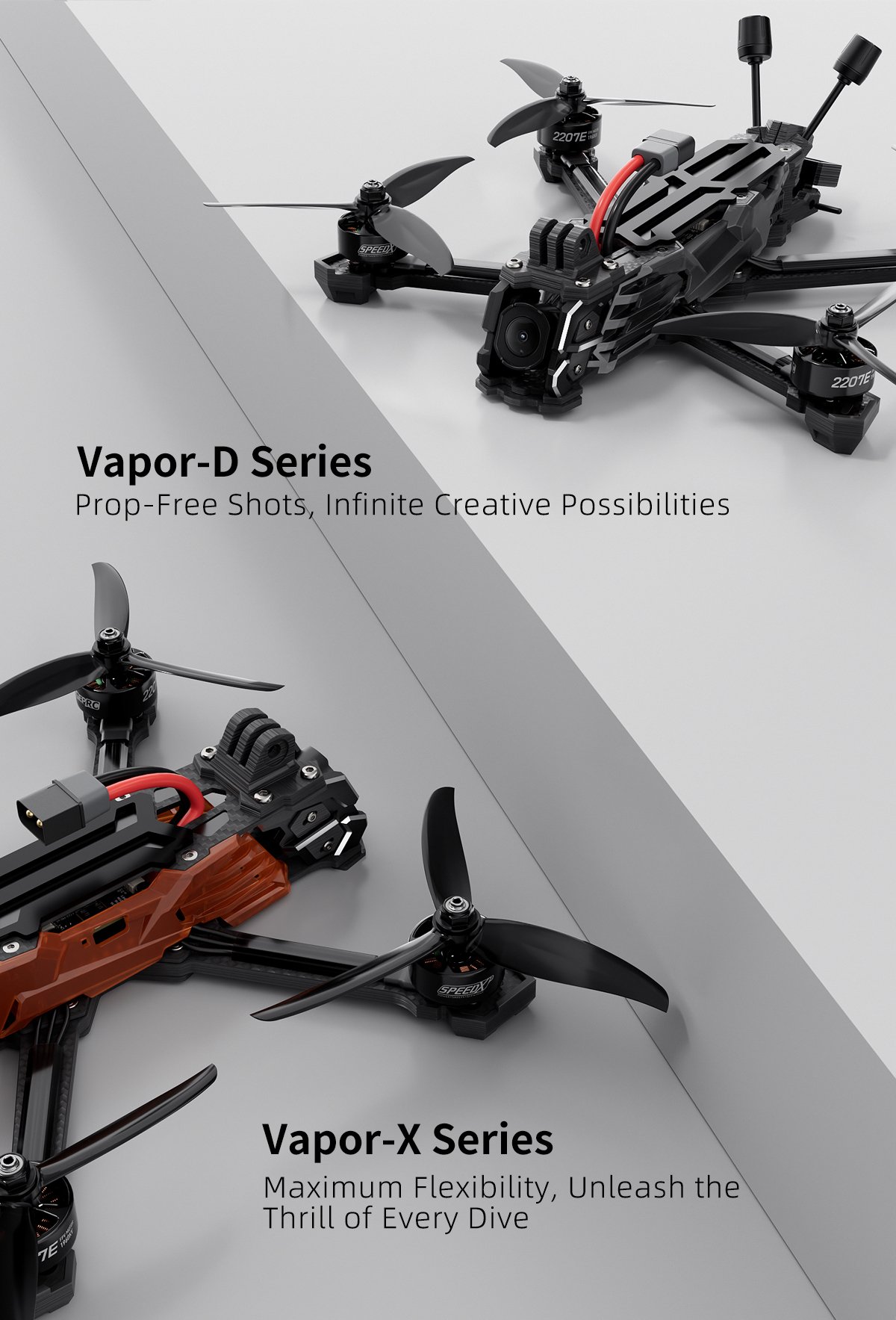

Available in both Wide X and DC versions to meet different flying styles.

Features

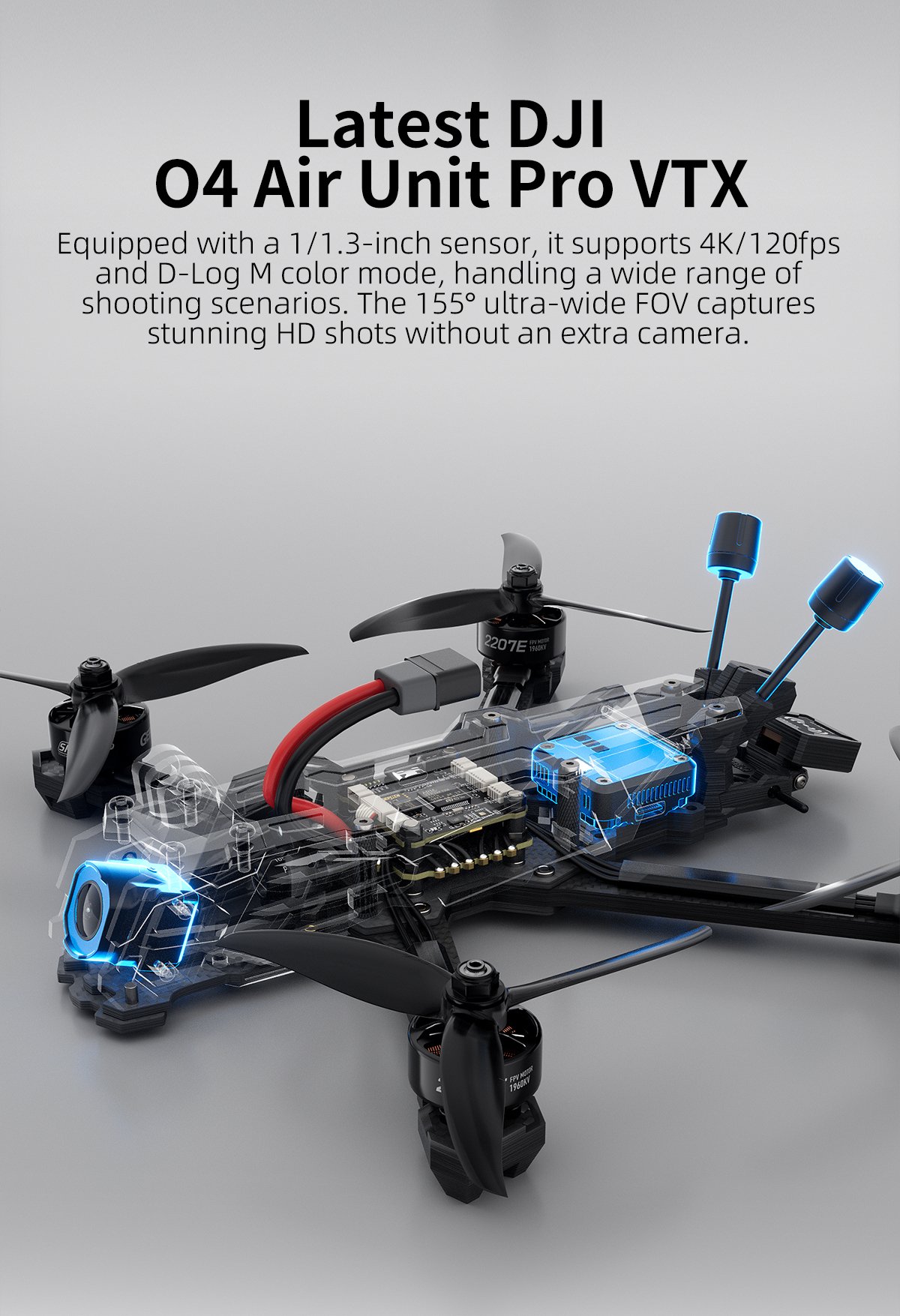

• DJI O4 Air Unit Pro with larger CMOS sensor for sharper image quality and better low-light performance.

• CNC aluminum lens mount for durability and a distinctive appearance.

• Equipped with GEPRC SPEEDX2 E-series motors for powerful and stable performance.

• Front lip design provides extra lens protection for worry-free flying.

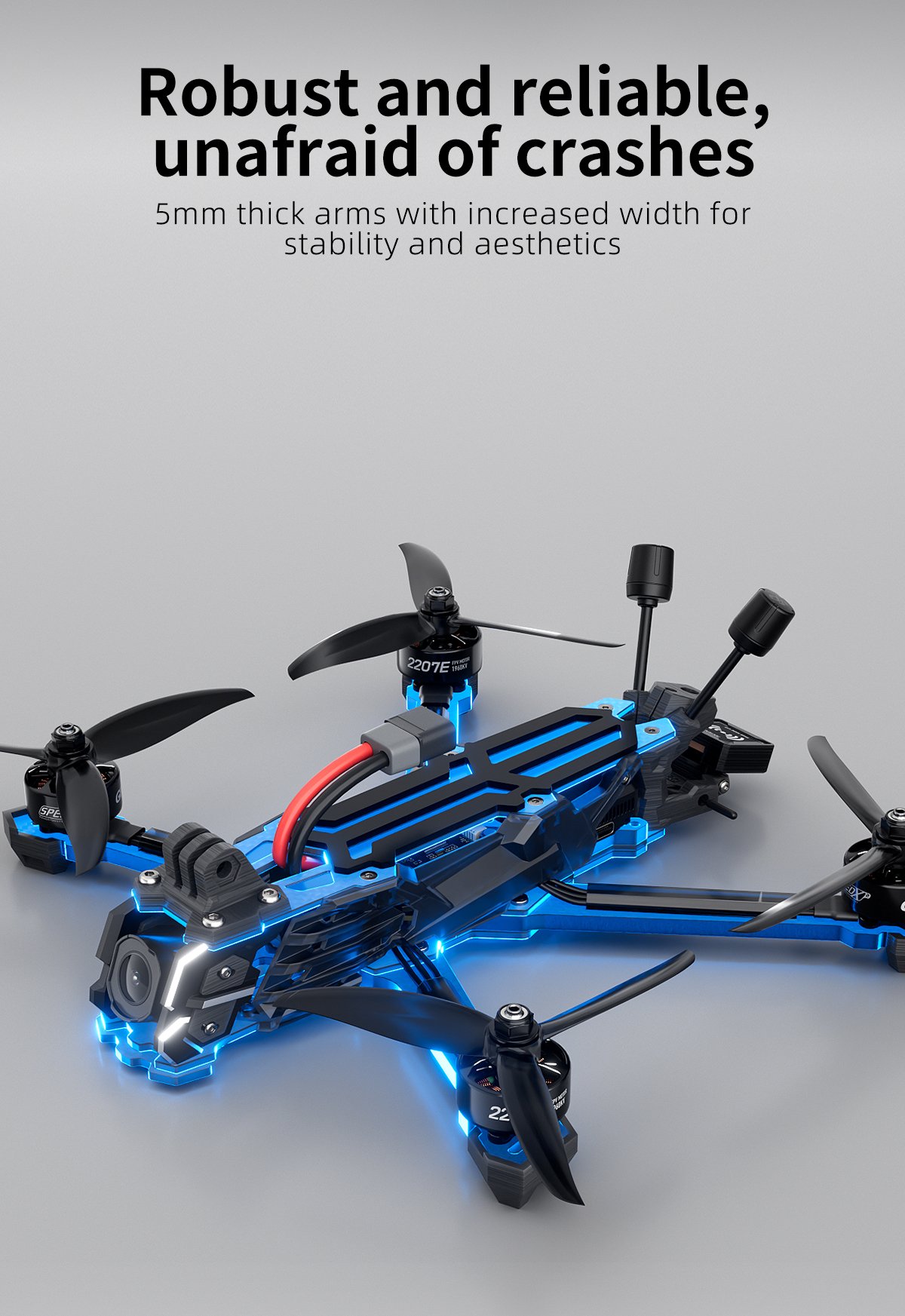

• Reinforced 5mm carbon fiber arms for durability while maintaining a lightweight build.

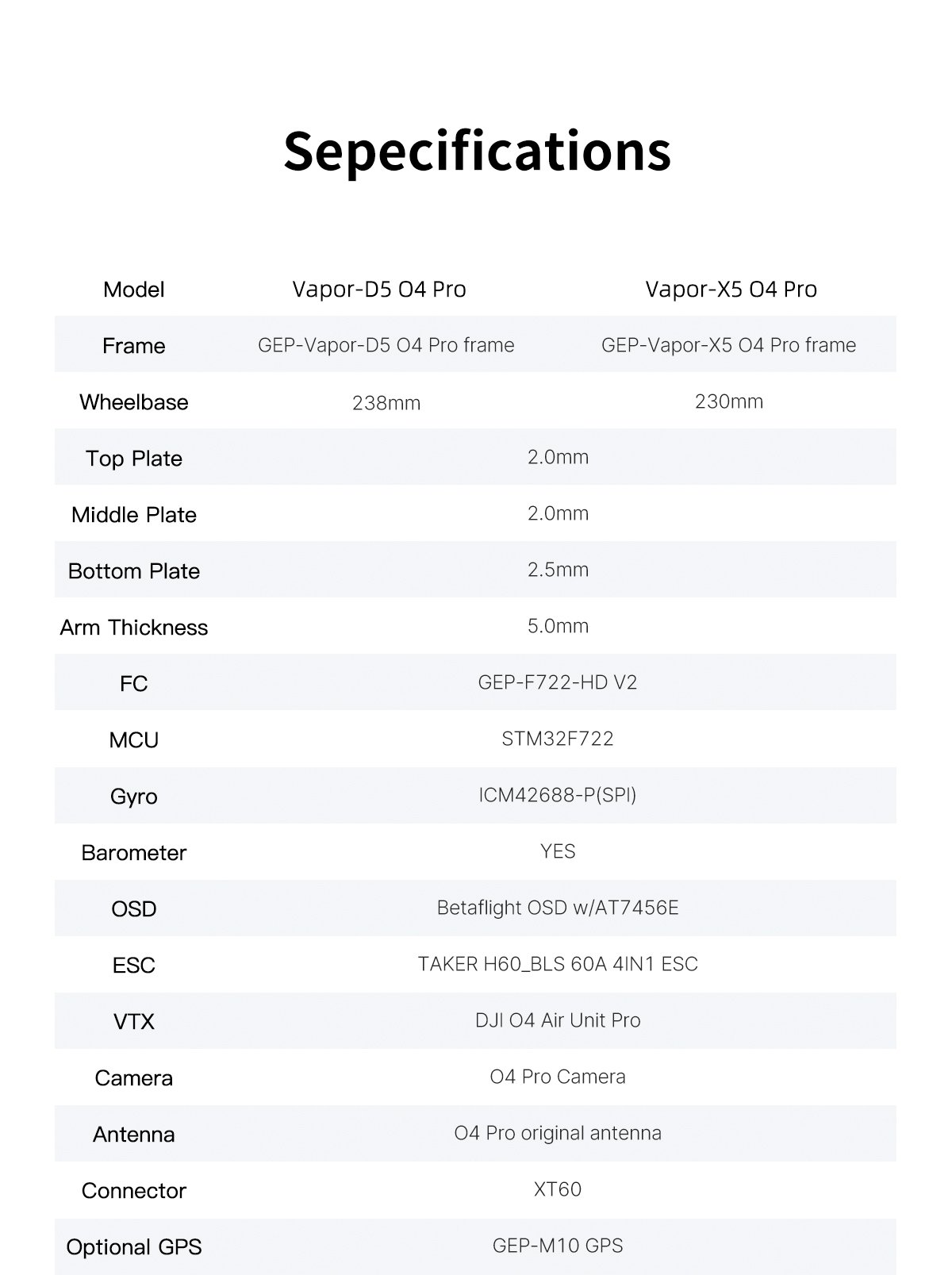

Specifications

• Model: Vapor-X5 O4 Pro

• Frame: GEP-Vapor-X5 O4 Pro Frame

• Wheelbase: 230mm

• Top Plate Thickness: 2.0mm

• Middle Plate Thickness: 2.0mm

• Bottom Plate Thickness: 2.5mm

• Arm Thickness: 5.0mm

• Flight Controller: GEP-F722-HD v2

• MCU: STM32F722

• Gyro: ICM42688-P (SPI)

• Barometer: Yes

• OSD: Betaflight OSD w/ AT7456E

• ESC: TAKER H60_BLS 60A 4IN1 ESC

• VTX: DJI O4 Air Unit Pro

• Camera: O4 Pro Camera

• Antenna: O4 Pro Original Antenna

• Power Connector: XT60

• Optional GPS: GEP-M10 GPS

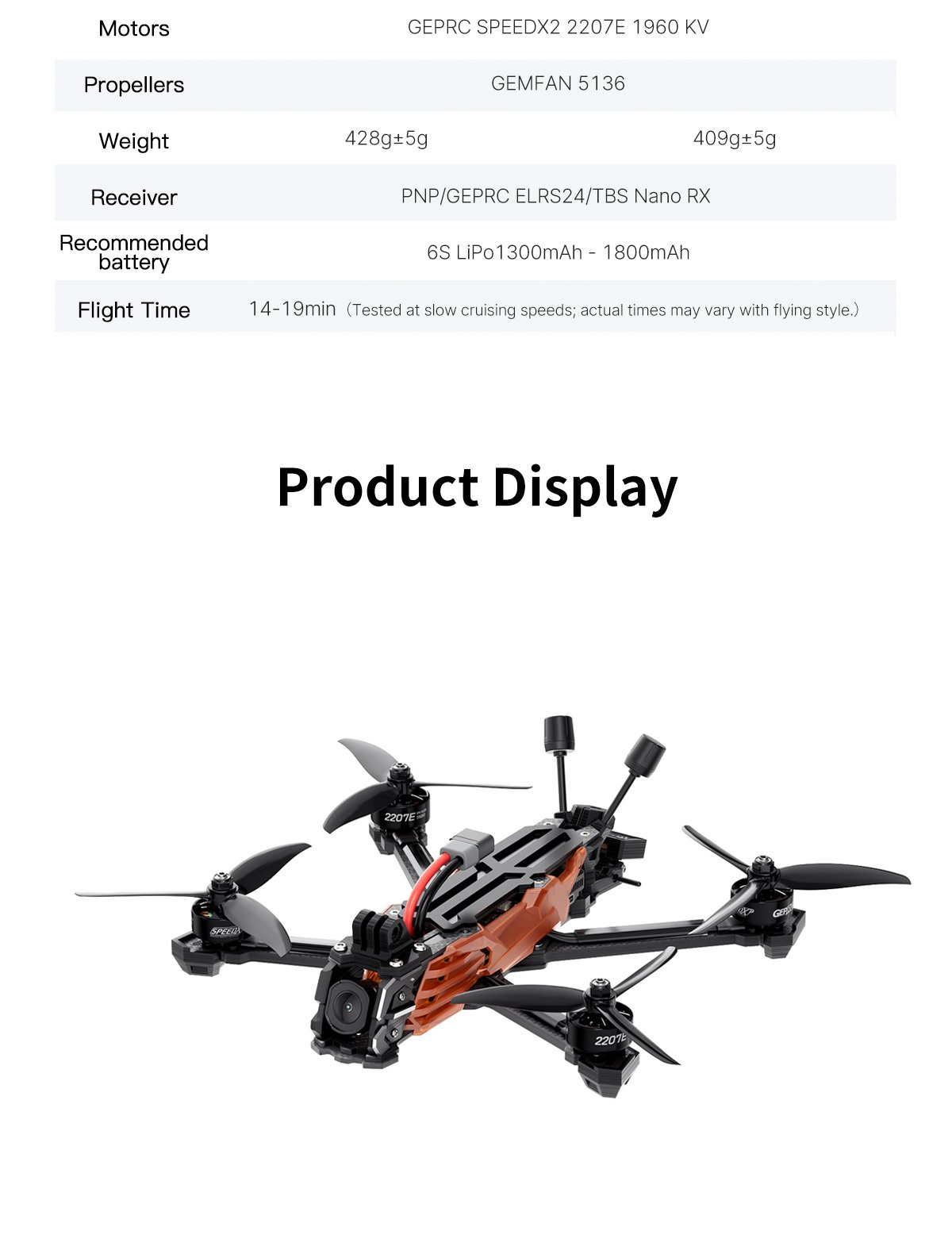

• Motor: GEPRC SPEEDX2 2207E 1960KV

• Propeller: GEMFAN 5136

• Weight: 409g ±5g (PNP version)

• Receiver: TBS Nano RX

• Recommended Battery: 6S LiPo 1300–1800mAh

• Flight Time: 14–19 min

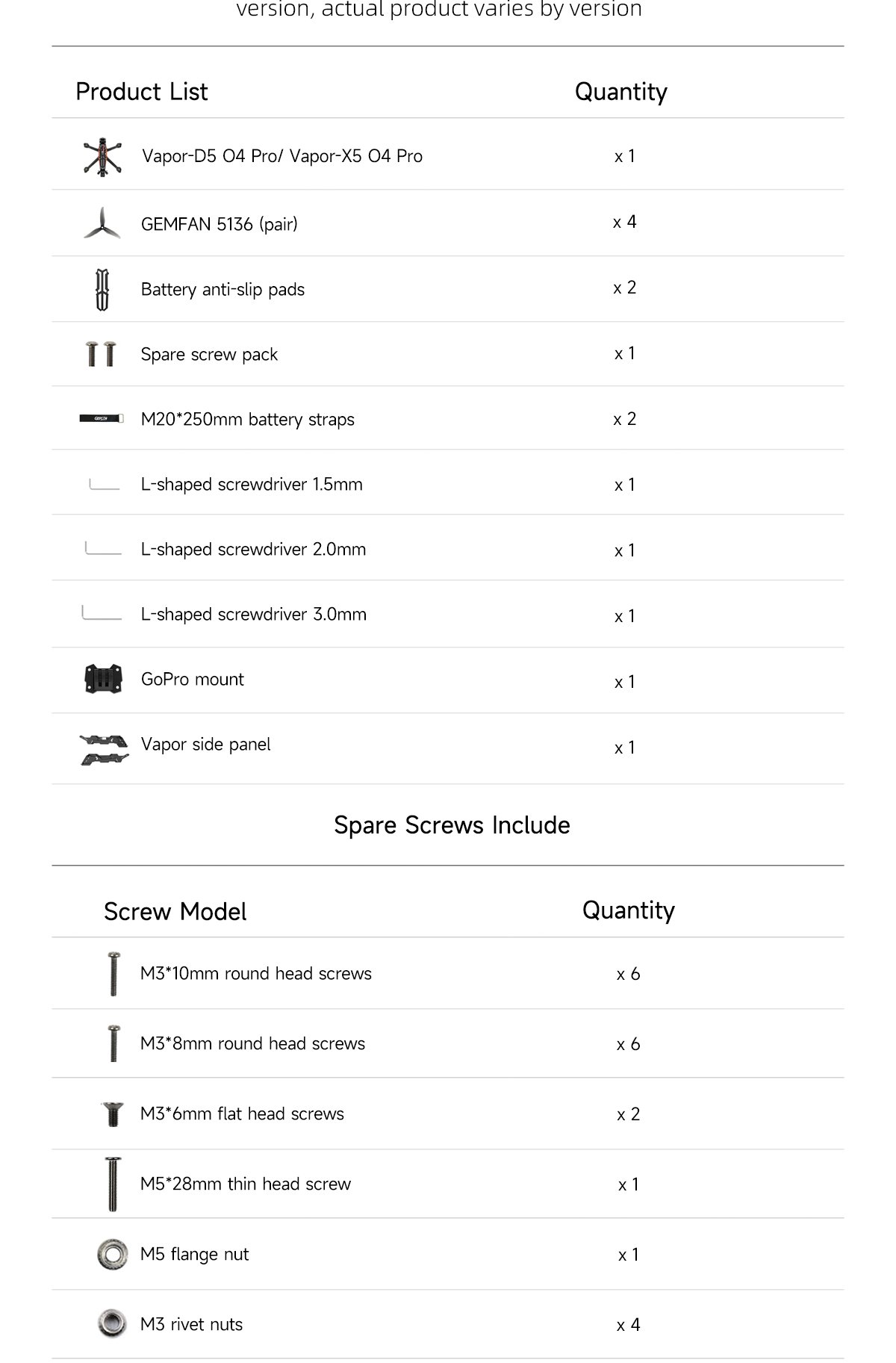

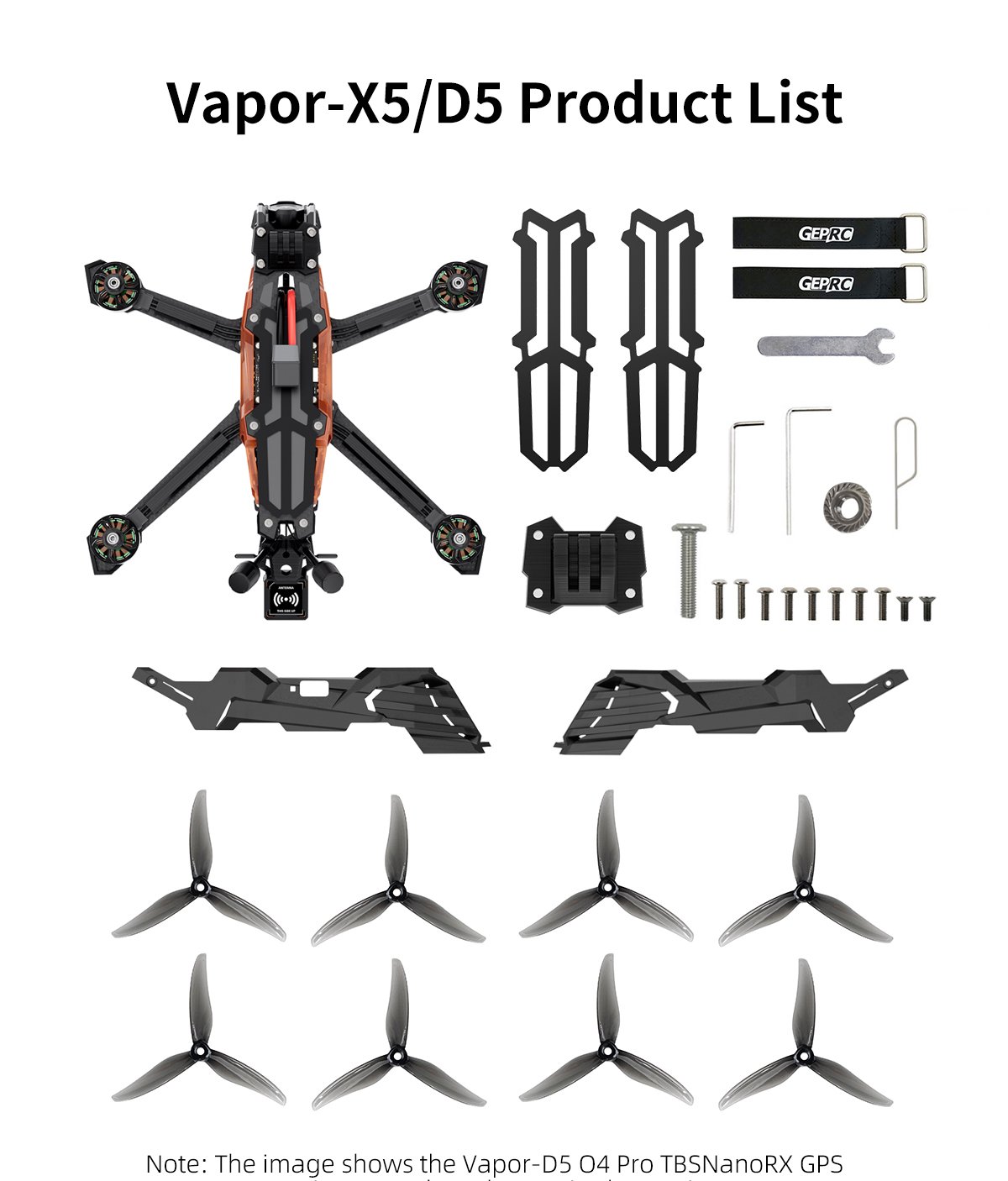

Includes

• 1 × Vapor-X5 O4 Pro

• 2 × GEMFAN 5136 Propellers

• 2 × Battery Anti-slip Pads

• 1 × Spare Screw Set

• 1 × Vapor Side Panel

• 2 × M20×250mm Battery Straps

• 1 × L-shaped 1.5mm Screwdriver

• 1 × L-shaped 2.0mm Screwdriver

• 1 × GoPro Mount

Spare Screw Pack Includes:

• 6 × M3×10mm Round Head Screws

• 6 × M3×8mm Round Head Screws

• 2 × M3×6mm Flat Head Screws

• 1 × M5×28mm Thin Head Screw

• 1 × M5 Flange Nut

• 4 × M3 Rivet Nuts

• Optimized for DJI O4 Air Unit Pro – Larger CMOS sensor for sharper, clearer images and improved low-light performance.

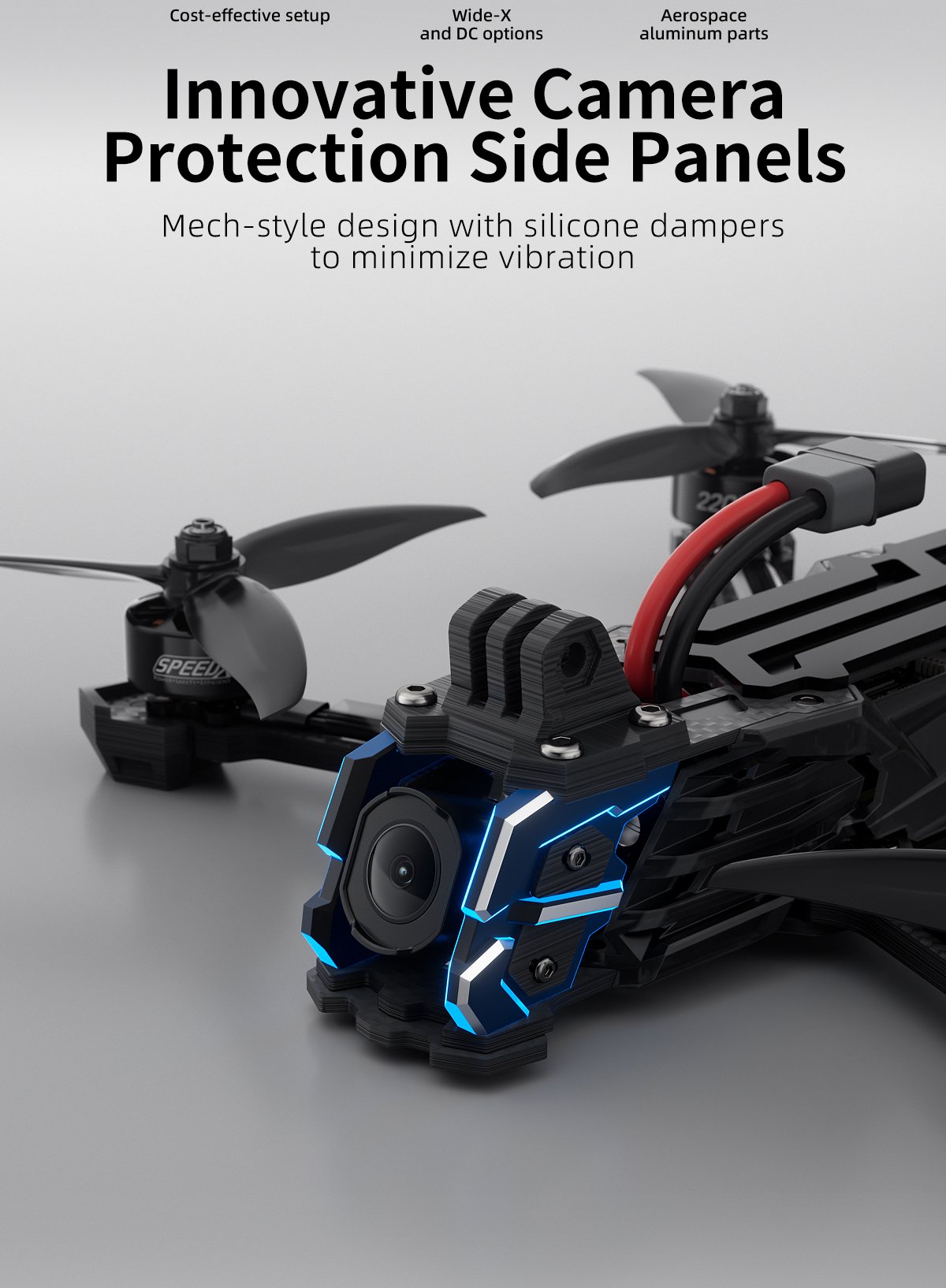

• Vibration Reduction & Lens Protection – CNC aluminum housing with silicone damping and front-lip design to safeguard the camera.

• Powerful & Stable Flight – Equipped with GEPRC SPEEDX2 E-series motors for smooth, responsive performance.

• Durable Lightweight Build – Reinforced 5mm carbon fiber arms balance strength and agility.

• Factory-Tuned PID – Smooth flight experience right out of the box, no extra tuning required.
