iFlight CineFlow 5 Long Range FPV Drone with 5 km HD Video Transmission

CineFlow 5 O4 HD BNF – Next-Gen 5-Inch Cinematic Freestyle FPV Drone
The iFlight CineFlow 5 represents the new era of 5-inch cinematic freestyle drones, perfectly blending sleek design with easy upkeep and a powerful electronic core. Crafted for immersive FPV flight and professional-grade video capture, CineFlow 5 delivers outstanding agility and stunning footage. Whether you're pushing freestyle limits, chasing high-speed targets, or filming from afar, this drone guarantees precision, reliability, and cinematic quality in every flight.

Update Notice

• March 11, 2025: TPU parts in BNF versions have been upgraded to injection-molded components for enhanced durability.

Key Features

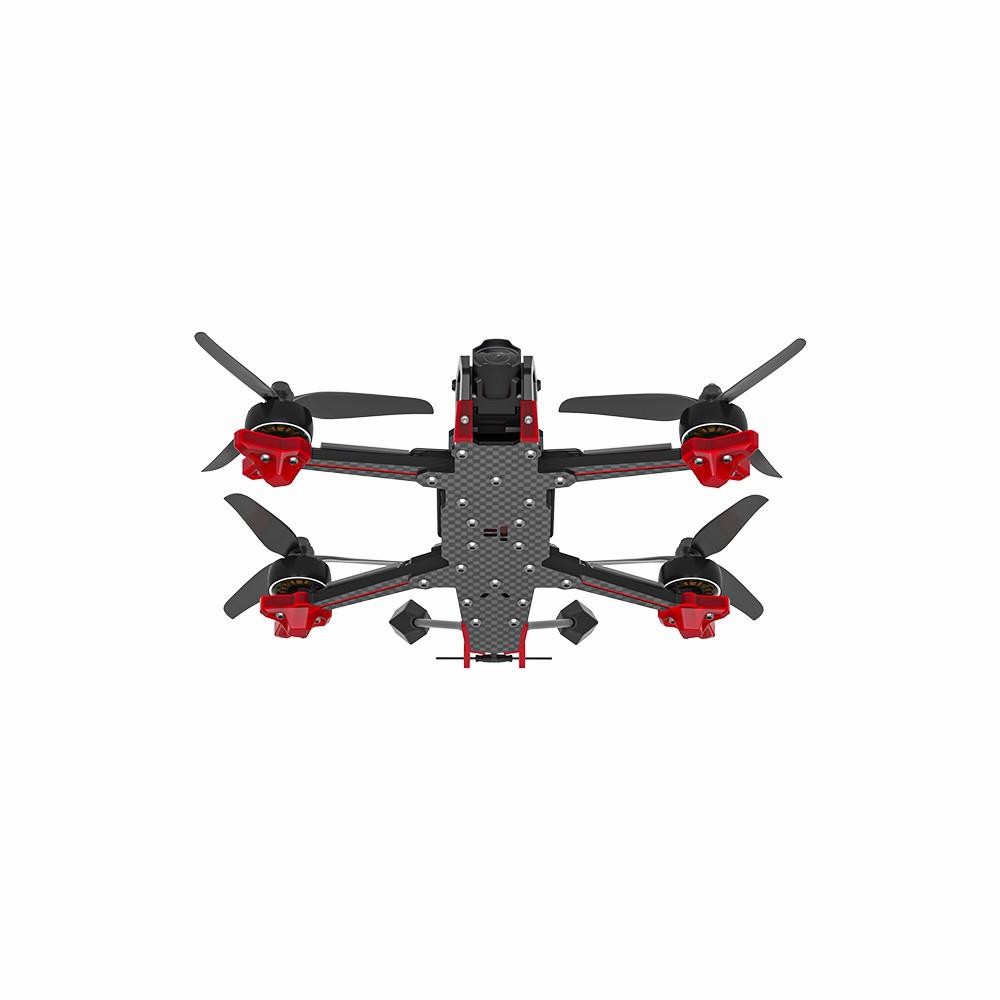

Innovative Frame with No Propellers in View

• The SH Series features a smart frame design eliminating propeller obstruction for crystal-clear footage while maintaining freestyle maneuverability and balanced motor thrust.

Quick-Release Side Panels

• Easily removable side panels protect internal components from debris and simplify maintenance, ensuring a tidy, cable-free setup.

Advanced DJI O4 Video Transmission

• Equipped with DJI’s latest O4 Air Unit Pro featuring a 1.1/1.3-inch sensor and ultra-wide 155° lens, capturing detailed visuals even in low-light conditions.

• Real-time video streaming at 1080p/100fps delivers an immersive flying experience.

Low Hover Throttle (Down to 17%)

• Superior flight dynamics allow the CineFlow 5 to hover with minimal throttle input, enabling aggressive racing, high-speed chases, or acrobatic stunts with ease.

High-Performance Core Electronics

• Features BLITZ Mini F7 flight controller and BLITZ E55R 4-in-1 ESC with 65A max burst current for robust performance, improved stability, and efficient heat management.

Integrated High-Precision GPS Module

• Built-in GPS with protective TPU casing prevents signal loss and reduces flyaway risks, boosting flight safety.

Additional Highlights

• Rear battery plug with anti-spark filter optimizes balance and enhances stability while safeguarding circuitry.

• Front-mounted Air Unit improves cooling, reduces overheating, and extends component lifespan without coax cable replacement.

• Integrated action camera mount offers a sleek, aerodynamic design.

• Reinforced arm-base connection increases structural durability.

Specifications

• Model: CineFlow 5 O4 HD BNF

• Frame: H-shaped

• Flight Controller: BLITZ Mini F7

• ESC: BLITZ Mini E55R 4-in-1

• Video Transmission: DJI O4 Air Unit Pro

• Wheelbase: 222mm

• Motors: XING2 2207 2050KV

• Propellers: Nazgul F5

• Dimensions (L×W×H): 182 × 133 × 42 mm

• Weight: 488 ± 5 g

• Takeoff Weight: Approx. 733 ± 5 g (with 6S 1400mAh battery)

• Max Speed: 190 km/h

• Max Takeoff Altitude: 7000 m

• Max Hover Time: ~12 minutes

• Max Flight Distance: 5 km

• Operating Temp.: -20°C to 40°C

• Antennas: Dual

• GNSS Support: GPS, SBAS, Galileo, QZSS, Glonass

DJI O4 Air Unit Pro Video Transmission Specs

• Sensor Size: 1/1.3-inch

• Field of View: 155° ultra-wide

• ISO Range: 100–25600

• Video: 1080p/100fps (H.265)

• Max Bitrate: 130 Mbps

• Color Profiles: Normal / D-Log M

• Stabilization: RockSteady 3.0+

• Operating Frequencies: 5.170–5.250 GHz & 5.725–5.850 GHz

• Max Transmission Range: Up to 15 km (FCC), 8 km (CE/SRRC)

• Storage: 4GB onboard + microSD support up to 512GB

• Weight: ~32g

• Module Size: 33.5 × 33.5 × 13 mm

Included in Package

• 1 × SH CineFlow 5 O4 6S HD BNF

• 2 × Antennas

• 1 × Battery Pad

• 2 × Propeller pairs

• 2 × Battery Straps

• Crystal-Clear Video Link — DJI O4 Air Unit Pro provides ultra-stable 1080p/100fps live video with a 155° ultra-wide FOV and up to 5 km transmission range.

• Durable & Innovative Frame — H-shaped design with no props in view, quick-release side panels, and reinforced structure for freestyle and cinematic flights.

• Powerful Flight Core — BLITZ Mini F7 FC and BLITZ E55R 65A ESC ensure smooth, high-speed maneuvers with enhanced cooling and flight stability.
