Chimera7 Pro V2 O4 6S HD Long-Range FPV Drone 15km Digital HD Video Link 1080p Low Latency

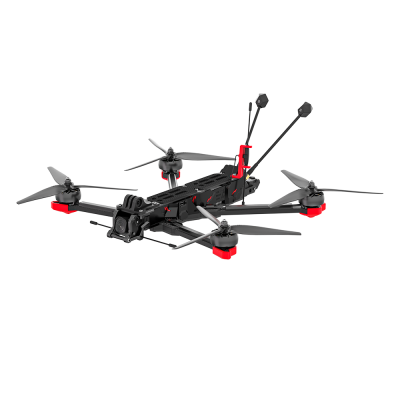

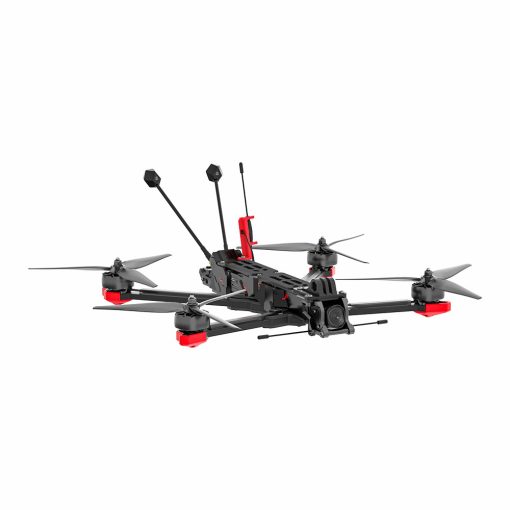

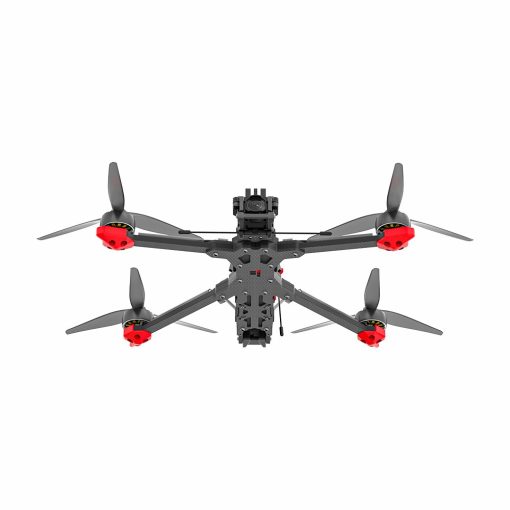

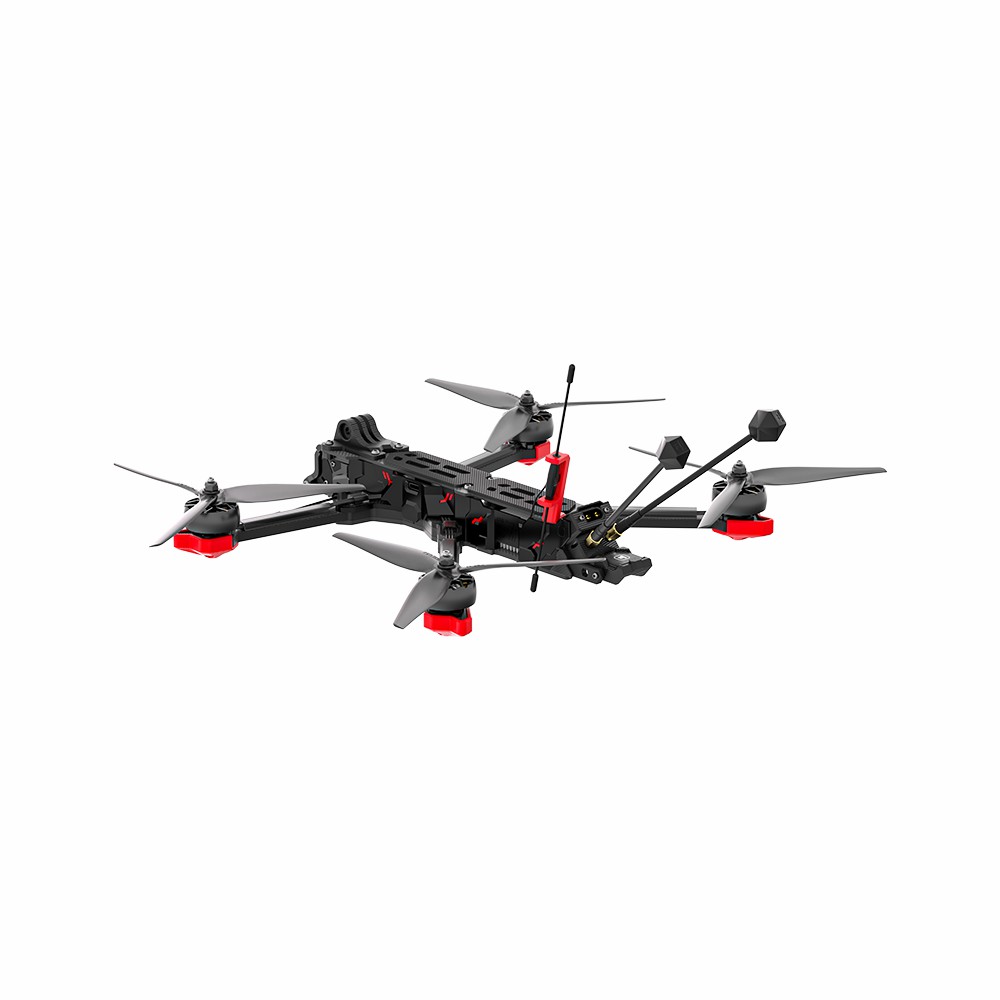

Chimera7 Pro V2 6S O4 HD – The Ultimate Long-Range FPV Drone
Equipped with the cutting-edge DJI O4 Air Unit, the Chimera7 Pro V2 6S HD offers breathtaking perspectives and unmatched long-distance video transmission. This highly efficient 7.5-inch iFlight drone unlocks access to remote locations previously out of reach, supporting larger batteries for extended flight times — perfect for adventurous flights over alpine peaks or vast landscapes. Its ultra-stiff frame minimizes vibrations, while the powerful XING2 2809 motors deliver optimal control over 7.5-inch props. You can mount sizable batteries on the top or even larger ones underneath for ultimate flexibility.

---

Latest Update

• February 13, 2025: Propellers now come in two different versions and are shipped at random.

---

Key Features

Robust & Smooth XING2 Motors

• Enhanced version of the best-selling XING series

• Durable one-piece Unibell design for superior strength

• Titanium alloy shaft with reinforced joint

• Crash-resistant 7075 aluminum bell housing

• High-quality, long-lasting Japanese NSK bearings

• Precision center-slotted N52H curved magnets

• XING O-ring bushing gap protection for reliability

Advanced Chimera7 Pro Frame for Maximum Protection

• Effectively shields flight controller and ESCs from dirt and debris

• Prevents contamination and potential short circuits

• Strategic airflow design for improved cooling without compromising weight

• Illuminated side panels and full 360° TPU guards for crash resilience

DJI O4 Video Transmission System

• Up to 13 km max video transmission distance (region dependent)

• Ultra-low latency down to 24 ms

• Crisp 1080p at 100fps HD video quality

• Maximum transmission bitrate of 60 Mbps

4K Stabilized Recording & Ultra-Wide 155° Lens

• Large 1/1.3-inch sensor delivering sharp, immersive footage

• RockSteady 3.0 stabilization technology for smooth video

Safe Battery Connection with Anti-Spark Filter

• Protective circuitry minimizes sparks when connecting batteries

• Extends the lifespan of XT60 connectors

• Prevents voltage/current spikes to protect electronics

Pre-installed GPS & Long-Range Antenna

• GPS enabled with Betaflight GPS Rescue mode ready (default off)

• Custom iFlight 100mm long-range antenna ensures reliable signal over distances

---

Specifications

• Product Name: Chimera7 Pro V2 6S HD

• Frame Geometry: DC (DeadCat)

• Flight Controller: BLITZ F722

• ESC: BLITZ E55 4-in-1 2-6S 55A

• Video Transmission: DJI O4 Air Unit Pro

• Wheelbase: 327mm ± 2mm

• Motors: XING2 2809 1250KV

• Propellers: HQ 7.5×3.7×3 / HQ 7.5×3×3 (shipped randomly)

• Weight (frame only): 725 ± 5 g

• Takeoff Weight (with 8000mAh battery): Approx. 1621 ± 5 g

• Dimensions (L×W×H): 270 × 199 × 34 ± 2 mm

• Max Speed: 140 km/h

• Max Takeoff Altitude: 3200 m

• Max Hover Time: Approx. 30 minutes (no payload, 21700 6S 8000mAh battery)

• Operating Temperature Range: -10°C to 40°C

• Antennas: Dual antennas

• GNSS Support: GPS, SBAS, Galileo, QZSS, Glonass

---

DJI O4 Air Unit Pro Video Transmission

• Image Sensor: 1/1.3-inch

• Lens Field of View: 155° ultra-wide

• ISO Range: 100–25600

• Video Resolution: 1080p at 100fps (H.265 encoding)

• Video Format: MP4; max bitrate 130 Mbps

• Color Modes: Normal Mode / D-Log M

• Stabilization: RockSteady 3.0+ (shooting angle limited when enabled)

• Live View Quality: 1080p@100fps

• Frequency Bands: 5.170–5.250 GHz & 5.725–5.850 GHz

• Transmitter Power (EIRP): varies by region (FCC up to 33dBm at 5.8GHz)

• Max Transmission Range: Up to 15 km (FCC), 8 km (CE/SRRC) with compatible DJI goggles

• Communication Bandwidth: Max 60 MHz

• Built-in Storage: 4GB; supports microSD up to 512GB

• Weight: Approx. 32 g (with camera module)

• Dimensions (transmission module): 33.5 × 33.5 × 13 mm

---

Package Contents

• 1 × Chimera7 Pro V2 6S O4 HD

• 1 × Battery pad

• 2 × 7.5-inch propellers (pairs)

• 2 × Battery straps

• 1 × Screw set

---

Important Notes

• All iFlight BNF units undergo thorough pre-shipment testing to ensure top quality.

• iFlight products are intended for civilian use only. Any military or terrorist application is strictly prohibited.

• Partners must comply with all applicable export control and sanction laws. Non-compliance may result in immediate suspension or termination of partnership. See the official export policy for details.

---

Compatibility

• DJI Goggles 3 / DJI Goggles N3 + DJI FPV Remote Controller 3

• DJI Goggles 2 / DJI Goggles Integra + DJI FPV Remote Controller 2

• Other compatible radios supporting SBUS protocol (flight controller firmware must be configured accordingly)
