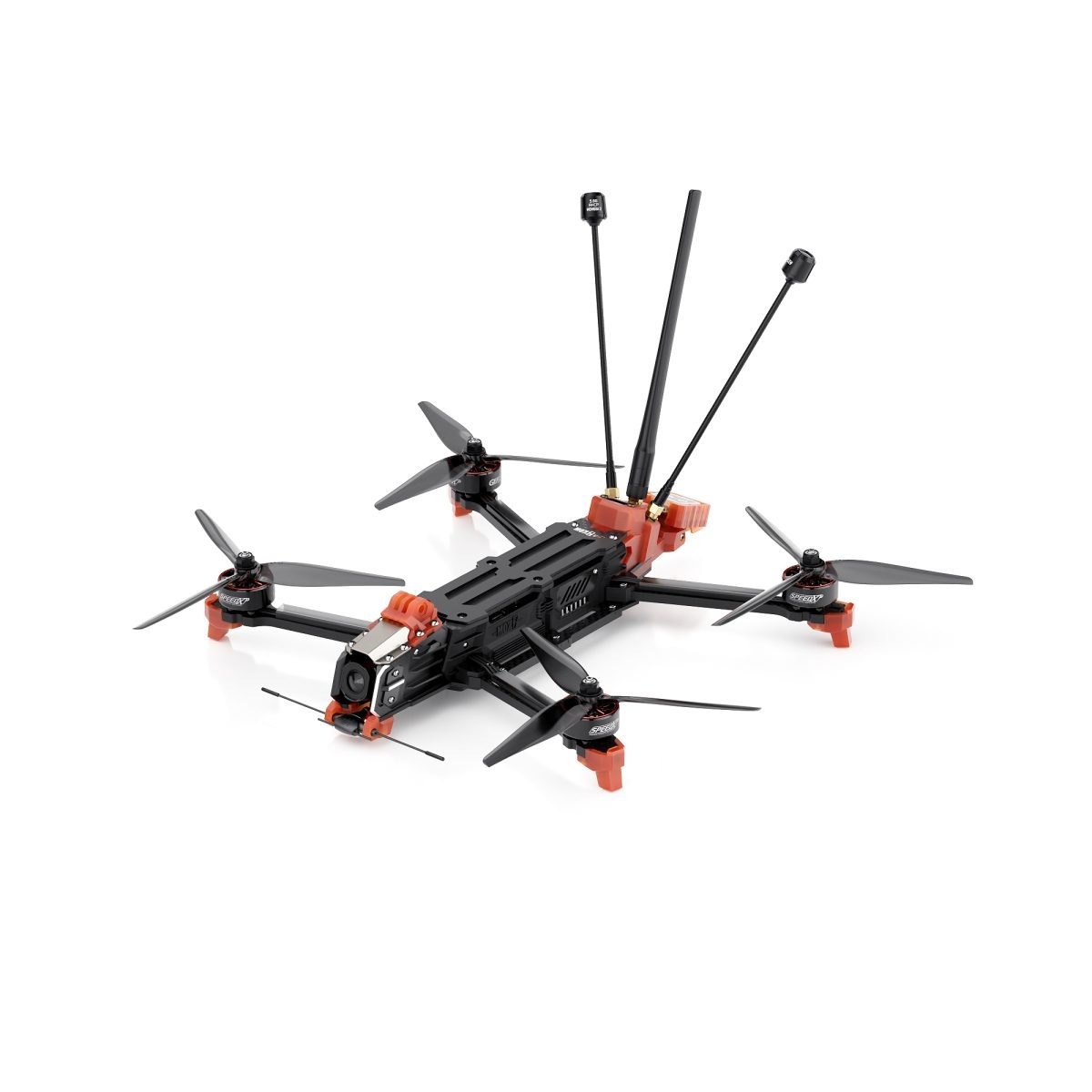

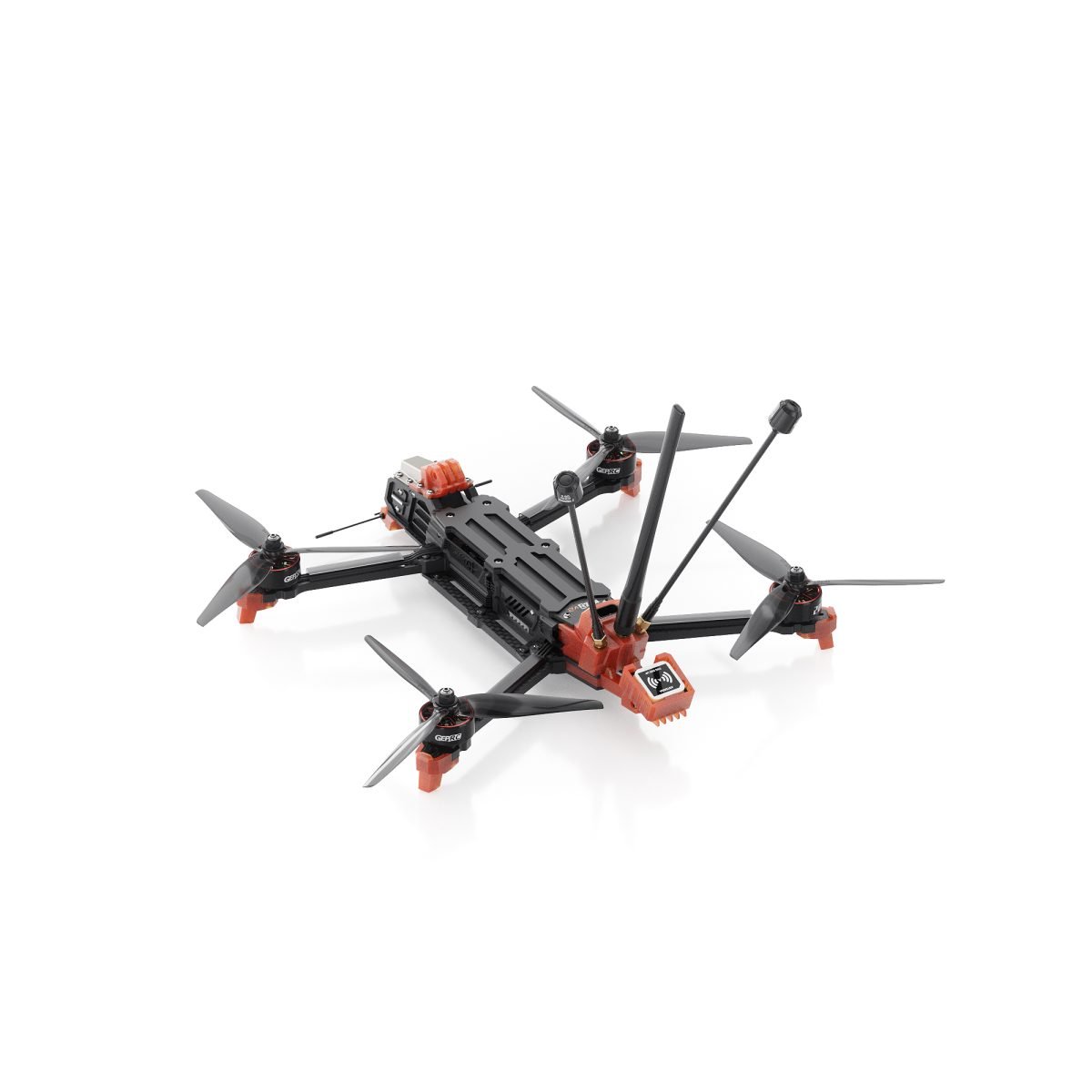

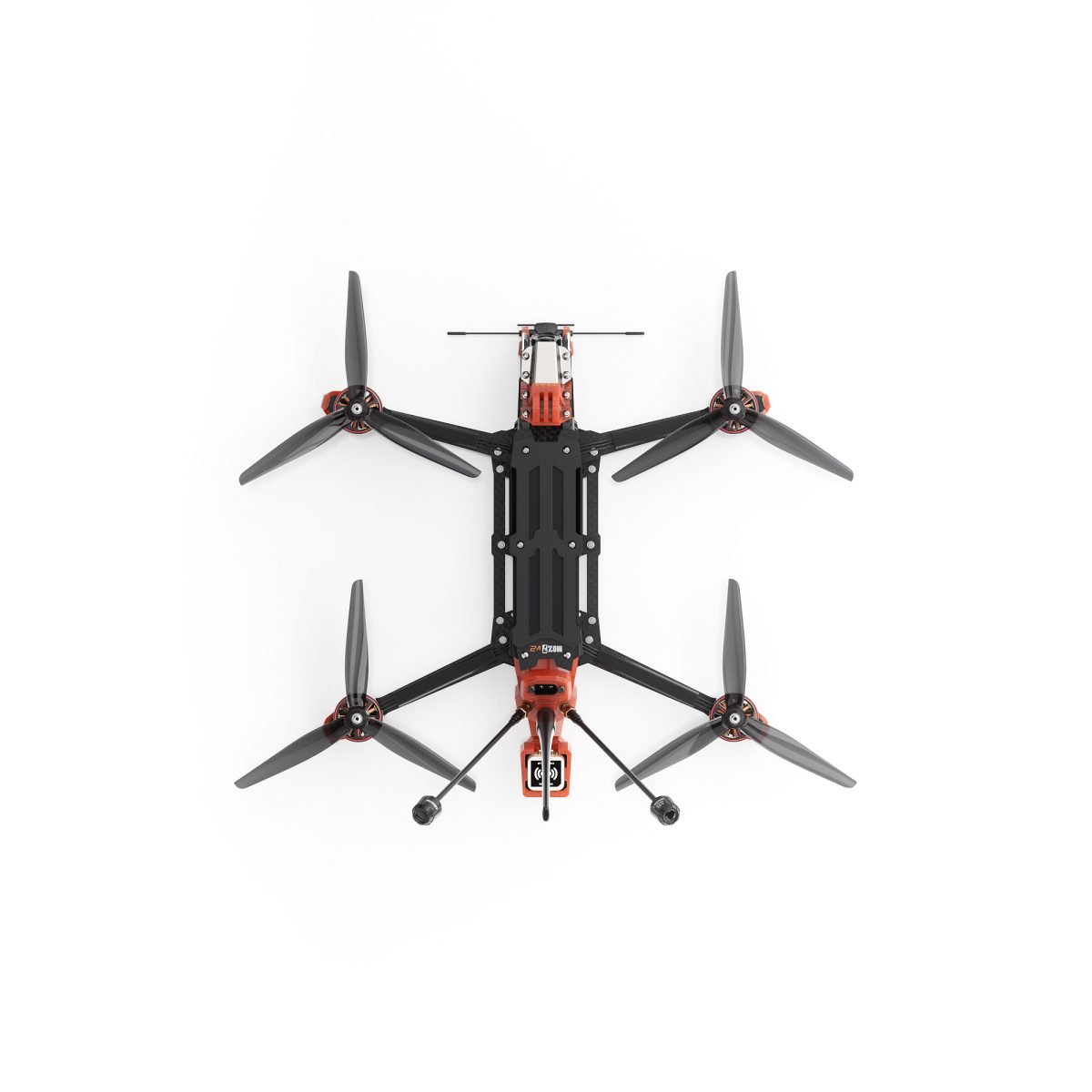

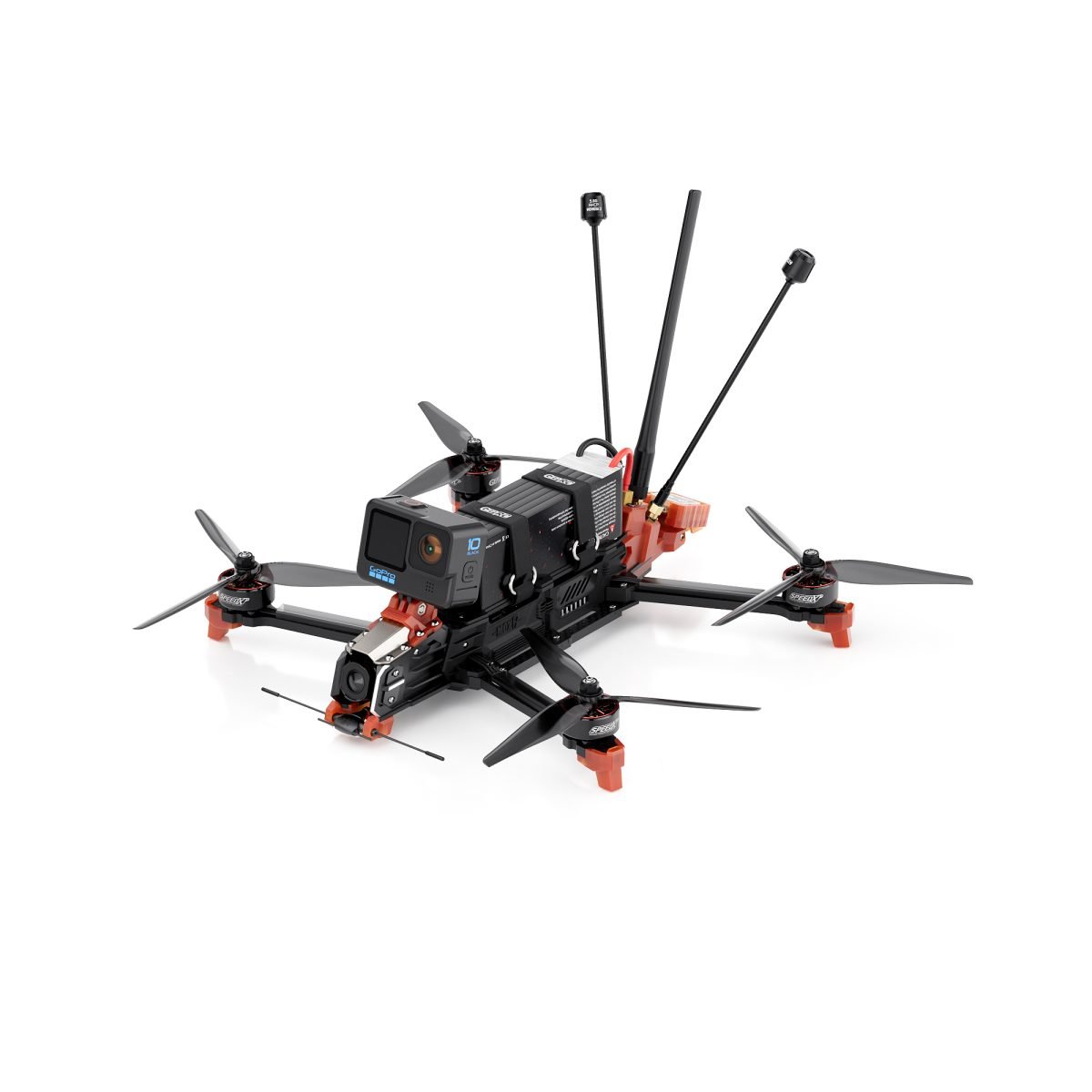

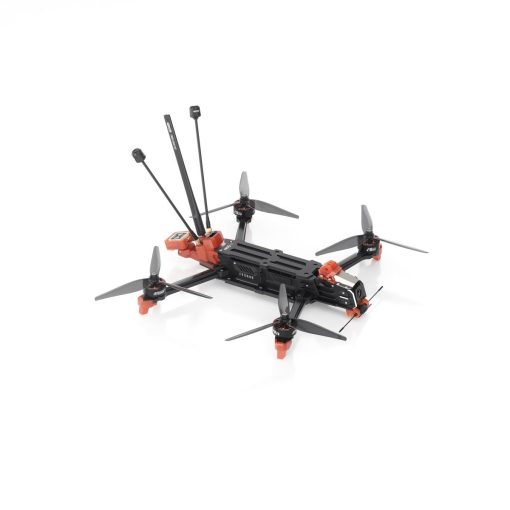

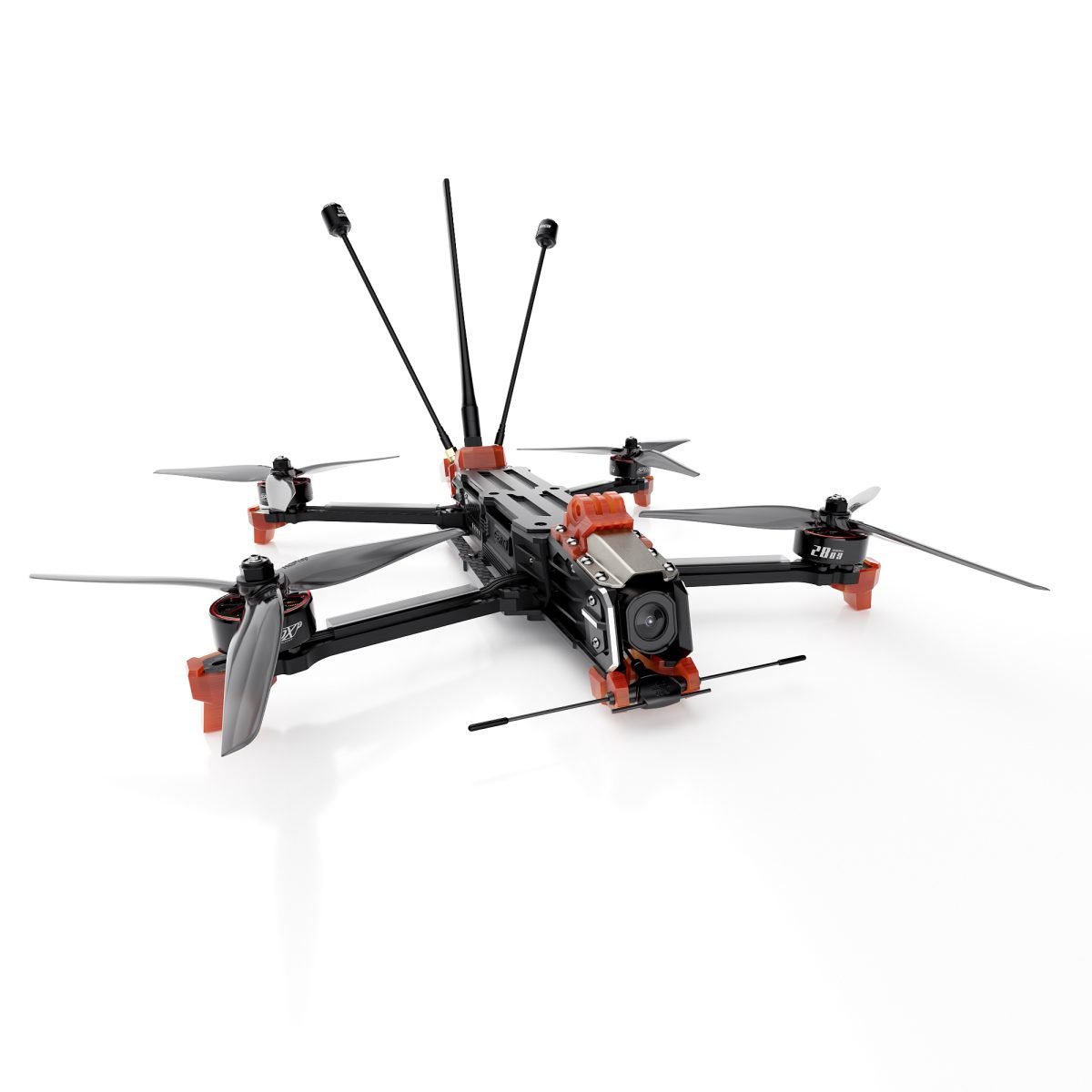

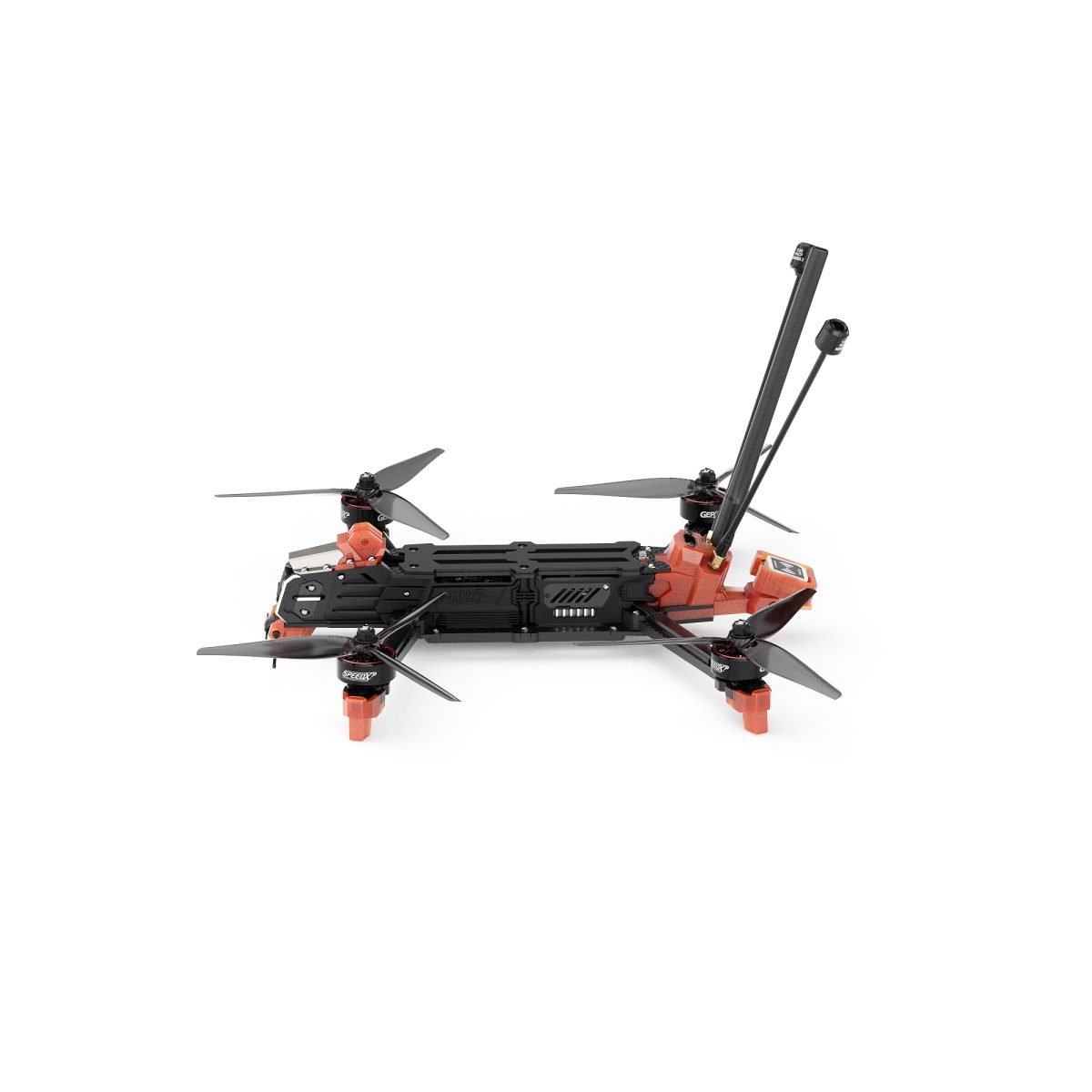

GEPRC MOZ7 V2 O4 Pro Long Range FPV Drone

Summary

The GEPRC MOZ7 V2 has been fully upgraded with the DJI O4 Air Unit Pro, unlocking next-level FPV visuals. Its 1/1.3-inch sensor captures an expanded dynamic range with excellent low-light capability, while the ultra-wide 155° FOV delivers breathtaking perspectives during low-altitude and high-speed flights. Enjoy 1080p/100fps transmission with H.265 encoding and record at up to 4K/120fps. With a maximum range of 15 km and 10-bit D-Log M color mode, every flight becomes an immersive visual journey.

The airframe has been reinforced for strength, the center of gravity repositioned for stability, and the camera protected by 7075 aerospace-grade aluminum. These upgrades ensure smoother footage with no props in view and longer-lasting durability. Paired with the TAKER H743 flight controller, GEP-M1025 GPS, and ELRS 915M/2.4G dual-band receiver, the MOZ7 V2 delivers long-range reliability and precise control. It also offers two flexible mounting options for both action cameras and batteries, making it versatile for freestyle, cinematic, and exploration flights.

The MOZ7 V2 is built to push FPV boundaries — offering unmatched flight endurance and a cinematic experience that redefines immersive drone flying.

---

Changelog

• Jul 19, 2025: Motor upgraded from GEPRC SPEEDX2 2809 V1.1 1450KV to GEPRC SPEEDX2 2809 V1.1 1280KV for better endurance.

• Jul 19, 2025: ESC updated from GEP-BL32 50A 96K 4IN1 to TAKER H65 8S 32Bit 65A 4IN1 ESC for smoother control and higher efficiency.

---

Features

1. Sturdy reinforced frame enhances structural integrity and flight stability.

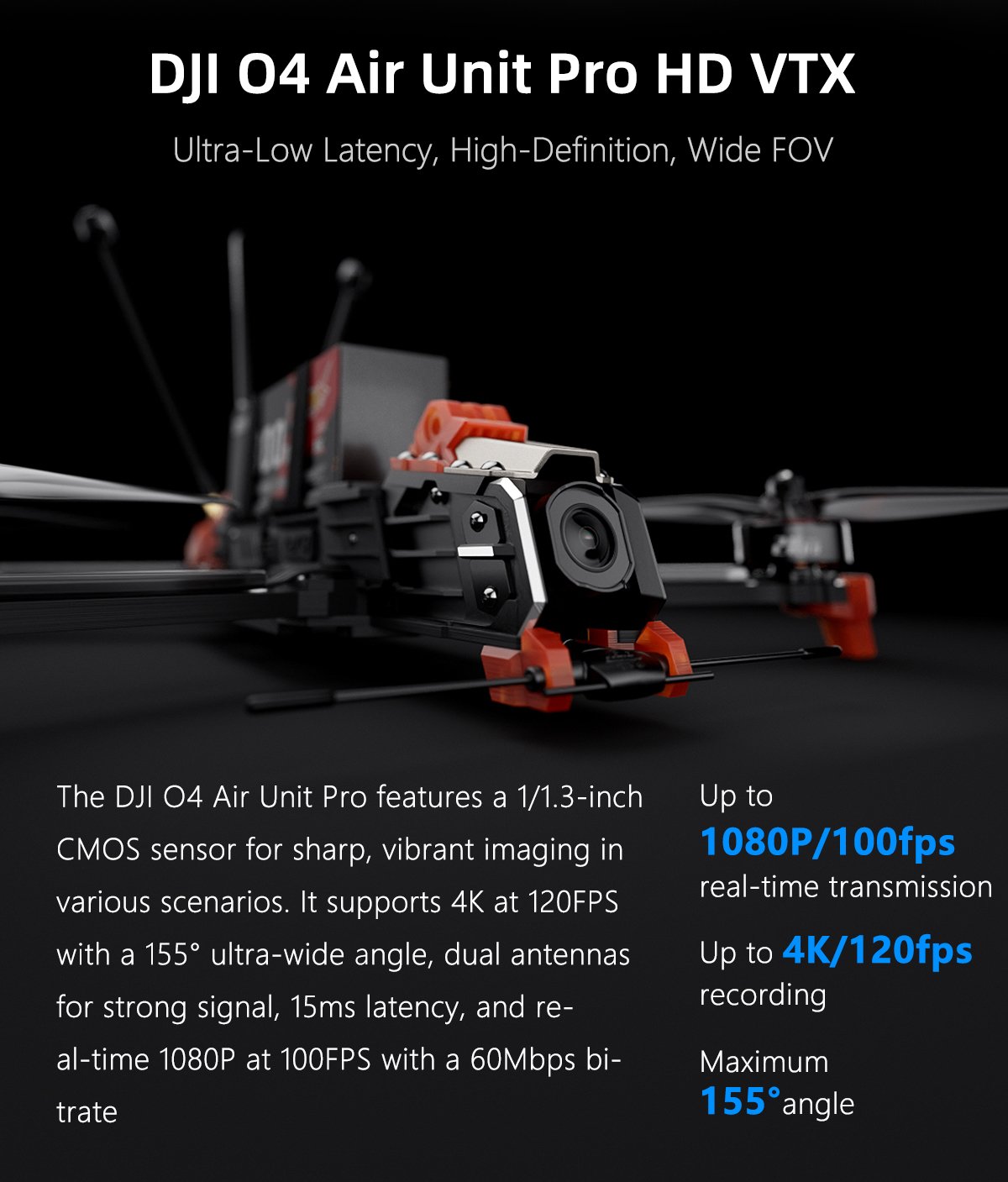

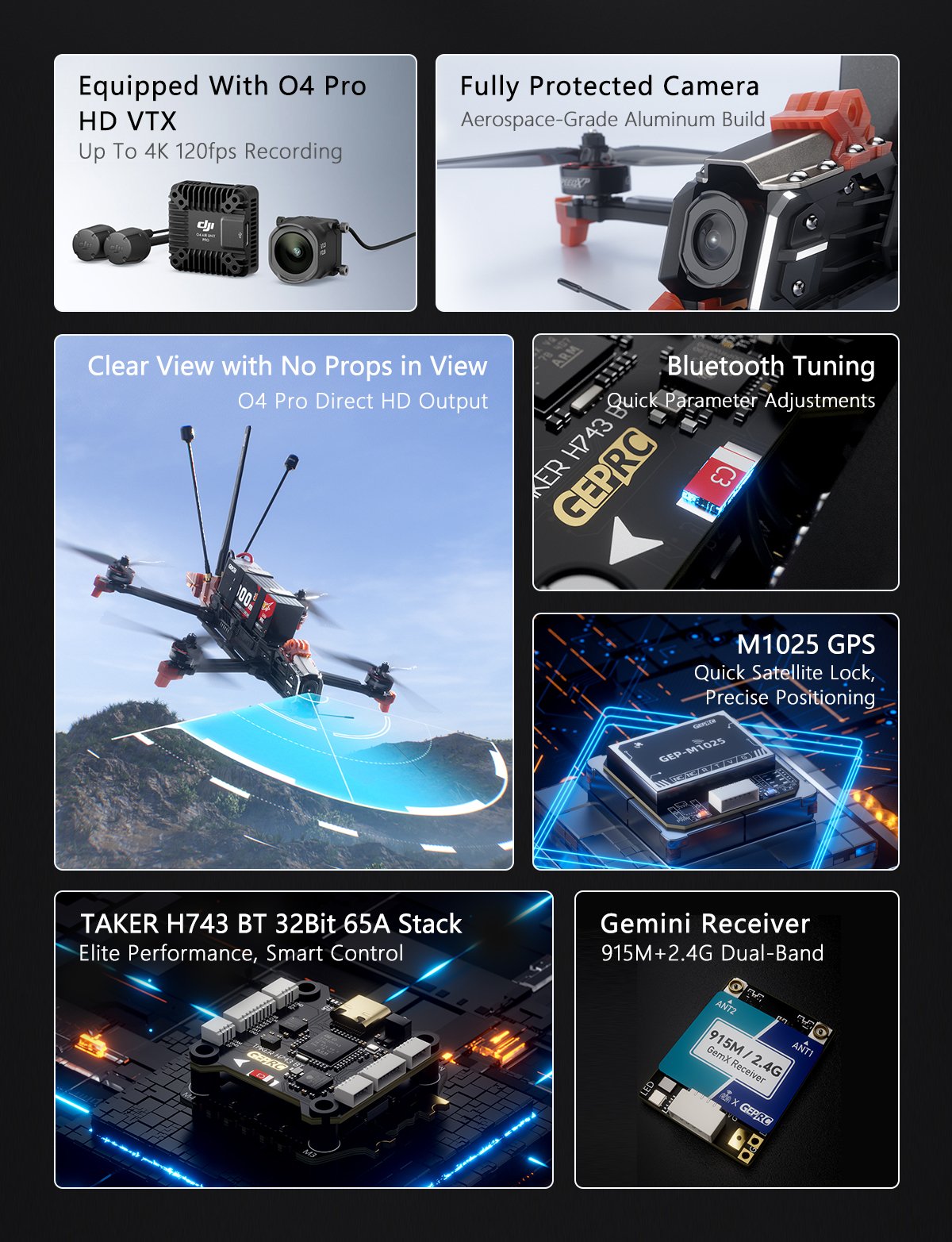

2. DJI O4 Air Unit Pro enables up to 4K/120fps recording and 1080p/100fps H.265 transmission.

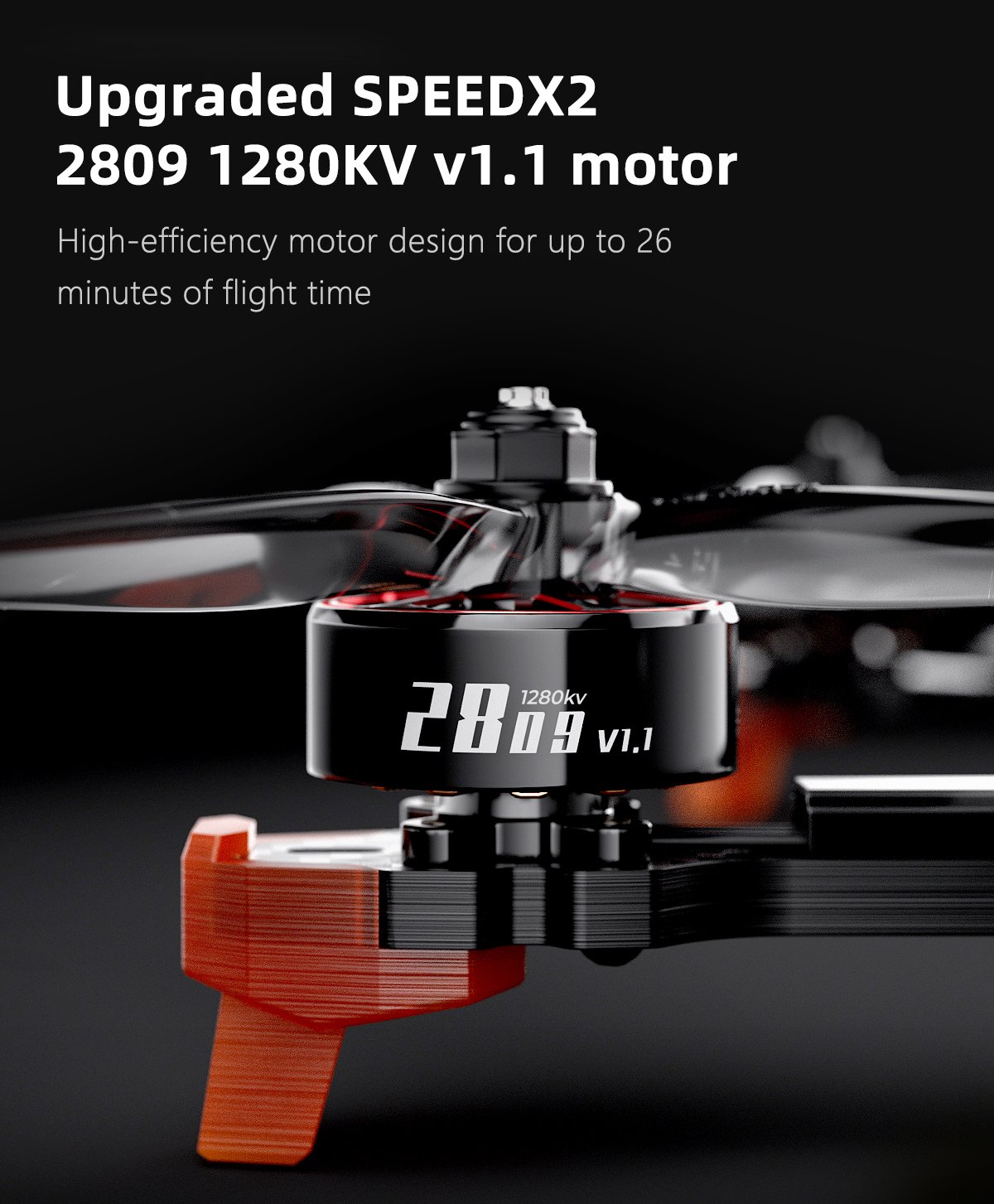

3. New 2809 1280KV V1.1 motors deliver extended flight time, reaching up to 25 minutes.

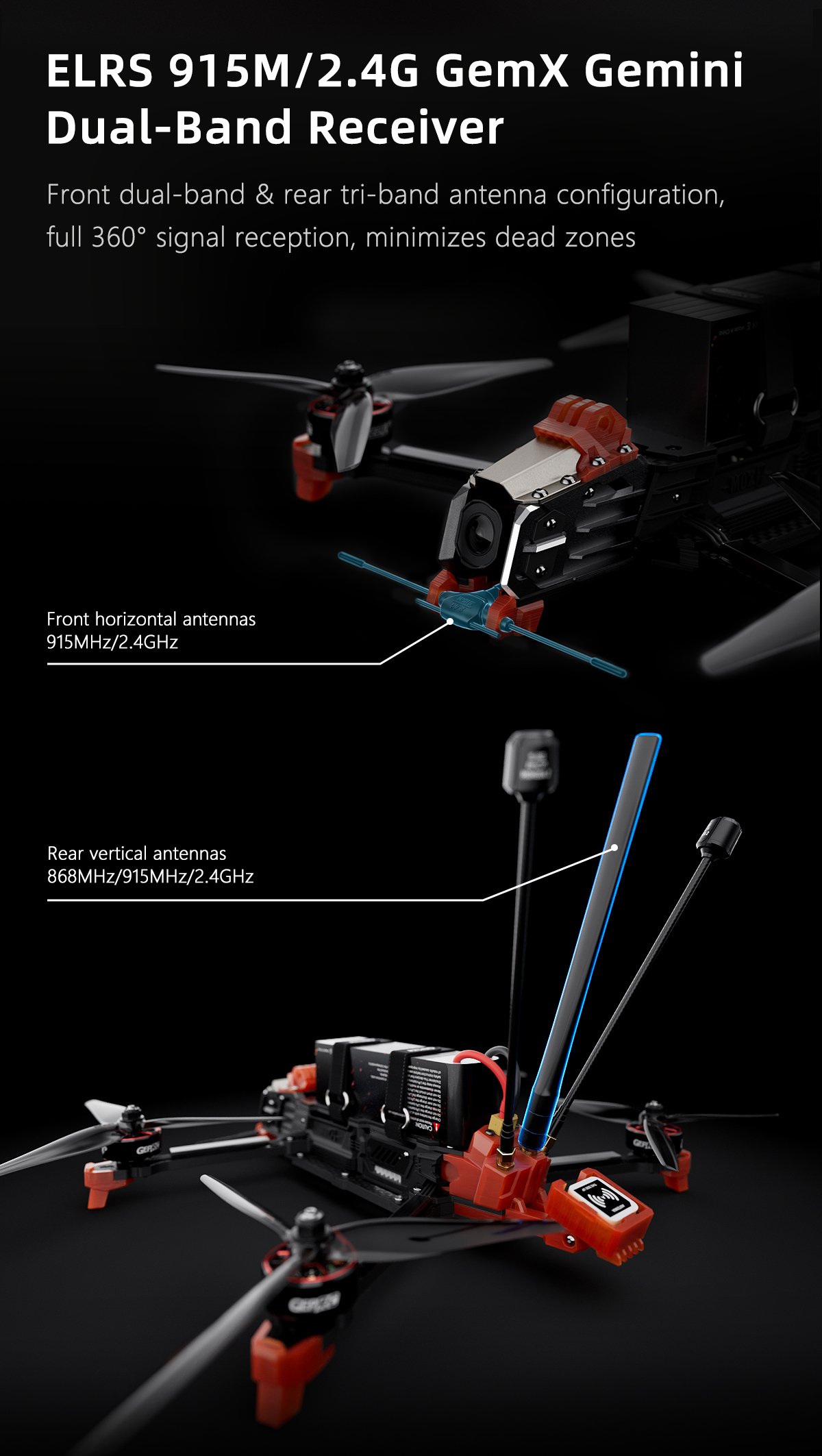

4. ELRS 915M/2.4G dual-band receiver minimizes blind spots with a unique antenna orientation.

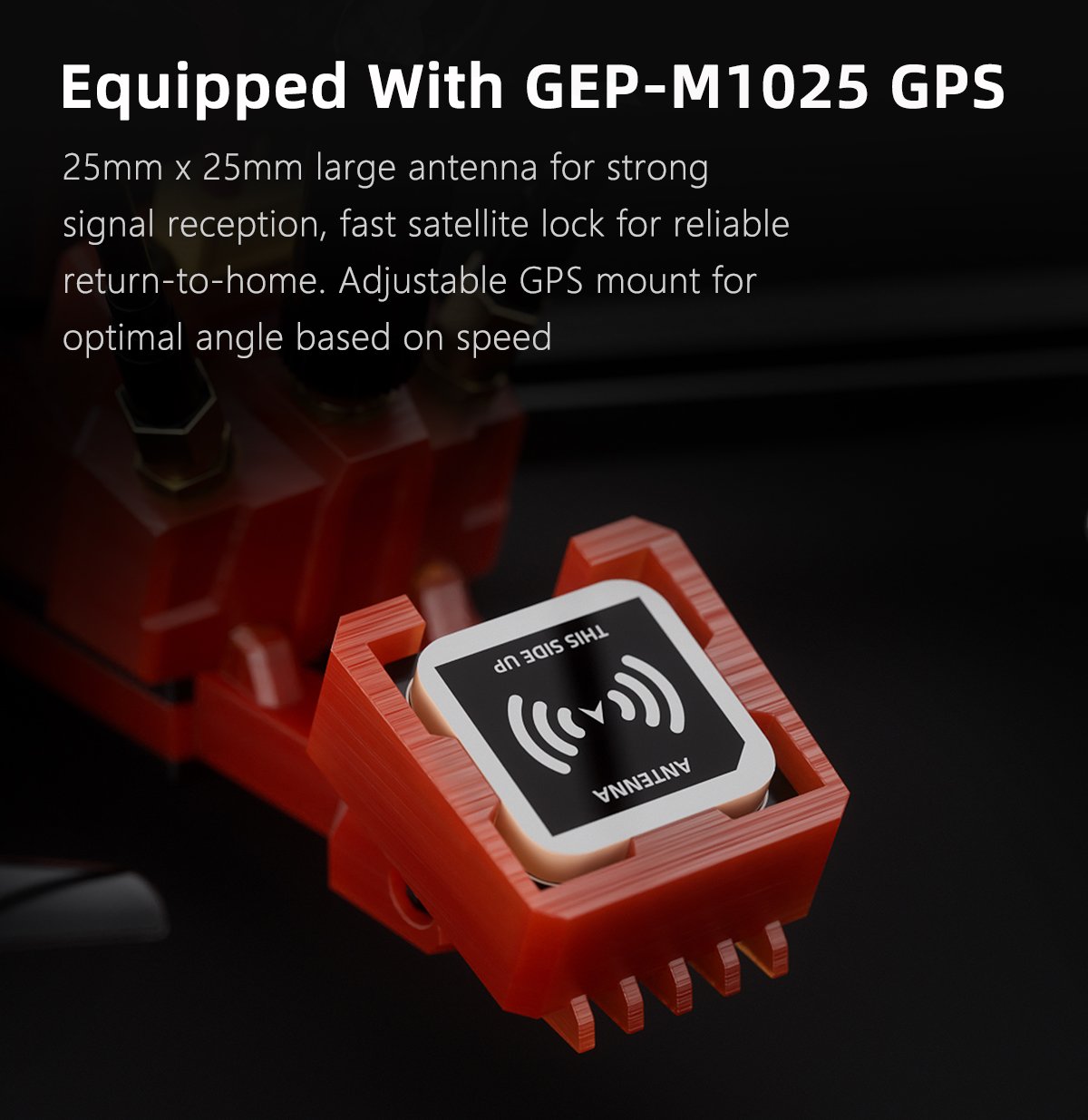

5. GEP-M1025 GPS ensures fast, stable satellite positioning.

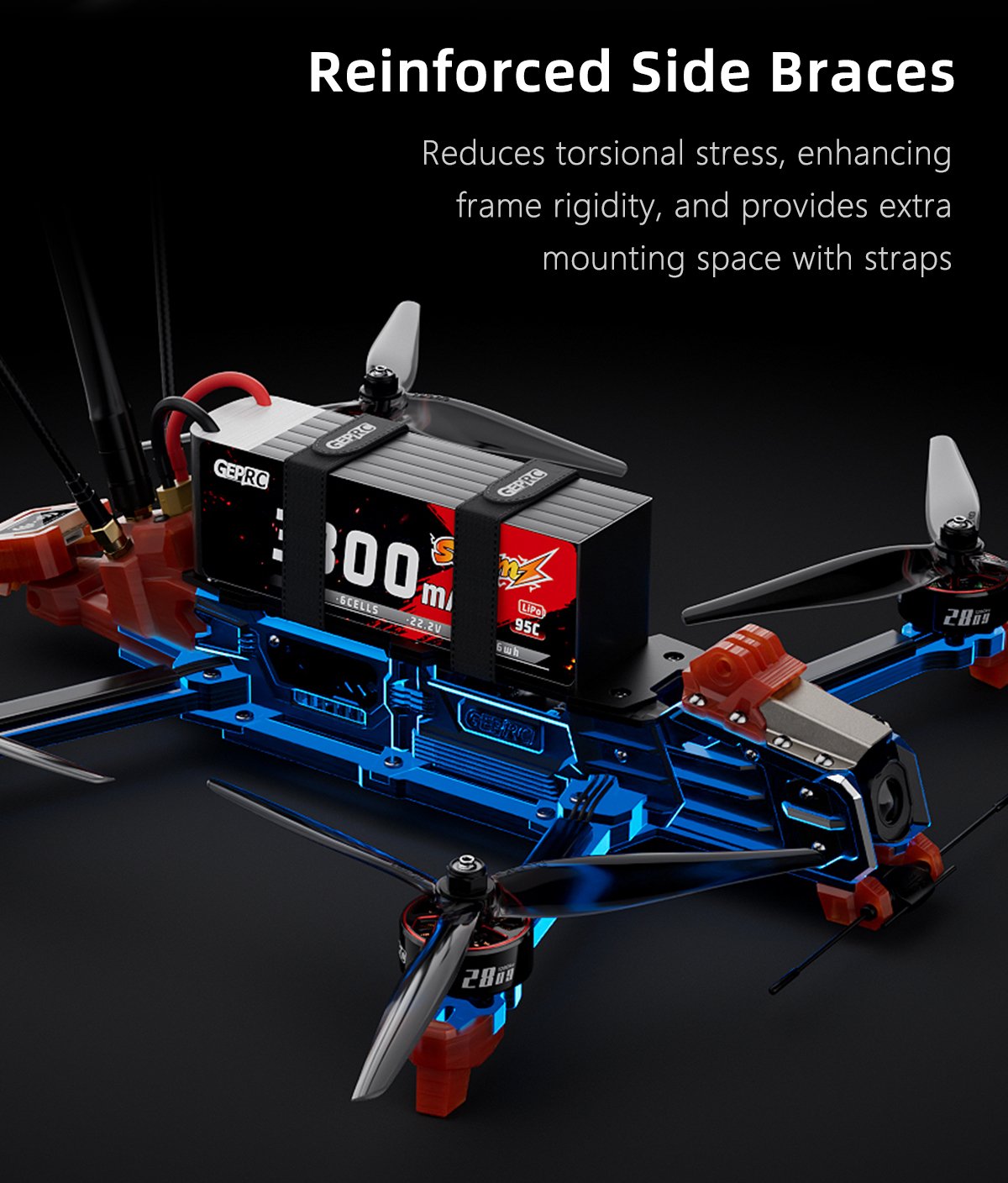

6. Re-engineered side bars create a more balanced center of gravity.

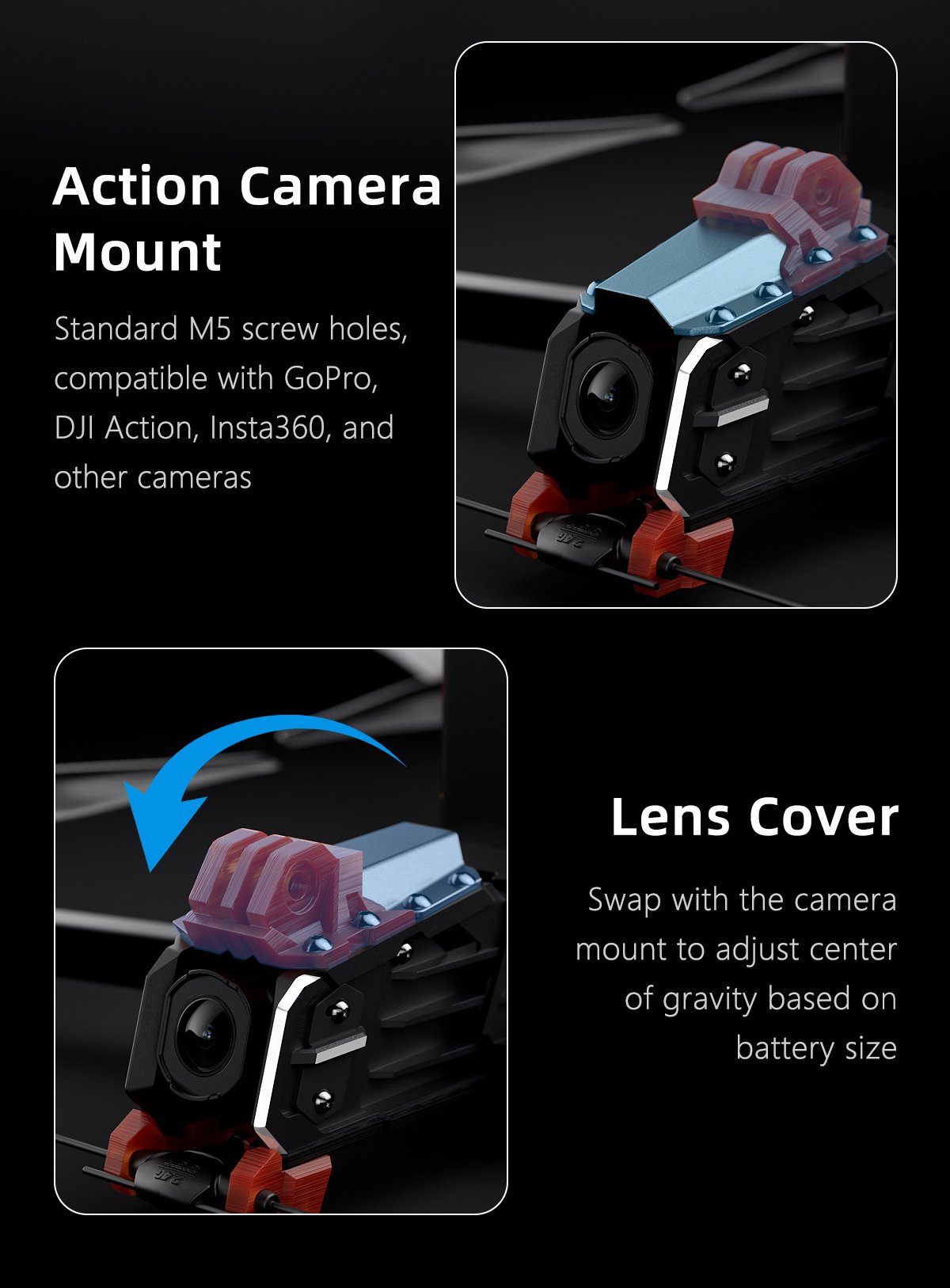

7. Interchangeable action camera mount allows flexible shooting angles.

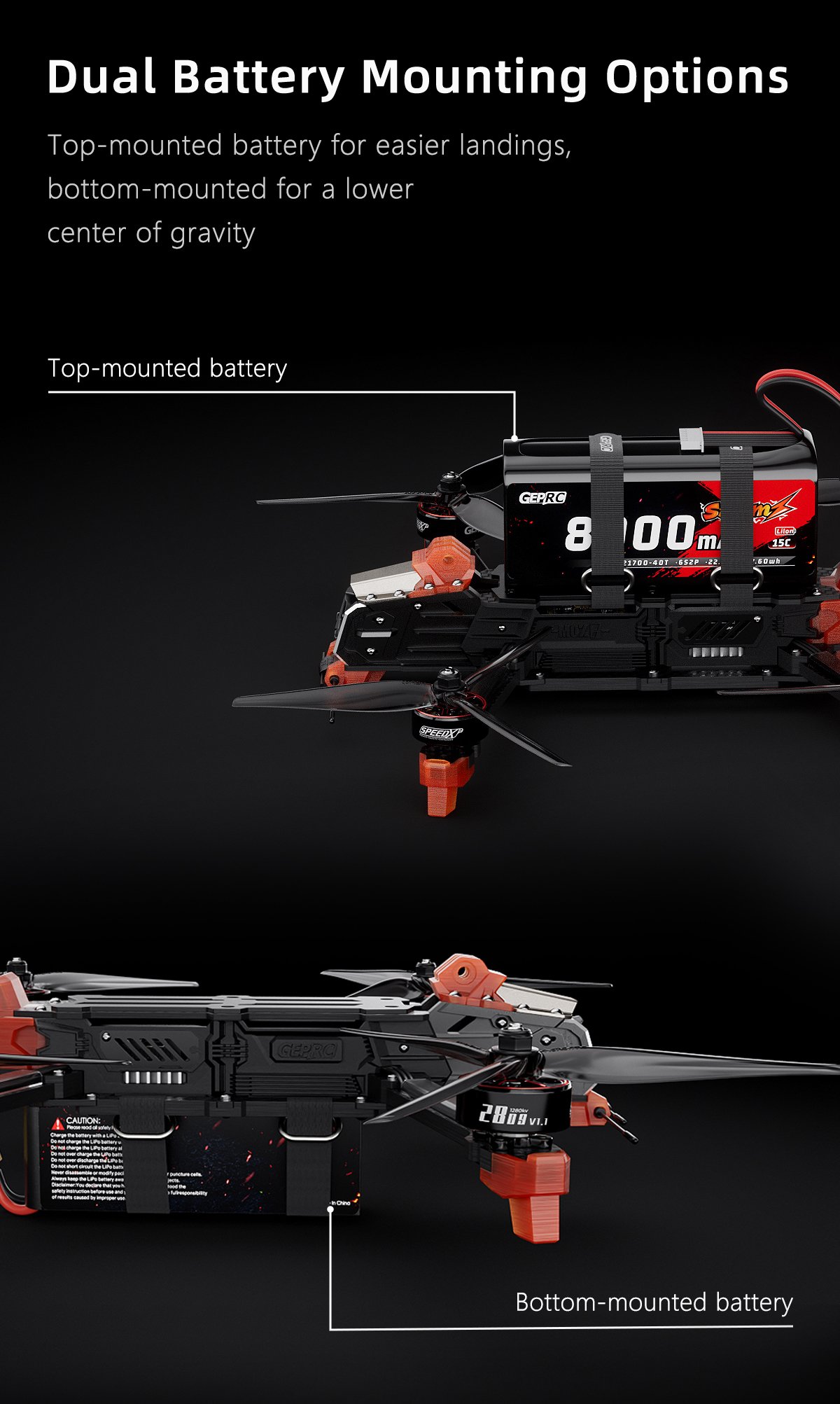

8. Two battery mounting configurations for adaptable setups.

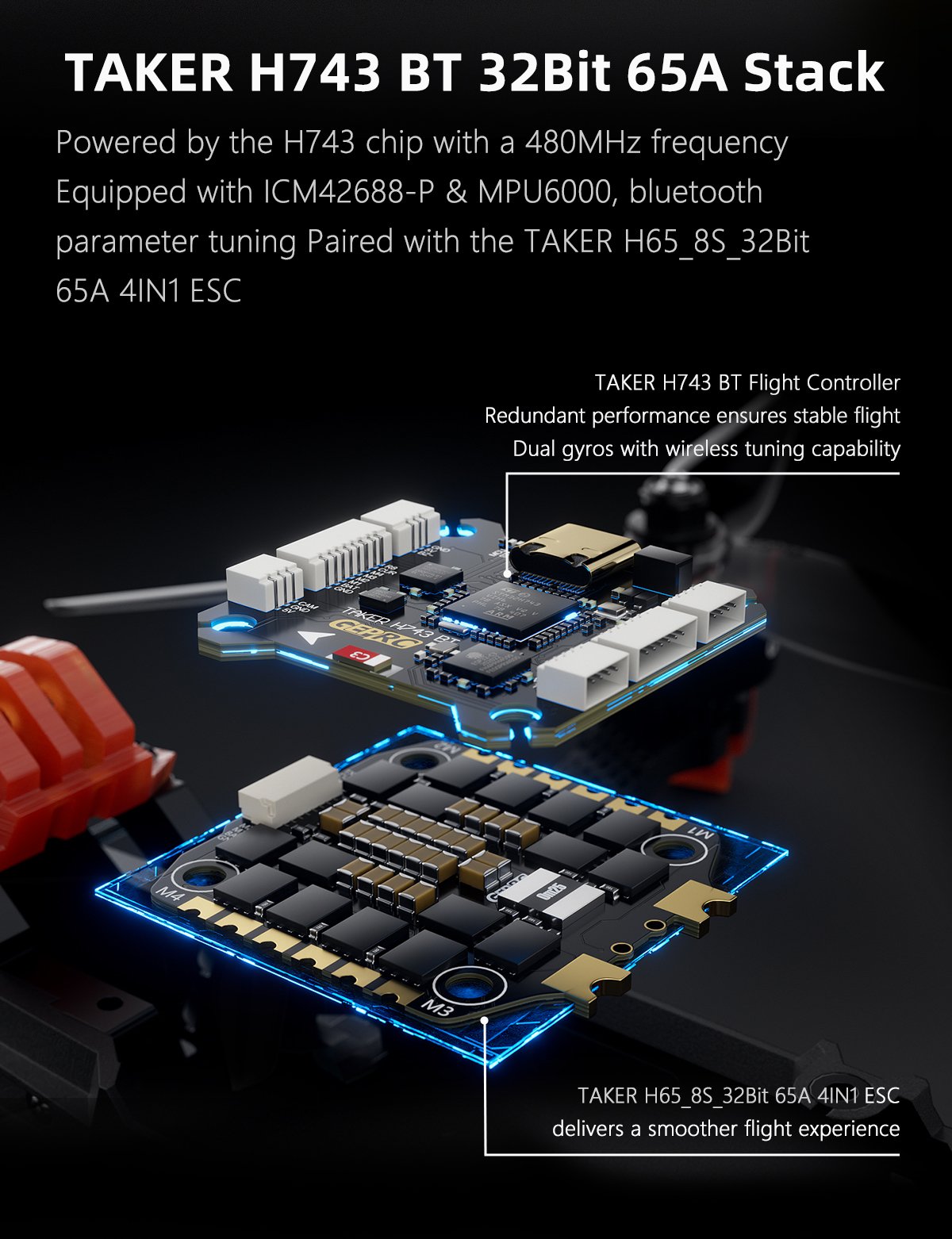

9. TAKER H743 BT flight controller with dual gyros provides fast, reliable data processing.

10. TAKER H65 8S 32Bit 65A ESC ensures smooth throttle response and precise control.

---

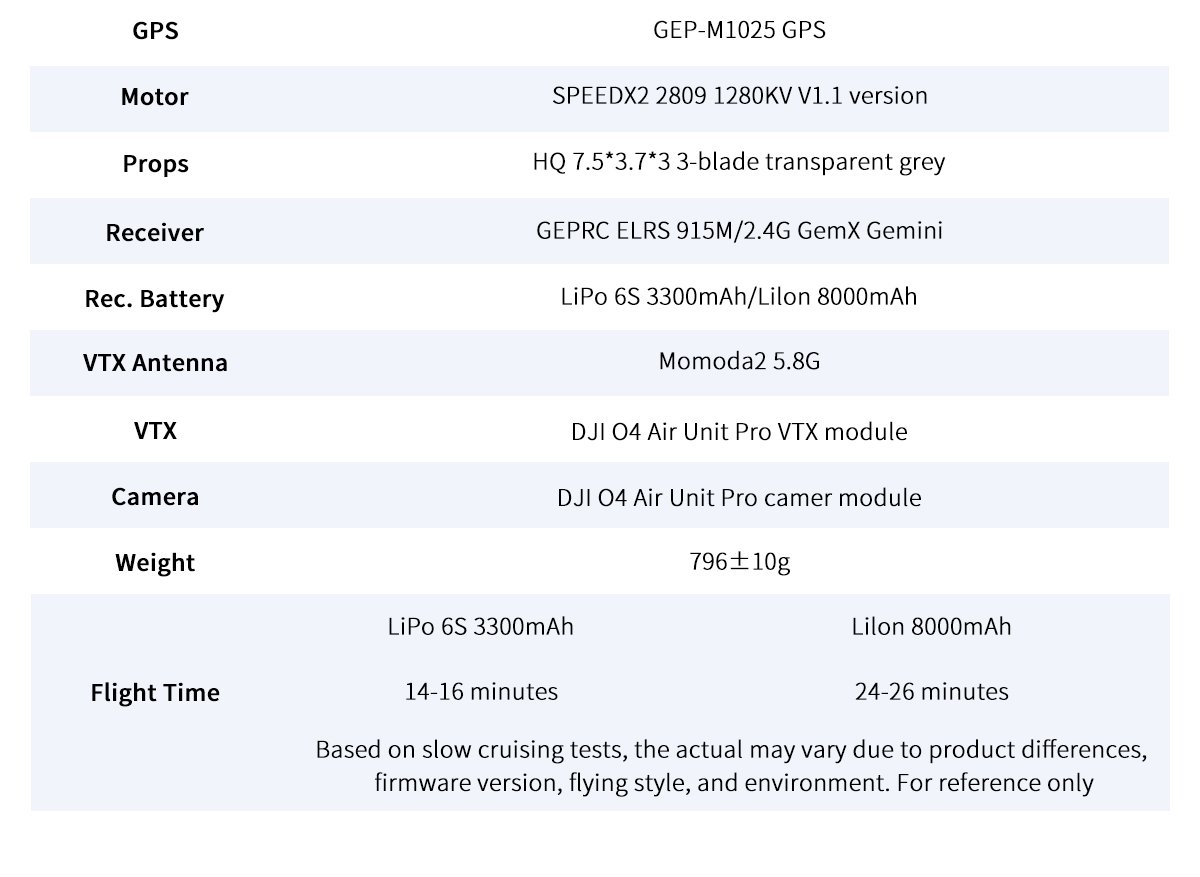

Specifications

• Model: GEPRC MOZ7 V2 O4 Pro

• Frame: GEP-MOZ7 V2

• Wheelbase: 336mm

• Plate Thickness: Top 2.5mm / Base 2.5mm / Middle 3mm

• Arm Thickness: 6mm

• Flight Controller: TAKER H743 BT

• MCU: STM32H743

• Gyroscope: MPU6000 & ICM42688-P dual sensors

• Barometer: Yes

• GPS: GEP-M1025

• OSD: Betaflight OSD with AT7456E chip

• ESC: TAKER H65 8S 32Bit 65A 4IN1

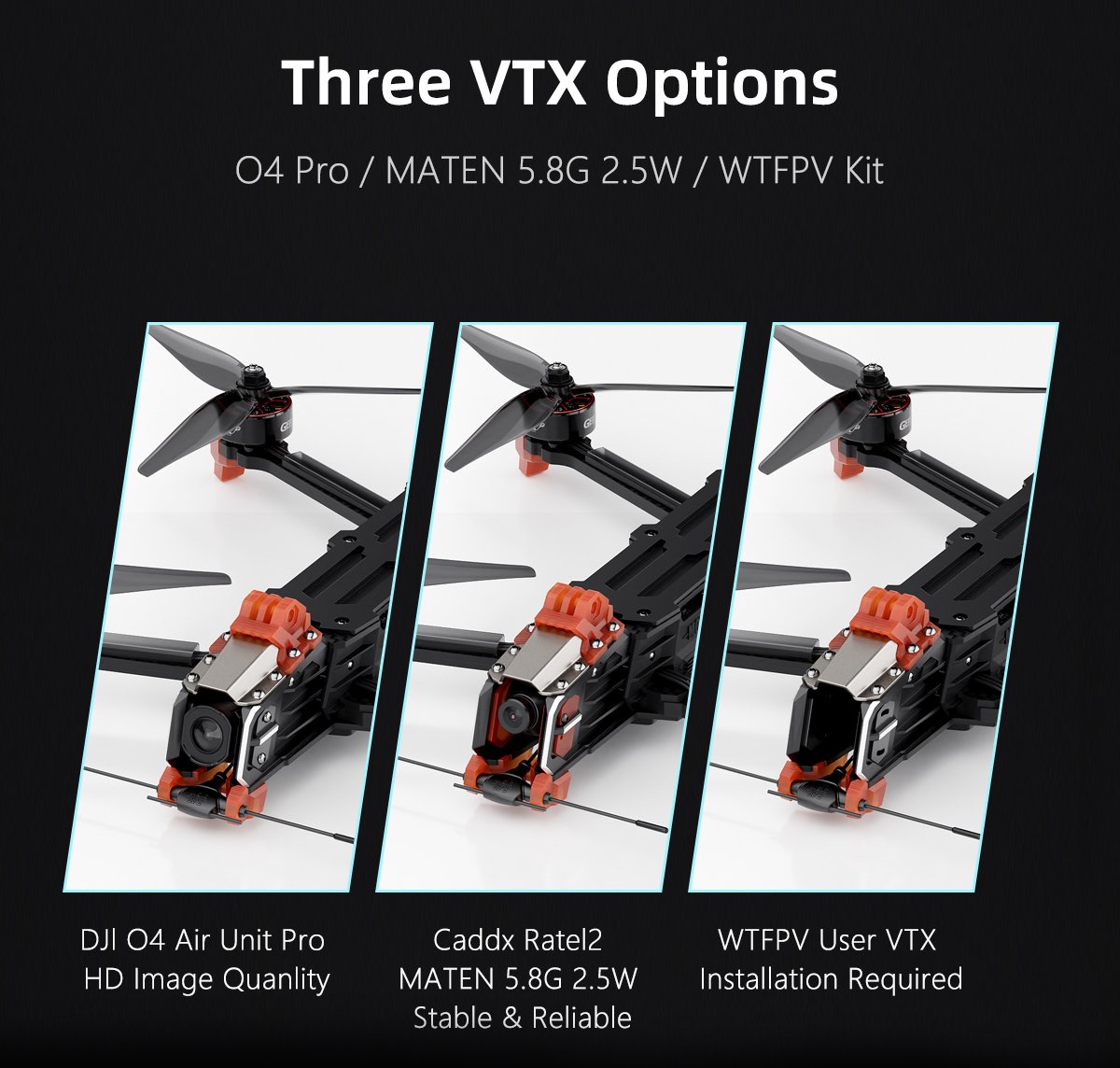

• VTX: DJI O4 Air Unit Pro

• Camera: DJI O4 Air Unit Pro camera module

• Antenna: Momoda2 SMA LHCP, RG141, 170mm

• Power Connector: XT60E-M

• Motor: SPEEDX2 2809 1280KV V1.1

• Propellers: HQ 7.5×3.7×3 (3-blade, transparent grey)

• Weight (HD version): 750g ±10g

• Receiver: TBS NanoRX

• Recommended Battery: LiPo 6S 3300mAh / Li-ion 8000mAh

• Flight Time: Up to 25 minutes (cruising test, may vary with environment and style)

---

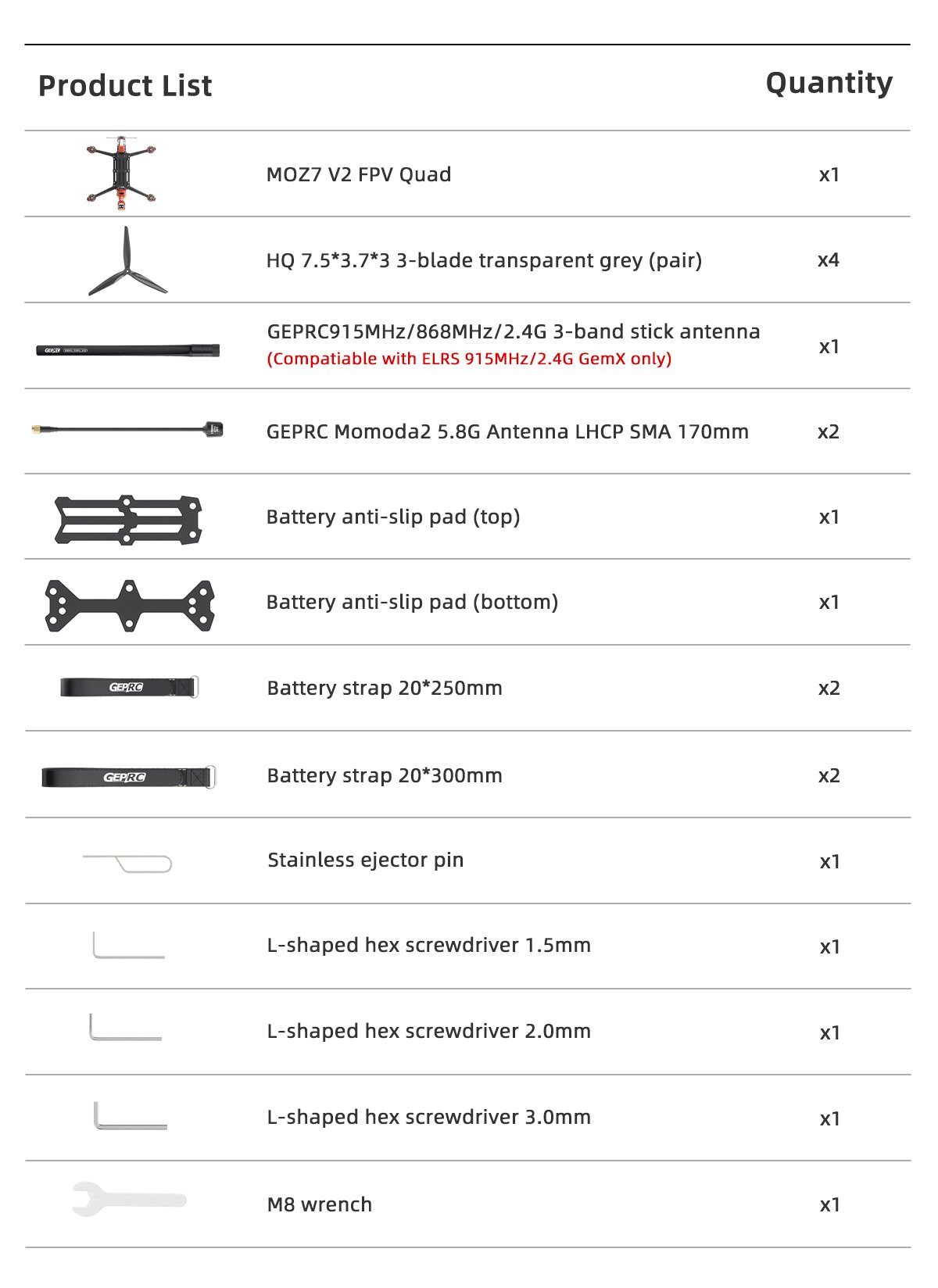

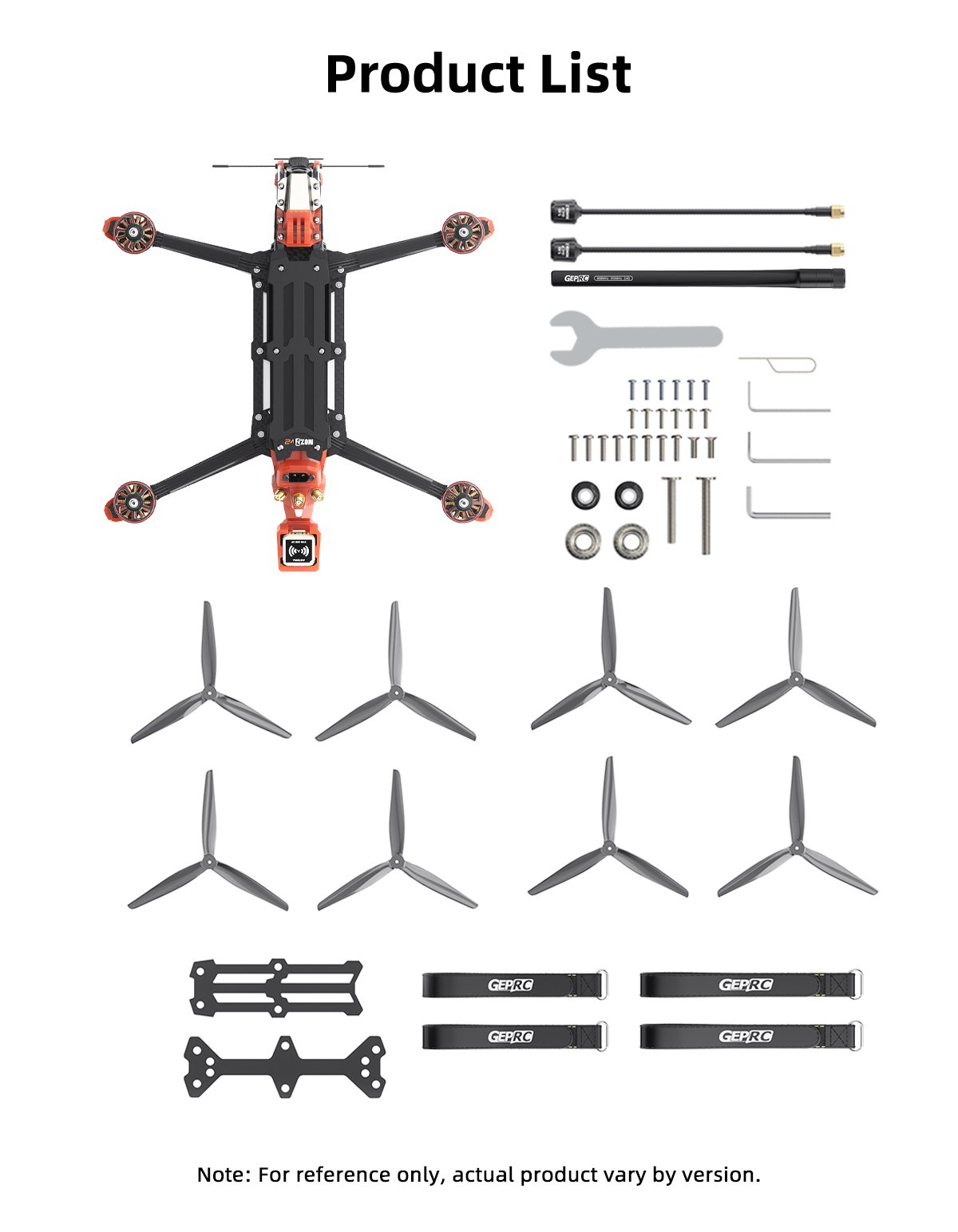

Includes

• 1 × GEPRC MOZ7 V2 FPV Drone

• 2 × HQ 7.5×3.7×3 props (2CW + 2CCW)

• 2 × 15×250mm battery straps

• 1 × L-shaped screwdriver (1.5mm)

• 1 × L-shaped screwdriver (2.0mm)

• 1 × L-shaped screwdriver (3.0mm)

• 1 × Spare screw kit

• 2 × Anti-slip battery pads

• 1 × VTX frequency binding pin

• 2 × VTX antennas

• 1 × Tri-band stick antenna
