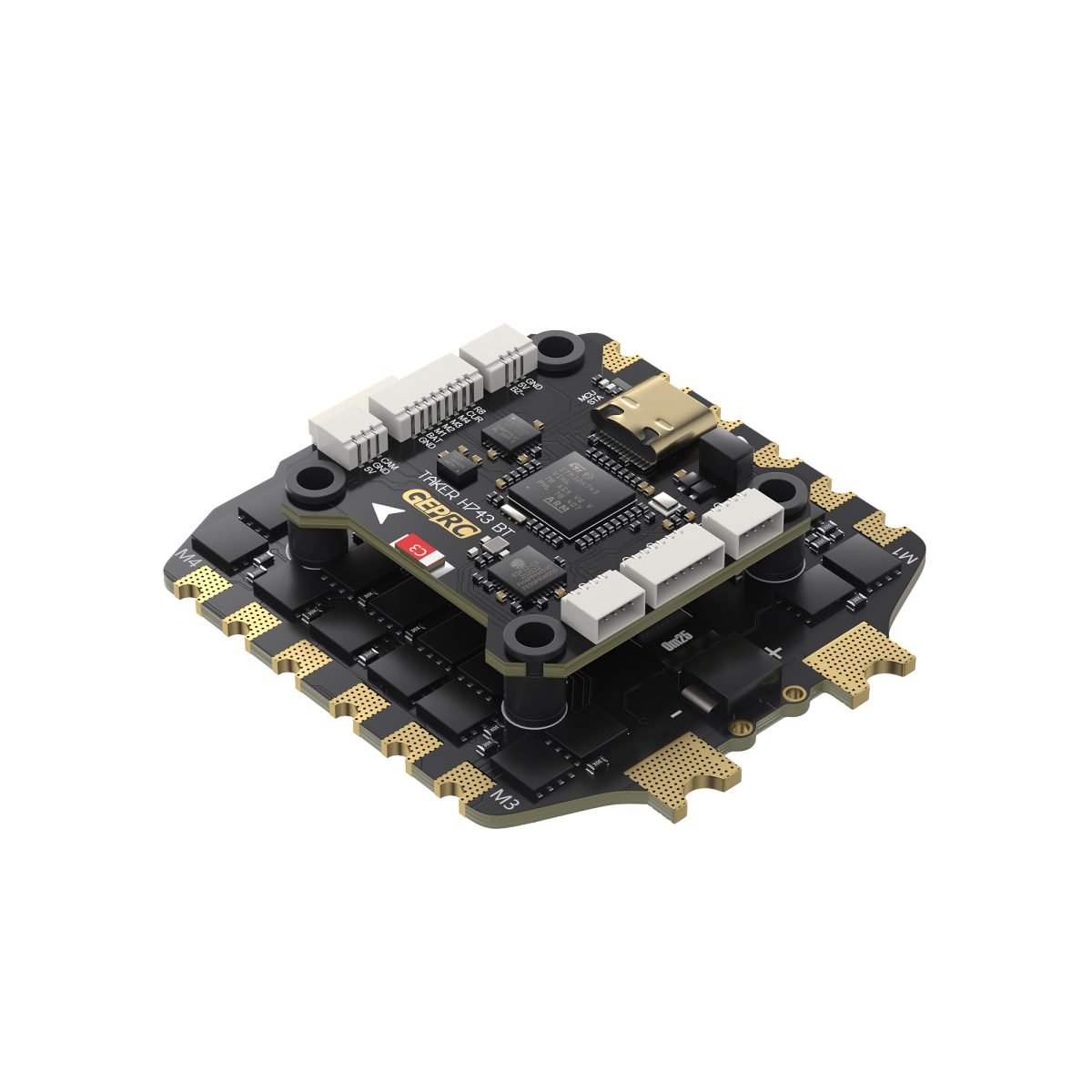

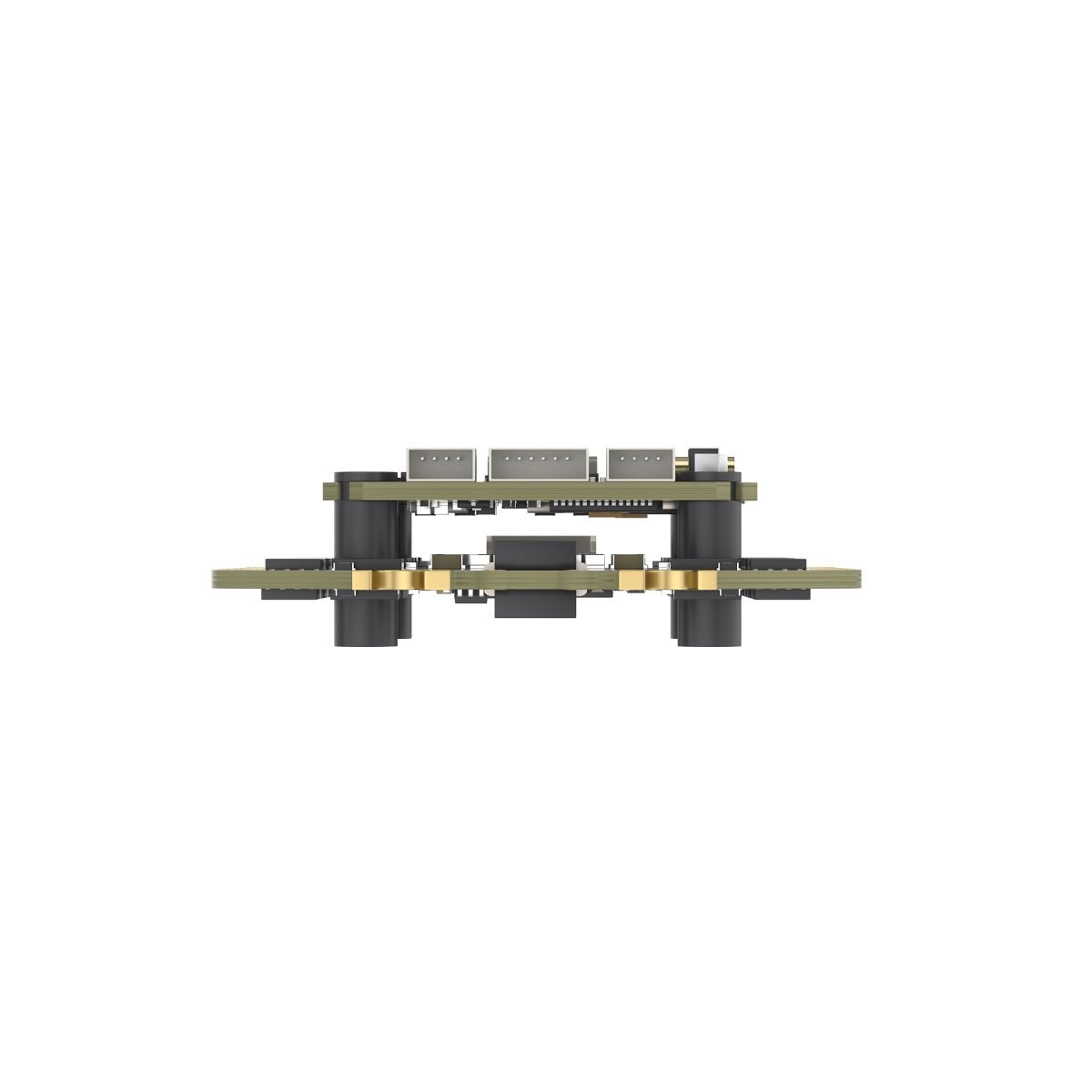

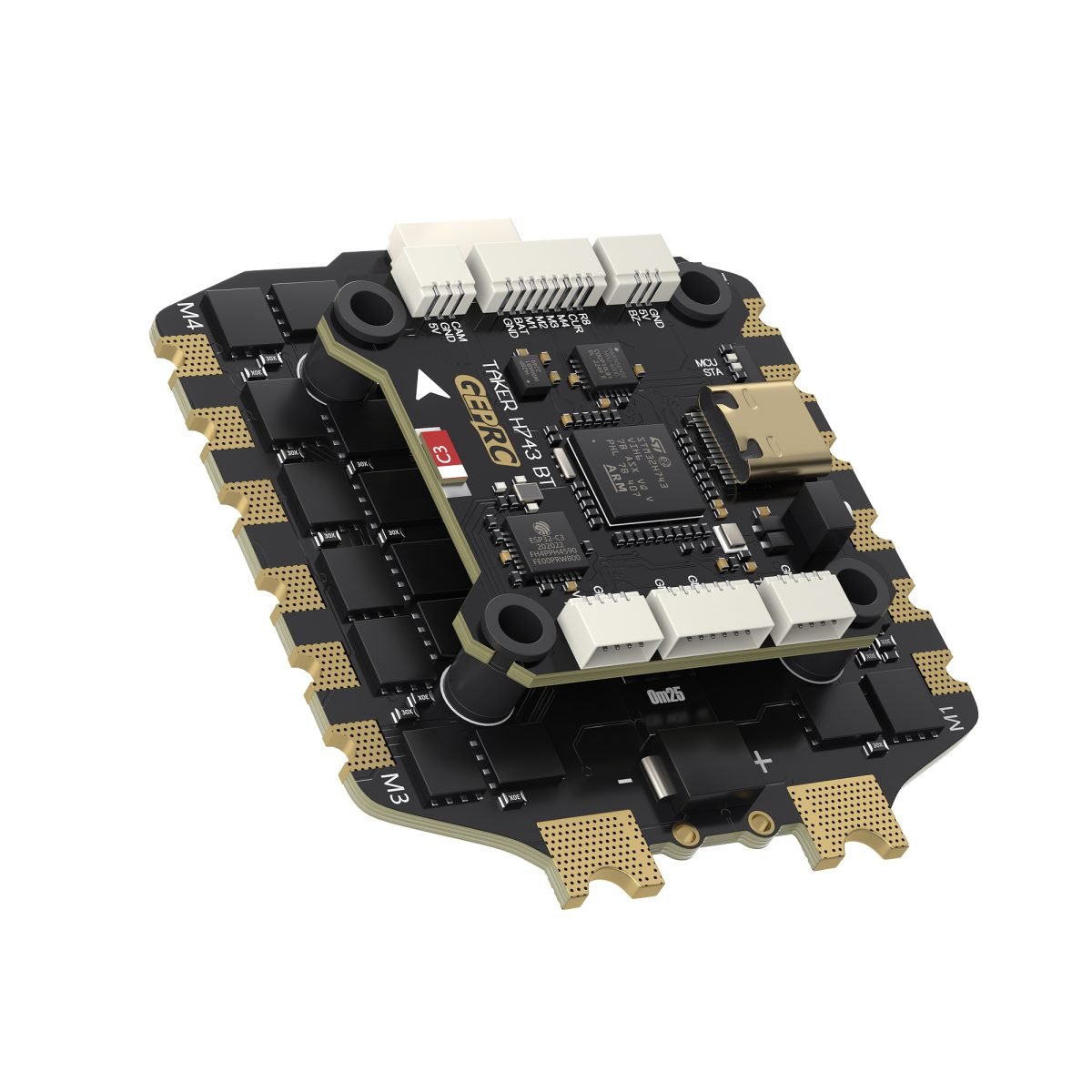

GEPRC TAKER H743 BT 8Bit 80A STACK

Overview

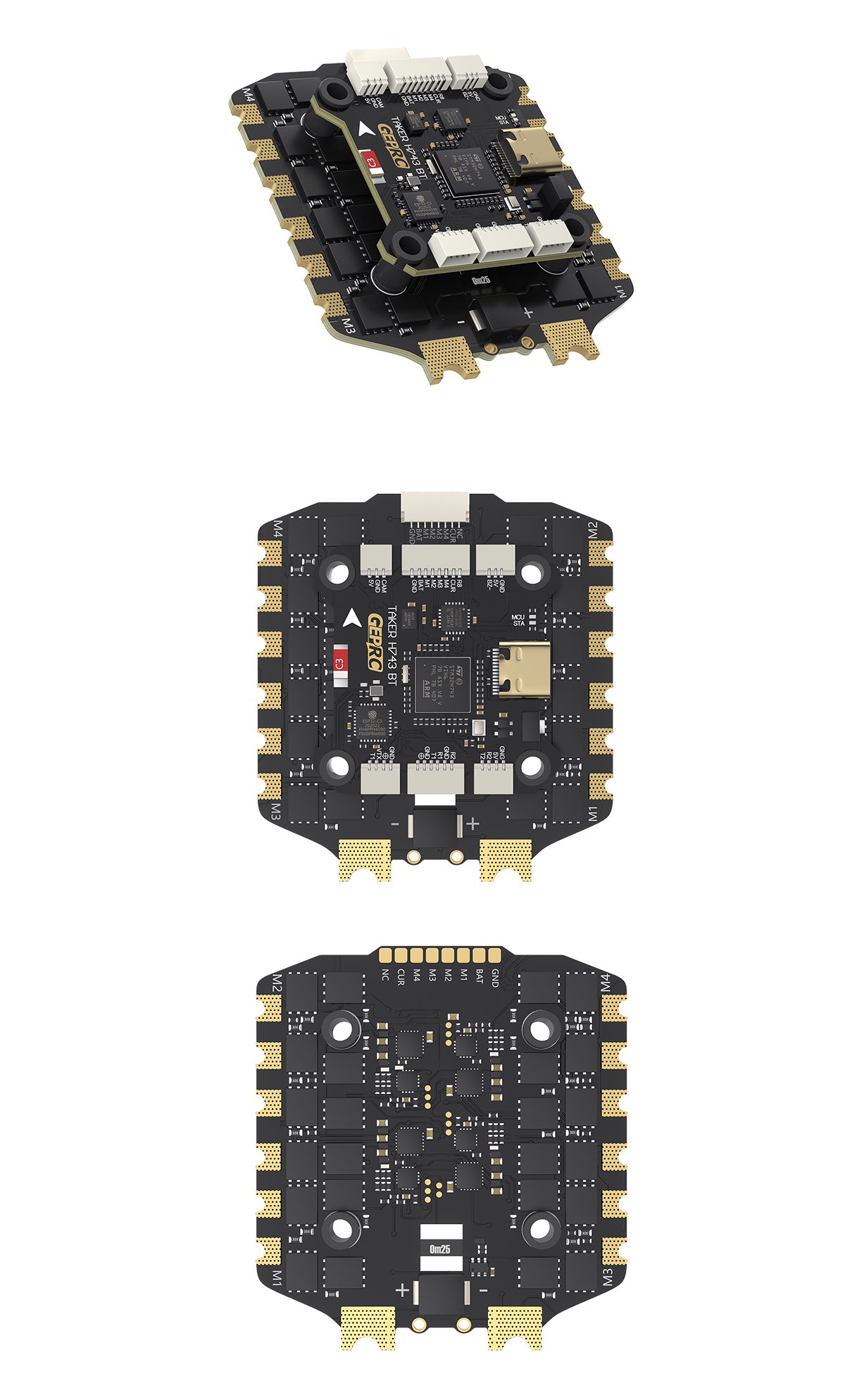

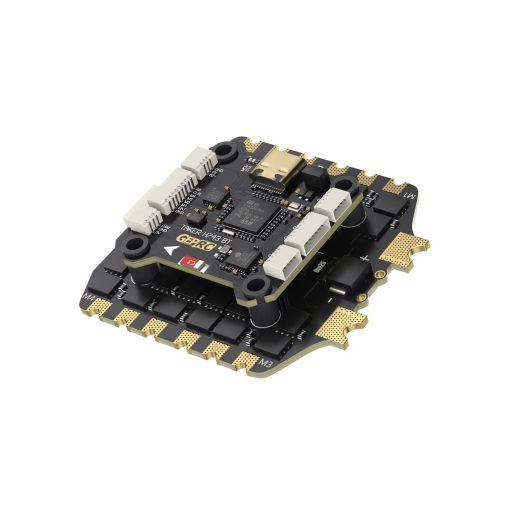

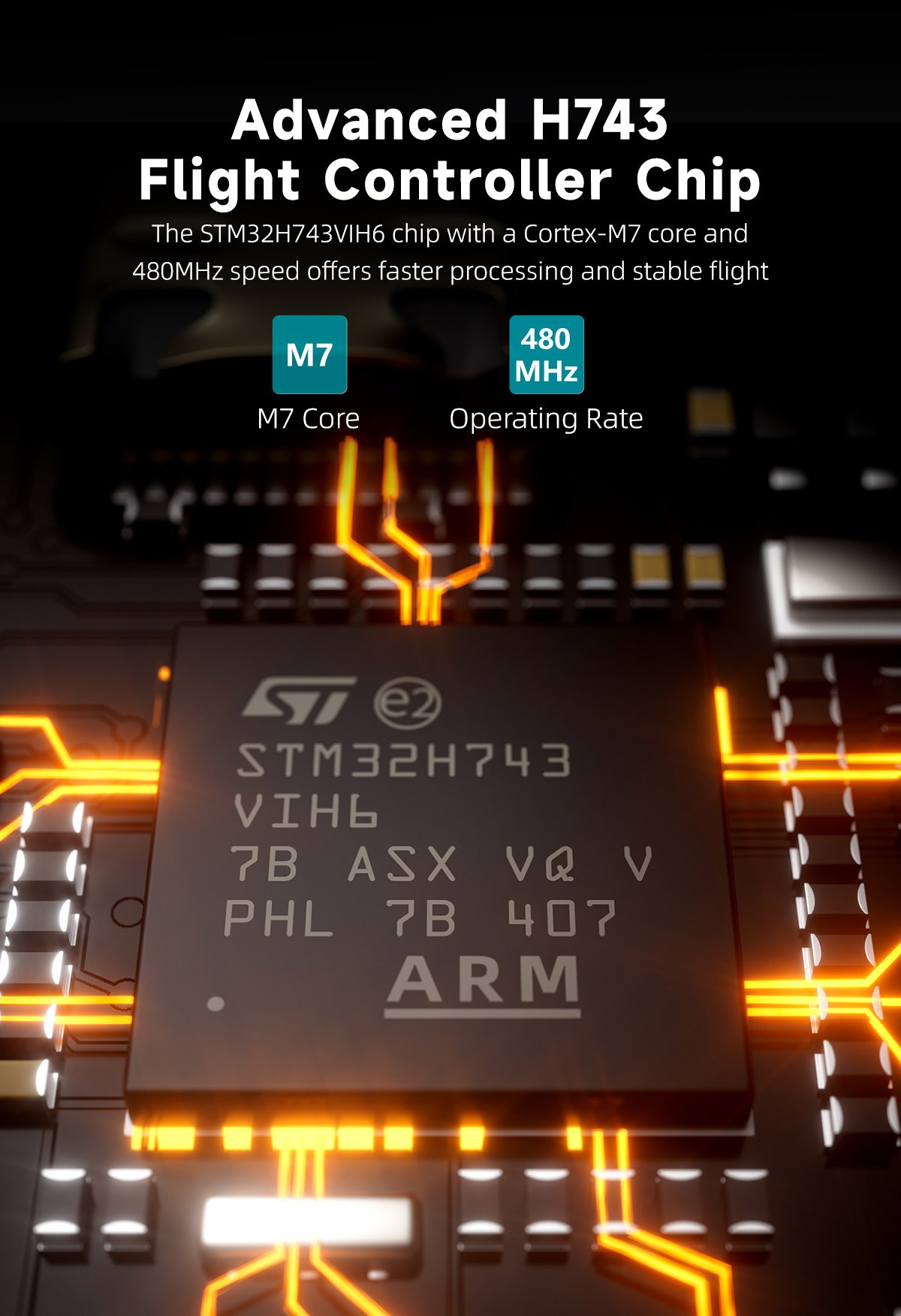

The TAKER H743 BT 8Bit 80A Stack is GEPRC’s latest high-performance stack system, designed for both racing and freestyle drones. At its core is the STM32H743VIH6 processor, powered by a Cortex-M7 running at 480MHz, providing exceptional computing capability. A dual gyroscope system (MPU6000 + ICM42688-P) ensures precise stabilization and smooth control, while Bluetooth connectivity enables convenient wireless parameter tuning.

With 512MB onboard black box storage, detailed flight data recording is possible. The stack offers eight motor outputs, supporting X8 drone configurations, and is fully compatible with Betaflight, INAV, and Ardupilot. It also integrates a barometer, seven UART ports, and dual independent BEC outputs (5V@3A + 12V@2.5A), ensuring reliable power for your electronics. Combined with the TAKER H80_BLS 80A 4-in-1 ESC, this stack provides an ultra-responsive and stable flight experience.

Key Features

1. High-speed STM32H743 processor for smooth performance.

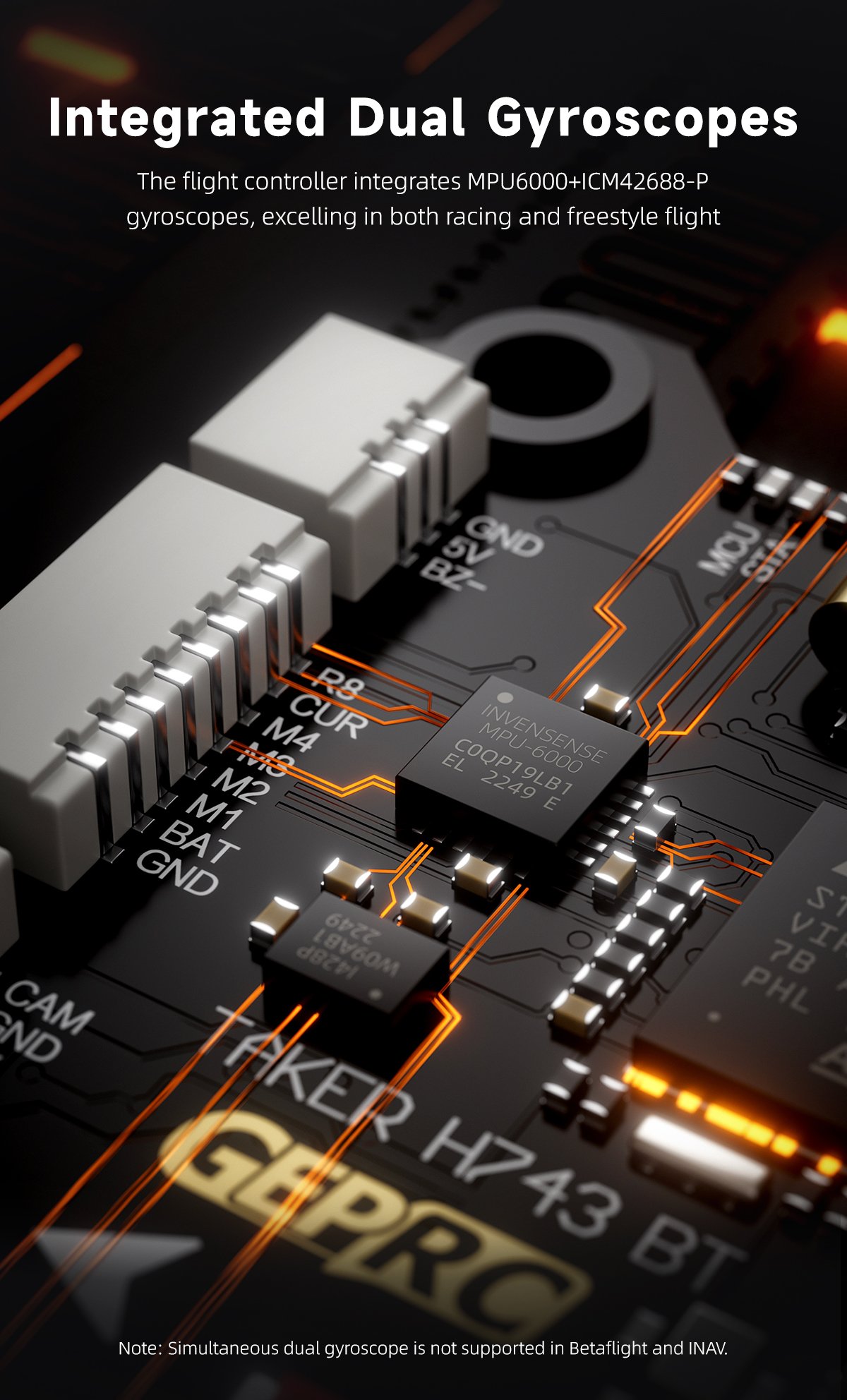

2. Dual gyroscope system (MPU6000 + ICM42688-P) for accurate flight control.

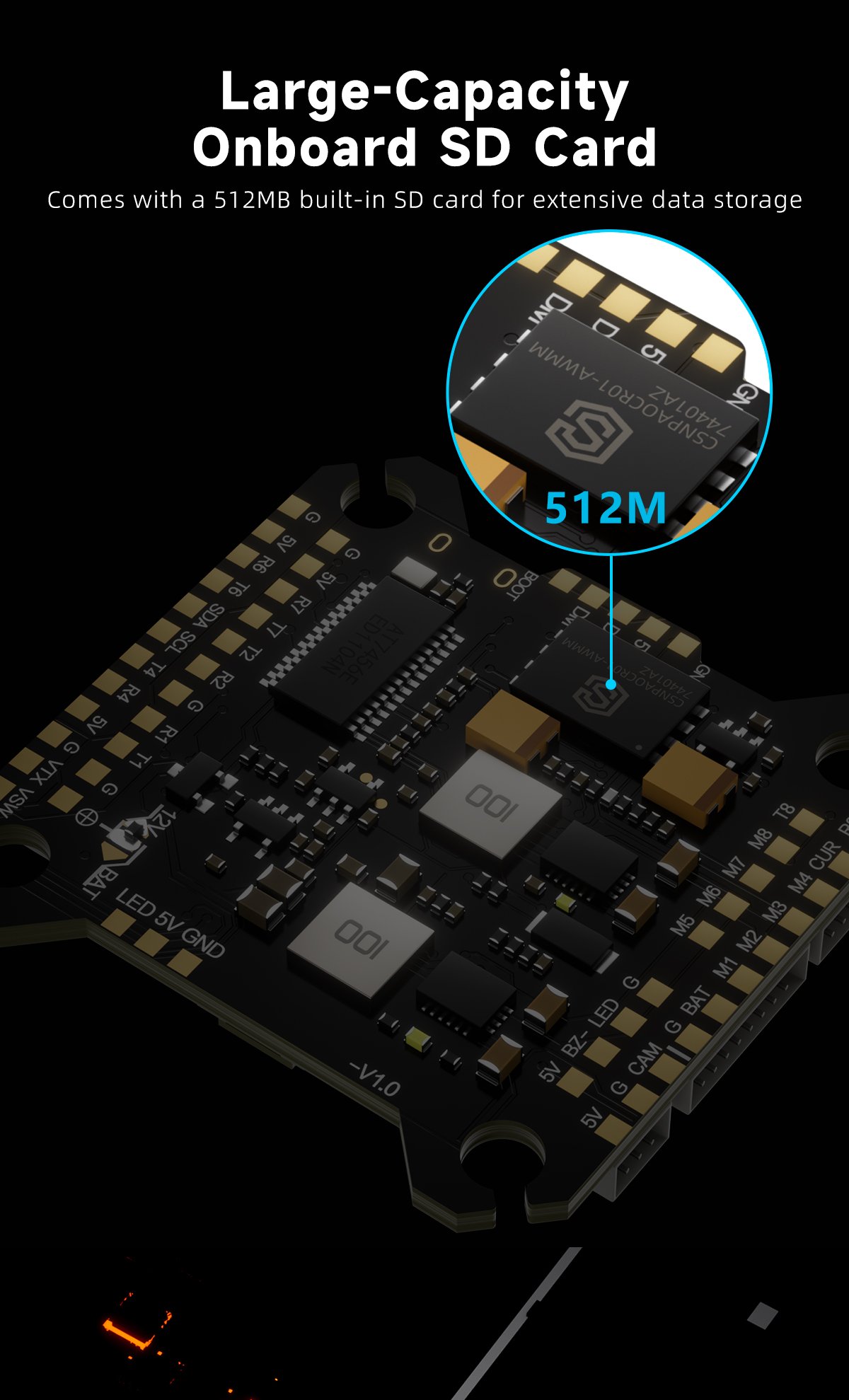

3. Built-in 512MB black box for extensive data logging.

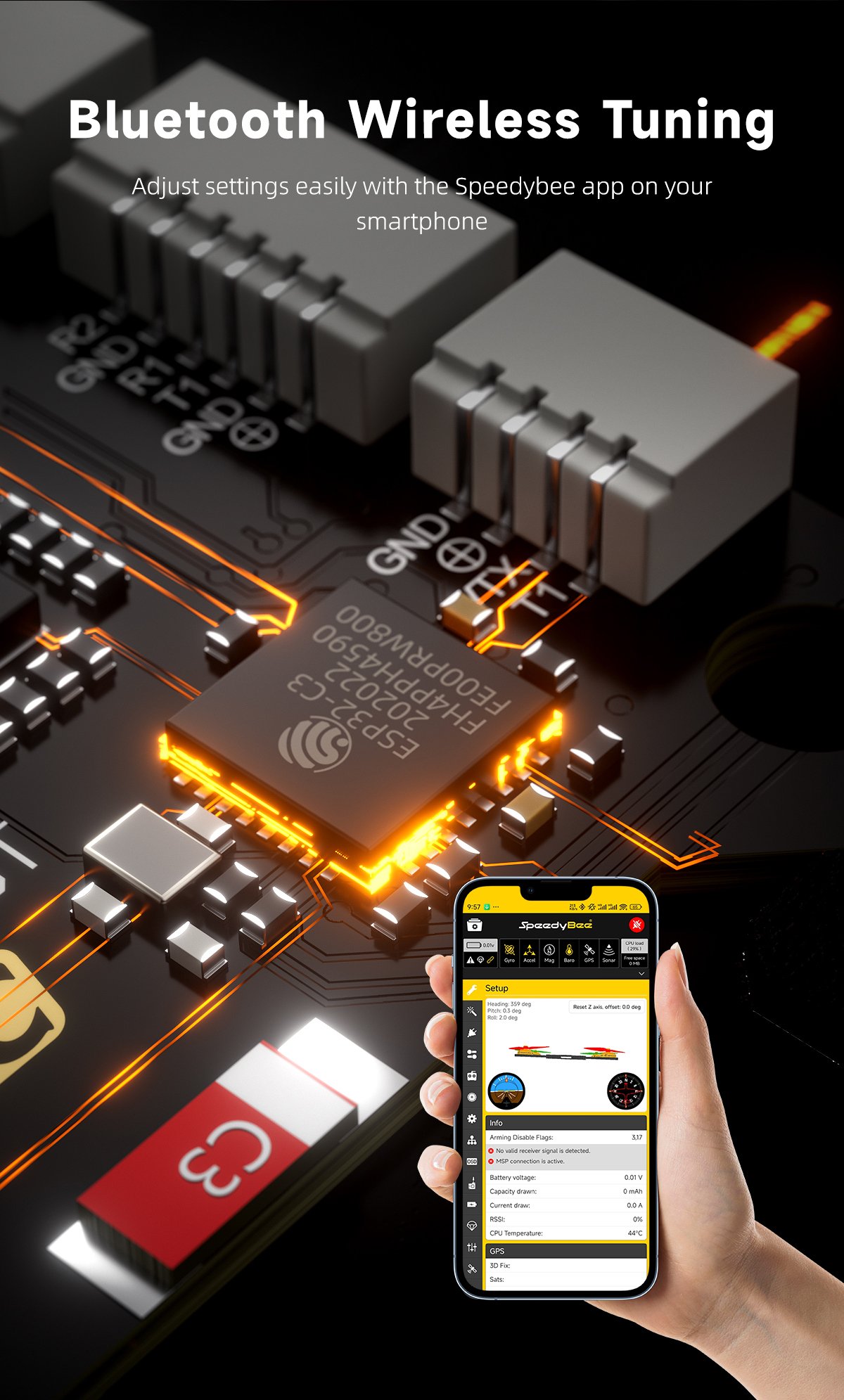

4. Wireless Bluetooth tuning for easy adjustments.

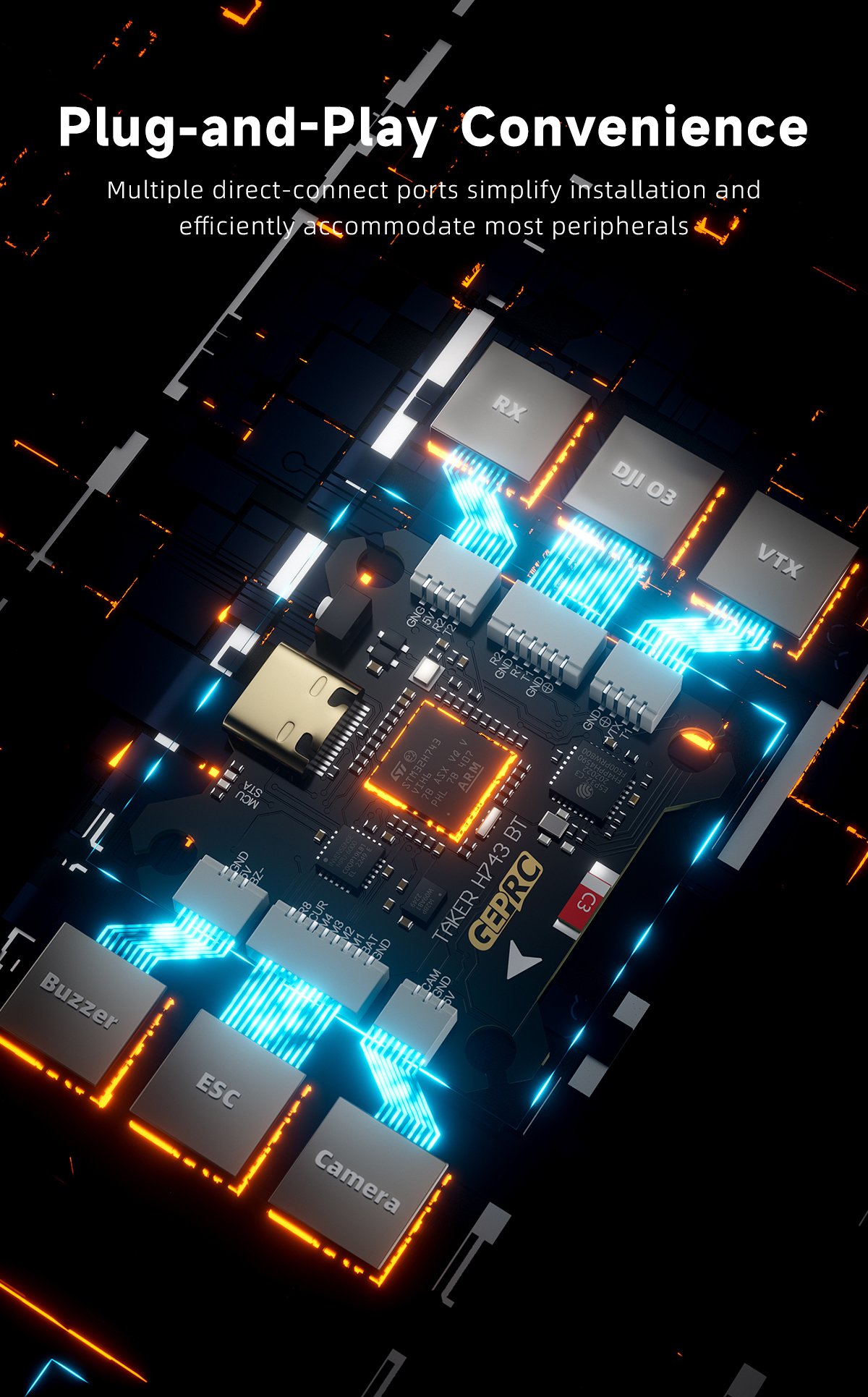

5. True plug-and-play design, no soldering needed.

6. Integrated barometer for advanced flight functions.

7. Equipped with 7 UART ports for maximum expandability.

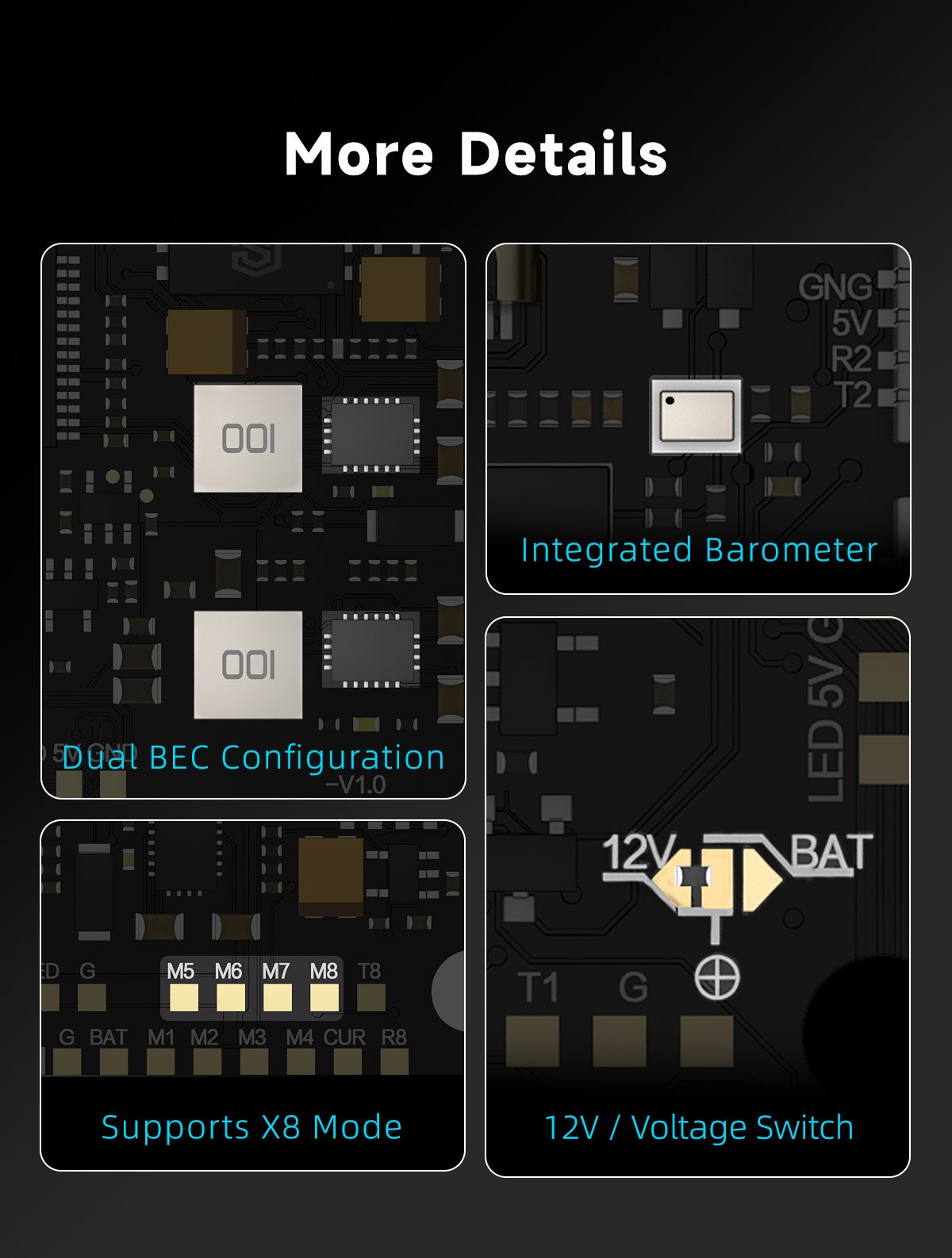

8. Independent dual BEC (5V@3A + 12V@2.5A).

9. Multi-firmware support (Betaflight, INAV, Ardupilot).

10. Bundled with TAKER H80_BLS 80A ESC for efficient power delivery.

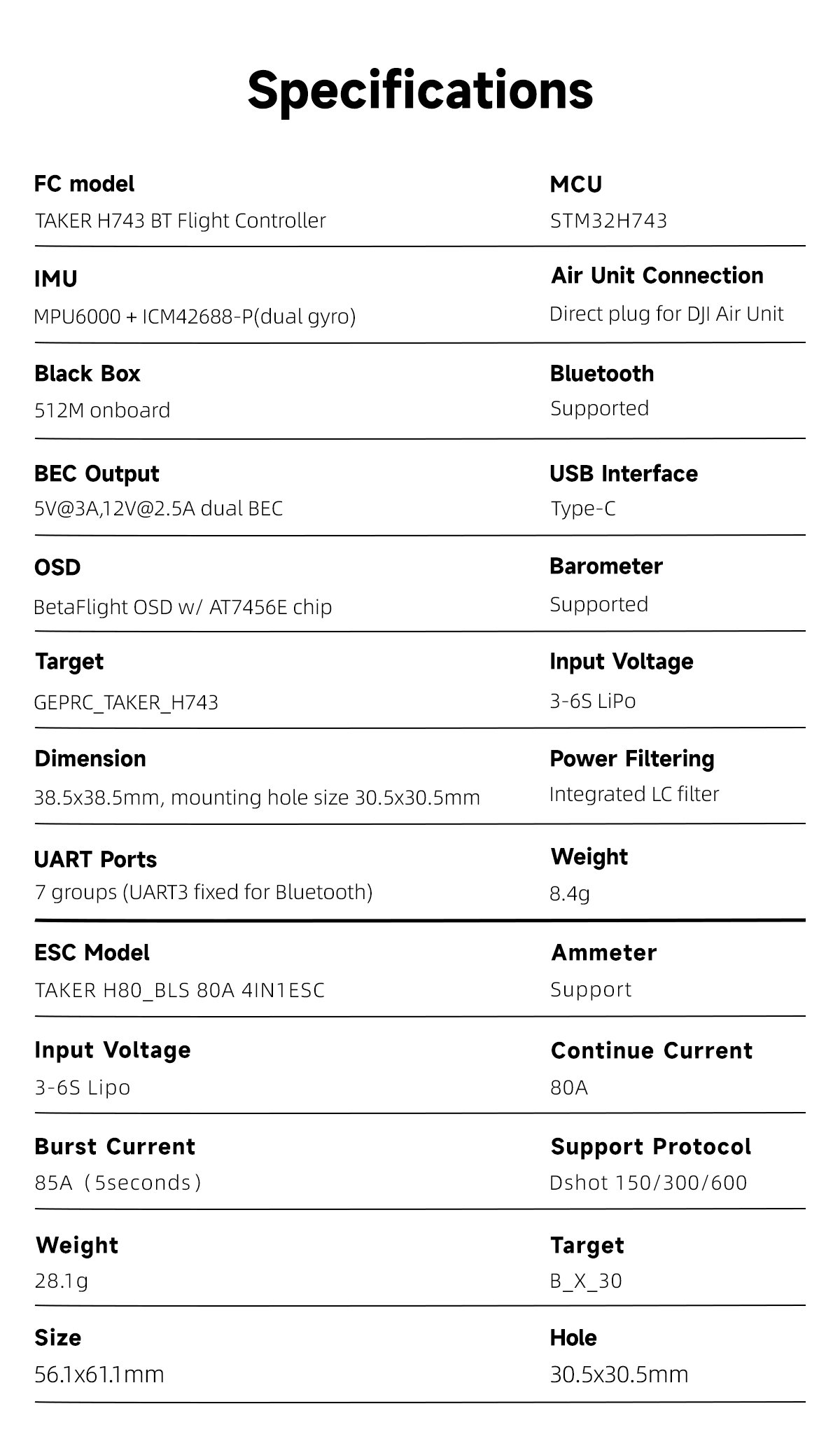

Technical Specifications

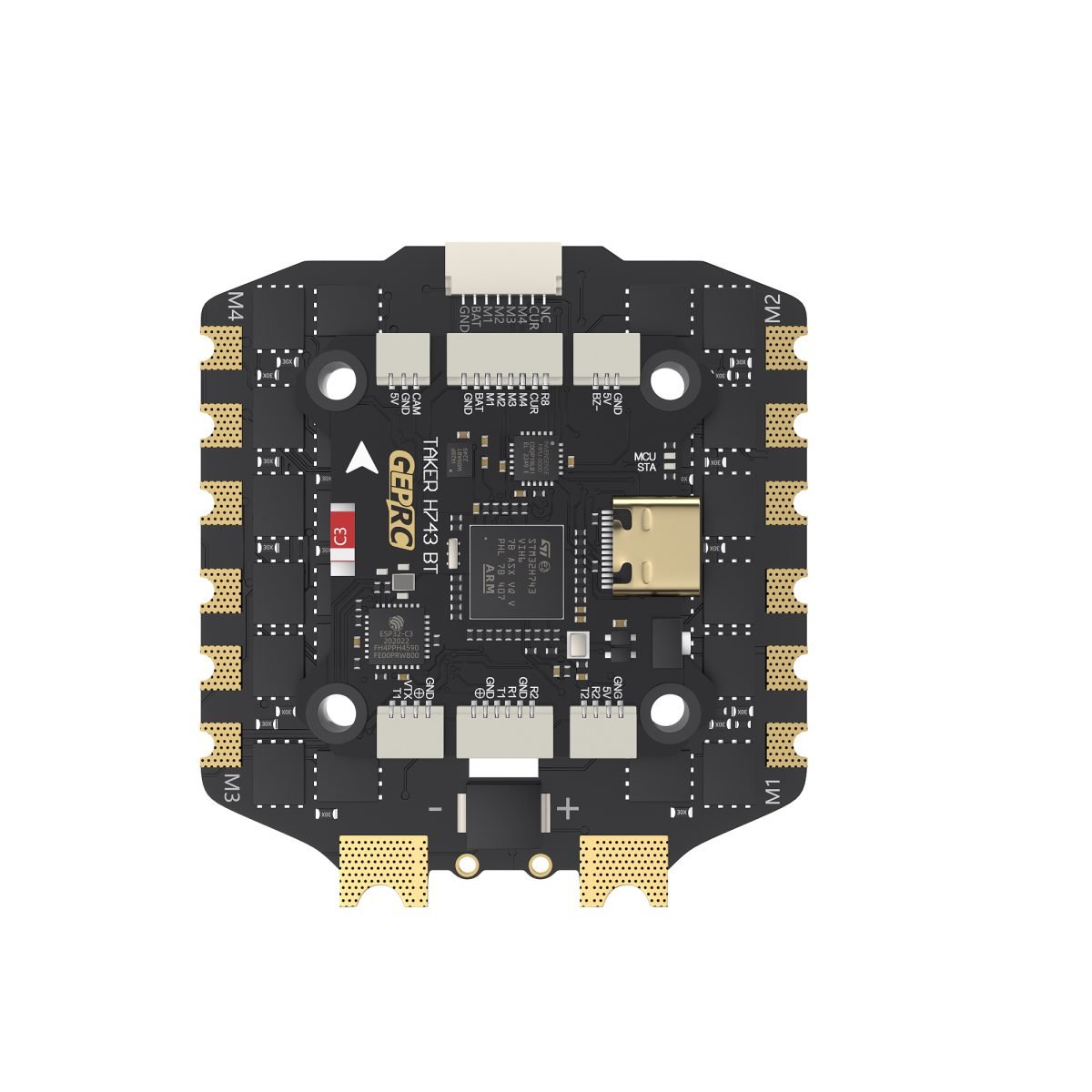

Flight Controller: TAKER H743 BT

• MCU: STM32H743

• Gyroscopes: MPU6000 + ICM42688-P (dual)

• DJI Air Unit: direct plug support

• Storage: 512MB onboard black box

• Connectivity: Bluetooth

• Barometer: Yes

• USB Port: Type-C

• OSD: Betaflight OSD with AT7456E chip

• Power Output: 5V@3A + 12V@2.5A BEC

• Firmware Target: GEPRC_TAKER_H743

• Dimensions: 38.5 × 38.5mm, mounting holes 30.5 × 30.5mm

• Voltage Input: 3–6S LiPo

• UART Ports: 7 (UART3 reserved for Bluetooth)

• Power Filtering: Integrated LC filter

• Weight: 8.4g

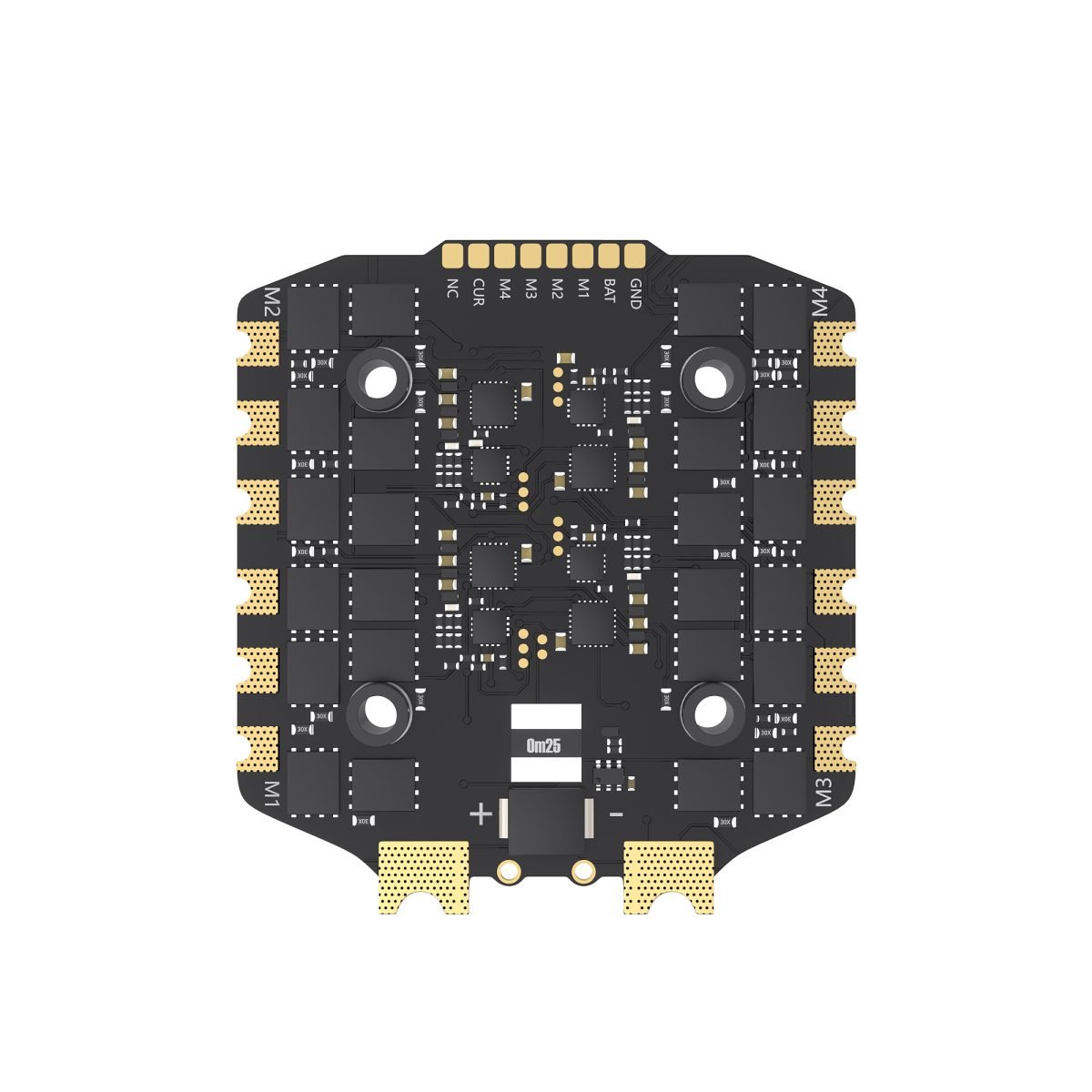

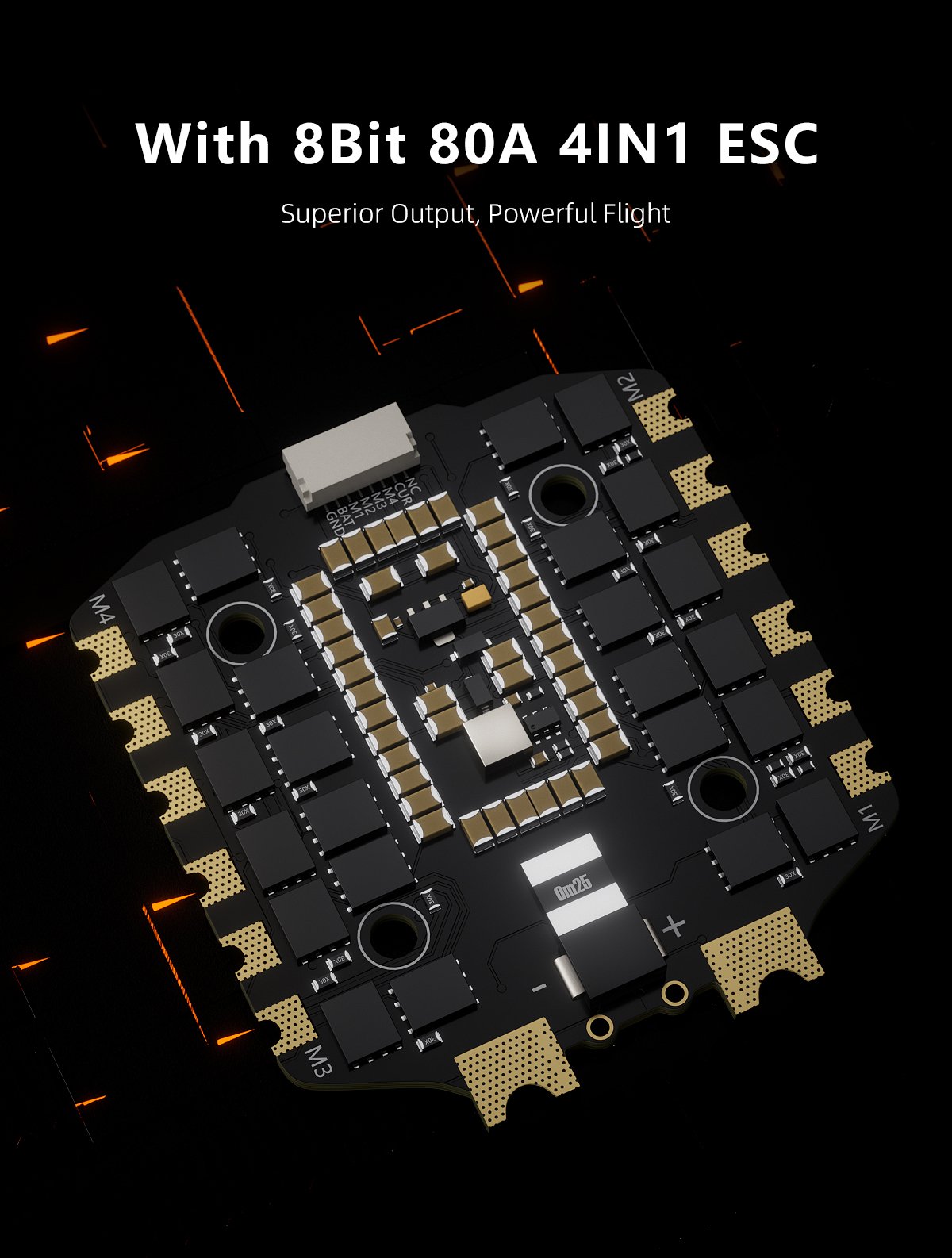

ESC: TAKER H80_BLS 80A 4-in-1

• Voltage Input: 3–6S LiPo

• Current: 80A continuous / 85A burst (5s)

• Ammeter: Supported

• Protocols: DShot150 / 300 / 600

• Size: 56.3 × 61.1mm, mounting 30.5 × 30.5mm

• Hole size: Φ4mm (Φ3mm with silicone grommets)

• Weight: 28.1g

• Firmware Target: B_X_30

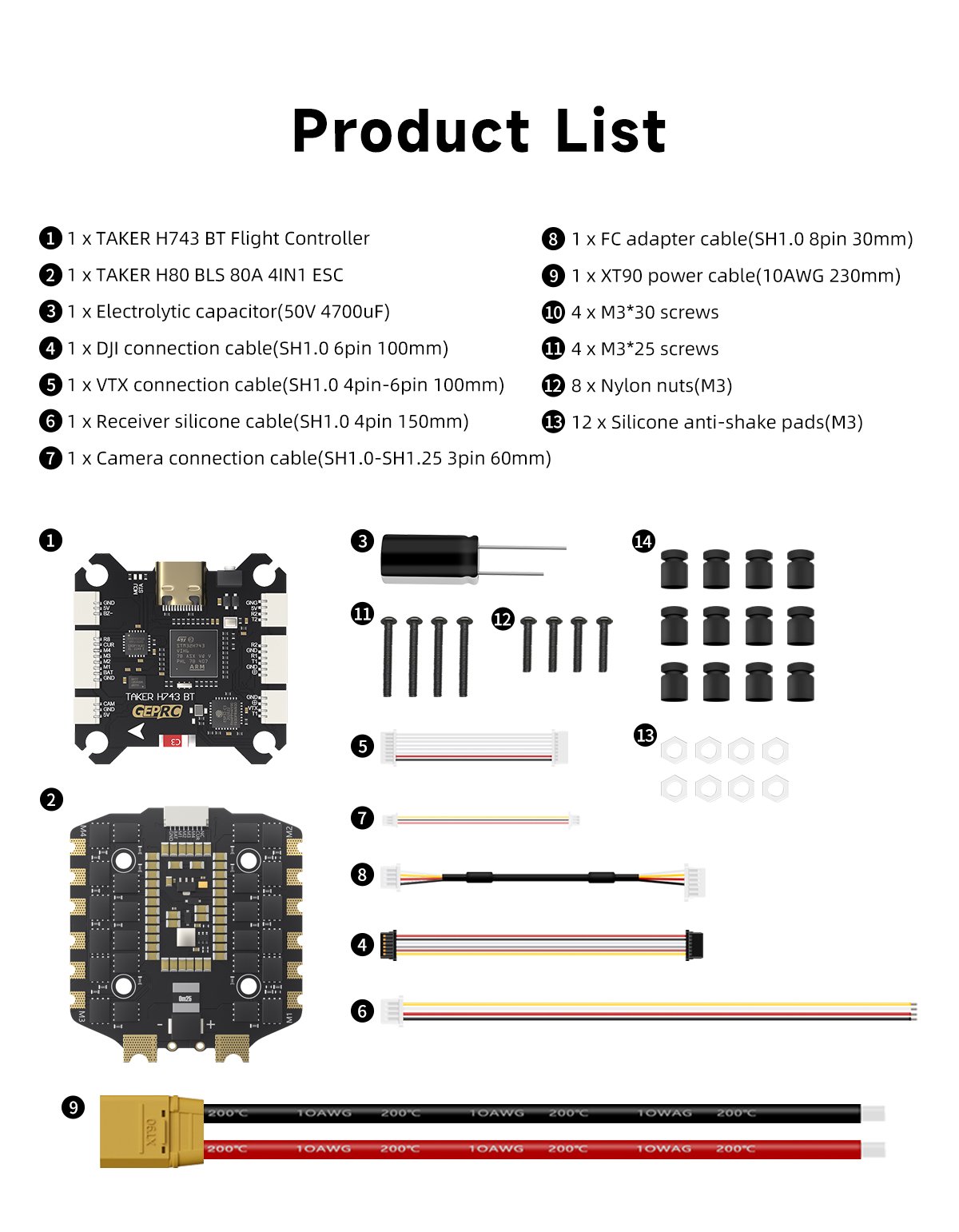

Package Includes

• 1 × TAKER H743 BT Flight Controller

• 1 × TAKER H80_BLS 80A 4-in-1 ESC

• 1 × 4700µF 50V capacitor

• 1 × DJI connection cable (6-pin, 100mm)

• 1 × FC adapter cable (8-pin, 30mm)

• 1 × Receiver cable (4-pin, 150mm)

• 1 × Camera cable (3-pin, 60mm)

• 1 × VTX cable (4-to-6 pin, 100mm)

• 1 × XT90 power cable (10AWG, 230mm)

• 4 × M3×30 screws

• 4 × M3×25 screws

• 8 × M3 nylon nuts

• 12 × Silicone vibration dampers (M3)
