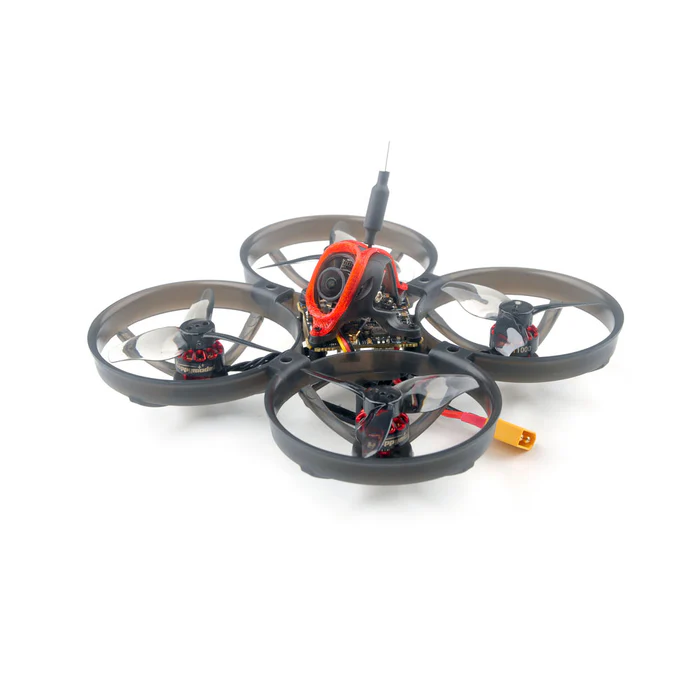

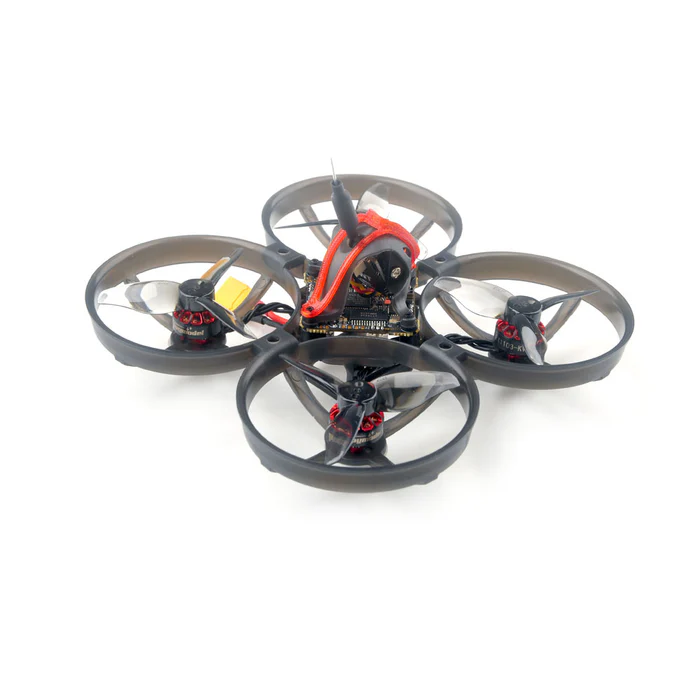

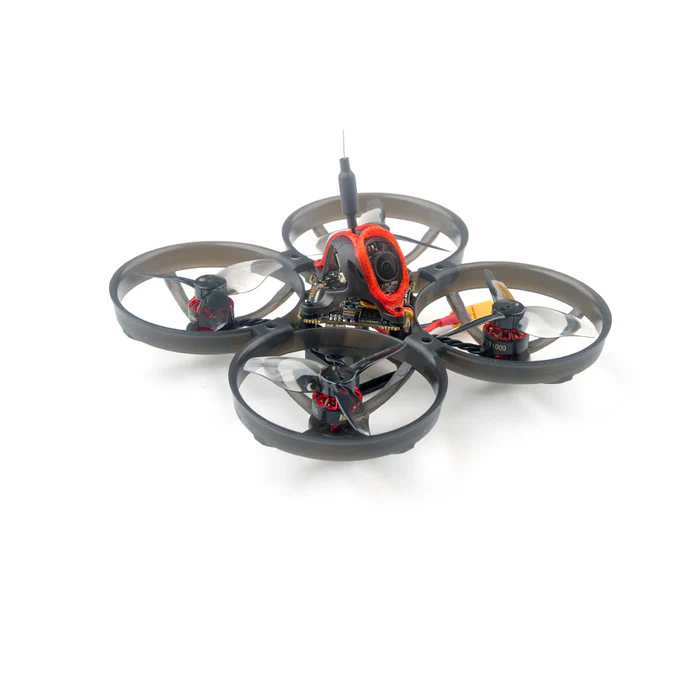

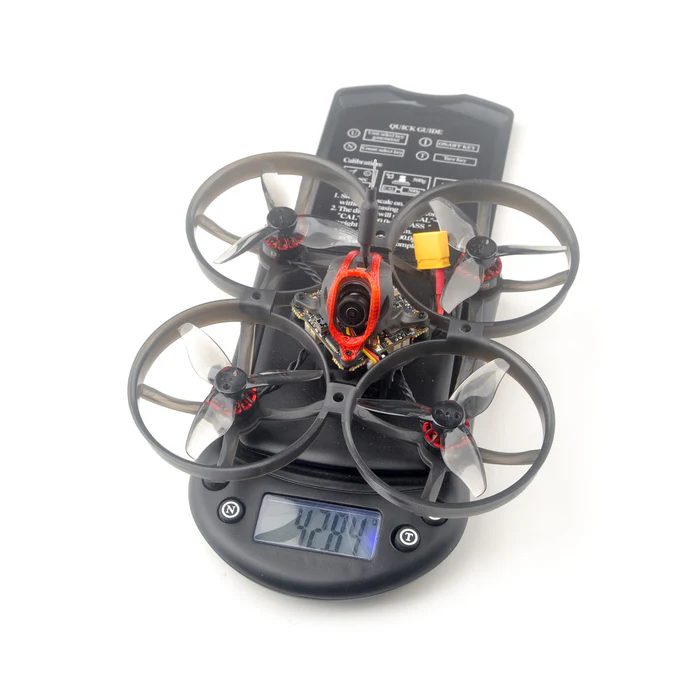

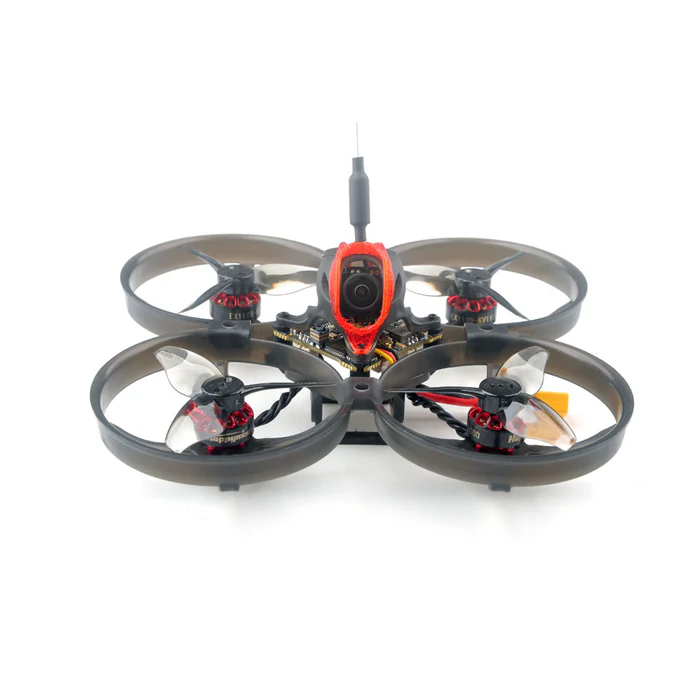

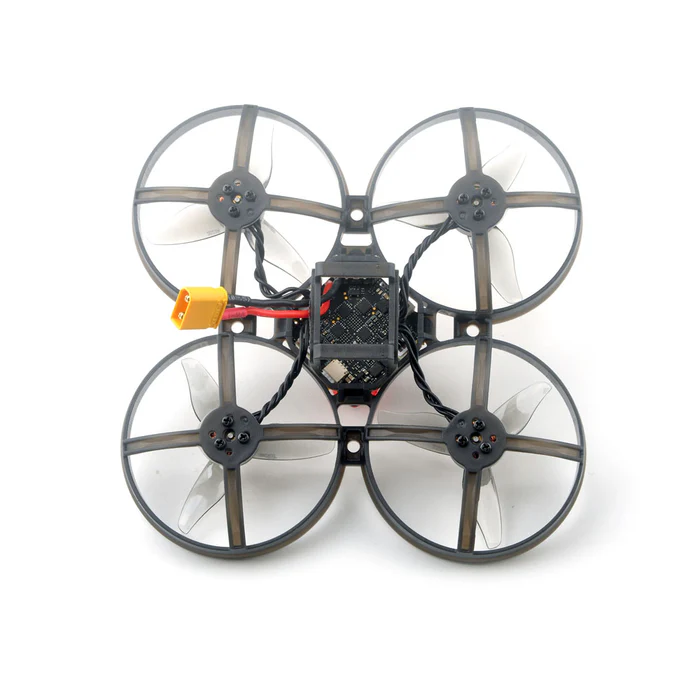

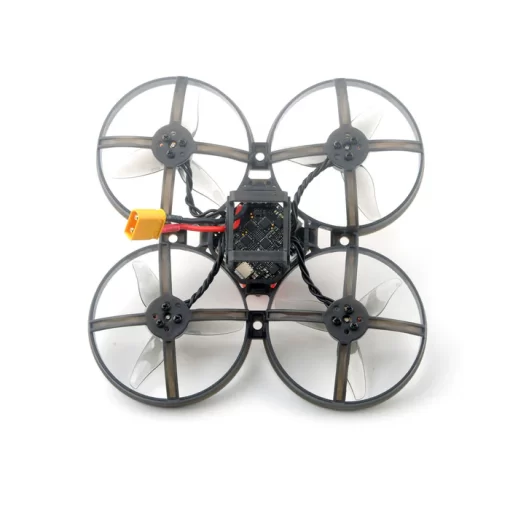

Happymodel Mobula8 1-2S 85mm Analog Micro FPV Whoop Drone

Description

Are you tired of the limited power of your 1S whoop? Do you want more punch to rip around the backyard or dominate tight FPV tracks?
Introducing the Happymodel Mobula8 — the first 85mm frame whoop from Happymodel, engineered for extreme smoothness and power.

Powered by EX1103 KV11000 motors and Gemfan Hurricane 2023 tri-blade propellers, the Mobula8 delivers a perfect blend of thrust, responsiveness, and flight stability. Its X12 5-in-1 AIO flight controller integrates ExpressLRS V2.0/V3.0 compatibility, up to 400mW VTX output, and a full 12A 4-in-1 ESC.

The FPV system features the Caddx ANT 1200TVL camera for crystal-clear visuals with global WDR and ultra-low-light capability. Built for versatility, the Mobula8 supports both 1S and 2S LiPo/LIHV batteries, making it ideal for indoor cruising or outdoor freestyle.

With a 3D printed camera lens protector included, you’re ready to push limits while keeping your gear safe.

---

Features

• X12 5-in-1 AIO flight controller with integrated 2.4G ExpressLRS V2.0 and OPENVTX

• VTX output power selectable up to 400mW

• EX1103 KV11000 motors for high efficiency and torque

• Gemfan Hurricane 2023 tri-blade propellers for smooth and stable flight

• Caddx ANT 1200TVL camera with global WDR and 0.001Lux low-light capability

• Compatible with 1S-2S LiPo / LiHV batteries

• Multiple receiver options: ExpressLRS, FrSky D8/D16, FlySky AFHDS 2A, PNP, or TBS Crossfire

• 3D printed lens protector for added camera safety

• Built-in SmartAudio V2.1 and PIT/RCE modes

• Lightweight 85mm frame design for agility and durability

---

Specifications

Motors (EX1103 KV11000)

• Configuration: 9N12P

• Stator Diameter: 11mm

• Stator Length: 3mm

• Shaft Diameter: 1.5mm

• Motor Size: 13.5×15.5mm

• Weight: 3.8g

• Battery: 1-2S compatible

Propellers (Gemfan Hurricane 2023)

• Weight: 0.88g each

• Material: Polycarbonate (PC)

• Pitch: 2.3 inch

• Diameter: 52.17mm

• Center Hole: 1.5mm

Flight Controller (X12 series)

• MCU: STM32F411CEU6 (100MHz, 512K Flash)

• Sensor: ICM20689 or ICM42688P

• Mounting: 25.5×25.5mm

• Input Voltage: 1S–2S (DC 2.9V–8.7V)

• Built-in 12A BLHeli_S 4-in-1 ESC (DSHOT300, Bluejay firmware support)

• Integrated ExpressLRS / FrSky / Flysky / PNP / TBS Crossfire options

• Built-in Betaflight OSD, voltage/current sensor

VTX (OpenVTX)

• Power: 0 / RCE / 25mW / 100mW / 400mW

• Channels: 37CH

• SmartAudio v2.1

• Supply: DC 5V

Camera (Caddx ANT 1200TVL)

• Sensor: 1/3″ CMOS

• Resolution: 1200TVL

• Aspect Ratio: 4:3 or 16:9

• Min Illumination: 0.001Lux@F1.2

• WDR: Global WDR

• Lens: 1.8mm

• Weight: 2g

---

Package Includes

• 1× Happymodel Mobula8 1-2S 85mm Analog Micro FPV Whoop Drone (chosen receiver option)

• 1× Set Gemfan Hurricane 2023 tri-blade propellers (4CW + 4CCW)

• 1× Screwdriver

• 1× Extra camera canopy
