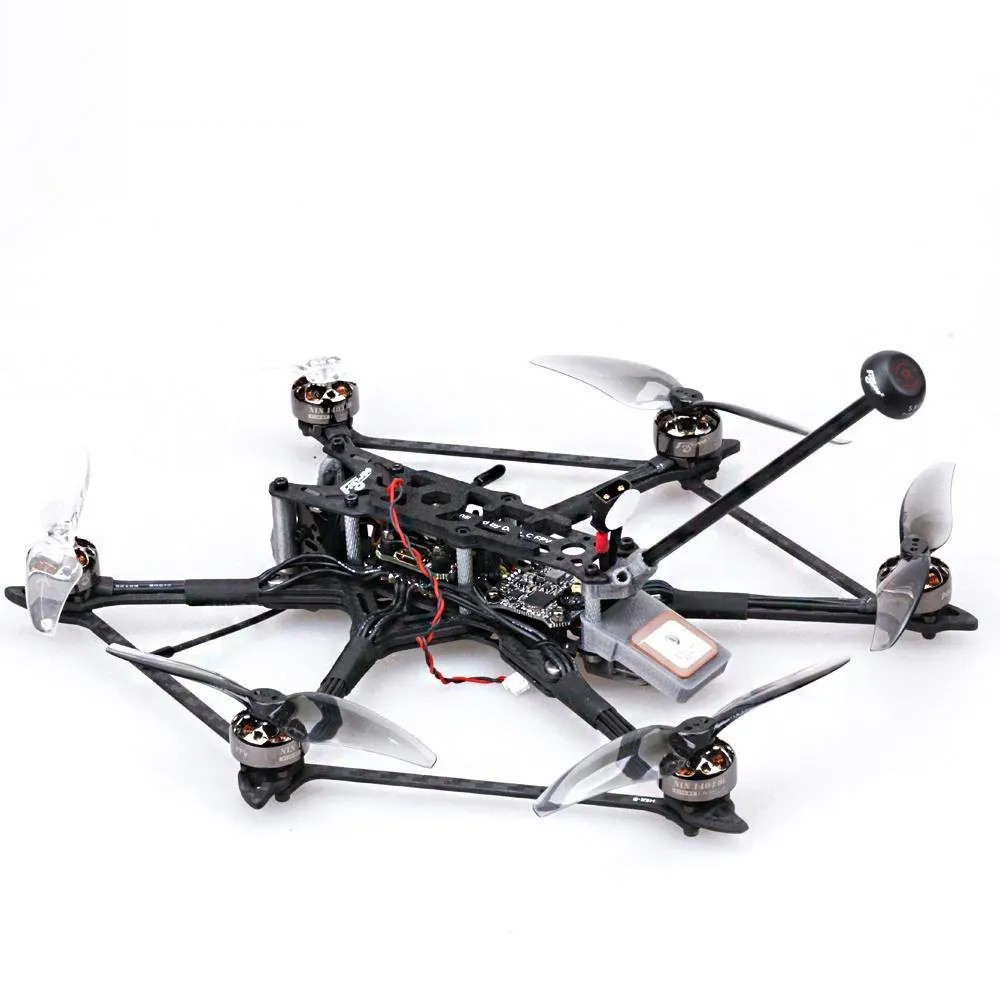

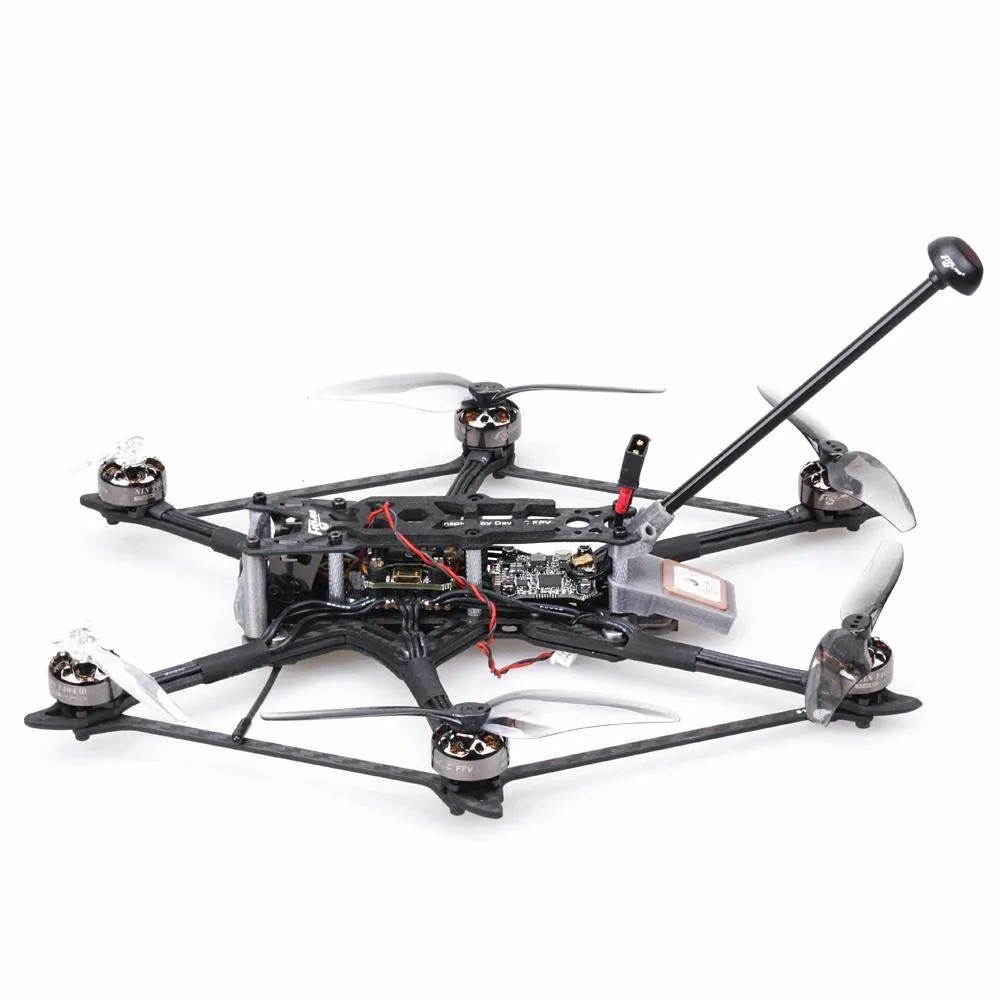

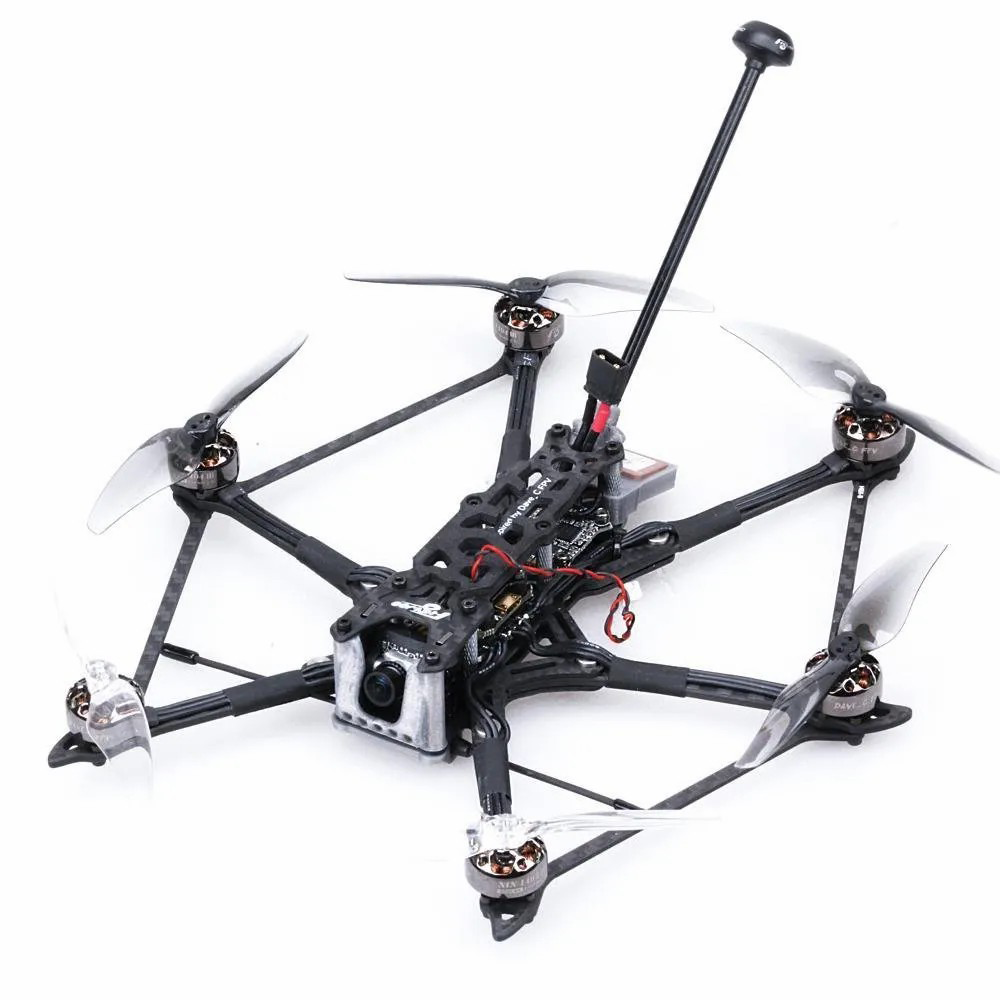

HEXplorer LR4 Hexacopter BNF 4S Analog FPV Drone with Caddx Ant Camera and 850mW VTX

After successfully introducing the Explorer LR 4, many pilots asked for more: the ability to carry a full-size GoPro, a frame optimized for both freestyle and cruising, and even built-in Bluetooth. Now, with the collaboration of Dave_C, we are excited to bring you the HEXplorer Hexa-copter — designed to push the limits of #micro long range and beyond.

The HEXplorer continues our mission of creating innovative drones that meet the needs of FPV enthusiasts worldwide.

HEXplorer LR 4 Analog BNF – Specifications

• Flight Stack: Goku F411 Hex Nano 16×16 with Goku HM850 850mW VTX

• Camera: Caddx Ant FPV Camera

• Motors: Dave_C & NIN 1404 V2 2750KV

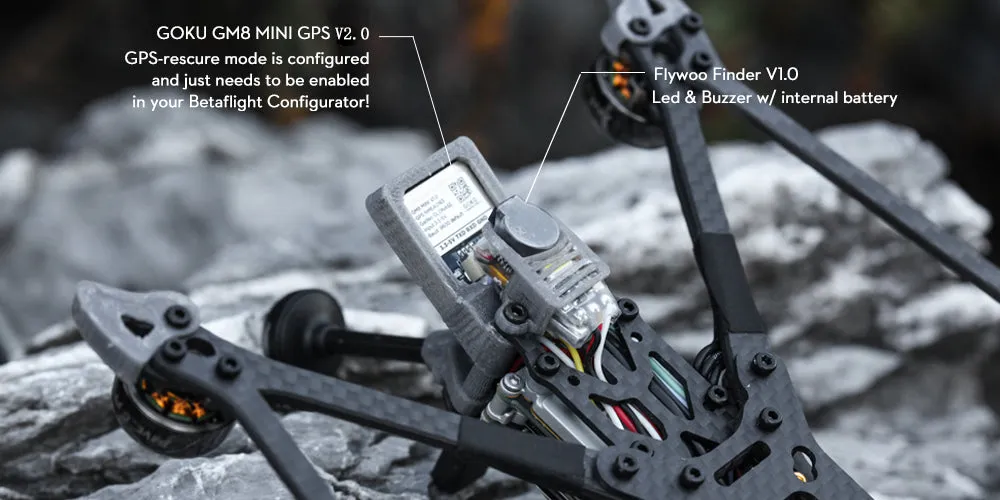

• GPS: Goku M8N Mini V2.0

• Failsafe: Flywoo Finder V1.0

• Propellers: Gemfan 4024

• Antenna: Atomic 5.8G RHCP

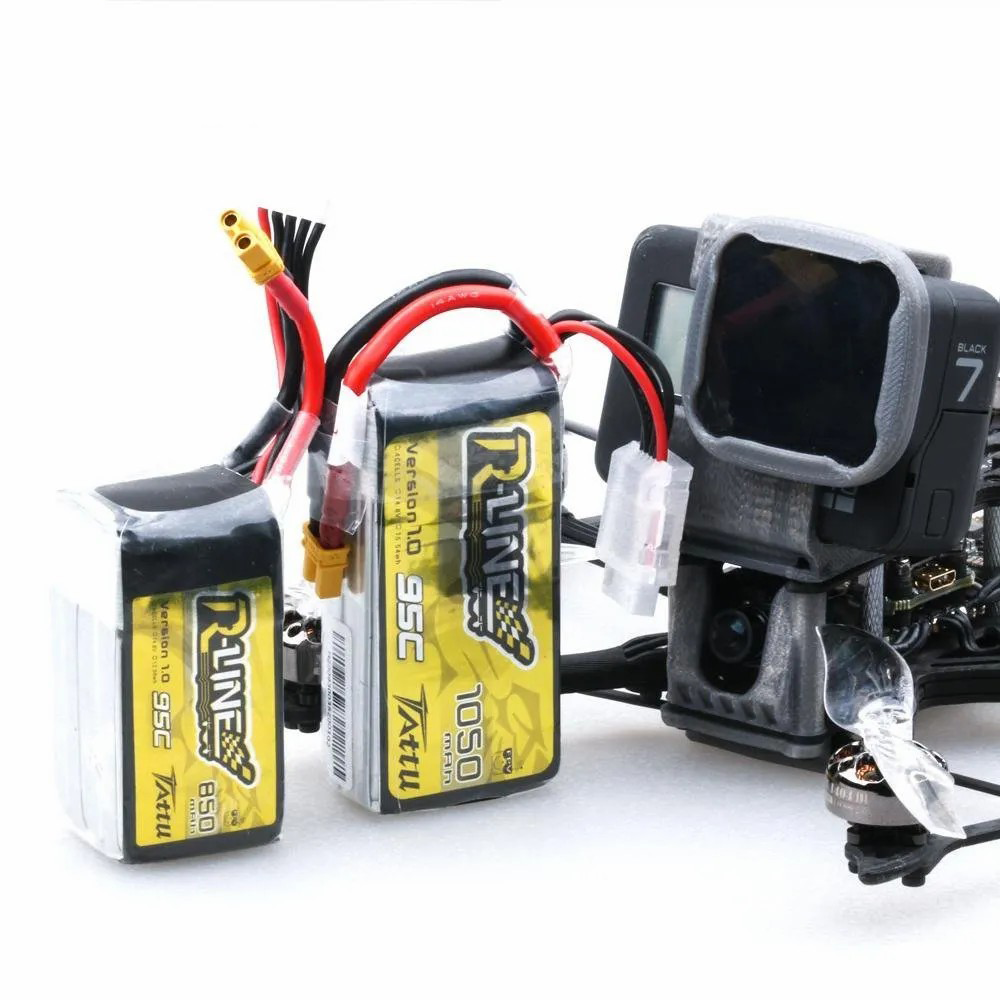

Recommended Batteries:

• Naked GoPro, SMO 4K, Insta360 GO → Explorer 18650

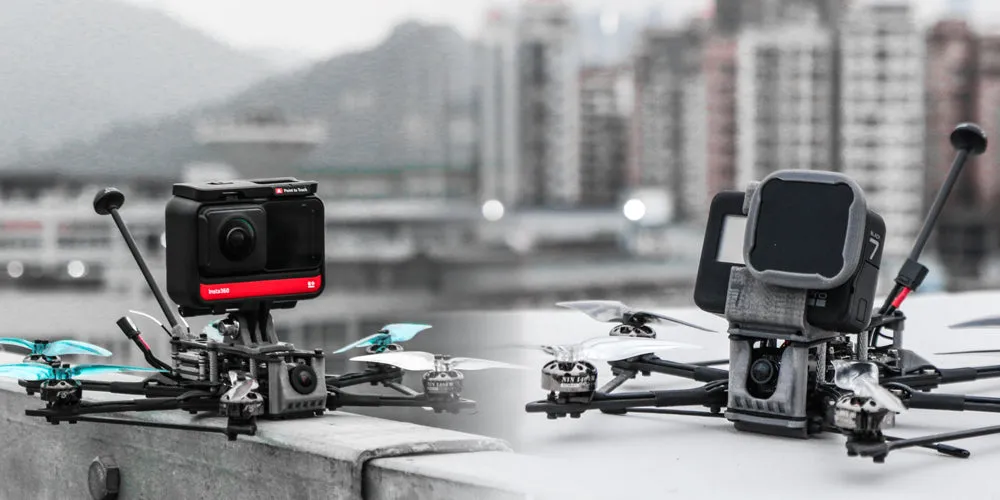

• GoPro 5/6/7/8, Insta360 One R → Tattu 1050mAh 4S or 850mAh 4S

Key Highlights

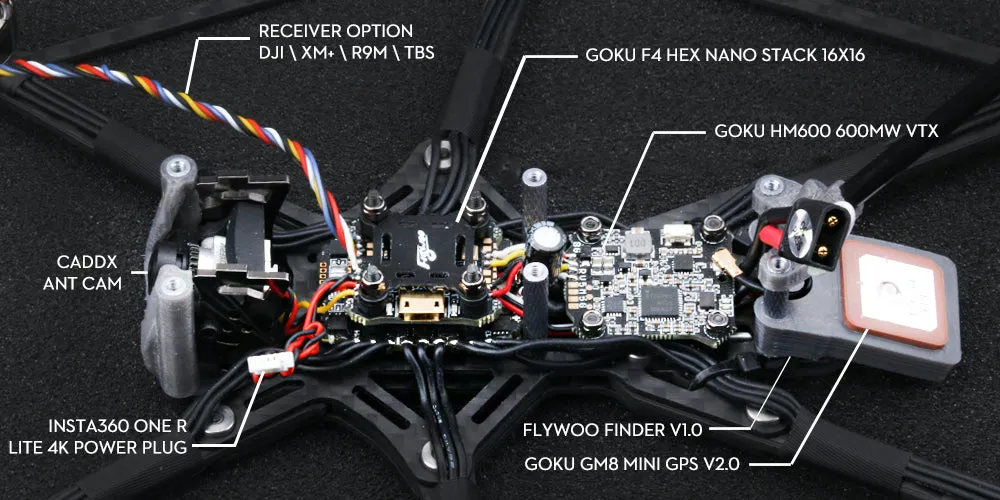

1. Powered by the GOKU F411 Hex Nano Stack, with STM32F411 chip, 5V/2A BEC, black box, and WS2812 LEDs. Compact but fully capable, offering multiple serial ports, I2C support, and advanced FPV features.

2. As Dave_C said: If you’re looking for the smallest and quietest platform that can still carry a full GoPro while delivering solid flight times and performance – the HEXplorer is your best choice.

3. Built not just for long-range cruising, but also highly capable for freestyle flying.

4. Caddx Ant camera delivers sharp visuals, while the Goku HM600 VTX provides stable, long-distance video transmission.

5. Upgraded Goku Mini GPS V2.0 ensures faster, more stable satellite lock compared to V1.0.

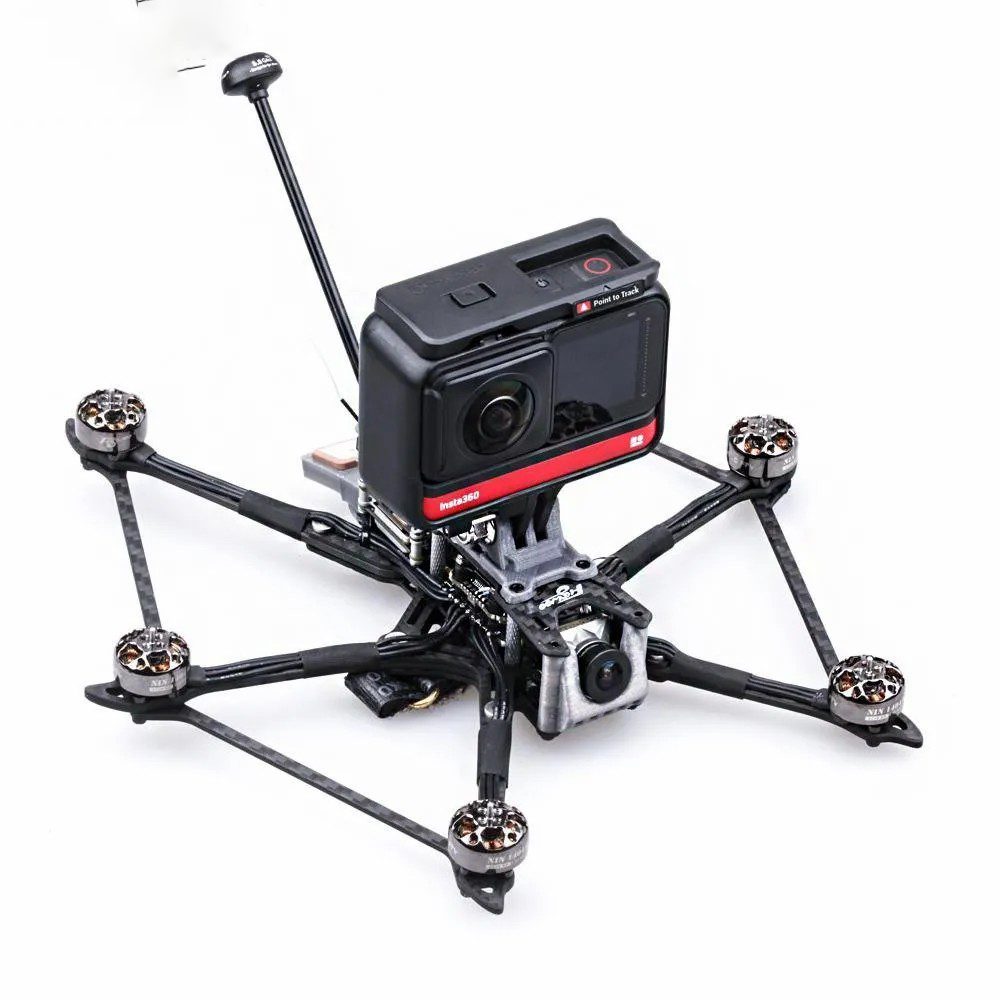

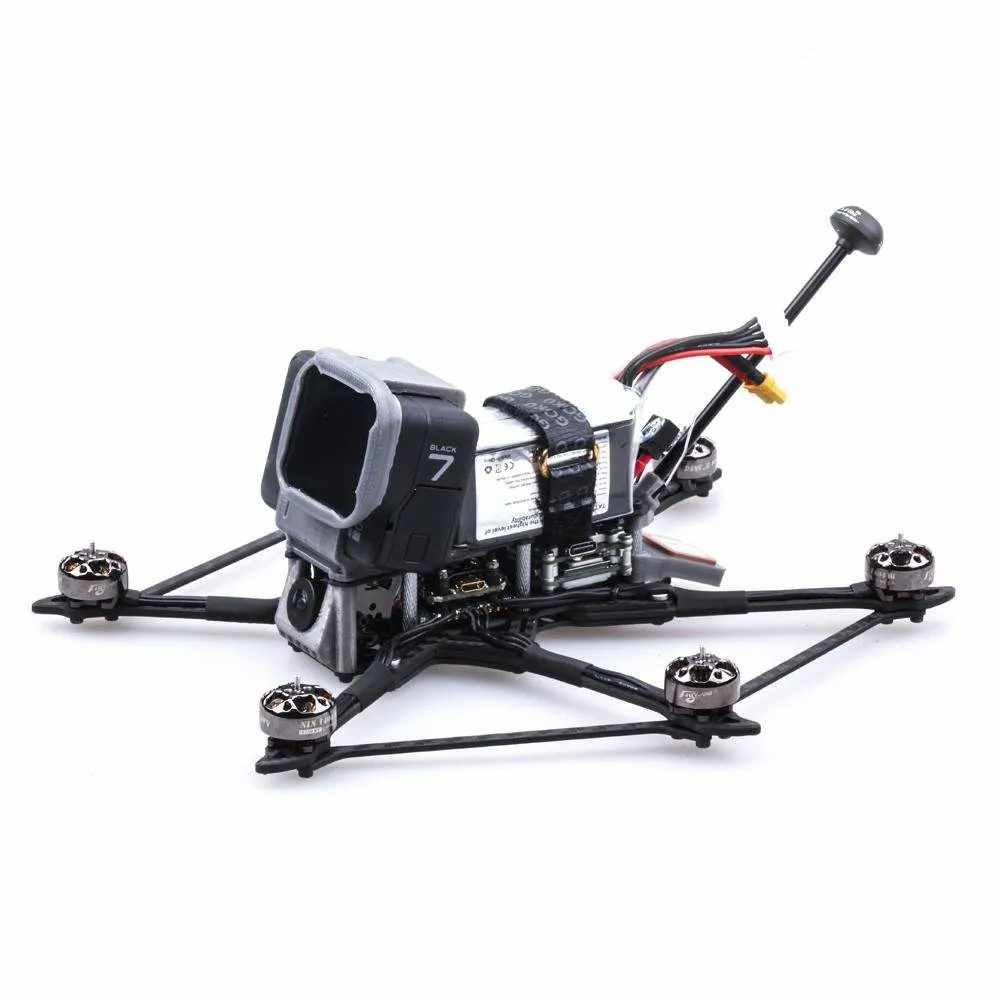

6. All versions include pre-soldered power cables for SMO 4K. For naked GoPro 6/7/8, simply swap the connector.
