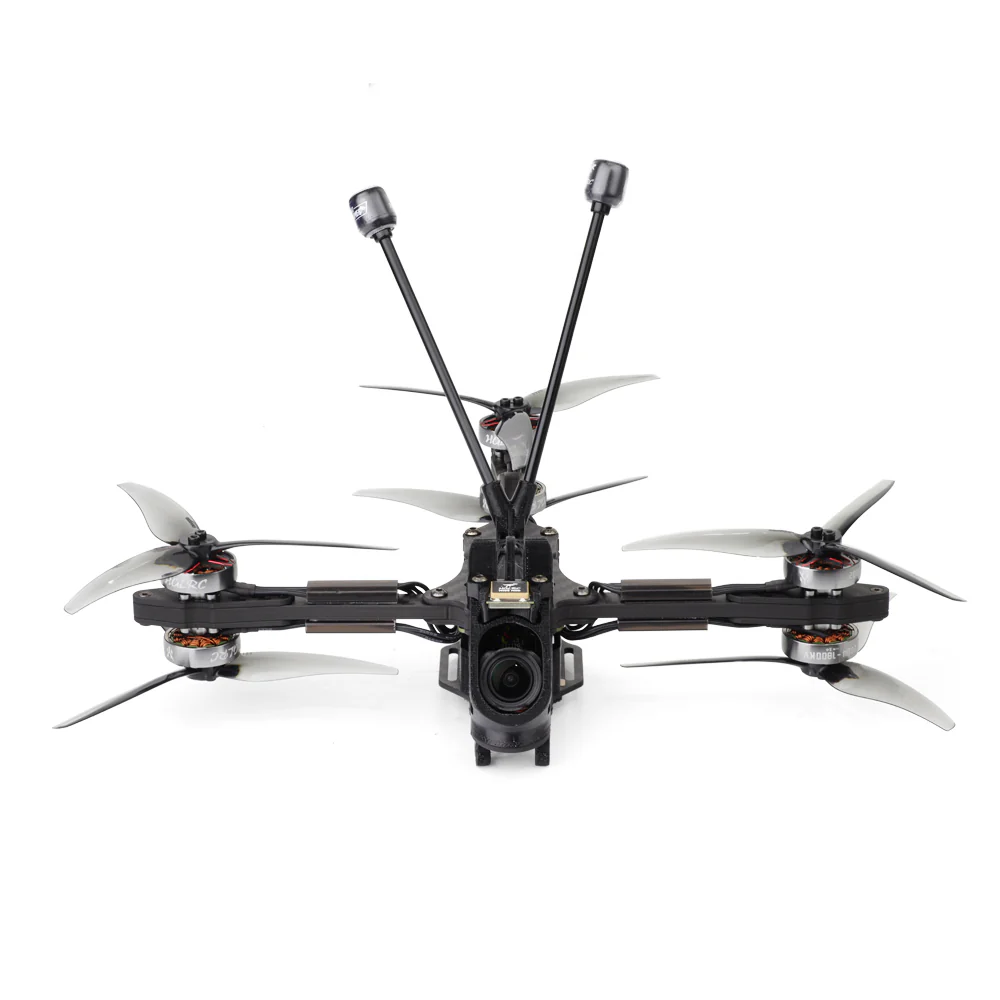

HGLRC Rekon Y6 5 inch Long Range FPV Drone with Stable Flight Performance

Features

• 50% Larger Prop Area: Compared with a standard 5-inch quad, the Rekon Y6 expands propeller coverage by 50%, giving it the lift capacity to carry full-sized action cameras while keeping the frame compact.

• Secure Power Connector: The fixed connector design minimizes vibration-related instability, resulting in smoother and more reliable flights.

• Flexible Antenna Mounting: Includes reserved side-mounting options, allowing pilots to reposition antennas or install dual-antenna receivers to eliminate signal blind spots.

• Extended Flight Endurance: Paired with a 6S 18650 3000mAh battery, the Rekon Y6 achieves up to 20 minutes of flight without payload, and around 10 minutes even when carrying a GoPro8.

• Clear Camera Footage: The geometry ensures propellers stay out of the camera’s field of view, giving creators unobstructed, cinematic video.

• Optimized for Performance: Designed for both speed and precision, the Y6 enhances cruise efficiency and locks in stable straight-line tracking—ideal for cinematic long-range flights and high-speed chase shots.

• Compact M100 Mini GPS: Lightweight yet reliable, ensuring stable positioning and navigation during extended missions.

• Multiple Configurations: Available in four versions to suit different needs:

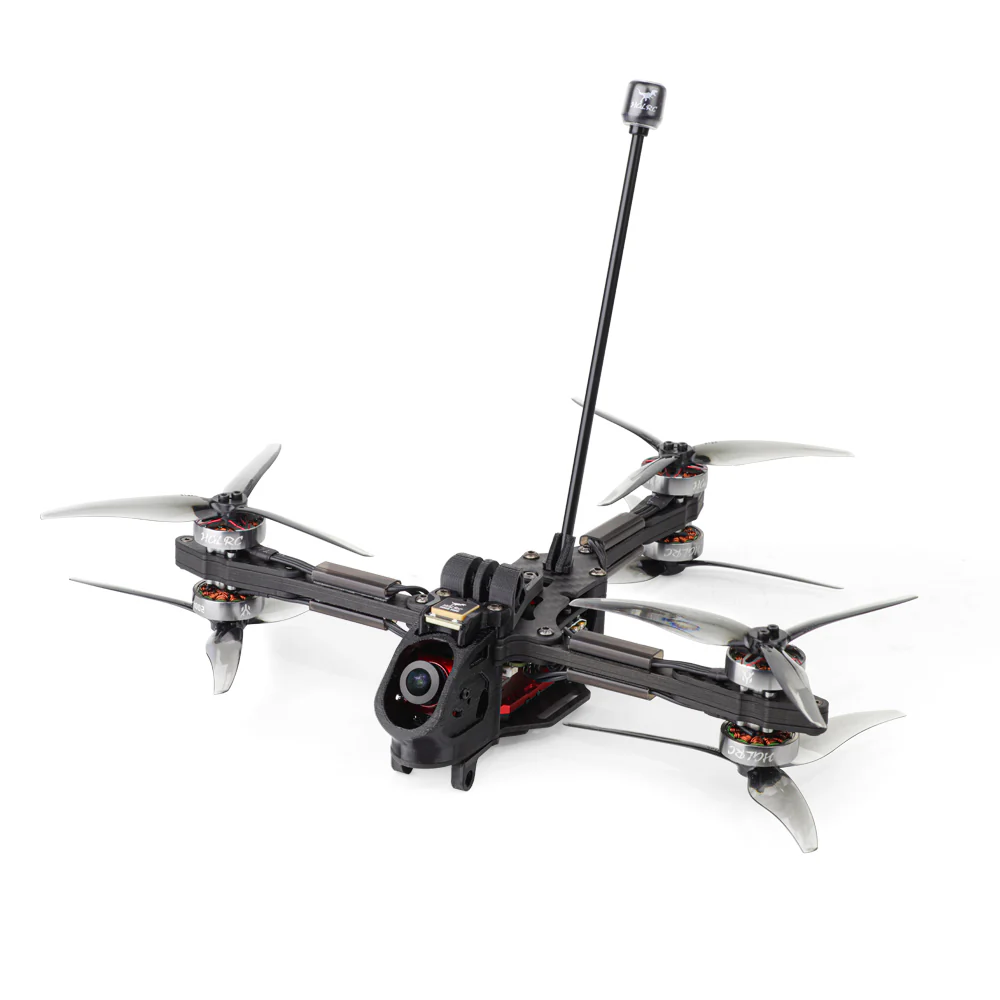

  • Analog Version: Equipped with a 1.6W high-power VTX for ultra-low latency video and long-range capability.

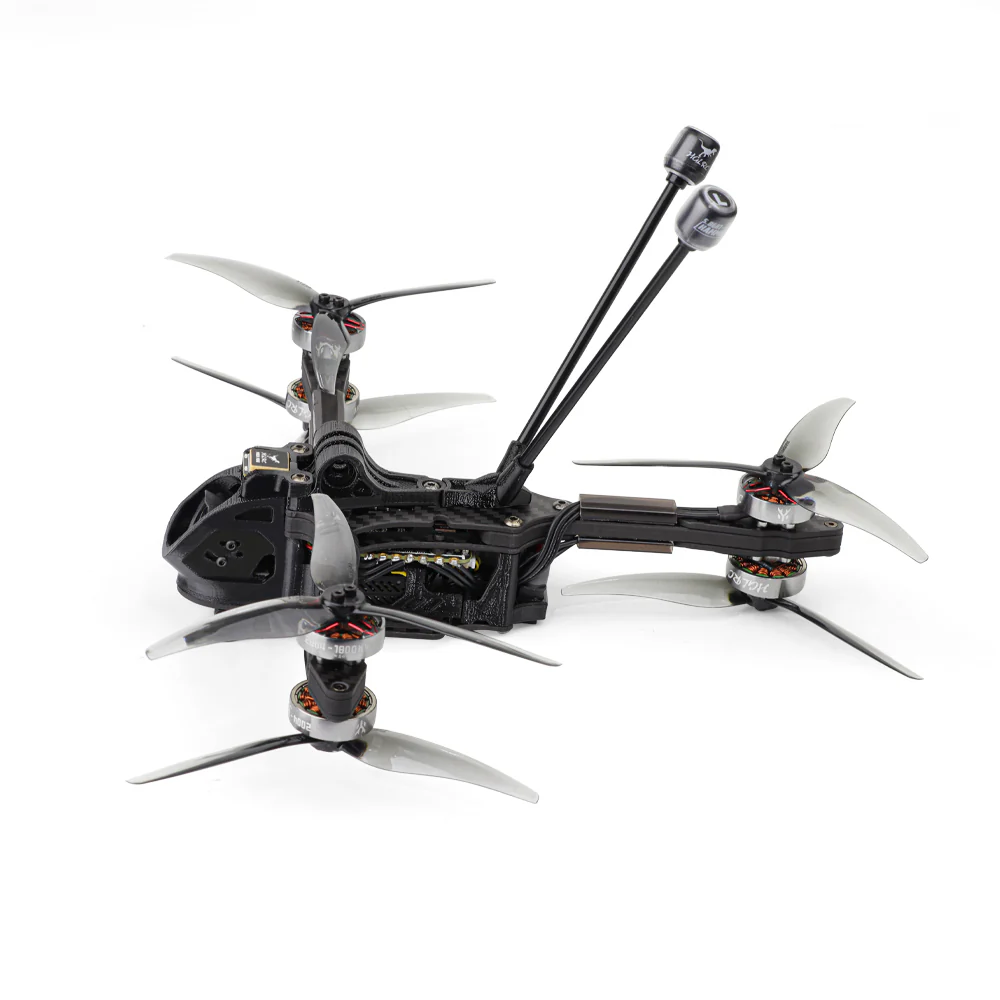

  • O3 HD Version: Digital transmission with up to 10KM range, supporting 4K at 100fps or 120fps, and a 155° ultra-wide FOV.

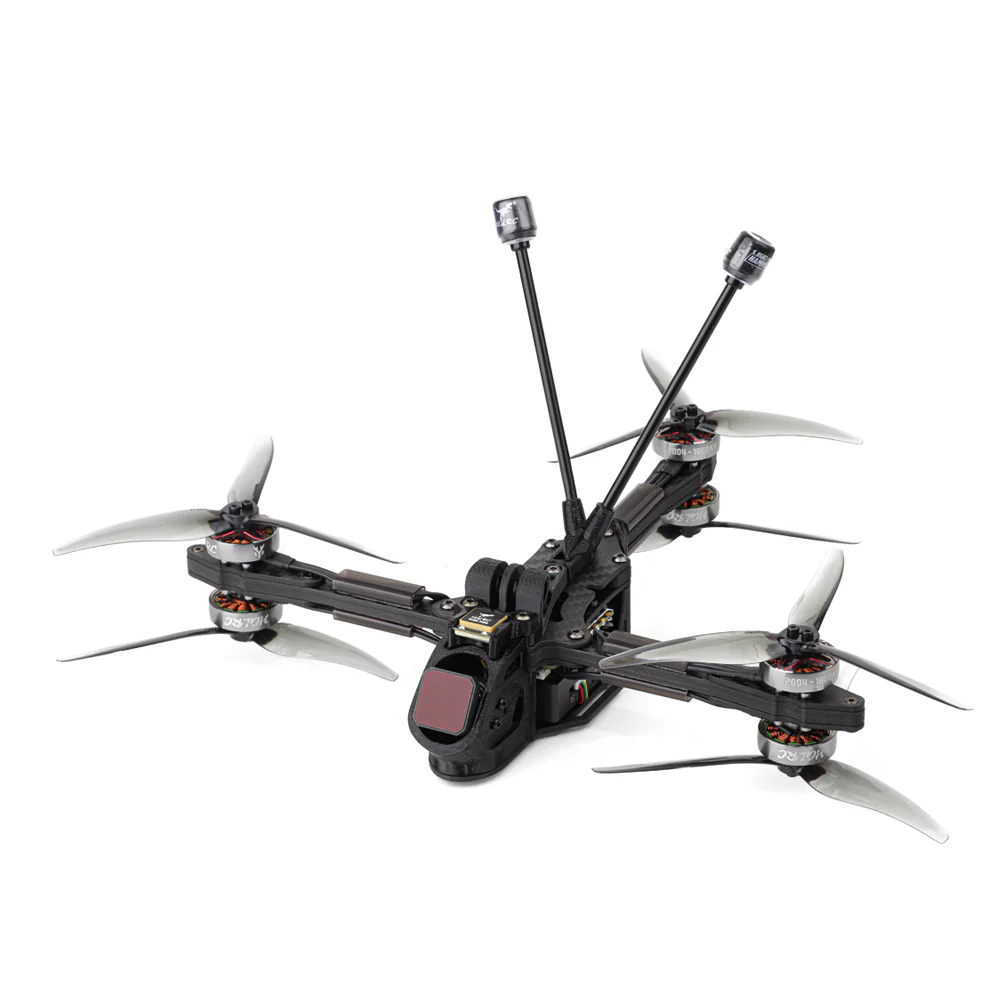

  • Moonlight HD Version: Dual-stabilized VTX for enhanced clarity, supports 4K/60fps, 160° FOV, and comes with an ND8 filter.

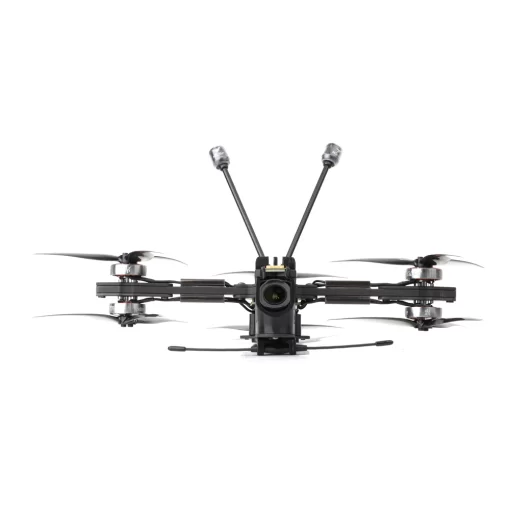

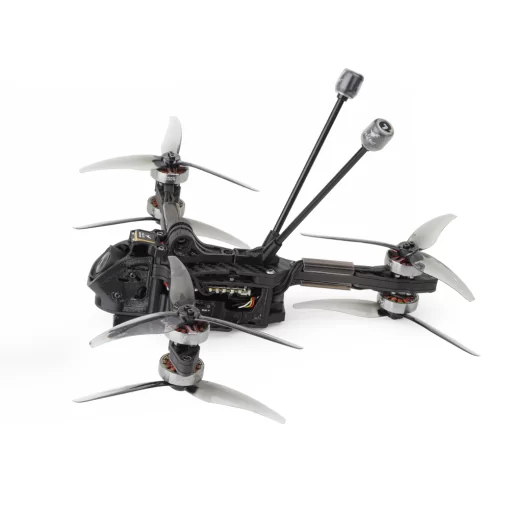

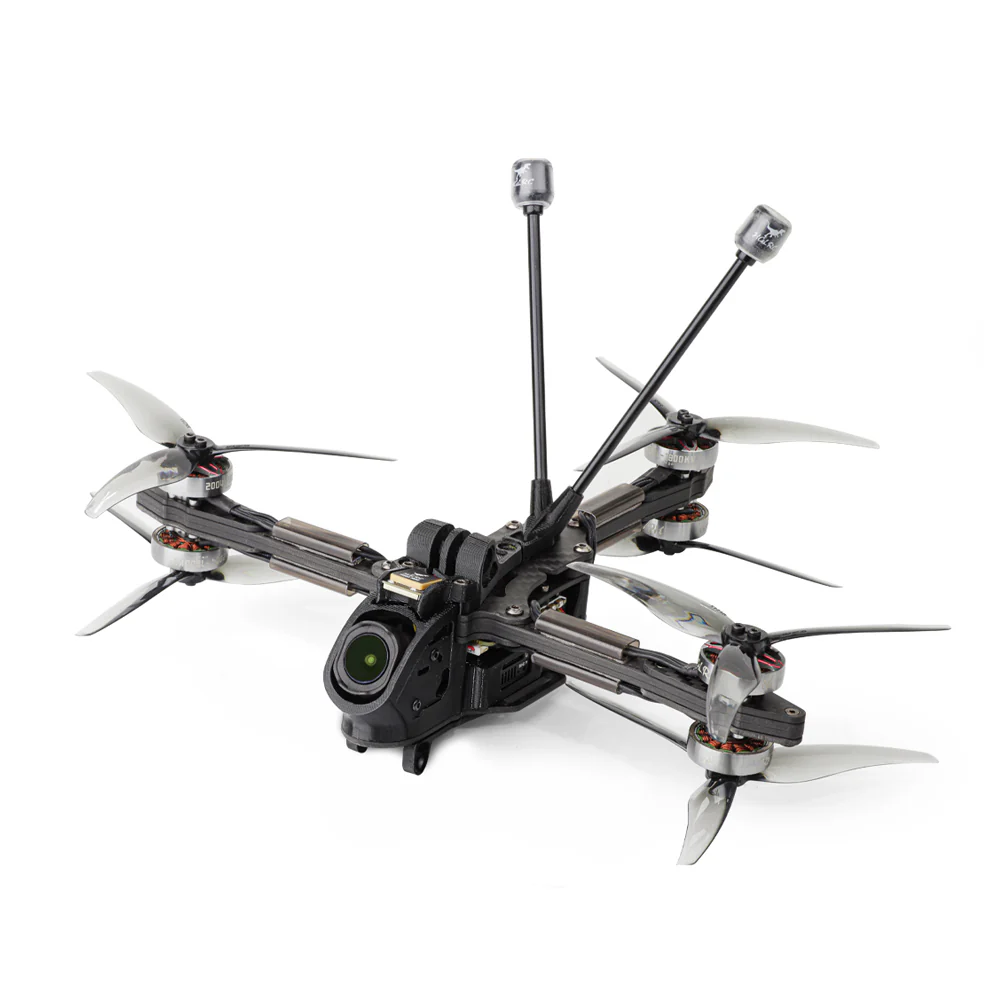

  • DJI O4 Pro HD Version: 15ms latency, up to 15KM range, supports 4K/120fps with a 1/1.3-inch sensor and built-in super stabilization.

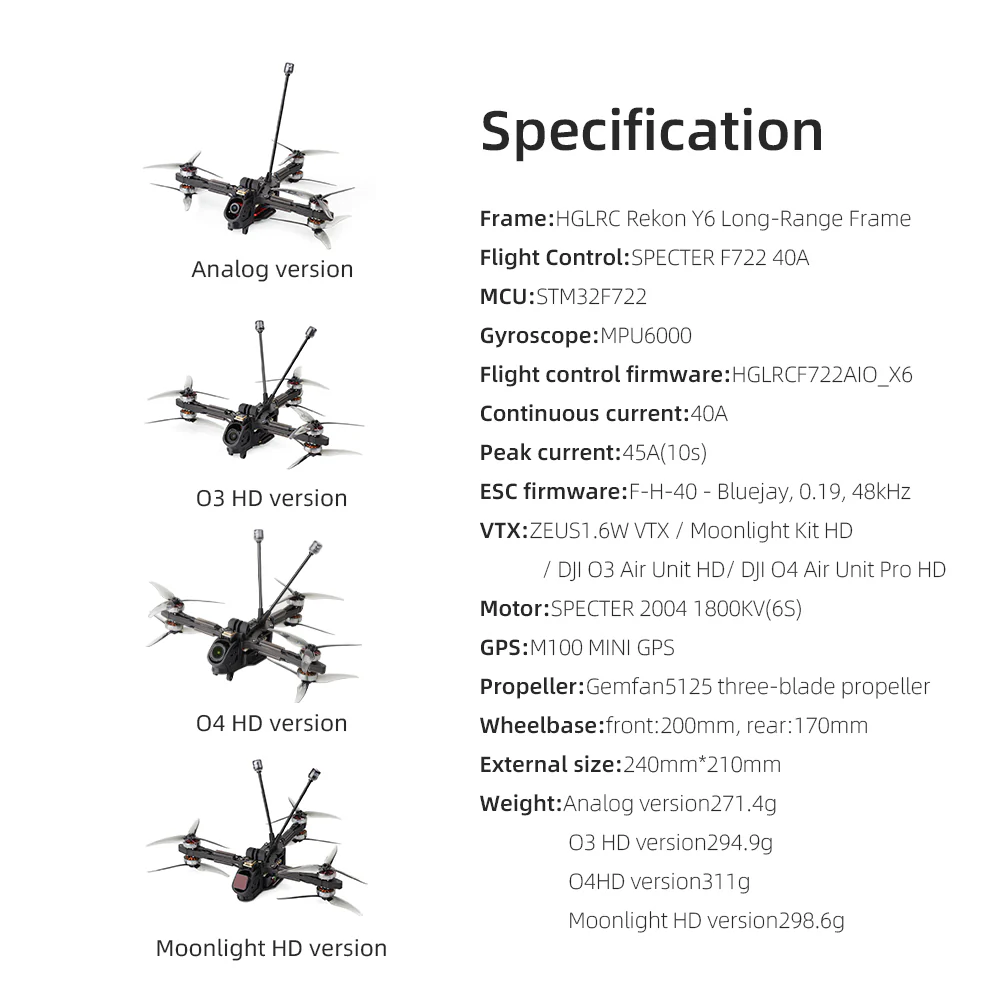

Specifications

• Frame: Rekon Y6 Long Range Frame

• Flight Controller: SPECTER F722 40A 4S–6S 6-in-1 AIO

• MCU: STM32F722

• Gyro: ICM42688

• Firmware: HGLR-HGLRCF722AIO_X6

• ESC: 40A continuous / 45A peak (10s), F-H-40 Bluejay 0.19 48kHz

• VTX Options: ZEUS 1.6W Analog / Moonlight HD Kit / DJI O3 Air Unit / DJI O4 Air Unit Pro

• Motors: SPECTER 2004 1800KV (6S)

• GPS: M100 Mini GPS

• Buzzer: Soter FPV Drone Buzzer

• Propellers: Gemfan 5125 tri-blades

• Wheelbase: Front 200mm / Rear 170mm

• Dimensions: 200mm × 209mm

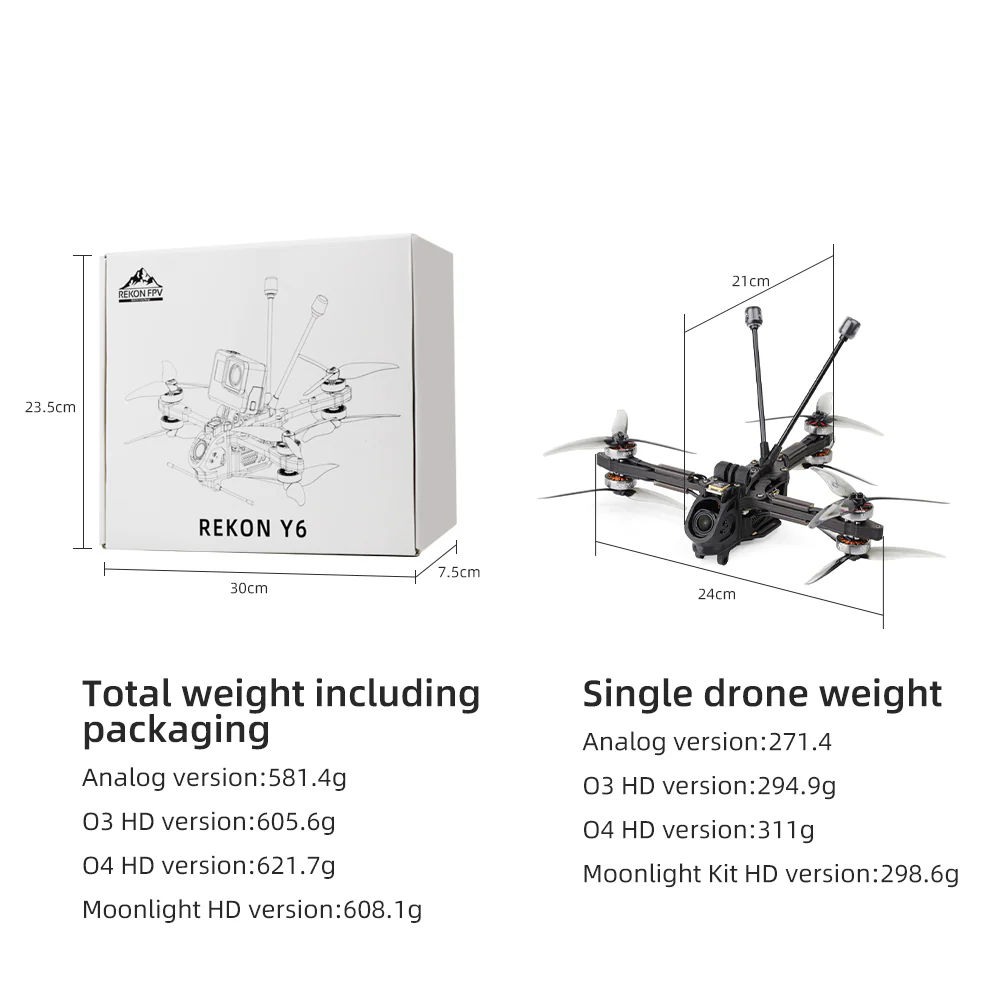

• Weight:

  • Analog: 271.4g

  • Moonlight HD: 298.6g

  • O3 HD: 294.9g

  • O4 Pro: 311g

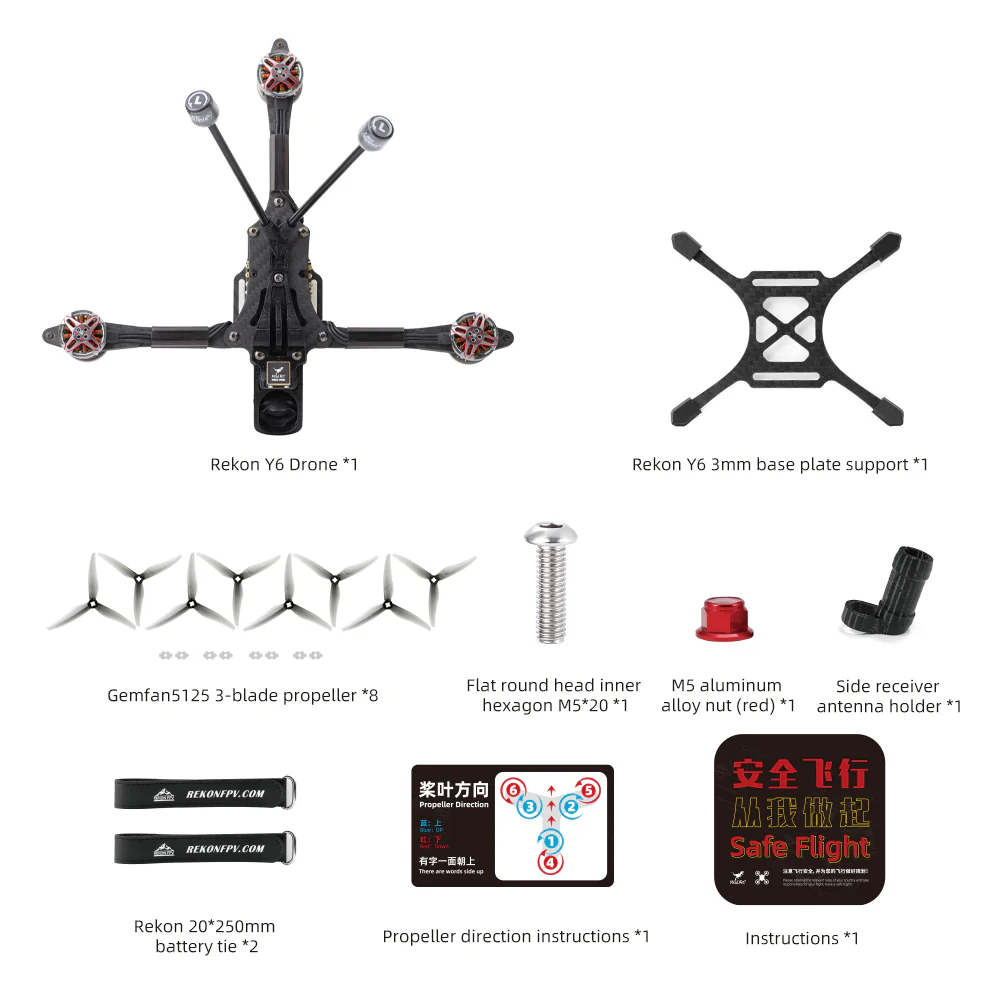

Package Includes

• 1 × Rekon Y6 Drone

• 8 × Gemfan 5125 tri-blade props

• 1 × M5×20 stainless steel screw

• 1 × Anti-loosening self-locking M5 aluminum nut

• 2 × 20×250mm Rekon battery straps

• 1 × Side receiver antenna mount

• 1 × Bottom plate support

• 1 × Receiver (optional)

Recommended Battery

• 18650 6S 3000mAh pack
