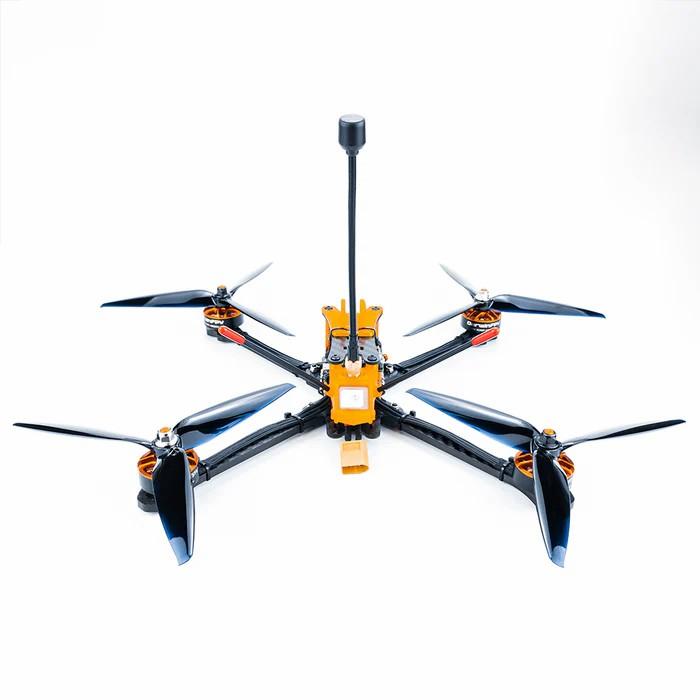

DarwinFPV Darwin129 7 Long Range PNP

Price: 252.99$
Model:

Get Quote

+86-13959965075

Darwin129 Frame: Features a 280mm wheelbase, with frame arms measuring 5mm in thickness. Constructed from 3K carbon fiber for durability and lightweight performance.

DarwinFPV 2507 Brushless Motor: Boasts a 1800KV rating, compatible with 3-5S LiPo batteries.
- Idle current at 10V: 0.89A
- Weight: 39g
- Maximum continuous current: 42A; maximum continuous power: 840W
- Peak thrust: 1488g (when used with 4S battery and 7" propellers)
- Configuration: 12N/14P
- Motor resistance (RM): 0.0586Ω
- Stator dimensions: 25mm diameter, 7mm thickness
- Motor dimensions: 30.8mm diameter, 20mm body length; overall shaft length: 35mm
- Propeller adapter shaft: M5
- Bolt hole spacing: 16mm; bolt thread: M3

7" 3-Blade Propellers: Gemfan Flash 7040-3 model, designed for durability.
- Material: PC
- Mounting hole diameter: 5mm
- Center thickness: 8mm
- Quantity: 2 pairs (2 left, 2 right)
- Weight: 7.9g
- Color: Randomly selected from black or transparent

4-in-1 50A ESC: BLHeli_S firmware, supporting 2-6S LiPo batteries.
- Continuous current: 50A; peak current: 60A (for 10 seconds)
- BEC output: 5V/2A
- Weight: 10.8g
- Maximum supported throttle signal: DSHOT600
- Mounting holes: M3, 30.5×30.5mm pattern
F4 Flight Controller: Compatible with 3-6S LiPo batteries.
- BEC outputs: 10V/1A, 4.5V, 3.3V
- MCU: STM32F405; gyroscope: MPU6000
- OSD: AT7456E; firmware: MATEKF405
- Weight: 7.2g
- Mounting holes: M3, 30.5×30.5mm pattern
- Additional features: Supports barometer, black box, and Bluetooth

5.8G 40CH 800mW VTX (TX805): FPV transmitter with switchable power levels.
- Frequency: 5.8GHz; channels: 40
- Input voltage: 7V~24V
- 5V camera power supply: 120mA (max) for 25mW; 200mA (max) for 200mW; 300mA (max) for 600mW; 350mA (max) for 800mW (all at 12V)
- Features: Smart audio functionality
- Antenna connector: MMCX
- Cable connector: Solder pads
- Dimensions: 36mm×22mm×5mm, with 30.5mm stackable mounting holes
- Weight: 8g (excluding antenna)

CADDX Starlight Camera: Equipped with a 1/1.8" sensor, delivering 1200TVL resolution.
- Field of view (FOV): 165°; lens: 2.1mm
- Compatible with NTSC & PAL systems (switchable); image aspect ratios: 4:3 & 16:9 (switchable)
- Features: Super WDR (Wide Dynamic Range), 3DNR (3D Noise Reduction)
- Minimum illumination: 0.0001LUX
- Video output: CVBS
- Day/night mode: Auto/Color/B&W/EXT
- Shutter speed: PAL (1/50~100,000), NTSC (1/60~100,000)
- Power input: 5-40V
- Operating temperature: -20℃ ~ +60℃
- Weight: 5.9g; dimensions: 19×19×20mm

Darwin M80 GPS: Supports GPS+GLONASS positioning systems.
- Power supply: 5V
- Data rate: 115200dps
- Receiving sensitivity: -167dBm (tracking), -160dBm (capture)
- Dimensions: 18mm×18mm×7.1mm

Note: Battery, charger, receiver, and remote controller are not included. A 4S LiPo battery is recommended.

Long-Range Capability – Supports 10–13 km stable FPV transmission with low latency.
Efficient Power System – 2507 motors paired with 7” tri-blade props for powerful yet efficient thrust.
Comprehensive Setup – Equipped with GPS, HD starlight camera, adjustable VTX, and reliable F4 flight controller.
