RekonFPV Rekon 3 Nano 3 Long Range FPV Quad

Price: 139.99$
Model:

Get Quote

+86-13959965075

Product Description

The Rekon3 is all about simplicity and convenience! This compact quadcopter is designed to work with a single standard 18650 lithium-ion battery. Just insert the battery like you would in a TV remote, and you’re ready to fly for over 15 minutes right away. This means you can carry enough batteries in your pocket to keep flying for hours! The Rekon3 is also extremely quiet and small, making it perfect for flying in your backyard or a public park without disturbing others, exploring stunning mountain scenery, or simply cruising wherever you like.

But despite its small size and simplicity, don’t underestimate the Rekon3: its cruising speed is higher than you might expect, and with a powerful 350mW VTX, it offers a video signal range of several kilometers.

Key Features

Operates on a standard 18650 battery (requires a high C-rate cell; we recommend Sony VTC6 or similar)
Equipped with specific Rekon 1202.5 11600kV motors paired with 3” propellers

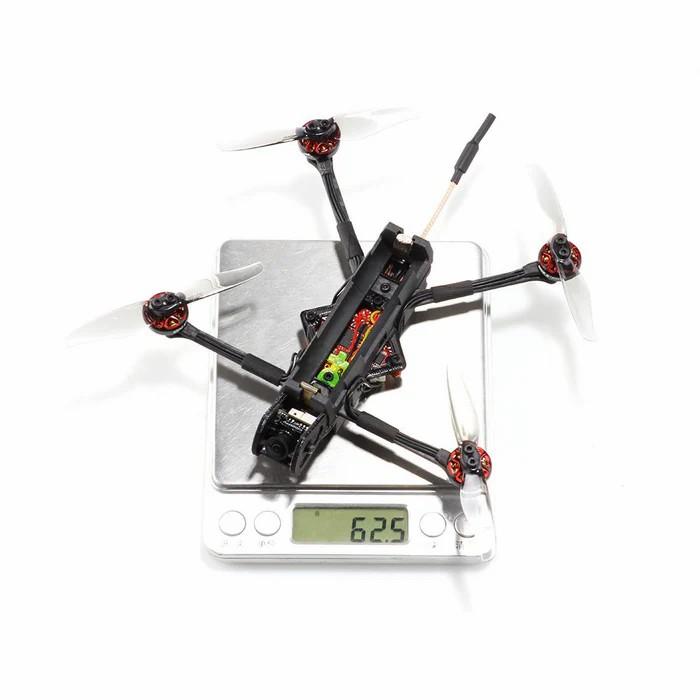

Small and lightweight (62.5g without battery, 140mm motor-to-motor distance)
Supports WiFi tuning via the Speedy Bee app on your mobile phone
Powerful 350mW video transmitter with a video range of several kilometers
Electronic configuration allows full discharge of the battery down to 2.6V

Specifications

Weight: 62.5g (without receiver)
Frame: Rekon3 Long Range Frame
Wheelbase: 140mm
Max prop size: 3 Inch
Flight controller: Zeus5 AIO 1-2S
Input voltage: 1-2S
Flight control firmware: Betaflight HGLRC411 (HGLR)
ESC firmware: BLHeli_S
Size: 41.5×41.5mm
VTX: Zeus nano VTX 350mW
Output power: PIT/25/100/200/350mW
Input voltage: DC 5V
FPV Camera: CADDX nano ANT
Image sensor: 1/3 1000TVL CMOS
Input voltage: DC 5V
Size: 14mm×14mm
Motor: Rekon 1202.5 11600KV brushless motor
Input voltage: 3.8V (1S)
Recommended propeller: 3 Inch
Propeller: GEMFAN 3018 3-inch 2-blade
Quantity: 4 CW & 4 CCW

Package Includes

1x Rekon3 Long Range Frame
1x Zeus5 AIO flight controller
1x Zeus nano VTX 350mW
1x CADDX nano ANT FPV camera
4x Rekon 1202.5 11600KV brushless motors
8x GEMFAN 3018 3-inch 2-blade propellers
1x IPEX copper tube antenna
1x receiver (optional)

Recommended battery (not included)

1S: 18650-3000mAh

Lightweight Design – Weighs only 62.5g (without battery) with a 140mm wheelbase.
Efficient Motors – Equipped with Rekon 1202.5 11600KV motors and 3-inch Gemfan props.
Long Flight Time – Over 15 minutes of flight per 18650 cell.
