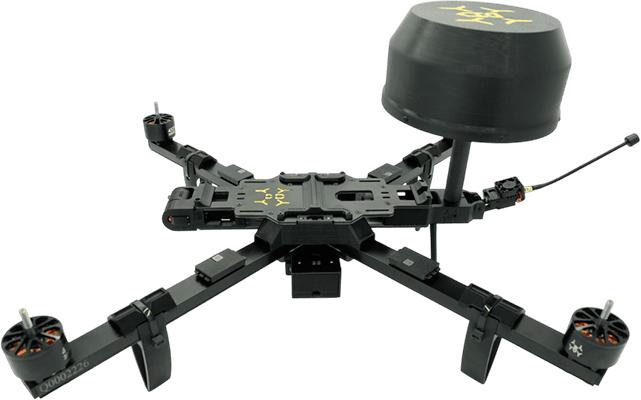

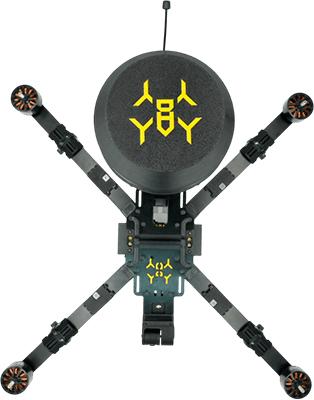

Queen Hornet with GSNN secure communication module

Performance Overview

• Top Speed: 130 km/h

• Max Range: up to 20 km*

• Flight Endurance: up to 25 minutes*

• Payload Capacity: supports up to 6 kg

This drone is powered by dual 6s4p batteries and comes with an integrated payload release system, as well as a GSNN secure communication module for reliable control and data transmission.

Technical Specifications

• Optimal Payload: 4 kg

• Maximum Payload: 6 kg

• Endurance: up to 25 minutes*

• Effective Range (with payload, round trip): up to 10 km*

• One-Way Max Distance: up to 20 km*

• Cruising Speed: 70 km/h

• Top Speed: 130 km/h

• Normal Operating Altitude: up to 2000 m

• Maximum Altitude: up to 3500 m
  *Performance may vary depending on battery capacity, weather conditions, payload weight, and pilot’s flight style.

Control & Transmission

• Control System: ELRS or TBS

• Video Transmission: Analog or Digital

• Camera Options: Analog, Digital (DJI O3/O4, Walksnail Avatar GT), or Thermal (Caddx IRC-640CA / IRC-384CA)

Components

• Frame: 17-inch aluminum construction

• Motors: 4320 350KV brushless motors

• ESC: 80A electronic speed controllers

• FPV Camera: configurable, depending on setup

• VTX Output Power: 1.2W – 2.5W

• Propellers: 17-inch

Additional Information

Equipped with dual 6s4p batteries, a payload release mechanism, and a GSNN secure communication module, this drone is designed for both range and reliability.

• Top Speed: 130 km/h

• Max Range: up to 20 km*

• Flight Endurance: up to 25 minutes*

• Payload Capacity: supports up to 6 kg

This drone is powered by dual 6s4p batteries and comes with an integrated payload release system, as well as a GSNN secure communication module for reliable control and data transmission.
