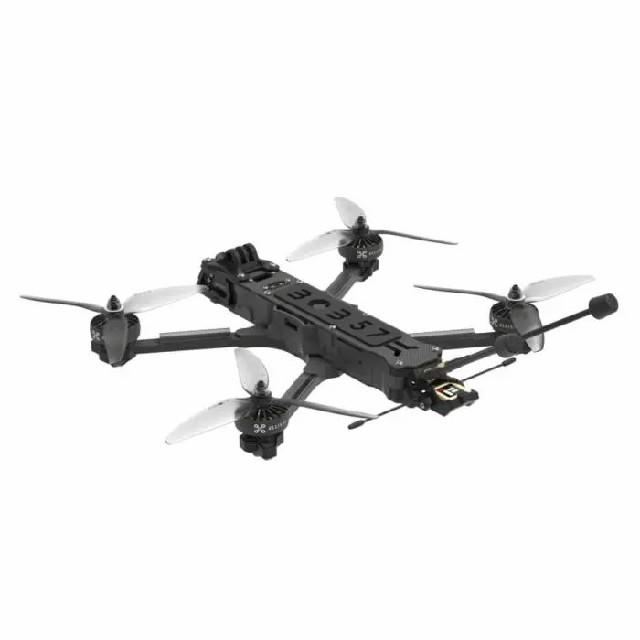

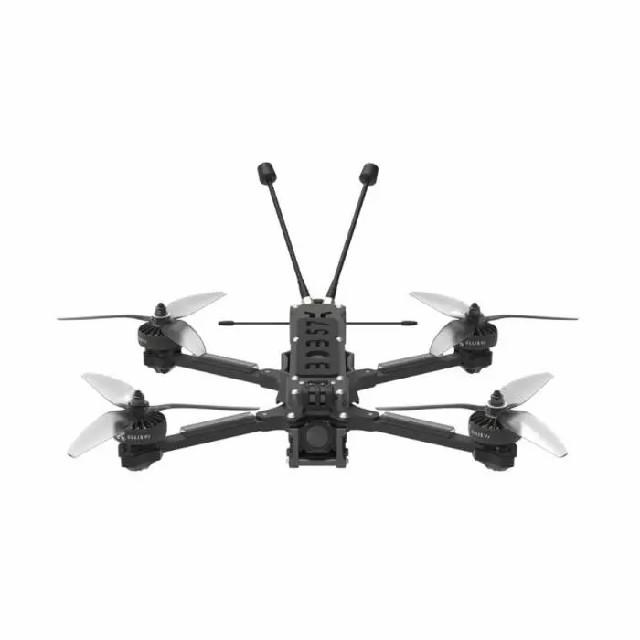

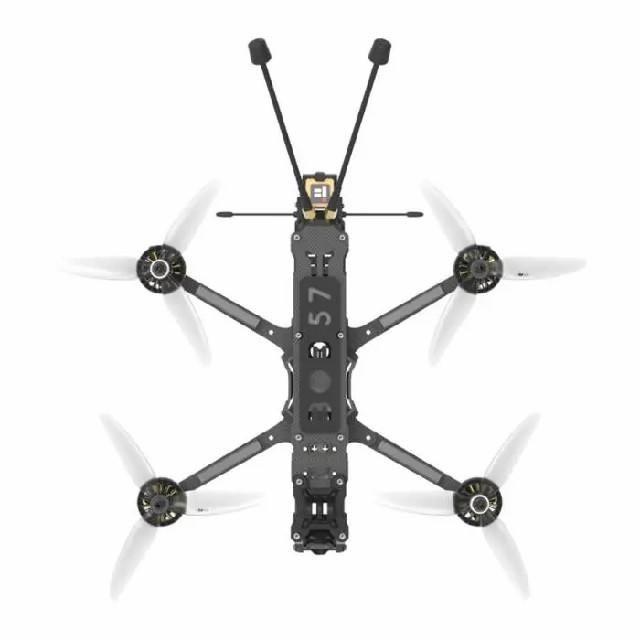

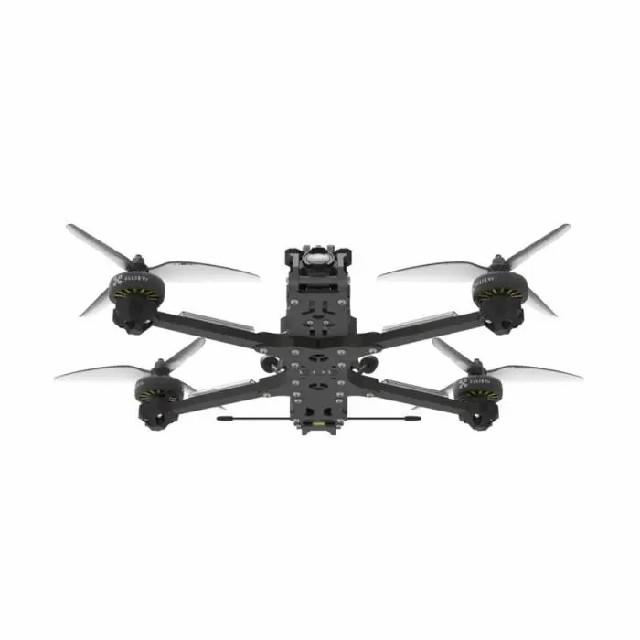

BOB57: a six-inch platform for camera-carrying flights

Developed with Ellis van Jason, the iFlight BOB57 combines a six-inch H-frame with a DJI O3 Air Unit. Its long centre section, front-mounted XT60 connection and action-camera mounting positions distinguish it from a small freestyle quad. This is the 6S O3 version.

The frame is described as a middle ground between five- and seven-inch formats. That positioning explains the design; it is not a measured claim that one aircraft outperforms both sizes.

A closer look at the layout

Centre section: The extended backbone provides battery space. The original listing names packs up to 3000mAh 6S; actual fit still depends on pack dimensions and the camera installation.
Front connection: The XT60 is positioned at the front. A USB-C camera-power cable is also in the accessory list; confirm the camera's input requirements before using it.
Protective shell: The Gladiator shell covers the electronics against incidental dust and droplets. No waterproof rating is provided, so this is not an all-weather specification.

Equipment listed with the aircraft

BOB57 O3 aircraft with the selected receiver configuration.
Gemfan 6032 propellers in green and black.
Albatross LHCP 5.8GHz SMA antennas, listed in 150mm and 60mm lengths.
USB Type-C 5V balance-plug power cable, 55mm.
Two black iFlight battery straps, 20 × 250mm.

Choose the radio version

The original options are DJI PNP, TBS Crossfire and ELRS 2.4GHz. “PNP” should not be read as including a separate receiver or a complete radio-and-goggles kit.

A flight battery and action camera are not listed as included. Send the exact transmitter, goggles and camera model when checking a complete order.

About the published flight-time figure

The published specification quotes approximately nine minutes with a 3000mAh 6S LiPo, but does not provide a complete flight log, camera load or weather conditions. Treat that as an attributed configuration example, not an endurance guarantee for another battery or filming setup.

GPS hardware and a factory tune are listed, but neither replaces a configuration check on the delivered unit. No route length or assured recovery performance is established by these details. You can compare the BOB57 with the other models in this product category.
