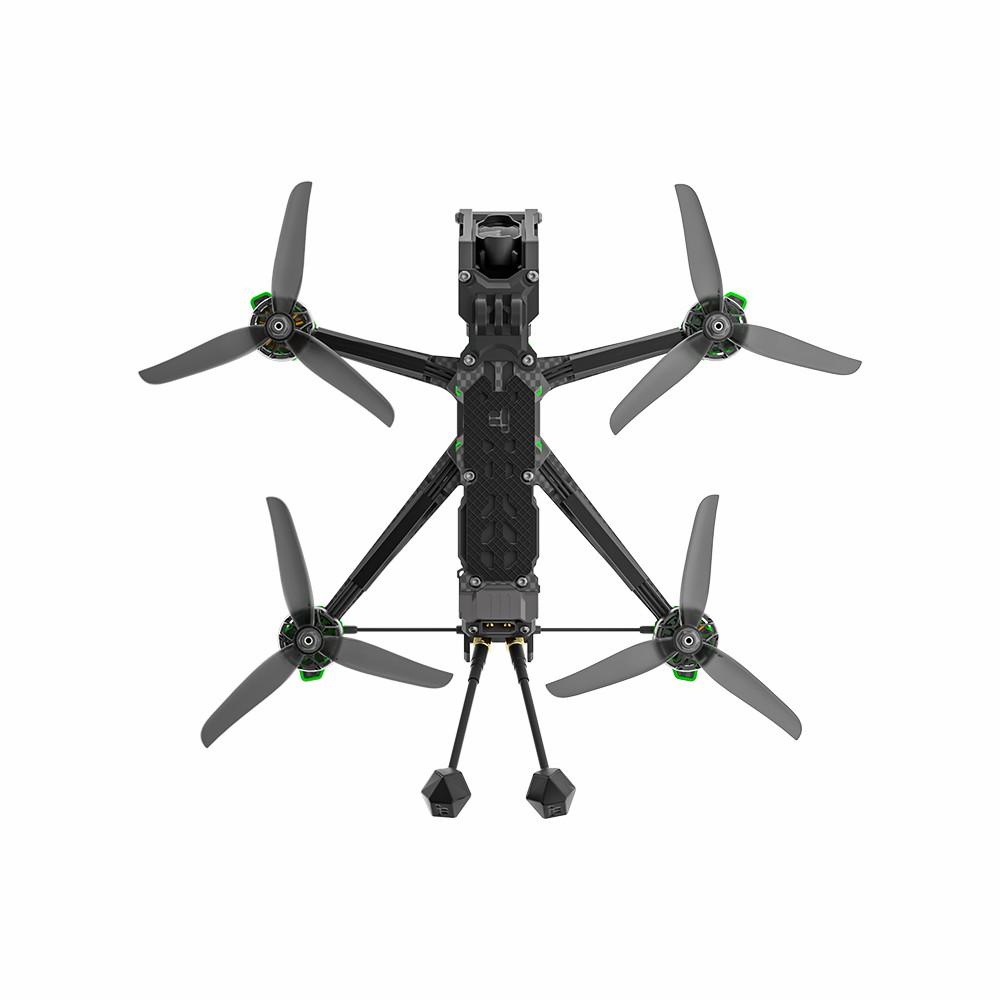

Nazgul Evoque F5 V2 O4 Long Range FPV Drone 13km Low Latency Transmission

Price: 595.99$
Model:

Get Quote




Product Description

Get ready to experience iFlight's new generation of pre-assembled FPV drones, which sets a brand-new benchmark in terms of Bind-And-Fly convenience and performance. This drone incorporates DJI's latest O4 Pro Air Unit, featuring an advanced 1/1.3-inch image sensor that can capture intricate details even in low-light conditions. You can enjoy seamless real-time video transmission at up to 1080p/100fps, offering an immersive flying experience. The upgraded frame and electronic components not only enhance durability but also allow enthusiasts to enjoy top-tier performance right out of the box. Welcome to the future of FPV flight led by iFlight – where setup is a breeze, yet the excitement and performance are unparalleled.

Highlights

Smooth and Powerful XING2 Motors
As the latest upgraded version of our best-selling XING motors, it strives for perfection in every aspect! It adopts durable unibody shell technology, combining a sturdy titanium alloy shaft with a reinforced shell joint, a crash-resistant 7075 aluminum shell, smooth and long-lasting Japanese NSK bearings, center-slotted N52H curved magnets, and our XING O-ring bushing gap protection design.
Latest Nazgul Frame for Maximum Protection
Gone are the days when electronic components would get covered in dirt and wet grass every time you crash. Our latest frame reduces contaminants that might accumulate on the flight controller or ESCs, thereby preventing malfunctions or short circuits. The carefully designed airflow structure keeps components cool and clean without compromising on weight or performance. Illuminated side panels and 360-degree TPU protective parts are added bonuses.
O4 Video Transmission, Enhanced Perception
The enhanced stability of DJI's O4 video transmission system allows you to be fully immersed in each flight while providing higher safety. It boasts a maximum video transmission distance of up to 13 km, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60 Mbps. (Source: DJI)
4K Stabilized Video with 155° Ultra-Wide Angle
Combined with high-quality imaging performance, it can deliver stunning visual effects that keep the audience captivated. (Source: DJI)
Secured Battery Plug with Anti-Spark Filter
When plugging in a battery, a noticeable spark may occur at the connector, which is caused by high battery current first rushing into the low ESR capacitor and charging the ESC capacitor. We have added a protective circuit to extend the service life of XT60 connectors, prevent sudden voltage or current spikes, and thus protect your electronic components from damage.

Specifications

Product Name: Evoque F5 V2 O4 HD BNF
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O4 Air Unit Pro
Frame Wheelbase: 223±2mm
Motor: XING2 2207 1750KV Motors
Prop: Nazgul F5 Propellers
Weight: 436±5g
Takeoff Weight: Approx. 695±10g (With 1480mAh Battery)
Dimensions (L×W×H): 19013636±2mm
Max Speed: 190 km/h
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 7.5 min (No load With 6S 1480mAh)
Max Flight Distance: 5 km
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (Optional)
Video Transmission Parameters
Product Name: DJI O4 Air Unit Pro
Image Sensor: 1/1.3-inch
Lens: FOV: 155°
ISO: 100-25600
Video Resolution: 1080p/100fps H.265
Video Format: MP4, Max Video Bitrate: 130Mbps
Color Mode: Normal Mode/D-Log M
Stabilization: RockSteady 3.0+; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
Live View Quality: 1080P@100fps
Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
Transmitter Power (EIRP): 5.1GHz<23dBm(CE)/5.8GHz<33dBm(FCC)/<14dBm(CE)/<30dBm(SRRC)
Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Dual antennas
Built-in Storage: 4GB
Supported SD cards: microSD (up to 512GB)
Operating Temperature: -10° to 40° C
Weight: Air Unit (camera module included): Approx. 32 g
Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Packing List

1 x Evoque F5 6S O4 HD BNF Drone
2 x Antennas
1 x Battery pad
2 x Pairs of Propellers
2 x Battery straps
  • DJI O4 transmission system with up to 13km range and 24ms low latency

  • Reinforced Nazgul protective frame minimizes crash damage and keeps components clean

  • XING2 high-performance motors for strong thrust, smooth operation, and durability
