Price:
328$
Model:
This StingerBee kit supplies a three-inch aircraft platform with GPS, motors and flight electronics. The DJI O3 Air Unit is not included in this kit. Its O3-ready designation describes the intended video installation, while the separately equipped O3 BNF is a different package.
That makes the kit relevant to a pilot who already has an O3 system to reuse. Before comparing prices, separate the cost of the aircraft from the camera and transmitter, flight battery and ground equipment. An apparently similar complete BNF listing includes a different set of hardware.
The kit combines the StingerBee frame with an Infinity AIO 255 controller and 45A ESC, four Flow 1404 4000KV motors and Gemfan 3020 three-blade propellers. The M10Q Micro GPS module includes a compass. These are distinct parts of the aircraft; GPS does not replace the pilot's radio or provide the FPV image.

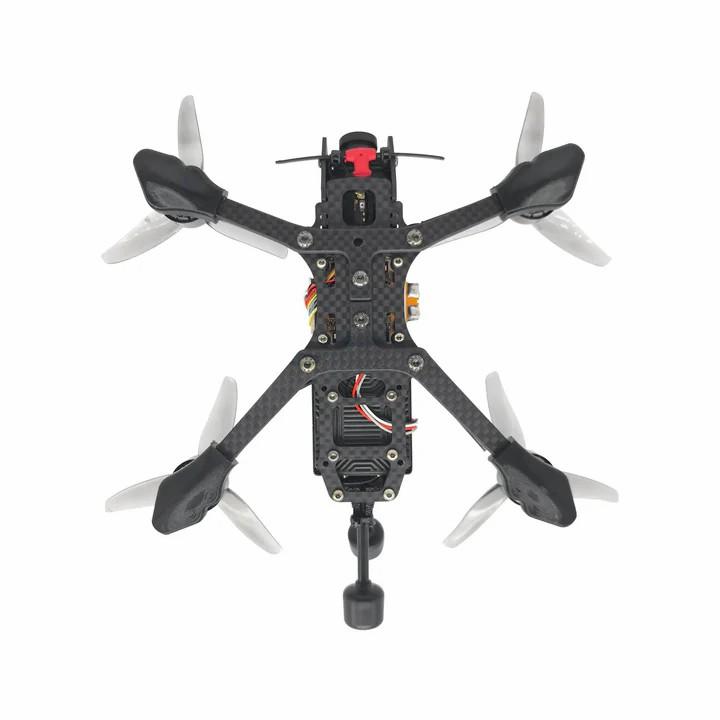

The front camera cradle and rear video area are visible in the photographs. The top strap position leaves the battery outside the frame, where its dimensions affect the finished package. Keep the camera cable and the shape of the chosen battery in mind when assessing the available room.
The model family is designed around a lightweight three-inch format, but the useful figure is the weight after installing the video unit, receiver and flight battery. NewBeeDrone's equipped-aircraft examples range from below to above 250g as the battery changes. Those examples are not a universal kit takeoff weight.
Use the XT30 connector and the documented 4S battery configuration as selection details, then measure the finished aircraft. Added camera mounts or other accessories also count. This page does not promise a particular endurance, maximum range or automatic return simply because the aircraft carries GPS.
Airframe: StingerBee three-inch frame with motor wire protectors.
Electronics: Infinity AIO 255 flight controller and 45A ESC; M10Q Micro GPS with compass.
Propulsion: Four Flow 1404 4000KV motors; Gemfan 3020 three-inch tri-blade propellers.
Order option: Crossfire, ELRS 2.4 GHz, Tracer or no receiver.
Separate video equipment: DJI O3 Air Unit is not part of this kit.
Battery connection: XT30; documented model-family battery examples use 4S. Final weight depends on installed equipment.
