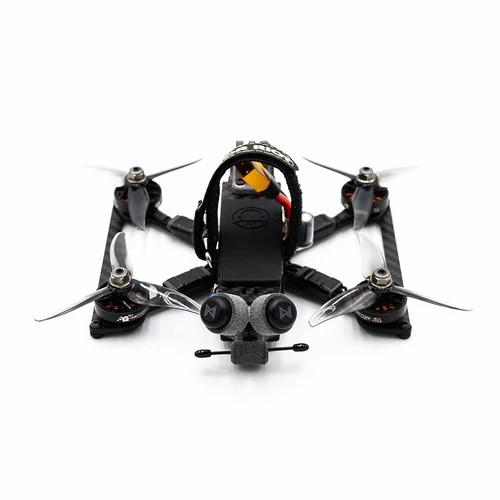

Skylite 3.5 Inch Built and Tuned FPV Drone for Freestyle and Cinematic Flight

Price: 714$
Model:

Get Quote

+86-13959965075

Skylite brings two airframe configurations to the 3.5-inch format

The Skylite combines a modular-arm frame with T-Motor F2203.5 motors and a choice of video systems. It can be configured with ducts or with exposed propellers, giving buyers two different physical layouts within the same compact platform.

Those layouts are not flight modes switched on the radio. Specify the airframe configuration, camera system and receiver together when ordering a built-and-tuned Skylite.

Ducted or open-prop: choose the supplied build

With ducts

The ducted arrangement is offered for cinematic-style use. Ducts add a surrounding structure to the propellers, but do not establish obstacle avoidance, harmless contact or permission to fly close to people.

Without ducts

The open-prop arrangement is the freestyle option. Ask for the setup record for that configuration instead of assuming that every ducted and ductless build uses identical settings.

The frame is listed for 3–3.5-inch propellers. Its modular arms provide a way to replace an arm without treating the entire airframe as one inseparable part; the correct replacement still needs to match the frame revision.

Choose one video path

RunCam Link: The option names a Wasp HD camera and RunCam Link transmitter. Match the complete set to your viewing equipment.
DJI O3: This choice includes an O3 Air Unit with a Skylite/Skyliner MK3 O3 conversion kit in the build description; it is a distinct installation.
Avatar HD V2: The dual-antenna kit is listed with 32 GB DVR and gyro support. Confirm the fitted version and compatible goggles before selecting it.
Analog: The specified pair is an Aura analog camera and X2 Ultimate VTX, separate from the digital options above.

DJI, Ghost, Crossfire and ELRS are named as control-system choices. The receiver model, radio compatibility and any required firmware combination must be stated for the chosen build; the list is not a promise that all systems are included.

Skylite component names for a build quotation

FrameSkyLite 3–3.5-inch modular-arm frame. Ducted or open-prop arrangement to be specified.
Controller stackT-Motor Mini F7, 20 × 20 mm mounting format, with MR30 connectors.
Motor setFour T-Motor F2203.5 motors rated 3100KV, with the matching MR30 connections.
Propeller entryHurricane 3520; the list uses “2x” without clarifying individual propellers versus sets. Confirm the supplied and spare quantities in the packing list.
