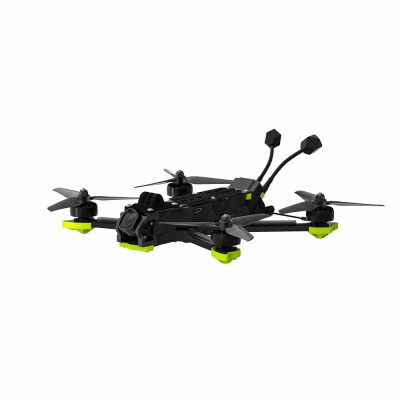

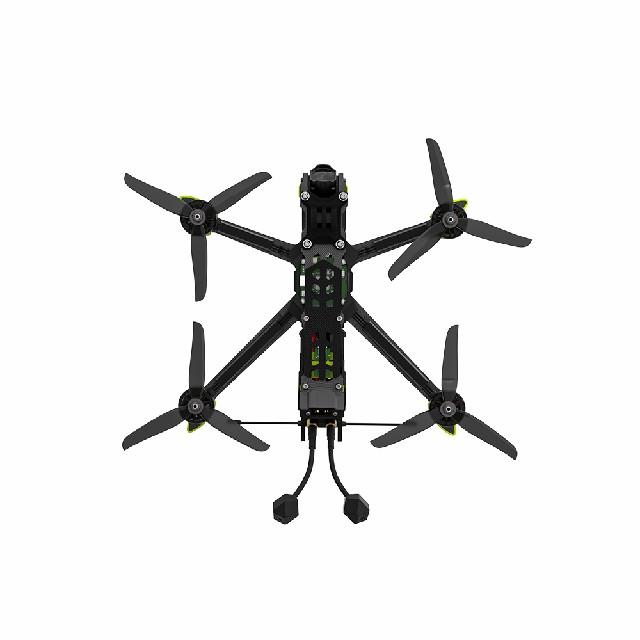

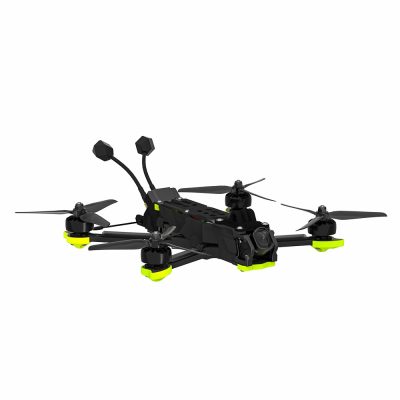

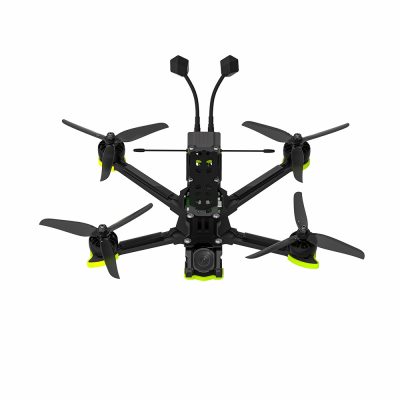

Nazgul DC5 ECO 5 Inch Long Range FPV Drone 13km Low Latency HD Transmission

The Nazgul DC5 ECO is a 5-inch freestyle FPV drone that delivers exceptional performance and value. Featuring DJI’s O4 Digital HD System with a 1/1.3-inch sensor, it captures stabilized 4K ultra-wide footage even in low-light environments. Its DeadCat frame design ensures a clean, propeller-free view, enhancing video quality. Built with a carbon fiber and aluminum structure, it offers both lightweight agility and rugged durability. The included GoPro mount adds versatility for various shooting needs. Powered by the ATF435 flight controller and BLITZ E55S ESC, it ensures reliable and stable performance for every flight.

Highlights

• Lightweight & Durable: Carbon fiber and aluminum construction provides a strong yet light build. DeadCat geometry eliminates propellers from the camera view for cleaner footage.

• Anti-Spark Filter: Built-in protective circuit reduces connector sparks when plugging in the battery, extending XT60 connector life and safeguarding electronics.

• DJI O4 HD Transmission: Offers up to 13km range, as low as 24ms latency, and smooth 1080p/100fps HD feed for immersive flights.

• 4K Ultra-Wide Stabilized Video: 155° wide-angle lens with RockSteady 3.0 delivers cinematic, shake-free visuals.

• User-Friendly Maintenance: Integrated buzzer and receiver mount make adjustments and servicing more convenient.

Specifications

• Product Name: Nazgul DC5 ECO 6S O4 HD

• Geometry: DC (DeadCat)

• Flight Controller: BLITZ ATF435

• ESC: BLITZ E55S 4-IN-1 ESC

• Video Transmission: DJI O4 Air Unit Pro

• Frame Wheelbase: 240mm

• Motors: XING-E Pro 2207 1800KV

• Propellers: Nazgul F5

• Weight: 450g±5g

• Takeoff Weight: Approx. 675g±5g (with 6S 1480mAh battery)

• Dimensions (L×W×H): 193×144×34 mm

• Max Speed: 190 km/h

• Max Takeoff Altitude: 7000 m

• Max Hover Time: Approx. 7.5 min (no load with 6S 1480mAh)

• Operating Temperature Range: -10° to 40°C (14° to 104°F)

• Antennas: Dual Antennas

• GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)

DJI O4 Air Unit Pro Transmission Specs

• Image Sensor: 1/1.3-inch

• Lens FOV: 155°

• ISO: 100-25600

• Video Resolution: 1080p/100fps H.265

• Video Format: MP4, Max Bitrate: 130Mbps

• Color Modes: Normal / D-Log M

• Stabilization: RockSteady 3.0+ (only standard FOV when enabled)

• Live View: 1080P@100fps

• Frequency Range: 5.170-5.250 GHz & 5.725-5.850 GHz

• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE) / 5.8GHz＜33dBm(FCC) / ＜14dBm(CE) / ＜30dBm(SRRC)

• Max Transmission Range: 15 km (FCC), 8 km (CE), 8 km (SRRC) with DJI Goggles 3/N3

• Communication Bandwidth: Max 60 MHz

• Built-in Storage: 4GB

• Supported SD Cards: microSD (up to 512GB)

• Operating Temperature: -10° to 40°C

• Weight (including camera module): Approx. 32g

• Module Dimensions: 33.5×33.5×13 mm

Packing List

• 1 × Nazgul DC5 ECO V1.1 6S O4 HD BNF

• 2 × Antennas

• 1 × Battery Pad

• 2 × Propeller Pairs

• 13km HD video transmission with as low as 24ms latency and 4K stabilized recording

• DeadCat geometry for a clean, propeller-free view

• Anti-spark protection circuit for extended electronics lifespan
