| Price | On request |
|---|---|
| Model | RS210G609P |
| Visible camera | 2 MP CMOS; fixed 6 mm lens; 9x digital zoom |
|---|---|
| Thermal imager | 640×512; 9.1 mm lens; 12 µm pixel spacing |
| Stabilization | Three-axis gimbal |
| Thermal lens | 9.1 mm |
| Video output | 1080p at 30 fps; integrated video transmission |
|---|---|
| Integrated video link | Integrated airborne video transmission |
| Control interfaces | Network, serial port, S.Bus |
| Power input | Gimbal 12–28 V DC; ground unit 12–16 V DC |
|---|---|
| Dimensions | Diameter 110 mm; height 101 mm |
| Weight | 185 ±5 g, excluding antenna |
Two sensors and an integrated video link
RS210G609P combines a visible camera, a thermal imager, a three-axis gimbal and integrated video transmission. It suits civil UAV projects where the operator needs both a scene view and a heat-pattern view without selecting a separate airborne camera and radio module.
The visible channel uses a 2 MP sensor and a fixed 6 mm lens with 9x digital zoom. The thermal channel provides 640×512 imaging through a 9.1 mm lens. This is a compact dual-sensor choice for a project that plans its camera, radio link and ground viewing equipment together.
The fixed-focus visible camera provides a familiar picture for identifying the part of a structure or area being examined. Digital enlargement can help the operator concentrate on a smaller part of that picture. For a quote, describe the viewing distance and the detail you need to recognize so the fixed lens can be considered alongside your flight platform.
The 640×512 thermal imager gives a second way to view the same task, useful when heat patterns matter to the observation. Its 9.1 mm lens and 12 µm pixel spacing define this sensor configuration. Tell us whether the priority is a broader thermal scene or a particular inspection feature; that helps distinguish this model from a longer-lens thermal payload.
| Gimbal | Three-axis stabilization |
|---|---|
| Visible camera | 2 MP; fixed 6 mm lens; 9x digital zoom |
| Thermal camera | 640×512; 9.1 mm lens; 12 µm pixel spacing |
| Video output | 1080p at 30 fps |
| Control methods | Network, serial port and S.Bus |
| Airborne gimbal supply | 12–28 V DC |
| Ground unit supply | 12–16 V DC |
| Airborne payload weight | 185 ±5 g, excluding antenna |

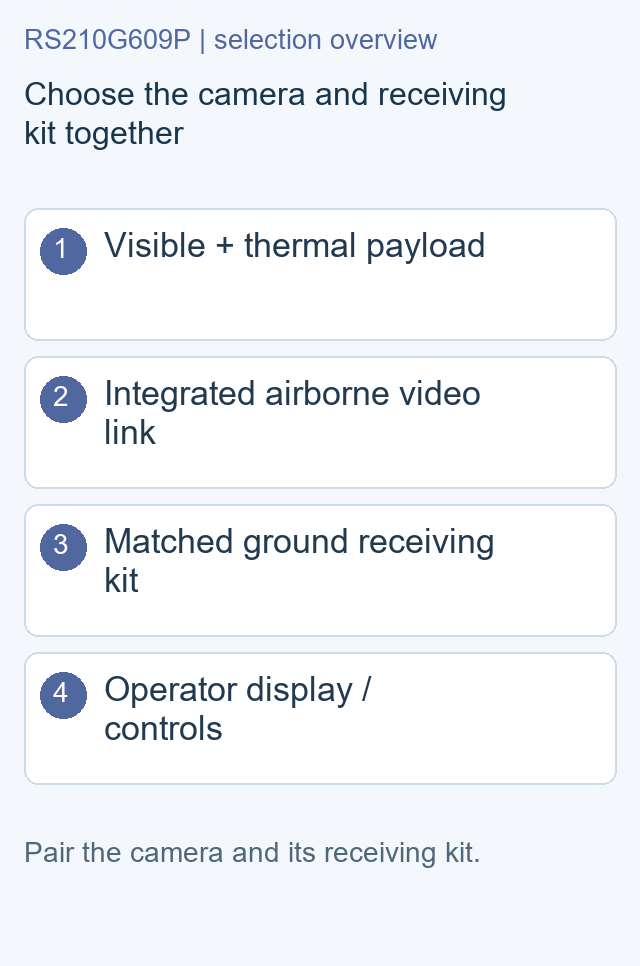

For a live FPV observation workflow, the receiving equipment is as important as the camera. Include the intended display or ground station, your working area and the antenna installation in the quote request. We will discuss the receiving kit and its connections with you as part of the complete configuration.
Keep the airborne and ground power arrangements separate in the equipment list. Add the antenna, mount and cables to the aircraft weight budget, and leave room for the gimbal's movement.
These details help us prepare a camera-and-link quotation that is easier to compare with your existing equipment.
Product reference: TOPOTEK RS210G609P product specifications.
| Visible Camera | 2 MP CMOS; fixed 6 mm lens; 9x digital zoom |
|---|---|
| Thermal Camera | 640×512; 9.1 mm lens; 12 µm pixel spacing |
| Stabilization | Three-axis gimbal |
| Video Output | 1080p at 30 fps; integrated video transmission |
| Control | Network, serial port, S.Bus |
| Weight | 185 ±5 g, excluding antenna |
| Voltage | Gimbal 12–28 V DC; ground unit 12–16 V DC |
| Video Link | Integrated airborne video transmission |
| Dimensions | Diameter 110 mm; height 101 mm |
