| Price | On request |
|---|---|
| Model | RS586G609P |
| Visible camera | 1/2-inch 48MP CMOS; listed IP video mode 1080p30 |
|---|---|
| Thermal imager | 640×512; 12 µm pixels; 9.1 mm lens |
| Stabilization | 3-axis |
| Thermal lens | 9.1 mm |
| Video output | Integrated image transmission; camera IP mode 1080p30 |
|---|---|
| Integrated video link | Integrated image transmission; camera IP mode 1080p30 |
| Control interfaces | IP/UART; SBUS and PWM optional |
| Dimensions | Ø110 ×81 mm |
|---|---|
| Weight | 160 ±20 g; accessory scope to confirm |
Bring visible-light imaging, thermal imaging and a video-link architecture together in one compact UAV gimbal. TOPOTEK RS586G609P is explicitly designed as a three-axis pod with integrated image transmission. Its fixed 4.5 mm visible camera is paired with a 640×512 thermal sensor and a 9.1 mm thermal lens. It is a different purchasing option from a network camera that relies on a separately selected airborne transmitter.
The manufacturer lists a 48MP CMOS sensor, a fixed 4.5 mm lens and 1080p30 IP video mode. Use the visible image to show the structure, surface or surrounding context. The listed 9x enlargement is digital, not a variable optical-zoom lens.
The thermal channel has a native 640×512 detector, 12 µm pixels and a 9.1 mm lens. Its stated field of view is 48.3° ×38.7°. Temperature measurement and full-pixel temperature storage are optional functions to specify when needed.
For a roof or civil-equipment inspection, decide which view the operator needs during the flight and which result the client needs afterwards. Thermal contrast can draw attention to a difference in the scene; the visible channel supplies context. Neither a sensor pixel count nor an enlarged display establishes the detail available in a delivered video file.
The image sensors and stabilized gimbal form the airborne imaging assembly.
The manufacturer integrates image transmission into the product architecture.
The receiving equipment, viewing connection and accessory scope still need to match the supplied package.

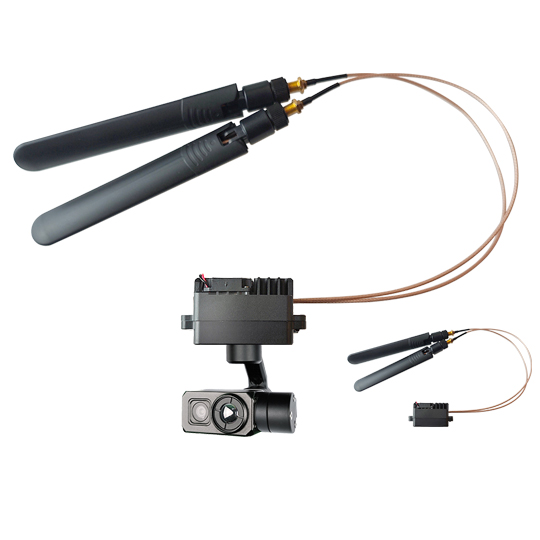

This arrangement may simplify the equipment selection discussion, but it does not make every ground receiver interchangeable. Specify the proposed viewing device and ask for the matching link configuration. Product images can illustrate antennas or companion equipment without defining what is included in the quoted order.
| Purchase decision | RS586G609P provision | Detail to confirm |
|---|---|---|
| Live visible picture | Fixed-focus EO camera, 1080p30 IP mode | The actual received stream and viewing connection. |
| Thermal assessment | 640×512 sensor with 9.1 mm lens | Whether the standard thermal view meets the scene-coverage requirement. |
| Temperature-data work | Measurement and full-pixel storage are optional | The selected option and the required data output. |
| Control integration | IP/UART; optional SBUS and PWM | The control interface included in the delivered version. |
| Aircraft allowance | 160 ±20 g listed mass; 110 mm diameter ×81 mm height | The mass and clearance of the complete selected installation. |
A useful evaluation includes the normal overview and the thermal picture of a relevant civil subject. State whether the operator must view one channel at a time or use a particular presentation in the receiving software. Ask for the intended received output, rather than relying only on a camera-side screenshot.
Supply the aircraft’s power arrangement and mounting constraints with the enquiry. The exact airborne and ground-side power configuration should follow the quoted package. Likewise, treat the link distance as a system result that depends on the selected equipment and operating conditions, not a universal capability of the camera housing.
It has a fixed 4.5 mm lens. The manufacturer’s 9x zoom designation refers to digital enlargement.
No. The sensor designation and the delivered photo or video mode are separate specifications. The listed IP video mode is 1080p30.
Temperature storage is optional, and the order should explicitly name its receiving equipment, antennas and cables. Confirm those items in the quotation.
Use Get Quote with the required live view, temperature-data option, control interface and ground display. FD can define the RS586G609P supply around those needs and your aircraft’s mounting and power limits.
| Visible camera | 1/2-inch 48MP CMOS; listed IP video mode 1080p30 |
|---|---|
| Thermal imager | 640×512; 12 µm pixels; 9.1 mm lens |
| Visible lens | Fixed 4.5 mm; 9x digital enlargement |
| Gimbal | 3-axis |
| Video architecture | Integrated image transmission; camera IP mode 1080p30 |
| Temperature options | Measurement and full-pixel temperature storage optional |
| Listed mass | 160 ±20 g; accessory scope to confirm |
| Dimensions | Ø110 ×81 mm |
| Control | IP/UART; SBUS and PWM optional |
