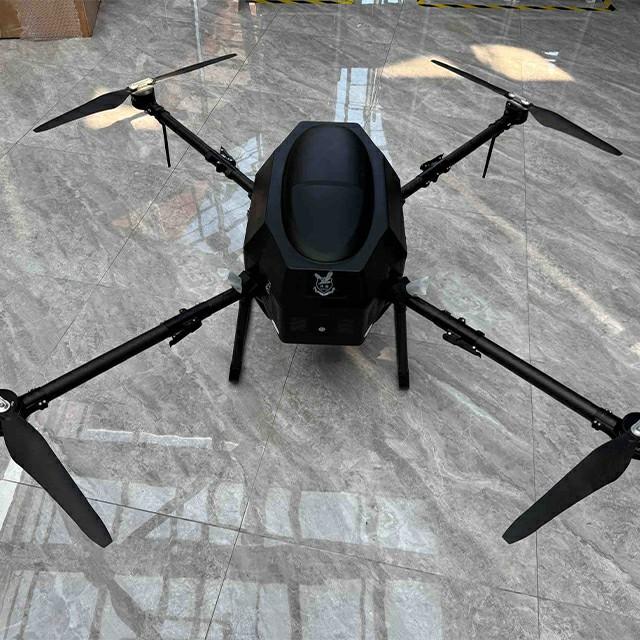

X4-1900H Hydrogen Fuel Drone with 2-Hour Endurance

1. Product Overview

The X4-1900H is an industrial-grade hydrogen fuel cell drone that features advanced propulsion, long endurance, and precise navigation. Ideal for a variety of industrial applications, it delivers:

• Powertrain: X8 propulsion kit for robust stability and thrust

• Wheelbase: 1900 mm, supporting a large and versatile flight platform

• Empty Weight: 14.5 kg, lightweight yet durable for easy transport

• Max Takeoff Weight (at 70% throttle): 29 kg, capable of carrying multiple professional payloads

• Dimensions (Unfolded, excluding propellers): 1500 × 1500 × 650 mm

• Folded Dimensions: 900 × 800 × 650 mm

• Battery: Dual 6S 5300 mAh packs for reliable backup power

• Hydrogen Fuel Cell: 48 V, 3 kW rated power—efficient and eco-friendly

• Max Level Flight Speed: 18 m/s

• Cruise Speed: 0–15 m/s

• Ascent Rate (Sea Level): 0–5 m/s

• Video Transmission Range: Up to 20 km (clear line-of-sight)

• Endurance: 2 hours (unloaded)

• Satellite Navigation: GPS + Galileo + BeiDou with centimeter-level RTK accuracy

• Hydrogen Tank: 12-liter bottle at 350 bar absolute pressure; bottle weighs 4.3 kg, tank structure 3.8 kg

This drone is well-suited for industrial missions like powerline inspection, precision agriculture, security surveillance, and environmental monitoring—providing reliability, efficiency, and professionalism.

2. Detailed Features

Propulsion System

• X8 Propulsion Kit: Delivers powerful and stable flight performance even under challenging conditions.

• Hydrogen Fuel Cell: 48 V, 3 kW rated output with superior energy density compared to conventional lithium batteries—delivers longer flight times, rapid refueling, and zero emissions.

• Auxiliary Battery Packs: Dual 6S 5300 mAh lithium batteries ensure continued flight if hydrogen runs out, enhancing operational safety.

Flight Characteristics

• Large Frame & Payload Capacity: With a 1900 mm wheelbase and 29 kg MTOW at 70% throttle, the drone can carry high-resolution cameras, multispectral sensors, spraying equipment, and more.

• Fast & Responsive: 18 m/s max speed, flexible cruise range, and climb rates up to 5 m/s—efficiently reaching and covering target areas.

• Exceptional Endurance: 2-hour flight time significantly outstrips battery-powered drones of similar class, reducing downtime and increasing mission efficiency.

Navigation & Video Transmission

• Multi-GNSS & RTK: GPS, Galileo, BeiDou fusion with centimeter-level RTK accuracy ensures precise flight paths—crucial for precision tasks like powerline inspections or crop spraying.

• Long-Range HD Transmission: 20 km real-time video link (line-of-sight, no interference) keeps operators fully informed via ground station for on-the-fly adjustments.

Portability & Deployment

• Foldable Design: Compact frame folds from 1500 × 1500 × 650 mm to 900 × 800 × 650 mm. Ideal for quick deployment and easy transport, matching different logistics needs.

• Durable Build: Premium materials and rigorous manufacturing standards ensure high reliability under industrial use and harsh environments.

•

3. Application Scenarios

(1) Powerline Inspection

• Efficient Patrols: Carry HD cameras and thermal sensors, leveraging long-range video and RTK for fast high-voltage line inspections.

• Terrain Adaptability: Strong climb rate and responsive controls enable safe flights over mountains and canyons for comprehensive inspection coverage.

(2) Precision Agriculture

• Large-Area Spraying: High payload capacity supports spraying systems.

• Accurate Dispensing: RTK ensures precise application, minimizing waste and protecting the environment.

(3) Security & Surveillance

• Wide-Area Monitoring: 20 km video range allows broad coverage for city security, border patrol, or large-event monitoring.

• Day-Night Operation: Add night-vision optics to enable 24/7 operational capacity.

(4) Environmental & Water Quality Monitoring

• Air Quality Analysis: Attach sensors to measure pollutants or greenhouse gases, performing real-time regional monitoring.

• Water Body Assessment: Deploy water-quality sensors over lakes and rivers to detect abnormalities and protect water resources.

4. Pre-Sales Q&A

Q: What advantages does a hydrogen fuel cell offer over traditional lithium batteries?
A: Hydrogen cells have much higher energy density, enabling 2-hour flights while maintaining similar weight. They can be refueled in minutes—far quicker than recharging batteries. Plus, they produce zero emissions during operation, aligning with green energy trends.

Q: How is centimeter-level positioning achieved?
A: We use RTK via real-time differential correction and multi-GNSS (GPS/Galileo/BeiDou), boosting positional accuracy to centimeters. This enables rigid adherence to flight paths, essential for tasks like inspections or precision spraying.

Q: Is this drone difficult to operate? Is professional training needed?
A: The drone is user-friendly with auto-takeoff, auto-landing, and return-to-home features. While training helps optimize mission deployment in industrial settings, even non-experts can begin flying safely with provided tutorials and manuals.

Q: Can you achieve 20 km video transmission in real scenarios?
A: That distance is possible under ideal, unobstructed conditions. Obstacles like buildings and terrain may reduce range, but the VW20 system has strong anti-interference capabilities. Even at shorter ranges, you will still receive reliable video and telemetry.

Q: What is the lifespan and replacement cost for the hydrogen tank and fuel cell?
A: Hydrogen cells typically last hundreds to over a thousand operational hours with proper maintenance. Replacement costs are moderate and tailored to client needs—please contact our after-sales team for quotes

.

5. Summary

The X4-1900H redefines industrial drone standards with hydrogen-powered endurance, precision RTK navigation, and robust payload flexibility. Whether it's infrastructure inspection, precision agriculture, complex environmental surveys, or security surveillance, this UAV delivers:

• ✅ 2 hours of flight autonomy

• ✅ 29 kg maximum payload

• ✅ 20+ km HD video link

• ✅ Centimeter-level flight accuracy

• ✅ Rapid refueling and extended missions

A pioneering solution for demanding industrial applications.

1. Hydrogen Fuel Cell Power – Achieves 2-hour endurance with zero emissions.
2. 29kg Maximum Takeoff Weight – Supports multiple industrial payloads.
3. Centimeter-Level RTK Positioning – Ensures high-precision operation.
4. 20km HD Video Transmission – Long-range real-time monitoring.
