HappyModel Mobula6 1S FPV Racing Drone Ultra Light Indoor Micro FPV 200m Range

Description

The HappyModel Mobula6 is a high-performance ultra-light 1S micro FPV racing drone designed for indoor and close-proximity flying. Built around the Crazybee F4 Lite flight controller, it integrates ESC, receiver, and VTX into one compact board, reducing weight and improving reliability. Equipped with SE0802 high-KV motors and Gemfan 1219 propellers, it delivers outstanding thrust-to-weight ratio and agility. The Caddx ANT camera ensures clear, low-latency FPV video even in varying light conditions. Four included 300mAh LiPo batteries keep you flying longer without constant recharging.

Highlights

• All-in-One Flight Controller Design – Integrated ESC, receiver, and VTX for a clean, lightweight build and stable performance.

• High-Speed Brushless Motors – SE0802 motors with 19000KV or 25000KV options deliver powerful acceleration and smooth control.

• Compact and Durable – Strong yet light frame paired with Gemfan 3-blade props for maximum efficiency and durability.

• Low-Latency FPV Feed – Built-in 5.8GHz 40CH VTX with SmartAudio paired with a Caddx ANT camera for crisp, responsive video.

Specifications

Flight Controller

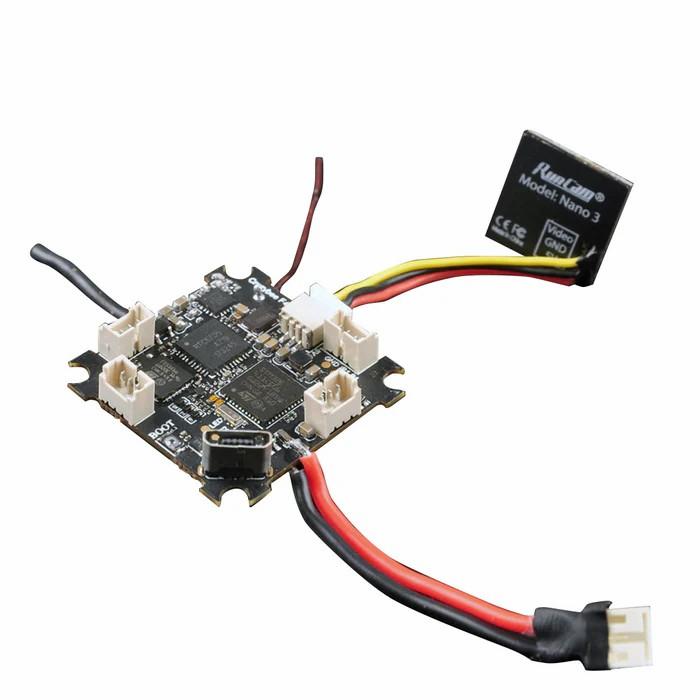

• Model: Crazybee F4 Lite

• MCU: STM32F411CEU6 (100MHz, 512K FLASH)

• Sensor: ICM 42688P

• Board size: 28.5 × 28.5 mm

• Power supply: 1S battery (DC 2.9V–4.35V)

• Built-in 5A(each) BLHeli_S 4-in-1 ESC (DSHOT600 ready)

• Built-in Betaflight OSD (SPI Control)

• Built-in 5.8G VTX

• Built-in SPI Frsky/Flysky receiver

• Built-in 5V 1A BEC

• Built-in voltage detection

Receiver Options

• FrSky SPI RX Version: D8 compatible, up to 200m range, 8 channels, failsafe supported.

• FlySky SPI RX Version: AFHDS / AFHDS-2A switchable, up to 200m range, 8/14 channels, failsafe supported.

ESC

• MCU: EFM8BB21

• Power: 1S LiPo/LiPo HV

• Current: 5A continuous, 6A peak (3 sec)

• Firmware: O_H_5_REV16_7.HEX (BLHeli_S, DSHOT600)

Motors

• Model: SE0802

• KV options: 19000KV / 25000KV

• Configuration: 9N12P

• Stator: 8×2 mm

• Shaft: 1 mm

• Size: 10.5×14.9 mm

• Weight: 1.9g

• Cells: 1S only

Propellers

• Brand: Gemfan 1219 3-blade

• Diameter: 31 mm

• Weight: 0.28g each

• Center hole: 1.0 mm

VTX

• Output Power: 25mW

• Channels: 40CH (5.8GHz, Raceband)

• SmartAudio ready

• Voltage: 3.3V–5.5V

Camera

• Model: Caddx ANT

• Day/Night: Color

• Housing: ABS

Battery

• Type: 1S 300mAh 30C LiPo

• Size: 57×12×7 mm

• Weight: 8g

• Connector: PH2.0

• Quantity: 4 pcs included

Packing List

• 1 × HappyModel Mobula6 1S FPV Racing Drone

• 4 × 1S 300mAh 30C LiPo Battery

• 1 × 1S LiPo/LIHV USB Charger

• 1 × Propeller Removal Tool

• Ultra-light micro FPV racer with integrated components for maximum efficiency.

• Powerful brushless motors and aerodynamic props for high agility and control.

• Clear FPV video feed with low latency for competitive flying.
