Price:
58.99$
Model:
H65_8S ESC release evidence

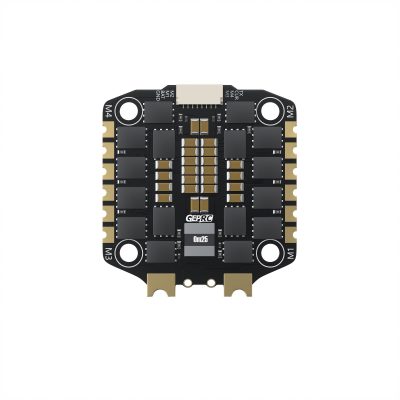

H65_8S acceptance starts with board and firmware identification, then moves through wiring, signal, current sensing and conservative thermal evidence. A headline current value cannot stand outside that installed context. The archived TAKER H65_8S record describes a 32-bit 65A four-in-one ESC accepting 3–8S LiPo, with 70A peak for up to five seconds, current measurement and DShot150, DShot300 and DShot600. It gives 42 × 45.7mm dimensions, 30.5 × 30.5mm mounting and 15.8g weight. The source says units shipped with BL32 test firmware and could be flashed to an identified AM32 target; that firmware state must be confirmed for the actual board rather than assumed from the old listing.
| Release item | Archive value | Required proof |
|---|---|---|
| Electrical | 3–8S; 65A continuous; 70A for five seconds | Board revision, motor/prop load basis and wiring |
| Firmware | BL32 test firmware; optional AM32 target wording | Readback, approved binary and rollback procedure |
| Signal | DShot150, 300 and 600 | Controller compatibility and clean signal check |
| Mechanical | 42 × 45.7mm; 30.5mm mounting; 15.8g | Clearance, insulation, cooling and strain relief |
An optional target name does not guarantee that every board revision is safe to flash. Photograph the processor and board label, back up settings where possible, confirm the vendor procedure and keep a recovery path before any change.
Record battery voltage, motor and propeller combination, expected duty, ambient temperature, airflow, conductor gauge, connector and capacitor. Acceptance should inspect temperatures and current sensing under a conservative bench load without transferring a headline rating to every enclosure.
No. Read the delivered board and confirm the approved procedure before treating AM32 as present.
Battery count alone is insufficient; motor, propeller, load, wiring and cooling must be reviewed together.
Compare the reported value with a controlled external measurement and retain the result.
Provide battery, motor, propeller and controller details for firmware and thermal compatibility review.
Tie electrical ratings to the actual firmware, load path and cooling arrangement.
