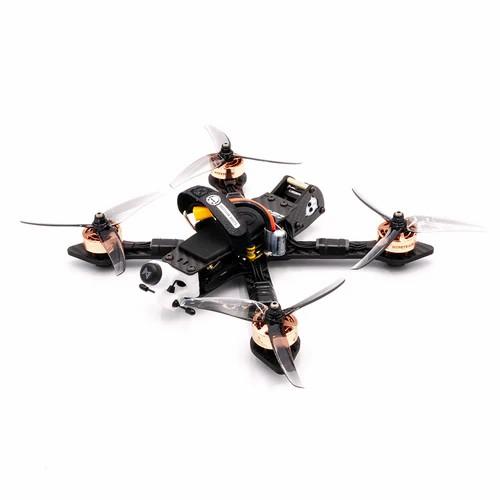

Skyliner MK3 5 Inch Built and Tuned FPV Drone Solder Free Multi System Ready

Price: 745$
Model:

Get Quote

+86-13959965075

Skyliner MK3 is a configurable build

The Skyliner MK3 combines a 5-inch frame with selectable power, video and receiver hardware. “Multi System Ready” describes those choices; it does not mean one aircraft is supplied with every video system or that any goggles will bind to it.

This aircraft is offered as a built-and-tuned package. Request the fitted configuration and flight-test record for the unit being supplied so that its setup is clear before handover.

Match the motor version to the battery choice

Build option	Named motor set	What this choice means
4S	Four Hypetrain Drib V3 2306, 2650KV motors.	The 4S configuration has its own motor specification.
6S	Four Hypetrain Drib V3 2306, 1990KV motors.	This is a separate motor choice, not permission to use a 6S pack on the listed 4S build.

The accessory list suggests a Rotor Riot Fuel Cell 4S 1500 mAh battery. It is a recommendation for the 4S option, not a battery listed as included with both builds.

Video selection comes before goggle matching

Avatar choices
The named options are Avatar V2 Dual Antenna, Avatar V2 Pro and Avatar Moonlight. Choose the exact installed unit when checking your goggles and recording needs; these names are alternatives in the offering.
Analog combination
The analog option pairs a Reaper Extreme V2 VTX with a Baby Ratel 2 camera and Lollipop V4 RHCP antenna. It is a different equipment path from the Avatar builds.

The broad frame description also mentions DJI compatibility, but the itemized build list does not identify a supplied DJI unit. Have that configuration specified separately if it is the version you want.

Where the solder-free description applies

The MR30 quick-connection system is the named motor/stack connection path. It can simplify replacement of matching parts, but the wording should not be extended to every receiver, video option or future repair.

Radio choices listed for this build are an RP1 2.4 GHz ELRS receiver, a Crossfire Nano SE 915 MHz receiver or a Ghost Átto 2.4 GHz receiver. Select one against your transmitter system and the version supplied in your region. They are not simultaneous inclusions.

Compare other Rotor Riot builds

Common items named in the Skyliner MK3 build

Control stackRotor Riot Brave F7 flight controller and Brave 55A 4-in-1, 32-bit AM32 ESC. Request country-of-origin or certification documents separately if they are required for your order.
Frame accessoriesSkyliner HD battery pad, black Kwad Skidz and a Tough Battery Strap V2 measuring 210 mm.
Antenna supportA white Skylite/Skyliner MK3 Immortal T / ELRS antenna mount is listed. Confirm that the fitted mounting arrangement matches the receiver selected for the order.
Tools sold as recommendationsHex tools, prop tool and motor grip appear under recommended accessories rather than the included build. A flight battery, radio and goggles should be itemized in the quotation if required.
