Viewpro U30T Two-Axis UAV Gimbal Camera with 30x Optical Zoom

Decide what the operator needs to see

The 1/2.8-type STARVIS2 sensor provides Full HD imaging through a 4.3–129mm lens. At the wide end, the operator can see more of the scene; at the long end, the camera gives a narrower view of a selected feature. That supports visual checks of structures or land features when an ordinary wide-angle camera cannot provide the required framing.

U30T is an EO payload rather than a thermal camera. Better low-light sensitivity does not turn a visible image into a temperature map. Specify a separate thermal capability if the purpose of the flight is to inspect heat patterns.

Check the two-axis movement against the flight

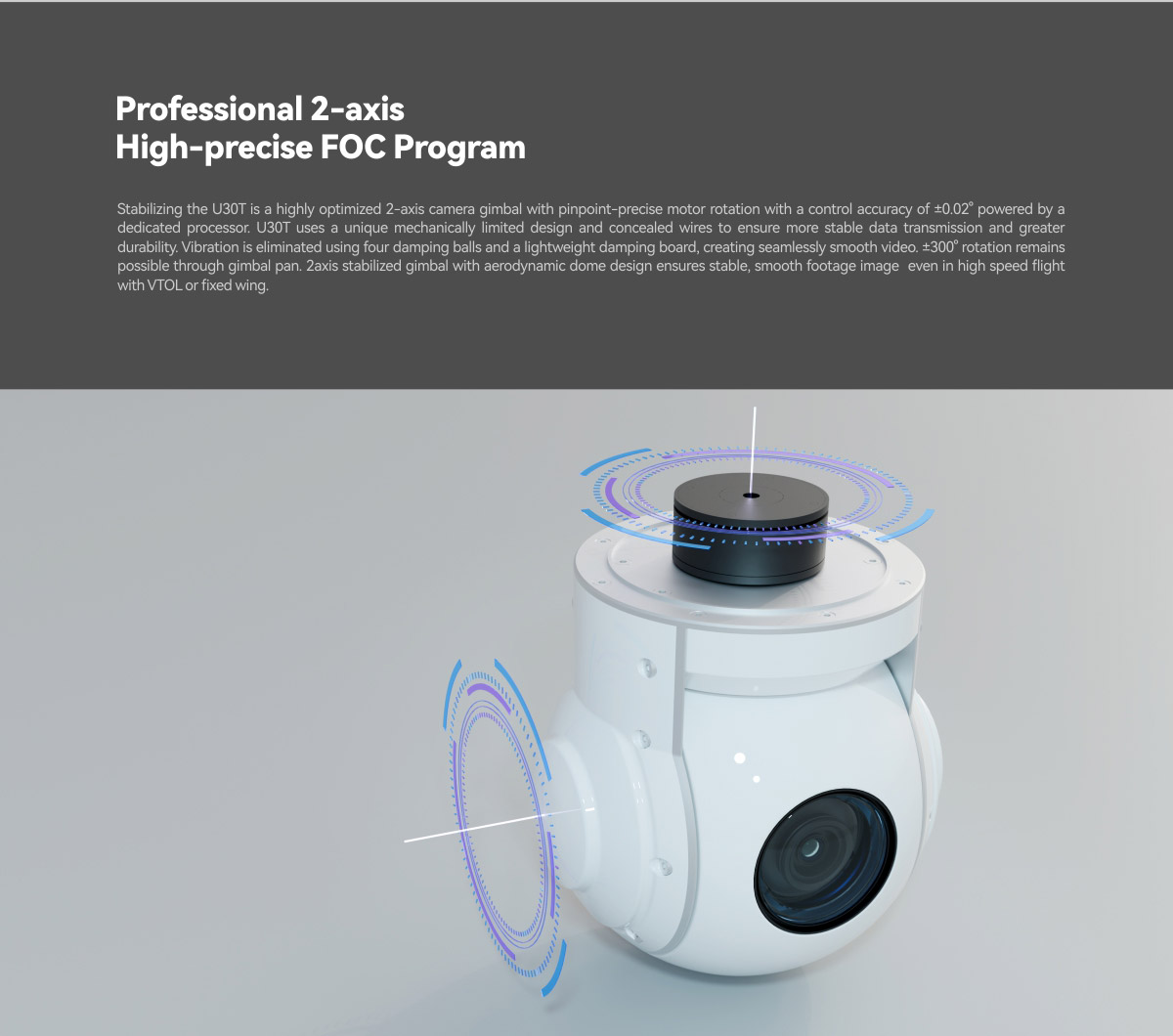

The manufacturer's current illustration identifies U30T as a two-axis gimbal, and the specification lists pitch and yaw behavior. Buyers comparing it with a three-axis camera should review the intended aircraft attitude changes and the image horizon they need. An aerodynamic housing alone is not evidence that every installation will deliver the same image stability.

Viewpro lists continuous yaw for IP and SDI output versions, with bounded travel on the alternative configuration. Include the required pan behavior in the order specification, especially where the camera must repeatedly look around the aircraft.

Choose the airborne video path

Output choices are listed as micro HDMI, IP and SDI. They should be selected to match the transmitter or onboard computer already in the UAV. Network video can suit an Ethernet-based system; HDMI and SDI require the corresponding inputs. Do not plan a cable harness from the product name alone.
