A seven-inch CL2 with room to choose your build

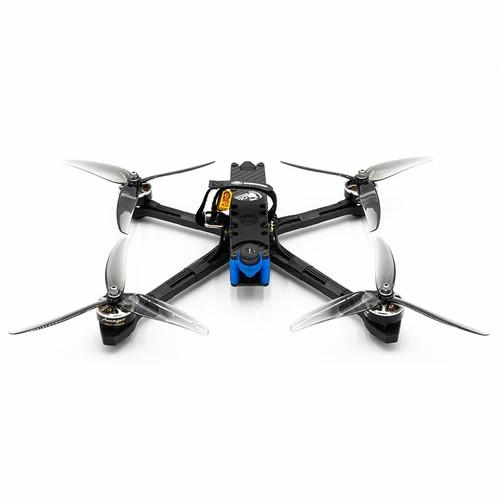

The CL2-XR pairs a seven-inch deadcat frame with Avenger 2806.5 motors. Its recessed front-arm arrangement is intended to keep the propellers away from the camera view, giving this CL2 a different emphasis from a compact five-inch freestyle build.

The listed configuration combines an F7 controller and 55A ESC with a choice of video and radio systems. Select those options together: a familiar frame does not make every version compatible with the same goggles or transmitter.

Two battery configurations, two different uses

4S cruising configuration

The original product specification pairs a 1500–2100mAh 4S battery with the endurance-oriented build. This is a battery-size reference, not a promised flight duration.

6S freestyle configuration

A separate 1300–1800mAh 6S pairing is described for freestyle. Have the supplied build and tune confirmed for that pack before treating the two configurations as interchangeable.

Battery mass, fitted camera equipment, wind and flight style all affect airtime. Neither pairing establishes a usable operating distance; the radio link and local operating requirements must be considered separately.

Keep the video package matched

DJI O3: DJI O3 Air Unit.
RunCam Link: RunCam Link Wasp HD camera and transmitter.
Avatar HD: V2 Micro or V2 Pro dual-antenna option.
Analog: Aura camera with X2 Ultimate transmitter.

These are alternative equipment packages, not four systems supplied in one aircraft. The receiver choices listed for the CL2-XR include DJI, FrSky, Ghost, Crossfire and ELRS; compatibility depends on the selected hardware.

Quick connections have a defined scope

The stack and motor connections are presented as solder-free. That does not extend to every receiver: the listed Ghost Zepto, Crossfire Nano SE and ELRS RP1 installations require direct soldering. Include the receiver choice when arranging service or ordering a replacement part.

The camera mount and fitted camera determine the final image framing; check a sample from that combination if a completely clear propeller view matters to your filming. Other CL2 formats are grouped in the Rotor Riot product range.
