Military Tactical FPV Drone Long Range RTK Industrial

Product Overview

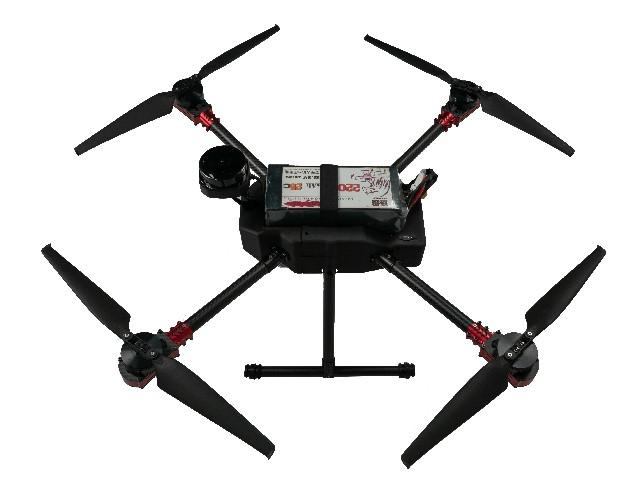

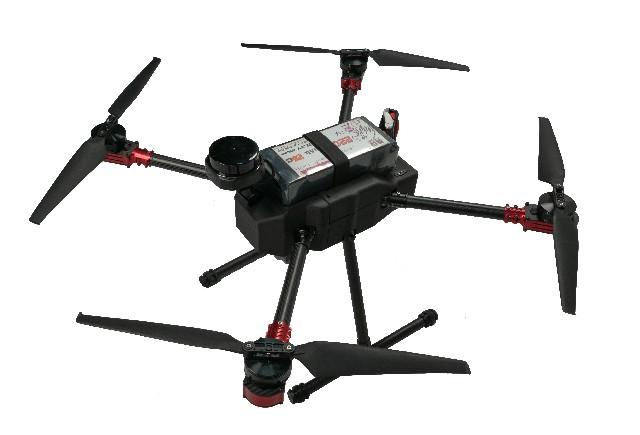

This drone is a high-performance industrial-grade aerial platform designed for professional operations. It integrates strong flight performance, centimeter-level positioning accuracy, stable long-range video transmission, and extensive payload expandability.

The system is powered by the SE0660X4 high-performance ESC and 5008 high-efficiency motors, ensuring stable and reliable flight even under heavy payload conditions. The S7mini flight controller provides precise flight control and supports multiple intelligent flight modes.

Equipped with the G982 RTK module, the drone delivers centimeter-level positioning accuracy, enabling highly precise flight paths for demanding applications. The A2MINI gimbal ensures stable payload operation and supports various cameras and sensors, while the VW20 HD video transmission system enables long-distance real-time monitoring.

Powered by a 6S 22000mAh high-capacity battery, the drone achieves up to 52 minutes of flight time (no payload). With an 18×5.7 propeller setup, 900mm wheelbase, and compact body dimensions of 62 × 62 × 40 cm (without propellers), it balances stability, efficiency, and portability. The maximum level flight speed reaches 18 m/s, allowing fast deployment and efficient mission execution.

This platform is widely used in surveying and mapping, inspection, security monitoring, and agricultural applications, serving as a reliable and efficient aerial work solution.

Flight System

High-Performance ESC & Motors
The SE0660X4 ESC combined with 5008 motors provides strong and efficient power output, maintaining stable flight performance under high-load conditions while ensuring long-term reliability.

Advanced Flight Controller
The S7mini flight controller features powerful processing capability and precise control algorithms. It supports intelligent functions such as auto takeoff, auto landing, and return-to-home, making it suitable for both professional users and structured operations.

Centimeter-Level RTK Positioning
The G982 RTK module delivers centimeter-level positioning accuracy, enabling highly precise route planning and repeatable flight paths for mapping, inspection, and other high-accuracy tasks.

Stable Gimbal System
The A2MINI gimbal offers compact design and excellent stabilization, effectively reducing vibration and ensuring clear, stable data capture when carrying cameras or sensors.

Payload & Expandability

Integrated LiDAR System
Equipped with the Slamtec S2 LiDAR, the drone supports high-precision terrain mapping and environmental perception, suitable for complex terrain surveying and 3D modeling applications.

High-Capacity Battery
The 6S 22000mAh battery supports up to 52 minutes of endurance (no payload), significantly reducing downtime and improving operational efficiency during long missions.

Optimized Propellers
The 18×5.7 propellers are optimized for lift and efficiency, reducing power consumption while maintaining stable flight performance under varying conditions.

Video Transmission & Monitoring

Long-Range HD Video Link
The VW20 video transmission system supports long-distance HD video transmission (distance varies by environment), enabling real-time monitoring of flight status and operational footage from the ground station.

Real-Time Data Feedback
In addition to video, the system transmits telemetry and sensor data in real time, allowing operators to fully monitor aircraft performance and mission progress.

Portability & Reliability

Compact Airframe Design
With dimensions of 62 × 62 × 40 cm (without propellers), the compact airframe allows easy transportation and rapid deployment across various environments.

High Reliability
Built with high-quality materials and advanced manufacturing processes, the drone is designed for durability and stable operation even in demanding environments. Each unit undergoes strict testing to ensure consistent performance.

• Centimeter-Level RTK Positioning with LiDAR Integration

• Up to 52 Minutes Endurance with 6S 22000mAh Battery

• Industrial-Grade Platform for Surveying, Inspection & Security
