| Price | On request |
|---|---|
| Model | DIPG12 |
| Thermal detector | 1280×1024; 12 µm pixel spacing; 85 mm lens |
|---|---|
| Thermal lens | 85 mm |
| Storage / file formats | Local TF card storage |
|---|
| Stabilization | Three-axis gimbal |
|---|---|
| Weight | 1000 ±20 g, excluding dampers |
| Video output | Ethernet; standard RTSP stream |
|---|
Single thermal sensor · 1280×1024 imaging · 85 mm lens

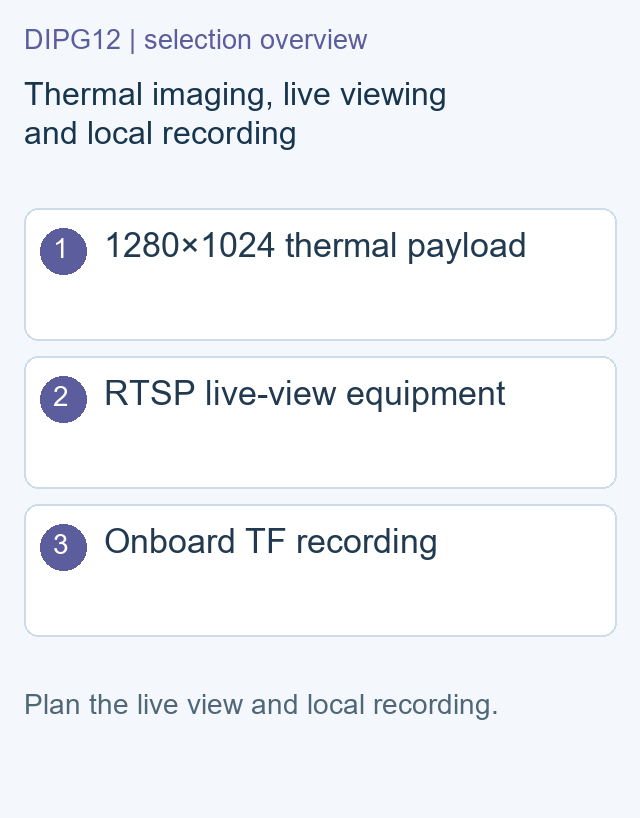

DIPG12 is a thermal-only gimbal camera with a 1280×1024 infrared sensor, an 85 mm lens and three-axis stabilization. Ethernet RTSP video and local TF card storage support live viewing and onboard recording. It is a choice for UAV buyers who already have a clear inspection subject and want to specify the thermal camera around that task.
Begin with the area you need to examine and the distance from the camera to the subject. Those two details, together with the aircraft's payload allowance, are more useful for choosing this model than a general request for a thermal camera.
Describe the part of a building, equipment installation or outdoor area that the operator needs to inspect. Include its approximate size and the intended viewing distance. This gives the camera discussion a concrete starting point and helps explain how much scene context the operator needs.
Name the ground station, application or network-video equipment that will receive the RTSP stream. If the operator also needs a local record, include TF storage in the equipment request and explain how you plan to retrieve and review the files after the task.
Reserve payload capacity for more than the camera body. The mount, dampers and cables contribute to the installed assembly. Share the mounting location, available clearance and a drawing or photograph of the aircraft so the proposed package can be discussed around a real installation.
DIPG12 provides adjustable contrast and multiple pseudo-color modes. These display choices can help an operator review different parts of a thermal scene without changing the sensor or lens. Lock and follow gimbal modes, angle setting and position reading are available for camera pointing within the imaging workflow.
If temperature information is part of your requirement, ask about a point or area measurement configuration when requesting a quote. Tell us what is being measured and how you want to use the result, alongside the live-view and recording needs.
Send the DIPG12 model name with your aircraft and inspection requirements. A useful request includes:
With this information, FD can discuss the thermal payload and the accessories to include in your quotation.
Product reference: TOPOTEK DIPG12 product specifications.
| Thermal Camera | 1280×1024; 12 µm pixel spacing; 85 mm lens |
|---|---|
| Stabilization | Three-axis gimbal |
| Video Output | Ethernet; standard RTSP stream |
| Storage | Local TF card storage |
| Weight | 1000 ±20 g, excluding dampers |
