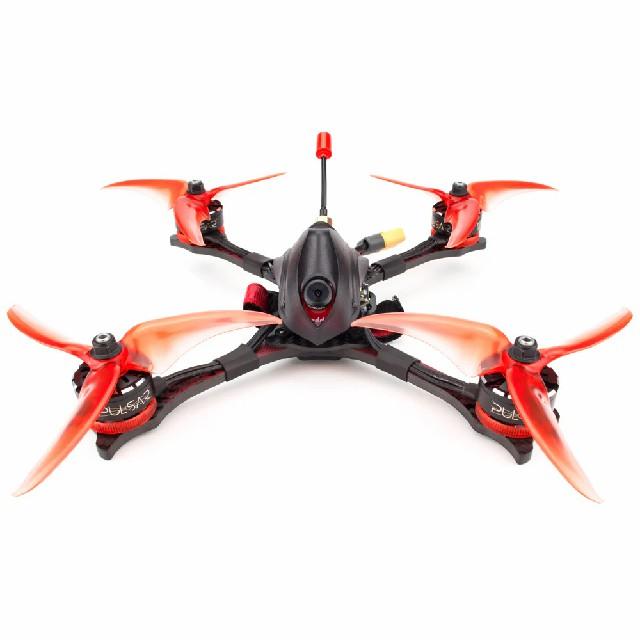

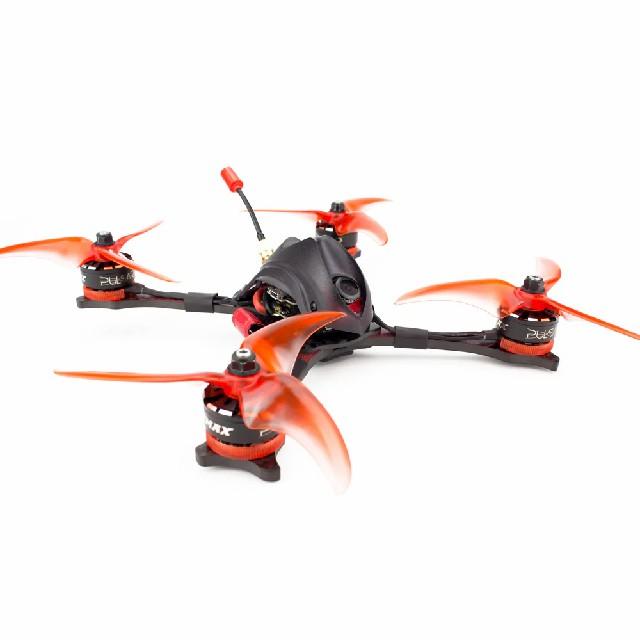

EMAX Hawk Pro 5 FPV Racing Drone BNF – 6S Power & Ratel Camera

Specifications

• Wheelbase (no props): 210mm

• Dry Weight: 265g

Key Components

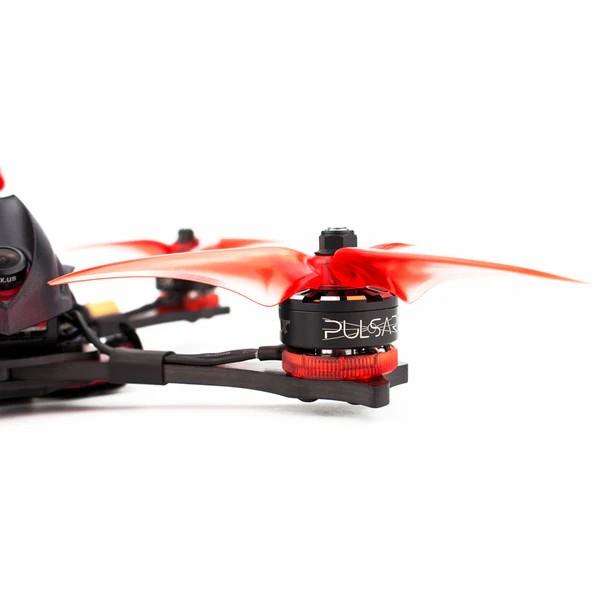

• Pulsar 2306 2400KV LED high-performance brushless motors

• Mini Magnum III F4 flight controller (MATEKF405-based firmware)

• Magnum 35A BLHeli_32 ESC, compatible with 3–6S LiPo

• EMAX Tiny D8 receiver for FrSky D8 protocol

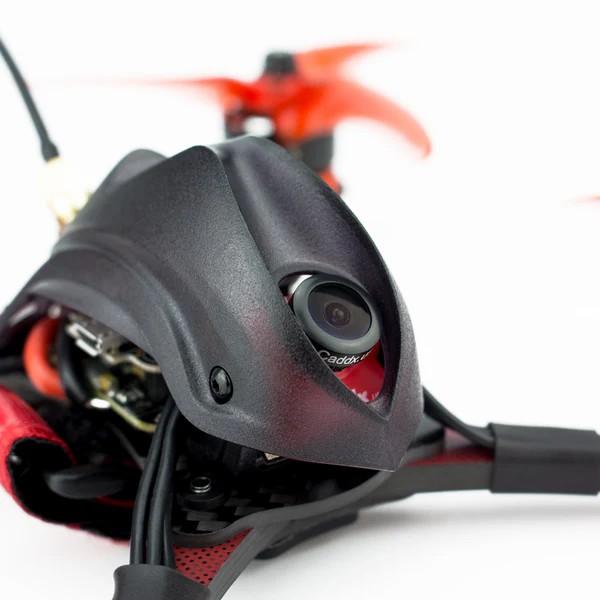

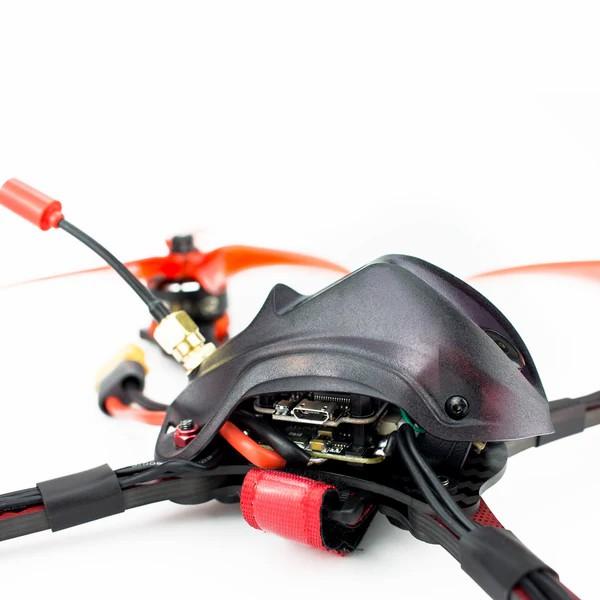

• Caddx Ratel 1200TVL HDR FPV camera, tuned for Hawk Pro

• Adjustable 25–200mW 37CH video transmitter with Raceband support

Package Contents

1. 1× Hawk Pro Drone

2. 1× User manual

3. 3× AVAN 5x3.0x3 CW props + 3× CCW props

4. 3× AVAN 5x2.8x3 CW props + 3× CCW props

5. 1× Spare hardware kit

6. 1× EMAX Nano RHCP SMA antenna

7. 4× Clear motor base covers

8. 4× Blue motor base covers

9. 1× Replacement canopy

⚠️ Note: This model is not directly compatible with FrSky ACCESS protocol transmitters (2019 and newer). To use with ACCESS radios, an external FrSky XJT module is required for D8 mode operation.

• Powerful Performance System – Equipped with Pulsar 2306 (1700KV/2400KV) motors and 35A BLHeli_32 ESC, supporting 4S–6S LiPos for strong thrust and fast response.

• Stable Flight Control – Mini Magnum III F4 flight controller (F405 firmware) with adjustable 25–200mW VTX ensures reliable handling and clear video feed.

• High-Quality FPV Camera – Caddx Ratel 1200TVL HDR camera delivers sharp, low-latency video even in challenging light, ideal for racing or freestyle.
