Foxtech SEEKER-30 TR 30x UAV Gimbal Camera with HDMI and IP Options

What the SEEKER-30 TR camera provides

The published camera specification uses a Sony 1/2.8-inch Exmor R sensor with 2.13MP effective resolution. Its 4.3–129mm lens supplies 30x optical zoom. Digital enlargement is listed separately and should not be counted as another optical lens stage when comparing quotations.

This is an EO payload, rather than a thermal camera. Choose it for visible detail, image framing and the required video connection. If your customer needs temperature information or infrared heat patterns, start with a documented thermal or dual-sensor model instead.

Match the mount to the aircraft, not just the product name

Foxtech offers standard and quick-detach versions. Identify the mount on the quotation and compare its drawing with the space below your drone. Allow for the damping assembly, camera movement and connected cables when reviewing the installation.

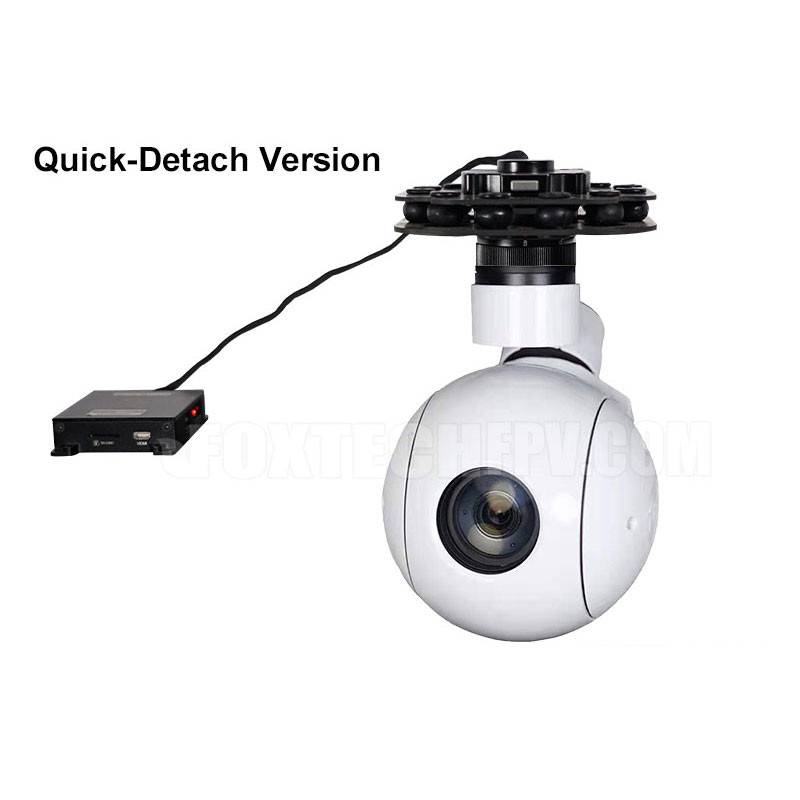

The quick-detach product view shows the mounting arrangement and separate connection equipment. It is an option reference, not a statement that the basic camera price always includes that assembly. Ask for a component list that matches the version you intend to receive.

Three questions worth settling before an order

Will a 1080p camera send 1080p through every output? Not necessarily. The cited manual distinguishes its HDMI, IP and SDI outputs and their frame rates. Request the exact stream and onboard file settings for the supplied version. Do not transfer the headline camera resolution to every connector.

Can the same radio control every camera function? The equipment must have the required control path and available inputs. List the camera movements and capture functions the operator needs. That gives the supplier a clear basis for checking the controller, receiver and cable package.

Does a stabilized gimbal remove the need to review aircraft vibration? No. Damping, mounting rigidity and aircraft vibration all contribute to the visible result. If image steadiness is central to the purchase, request a relevant sample or an installation review rather than treating the published gimbal specification as a test of your aircraft.
