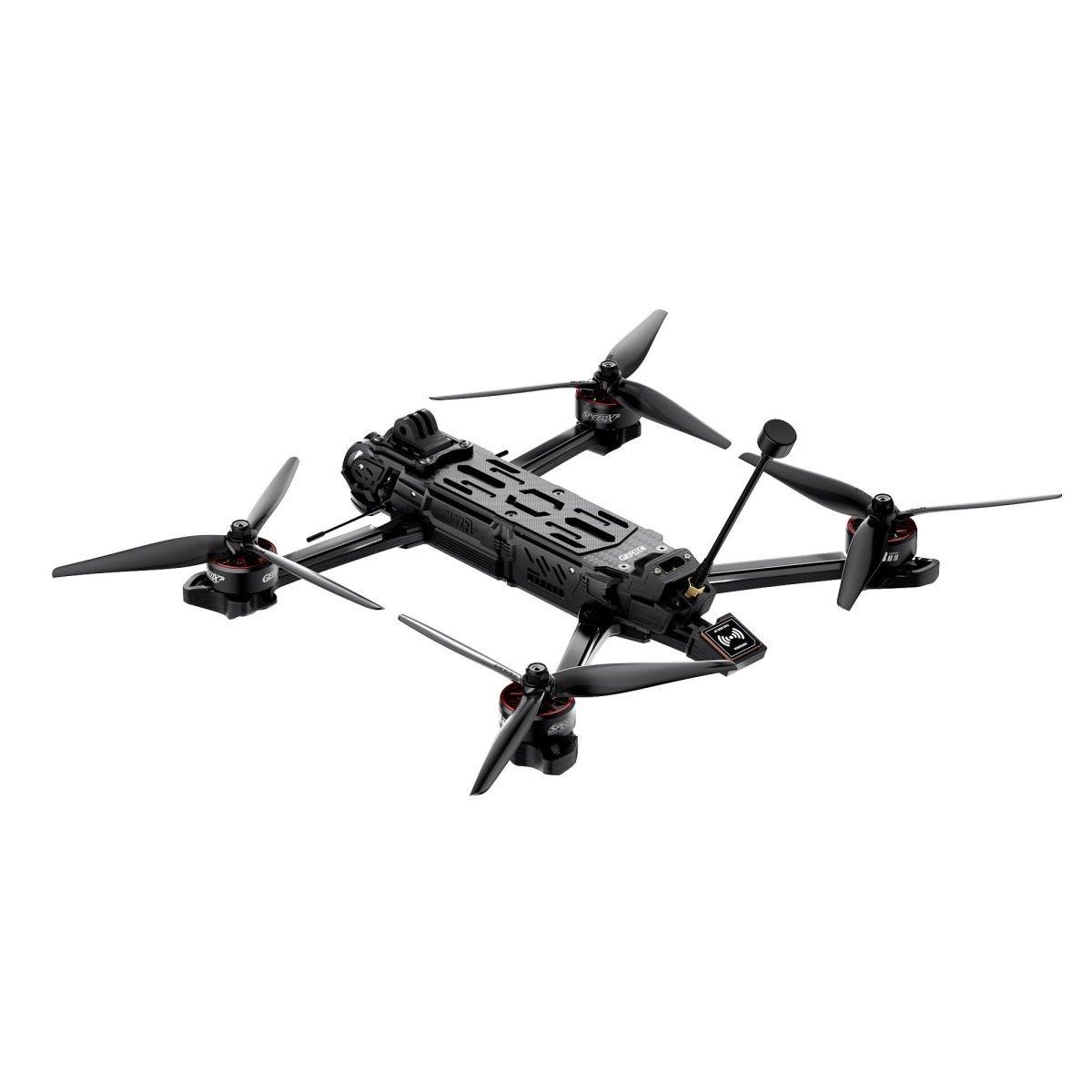

GEPRC MOZ7 Analog Long Range FPV Drone

Summary

The MOZ7 from GEPRC’s Starship series has officially landed, blending classic design with a modern industrial touch. Featuring custom protective side panels and enhanced mechanical textures, the MOZ7 combines style, durability, and performance in one powerful long-range platform.

Supporting 30.5mm×30.5mm stacks, multiple VTX systems, and advanced cooling solutions, the frame is built for flexibility. The adjustable camera mounting system with CNC aluminum plates accommodates both 19mm and 20mm cameras, reinforced by carbon side plates for stable and secure installation.

Powered by the TAKER F722 BT FC V3 stack with wireless Bluetooth tuning, paired with 2809 motors and HQ7.53.73 props, the MOZ7 offers both efficiency and raw strength. The onboard GEP-M10 GPS ensures reliable positioning for confident long-range adventures. With a GEP-VTC6-6000mAh battery, flights can last up to 30 minutes—or 20 minutes when carrying a GoPro Hero10. The DJI O3 version supports in-camera 4K/120fps recording, delivering cinematic-level FPV footage.

The MOZ7 isn’t just a drone—it’s your gateway to pushing distance, performance, and creativity further than ever before.

Features

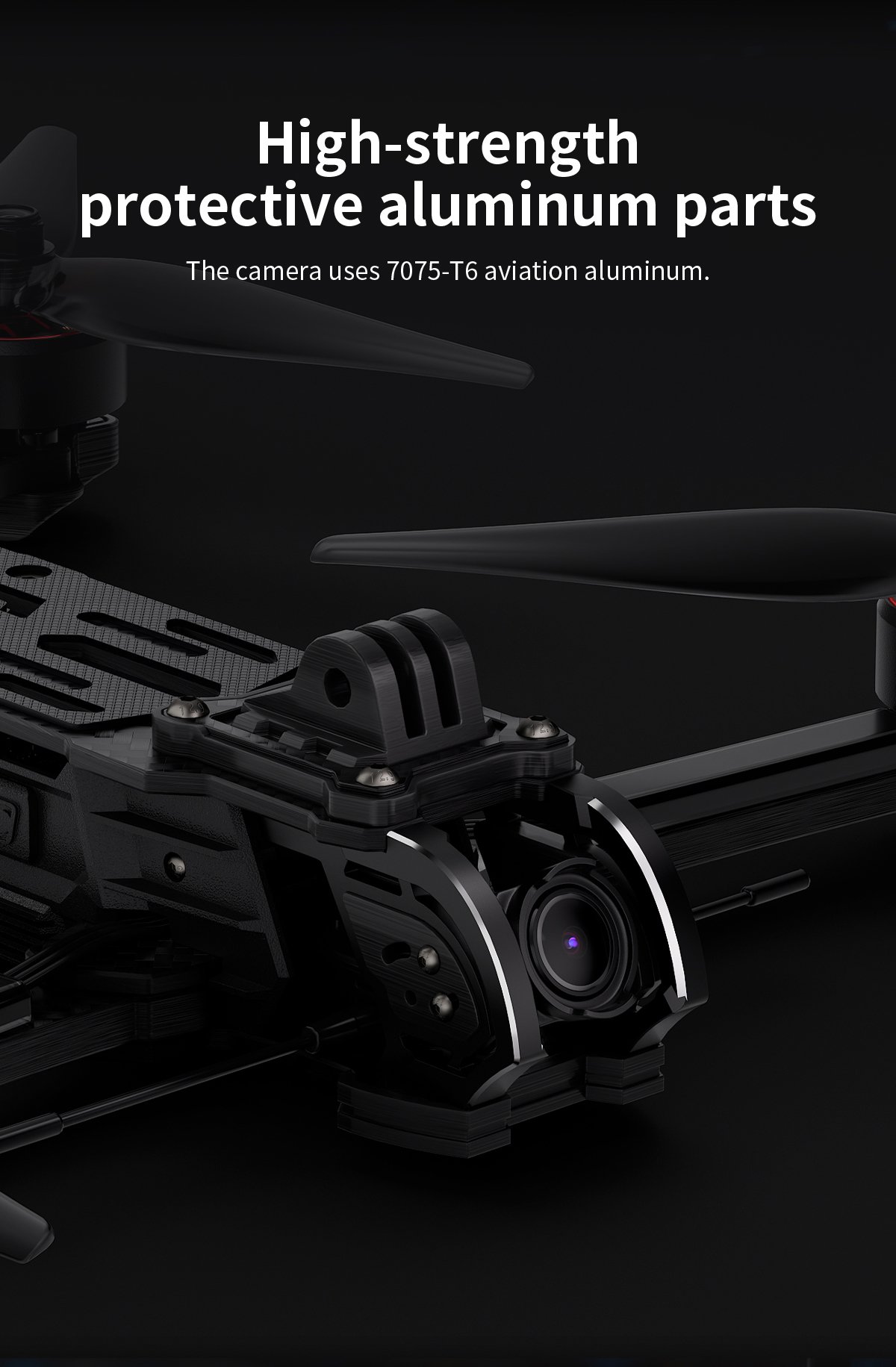

1. Sturdy CNC aluminum side plates, compatible with both 19mm and 20mm cameras.

2. Built-in Bluetooth flight controller for fast and wireless parameter tuning.

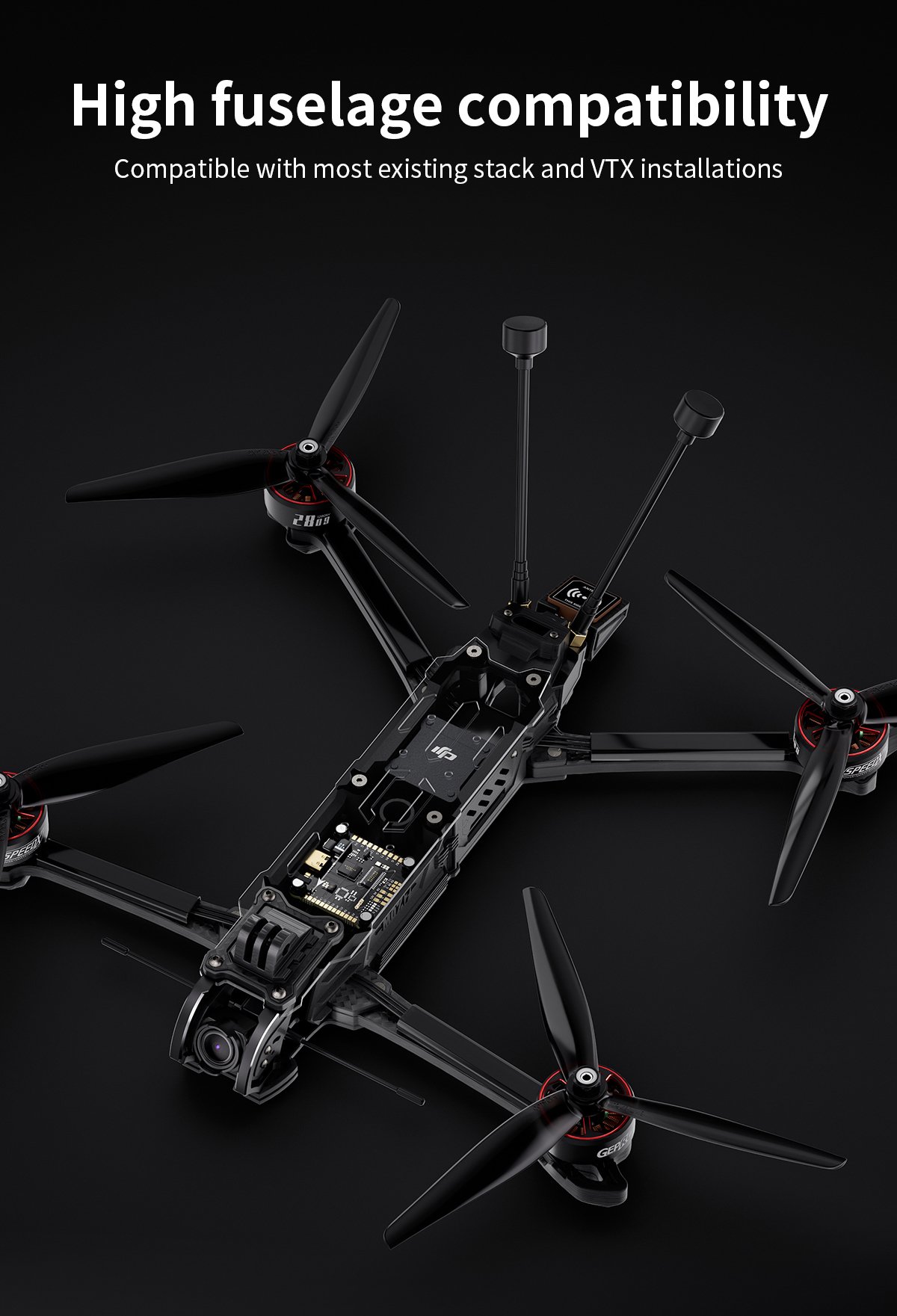

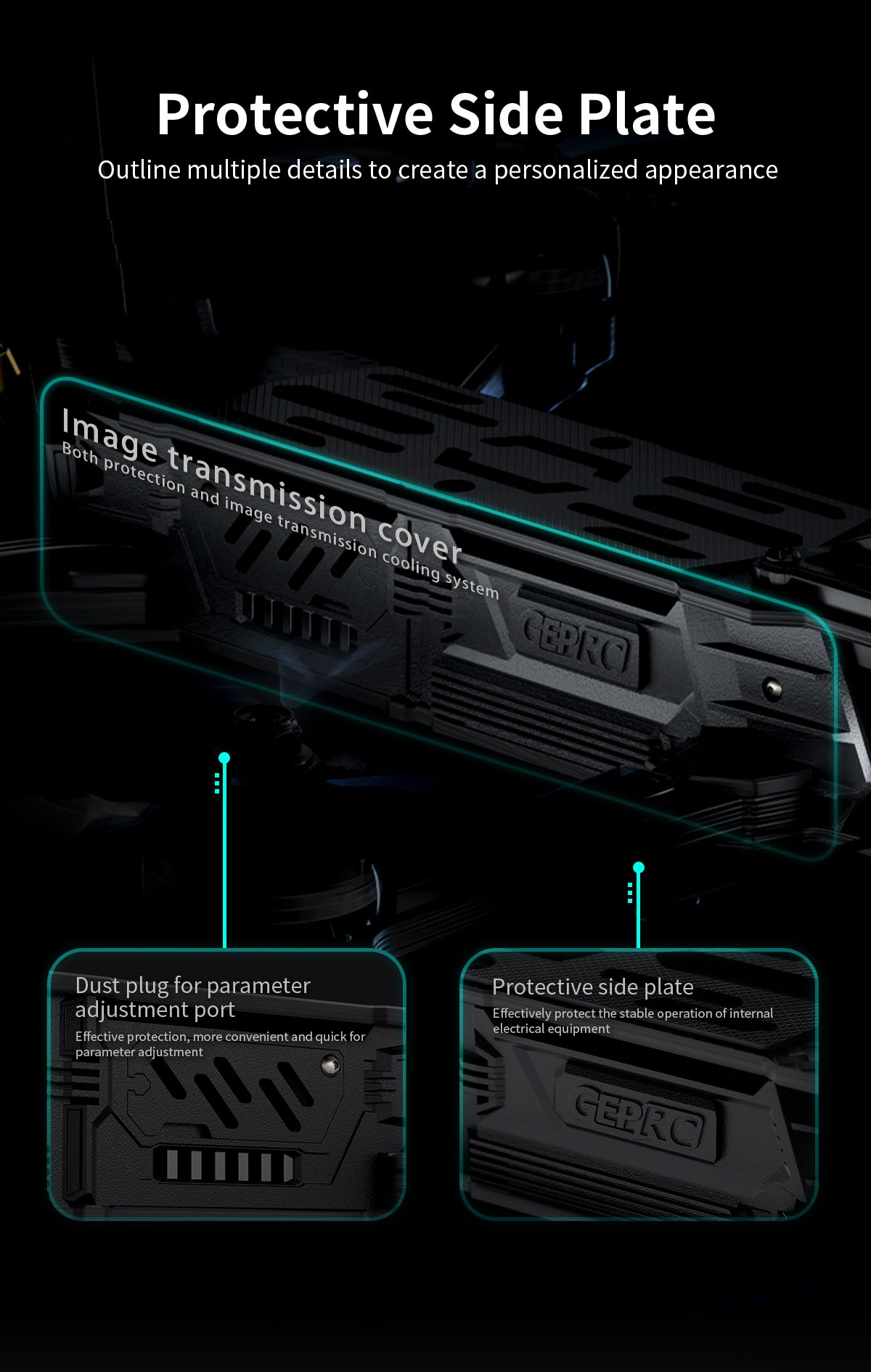

3. Protective side panels safeguard electronics and support both 30.5×30.5mm stacks and 30×30mm VTX systems.

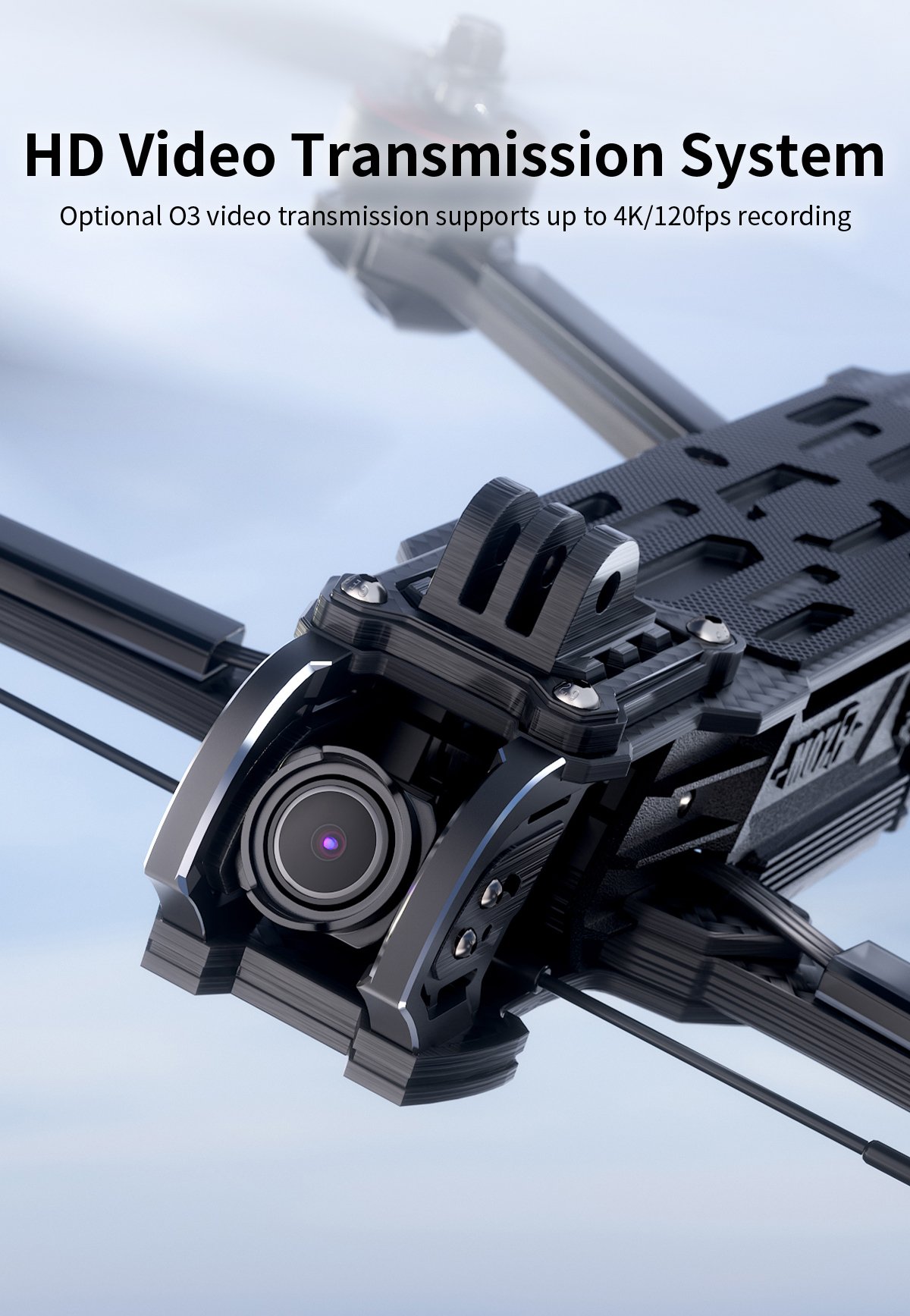

4. DJI O3 VTX integration for crystal-clear FPV feed, long-range transmission, and 4K/120fps onboard recording.

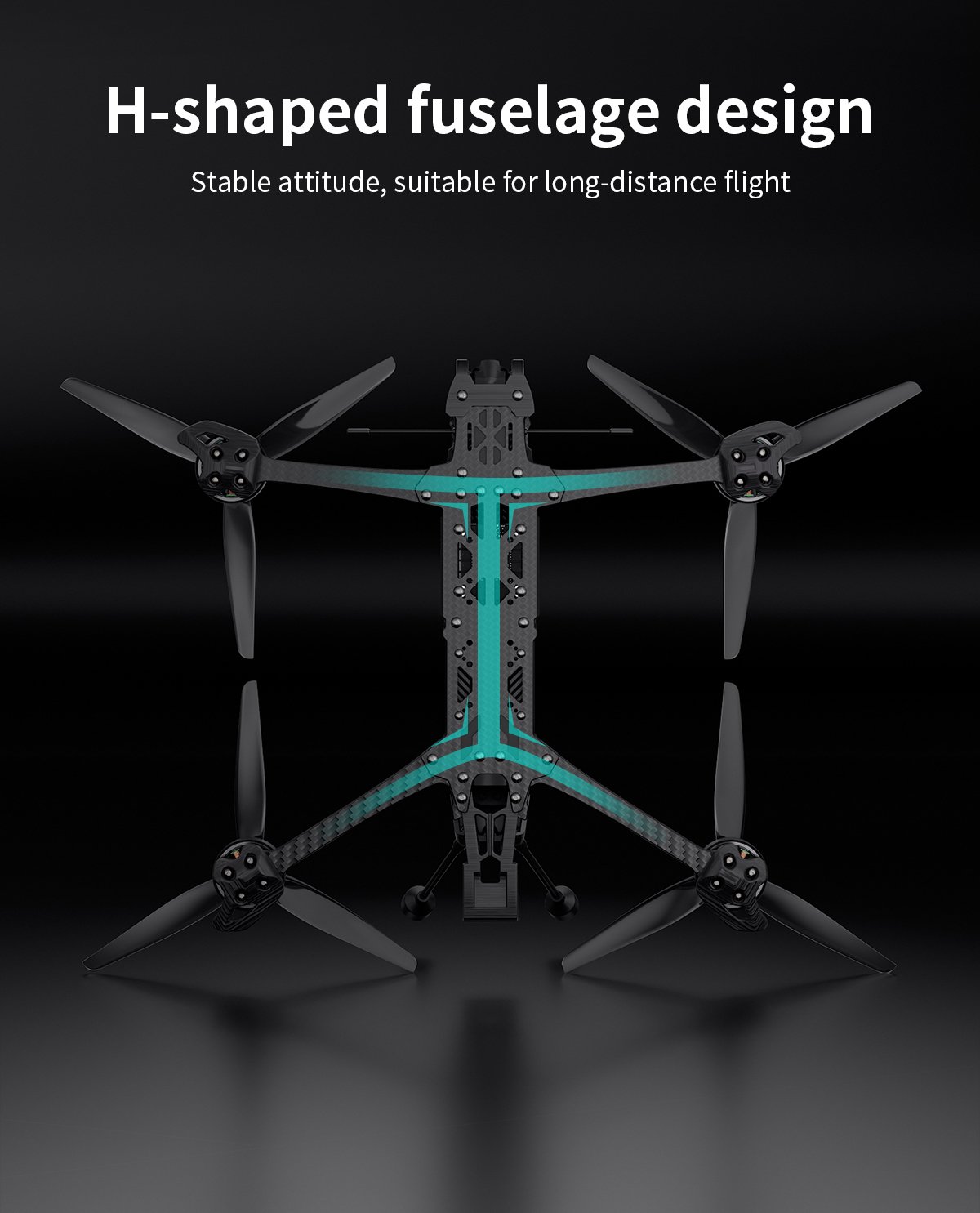

5. H-frame layout ensures smooth handling and stable flight for long-range cruising.

6. Dual motor mount compatibility: 16mm×16mm and 19mm×19mm.

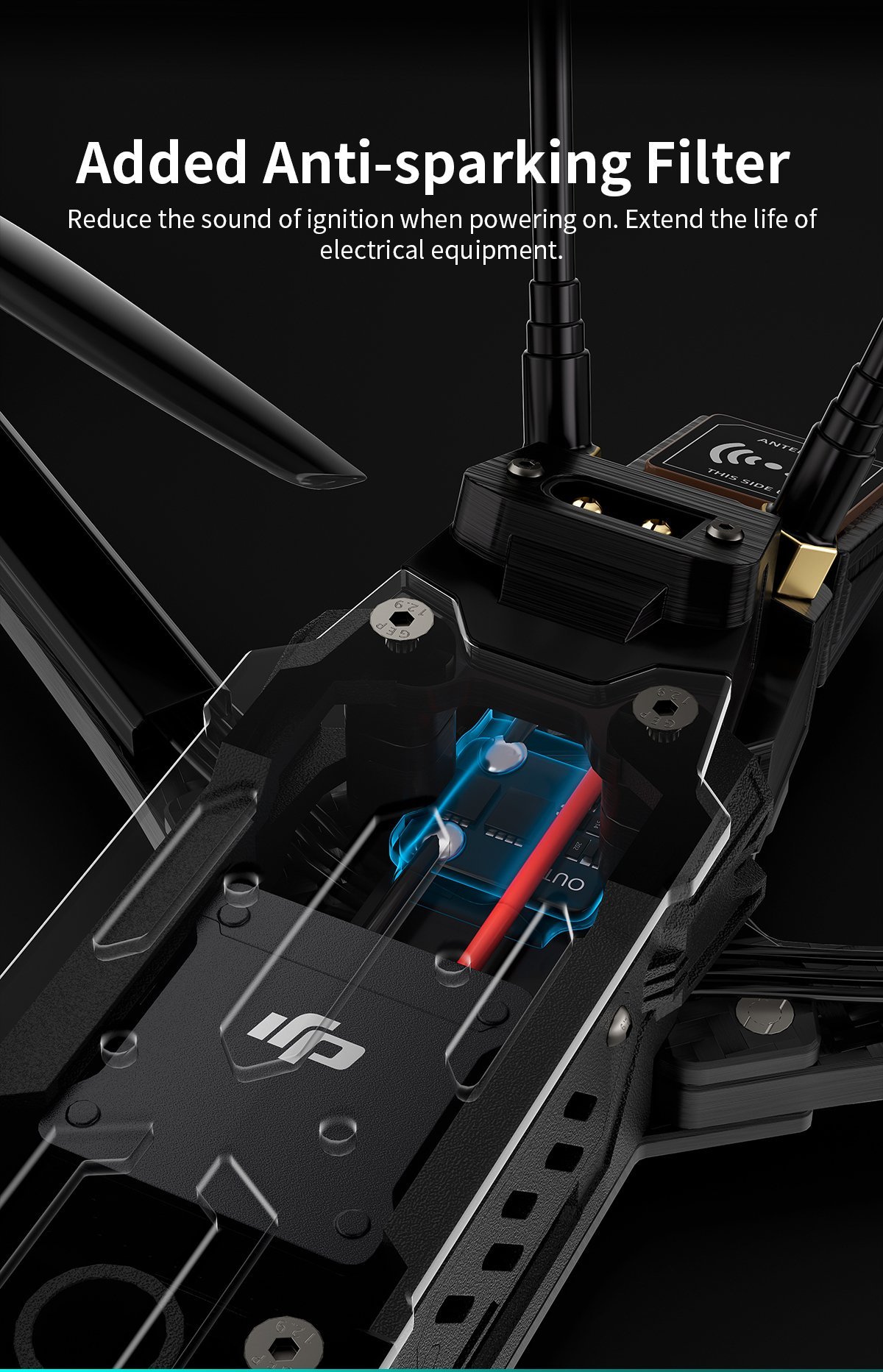

7. Built-in anti-spark filter prolongs electronic component lifespan.

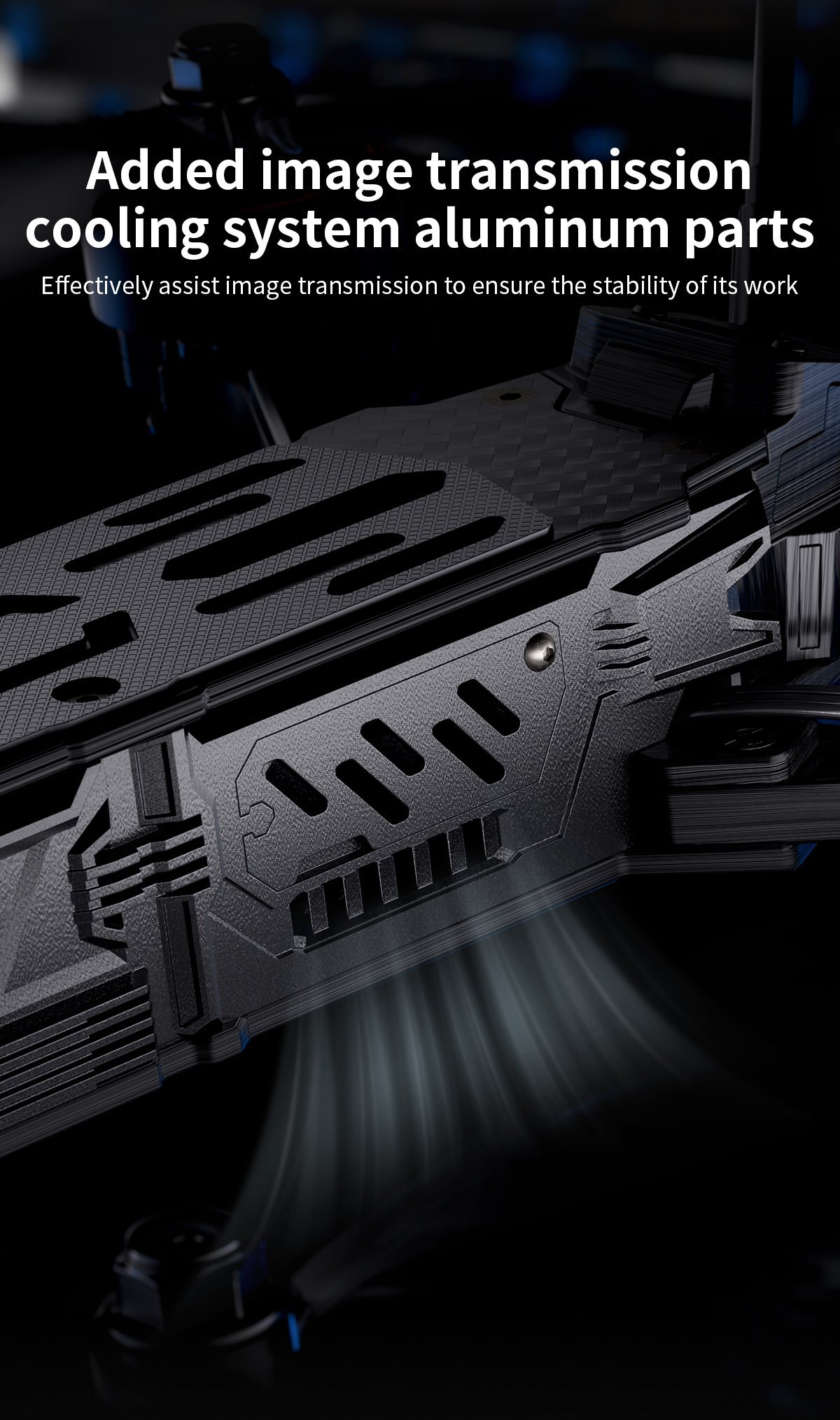

8. Added VTX heat sink for improved thermal management during flights.

9. Long flight endurance: up to 30 minutes with a VTC6 6000mAh battery, or 20 minutes with GoPro10 onboard.

10. Compatible with multiple action cameras, including GoPro, Insta360 Go2, and Caddx Peanut, for stable and sharp footage.

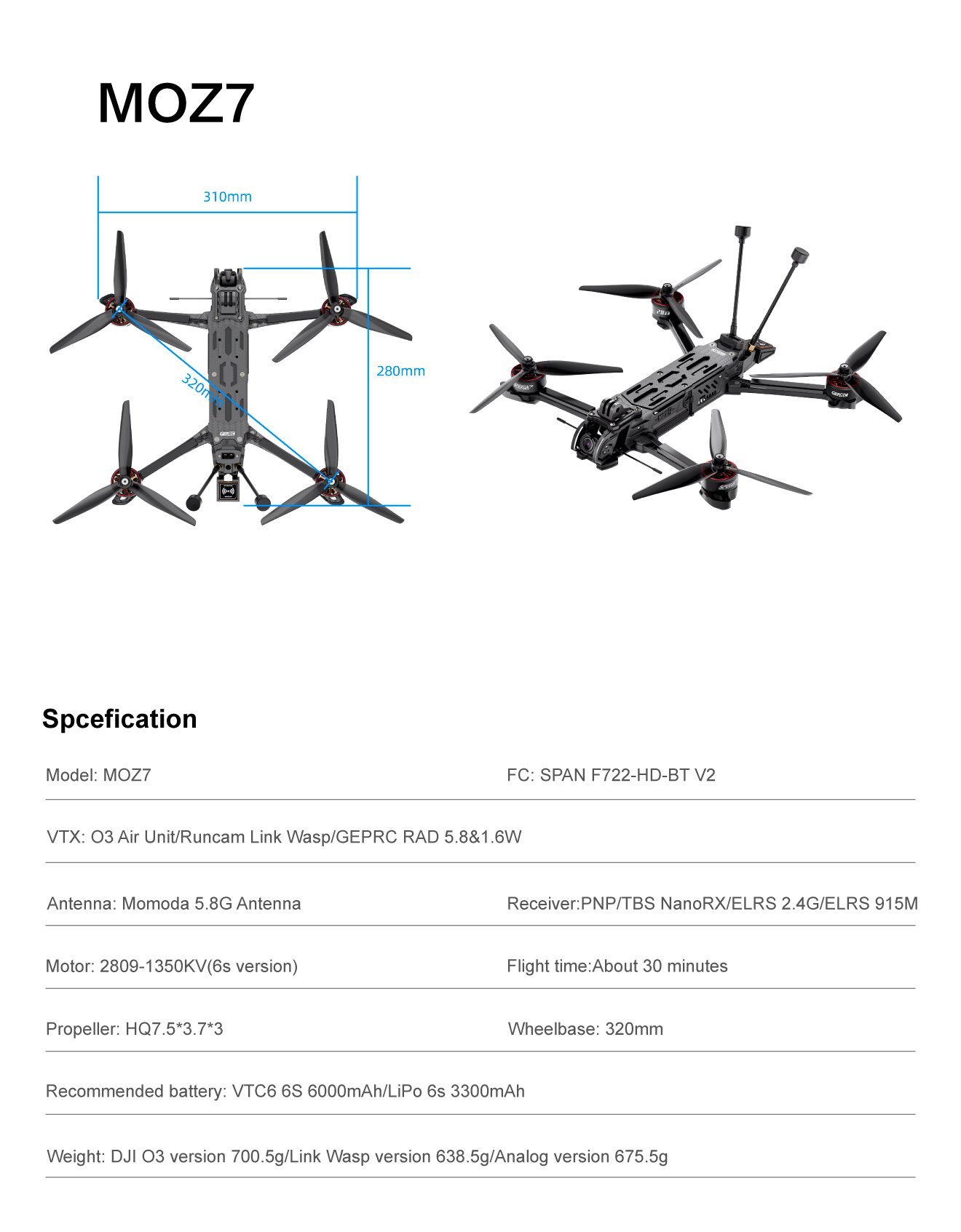

Specifications

• Model: MOZ7

• Frame: GEP-MOZ7

• Dimensions: 280mm × 310mm

• Wheelbase: 320mm

• Top Plate: 3.0mm

• Bottom Plate: 3.0mm

• Arms: 6.0mm

• Splint Plate: 3.0mm

• Camera Mount: 2.0mm

• VTX Cover: 1.5mm

• FC: TAKER F722 BT FC V3

• MCU: STM32F722

• Gyro: 42688-P (SPI)

• VTX: GEPRC RAD 5.8G 1.6W

• ESC: GEP-4IN1 BLHeli_32 50A

• Propellers: HQ7.53.73

• Antenna: Momoda 5.8G RP-SMA RHCP 120mm

• Motors: 2809-1280KV (6S version)

• GPS: GEP-M10

• Camera: Caddx Ratel2

• Weight: 675.5g

• Receiver: PNP / TBS NanoRX / ELRS 2.4G / ELRS 915M

• Battery Recommendation: VTC6 6S 6000mAh / LiPo 6S 3300mAh

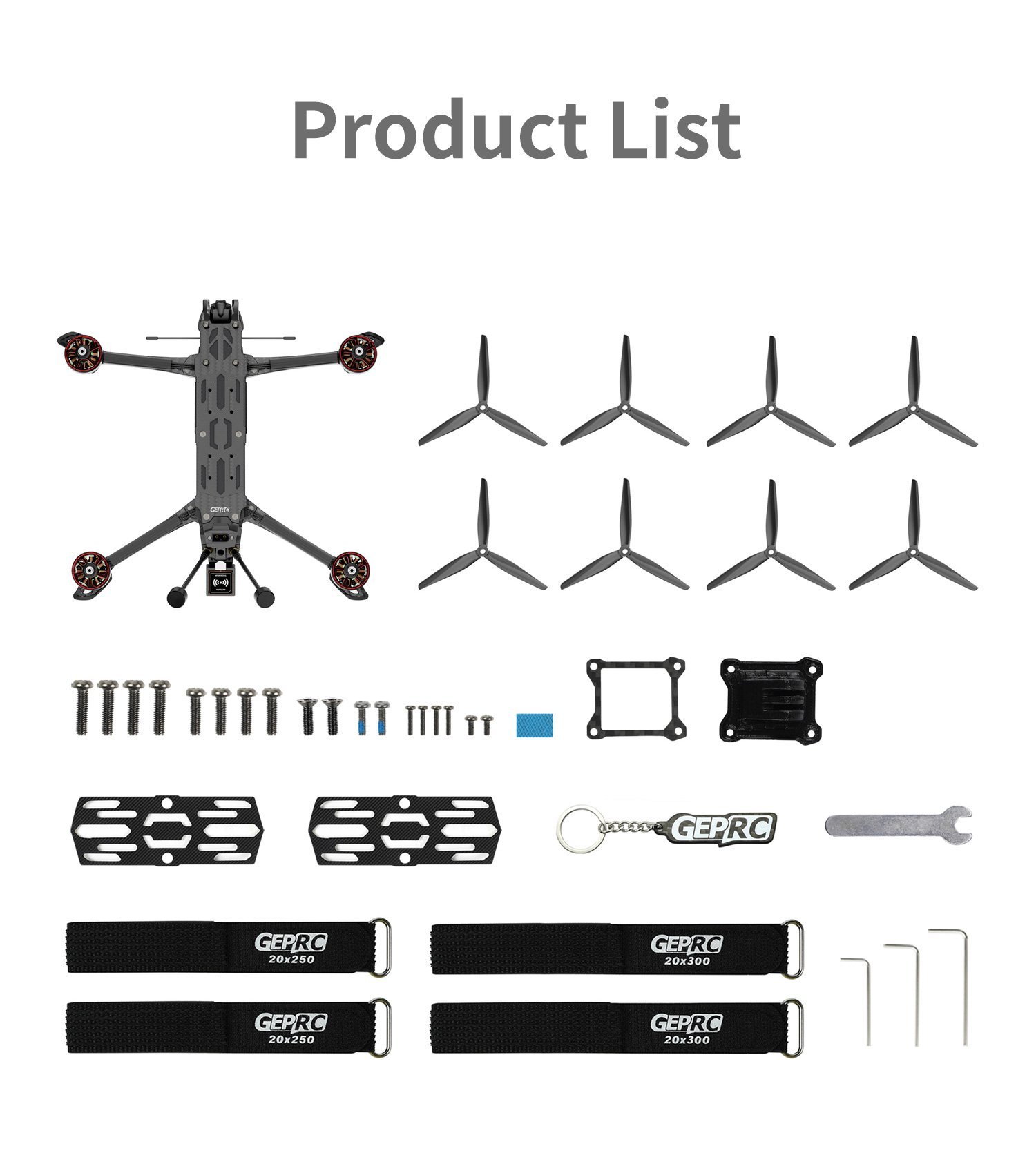

Includes

• 1 × MOZ7 Analog

• 4 × HQ 7.5×3.5×3 (4 pairs)

• 2 × M20×250mm battery straps

• 2 × M20×300mm battery straps

• 2 × Battery silicone pads

• 1 × Screw set

• 1 × 3D-printed parts set

• 1 × L-shaped screwdriver (1.5mm)

• 1 × L-shaped screwdriver (2mm)

• 1 × L-shaped screwdriver (3mm)

• 1 × M5 wrench

• Extended Flight Time – Up to 30 minutes endurance with 6000mAh battery, or 20 minutes with GoPro Hero10 for cinematic flights.

• Powerful & Stable Performance – Equipped with 2809 motors + HQ7.5 props and DJI O3 VTX, delivering smooth long-range control and 4K/120fps video.

• Durable & Customizable Design – CNC aluminum camera mounts, reinforced carbon plates, and modular side panels for protection and flexible setup.
