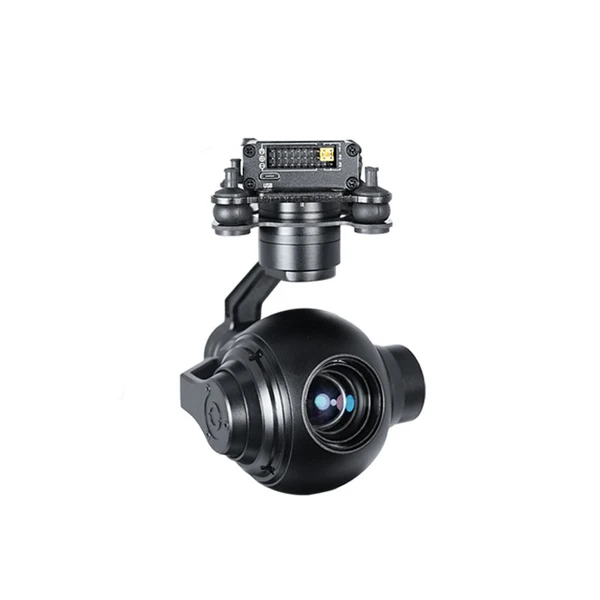

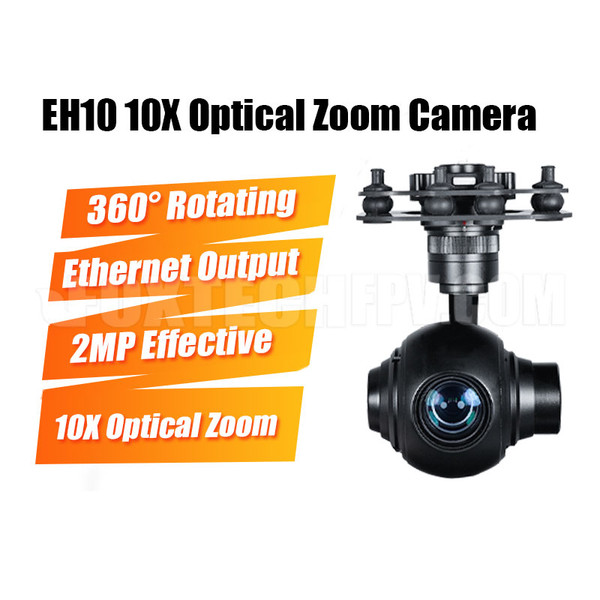

Foxtech EH10 10x UAV Gimbal Camera with Ethernet Video

Choose the image connection before the accessories

EH10 sends network video; its manual does not list HDMI or analogue AV output. A monitor with an HDMI socket therefore needs a suitable receiving or decoding arrangement. The Ethernet connector describes the camera interface, rather than a complete wireless downlink. Keep the aircraft-side transmission equipment, receiving equipment and display in the same system brief.

Use the optical lens to define the view

The lens covers 5.1–51 mm with 10x optical zoom. At the wide end it gives more context around the inspection area; towards the telephoto end it frames a smaller part of that scene. A useful camera brief states the feature you need to inspect and the expected viewing distance, rather than choosing a zoom number alone.

The current product page describes approximately 2 MP effective imaging. Its manual separately lists a 1/3-inch Panasonic sensor and 2.48 million total pixels. These are different sensor figures, not a reason to describe EH10 as a higher-resolution recording camera. Its listed Full HD picture is 1920×1080.

Standard or quick-mount?

Those dimensions and weights come from the EH10 manual. They describe the listed camera assemblies; the finished UAV installation also includes its airframe bracket, cable routing and any transmission hardware. The manufacturer offers both versions, so specify one on the quotation.

Plan control, power and saved files together

PWM, TTL, S.Bus and TCP are listed control options. Choose the interface around the flight controller or payload control equipment you already use. EH10 has three-axis stabilization and continuous pan in the IP version, but the aircraft mount and nearby cables still need sufficient clearance.

The manual lists 3S–6S input with a 12 V working reference. For onboard files it supports a microSD card up to 128 GB, with JPG photographs and MP4 video. Local recording and the live stream are separate deliverables: tell FD whether you need onboard files, a ground recording, or both.

Before requesting the camera

• Do you need the quick-mount version? Name the airframe, available mounting area and complete payload allowance.
• Where will the picture be viewed? Give the receiver, decoder or viewing application, not just the screen size.
• Which files are needed after the flight? State photograph and video requirements as well as live viewing.
