FrSky Tandem X18 UAV Radio with ETHOS and Dual-Band Receiver Options

Receiver families determine the RF arrangement

The X18's internal module has 2.4GHz and 900M radio paths. The latter is a family label: the actual regional configuration uses the applicable 868MHz or 915MHz equipment. Each selected working mode has its own receiver requirements.

Touchscreen settings with a physical control layout

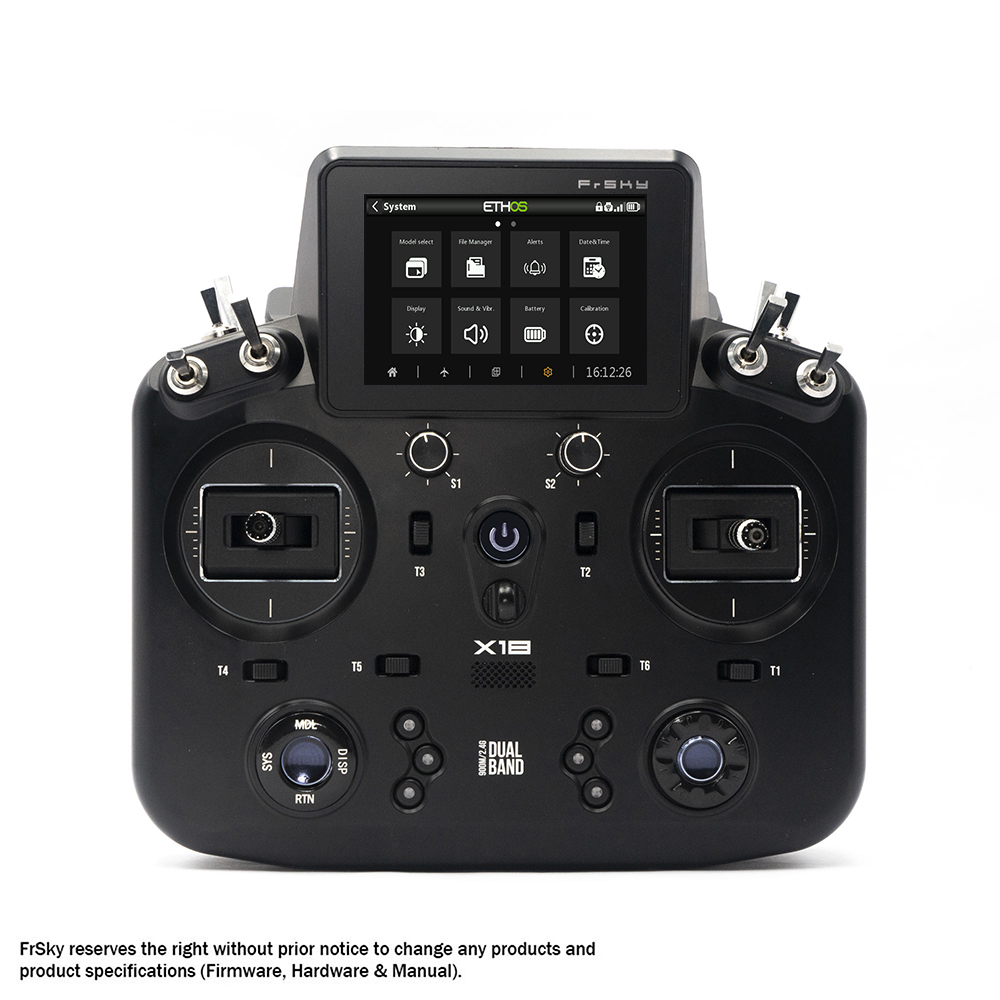

The 480×320 touch display sits above the two Hall-sensor sticks. X18 also provides four standard trims, two additional trims, front custom buttons and rear momentary buttons. Think about the controls your aircraft operator needs to reach while holding the radio; the layout matters as much as the specification count.

Up to 24 channels are listed. That capacity should be mapped against the selected receiver and aircraft interface, rather than read as 24 physical connectors on every receiver. For an FPV configuration, the video system remains a separate item: goggles, a monitor or another suitable display must match the chosen camera link.

Common X18 selection questions

Does X18 provide the X20R's RF feature set?
Use the X18's own TD-ISRM specifications. Features listed for another Tandem transmitter should not be transferred to this model.

Can the rear bay accept any RF module?

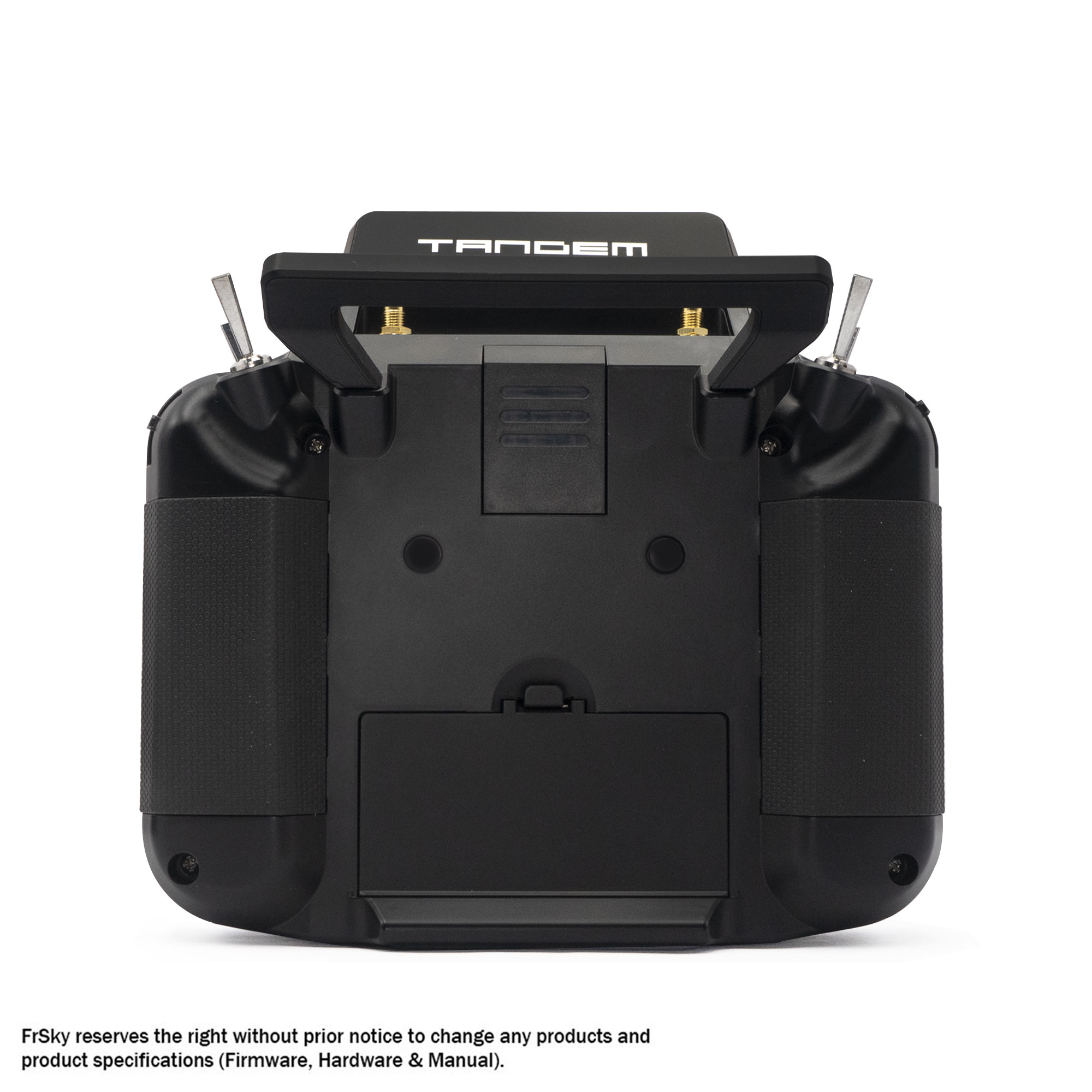

It is a Lite-type bay. The exact module still needs a fit, power and documented-support check.

Is this an Android handheld ground station?
No. ETHOS manages the radio and model settings. Select another system when your requirement is an Android application workspace with live UAV video.

References: FrSky Tandem X18 product specifications and the official ETHOS RF-system documentation. Manufacturer figures describe the listed model; supplied accessories are agreed separately.
