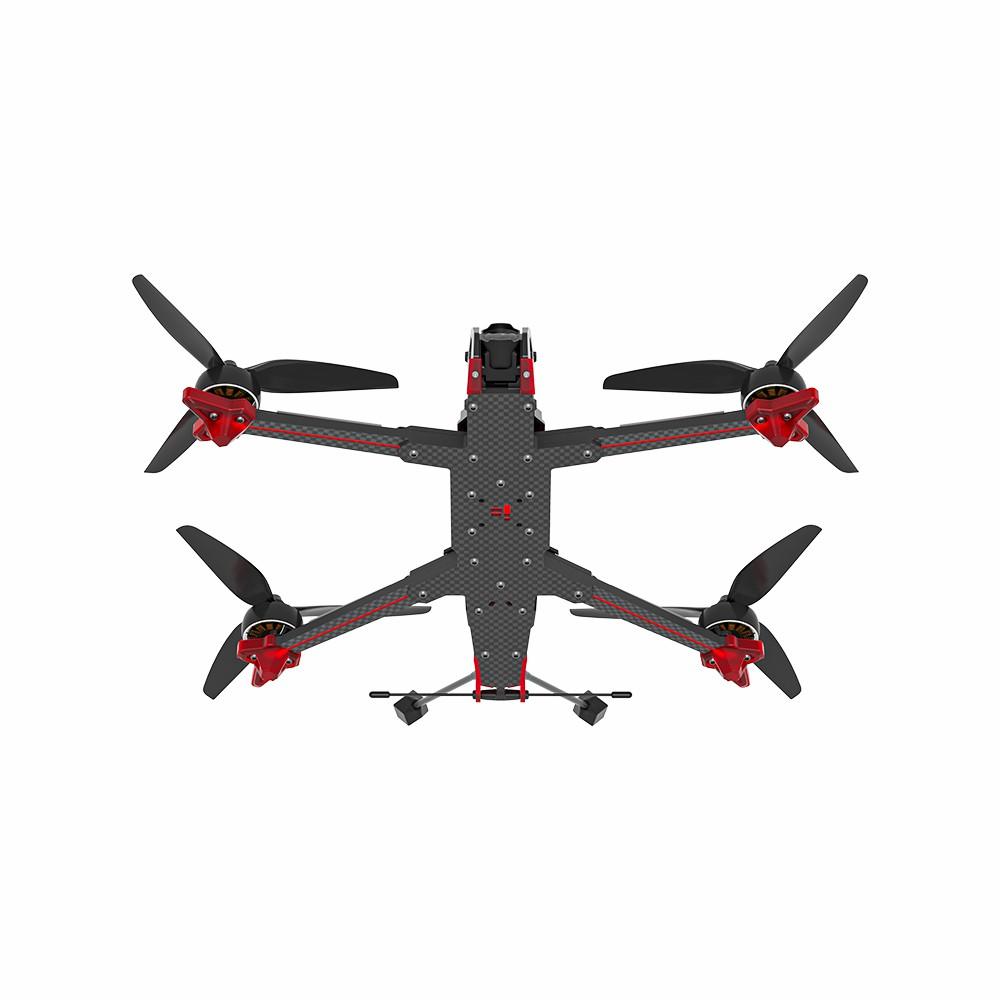

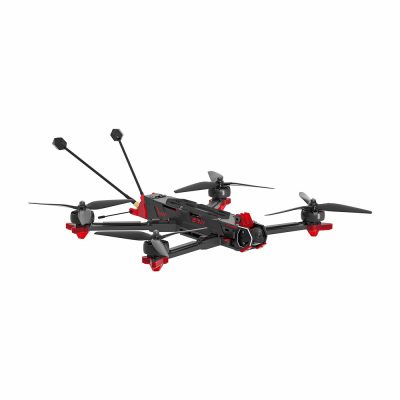

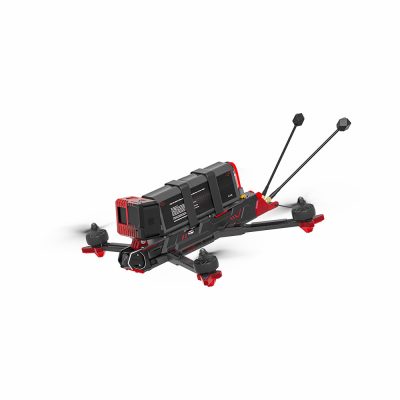

SH CineLR 7 O4 6S HD Long Range FPV Drone 10 km Low Latency System

Overview

The CineLR 7 is a next-gen 7-inch long-range FPV platform with a clean layout, easy serviceability, and a high-performance core. Built for immersive flying and professional visuals, it handles freestyle, high-speed chases, and long-range filming with stable control and cinematic results. In open environments it delivers low-latency video and flight distances up to 13 km (subject to local regulations and conditions).

Changelog

• Jan 18, 2025: Propellers updated from HQProp 7.5×3.7×3 to HQProp 7.5×3×3.

• Mar 11, 2025: Certain TPU parts in the BNF version were upgraded to injection-molded components for improved durability and consistency.

Highlights

• Prop-free view frame: The SH frame keeps props out of sight while preserving freestyle agility and balanced motor output.

• Quick-release side panels: Shield against debris, keep wiring tidy, and make maintenance faster.

• 4K-grade stabilized video: DJI O4 Air Unit Pro with a 1/1.3-inch sensor and 155° ultra-wide FOV captures more detail in low light. Real-time feed up to 1080p/100fps with RockSteady 3.0+ for smooth footage (standard FOV when stabilization is on).

• Up to ~25 min endurance: Supports high-capacity packs—recommend 6S 4000mAh Li-ion for slow cruising or 6S 3300mAh LiPo; 6S 8000mAh further extends flight time.

• Performance core electronics: BLITZ F7 FC + BLITZ E55 4-in-1 ESC with larger MOSFETs and up to 65A burst for cooler, steadier high-G maneuvers.

• Integrated high-precision GPS: TPU-covered GPS module for better protection and signal reliability to reduce flyaway risks.

Specifications

• Product Name: SH CineLR 7 6S O4 HD

• Geometry: H-type

• FC: BLITZ F7

• ESC: BLITZ E55 4-in-1 2–6S 55A (65A burst)

• Video Link: DJI O4 Air Unit Pro

• Wheelbase: 334 mm

• Motors: XING2 2809 1250KV

• Props: HQ 7.5×3×3

• Weight: ~770±5 g (without battery)

• Takeoff Weight: ~1628±5 g (with 21700 6S 8000mAh)

• Size: 285×196×45 mm

• Max Speed: ~140 km/h

• Max Takeoff Altitude: 7000 m

• Hover Time: ~18 min (6S 3300mAh); ~25 min (6S 8000mAh)

• Recommended Load: 800 g

• Operating Temp: -20 to 40 °C

• Antennas: Dual

• GNSS: GPS / SBAS / Galileo / QZSS / GLONASS

Video & Transmission (DJI O4 Air Unit Pro)

• Sensor: 1/1.3-inch

• Lens FOV: 155°

• ISO: 100–25600

• Recording: 1080p/100fps, H.265, up to 130 Mbps, MP4; Color: Normal / D-Log M

• Stabilization: RockSteady 3.0+ or Off

• Live View: 1080p@100fps

• Frequencies: 5.170–5.250 GHz & 5.725–5.850 GHz

• EIRP: 5.1GHz <23 dBm (CE); 5.8GHz <33 dBm (FCC) / <14 dBm (CE) / <30 dBm (SRRC)

• Max Range: With DJI Goggles 3 / N3: 15 km (FCC) / 8 km (CE/SRRC), environment and rules may limit results

• Bandwidth: up to 60 MHz; Antennas: Dual

• Storage: 4GB built-in; microSD up to 512GB

• Operating Temp: -10 to 40 °C

• Weight: ~32 g incl. camera module

• Dimensions (TX module): 33.5×33.5×13 mm

In the Box

• SH CineLR 7 6S O4 HD ×1

• Battery pad ×1

• 7.5-inch prop pairs ×2

• Battery straps ×2

• Screw pack ×1

• Long-range, low-latency link with flight distances up to 13 km in open areas.

• Prop-free view plus quick-release panels for cleaner footage and faster maintenance.

• BLITZ F7 + E55 powertrain with 65A burst for cooler, steadier high-stress maneuvers.
