Price:
16.99$
Model:
SPEEDX2 1804 fit review

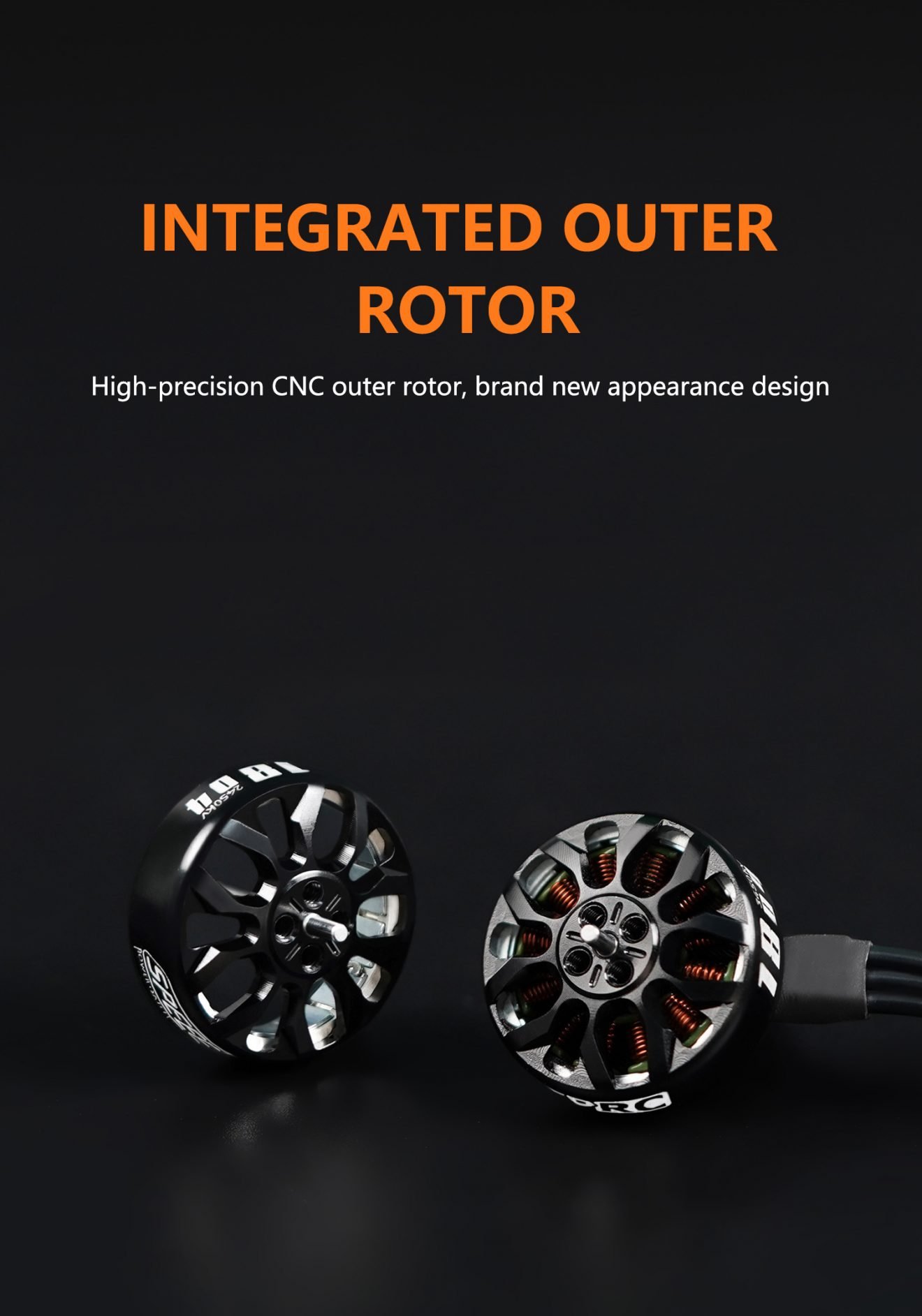

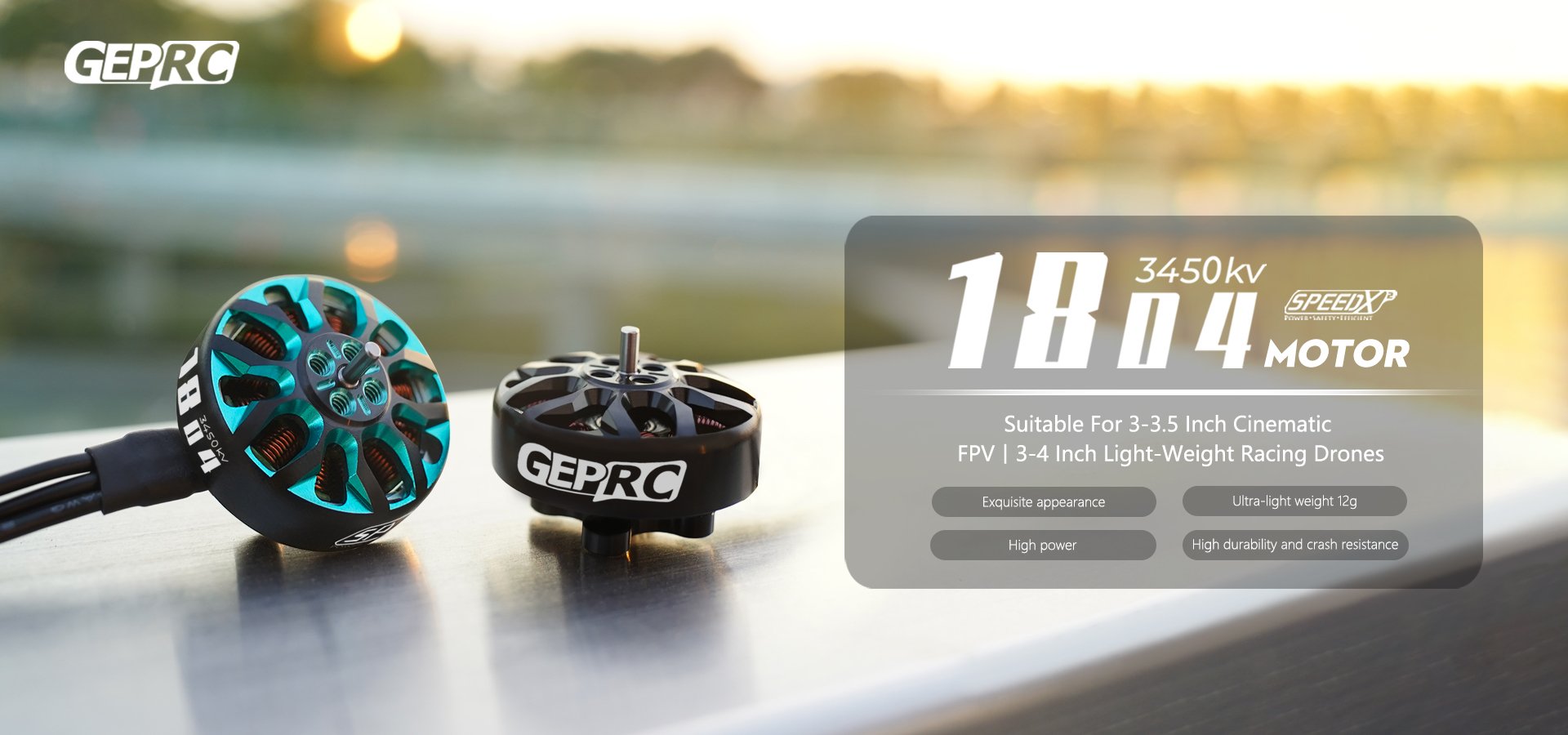

A replacement SPEEDX2 1804 motor needs a serial and condition trail from receiving through installation and return to service. Winding, dimensions, fasteners, propulsion pairing and vibration observations remain linked. The article title identifies a SPEEDX2 1804 3450KV motor. Its archived narrative gives 13.2g with a 13cm wire, a 7075-aluminum rotor construction and suitability wording spanning three-inch whoop, three-to-four-inch toothpick and long-range builds. Those broad labels do not define a working set. The current motor drawing, shaft and bolt pattern, winding revision, battery voltage, propeller and ESC limits must be matched before purchase or installation.
| Fit decision | Known archive clue | Confirmation needed |
|---|---|---|
| Identity | 1804 and 3450KV title | Motor label, winding revision and quantity |

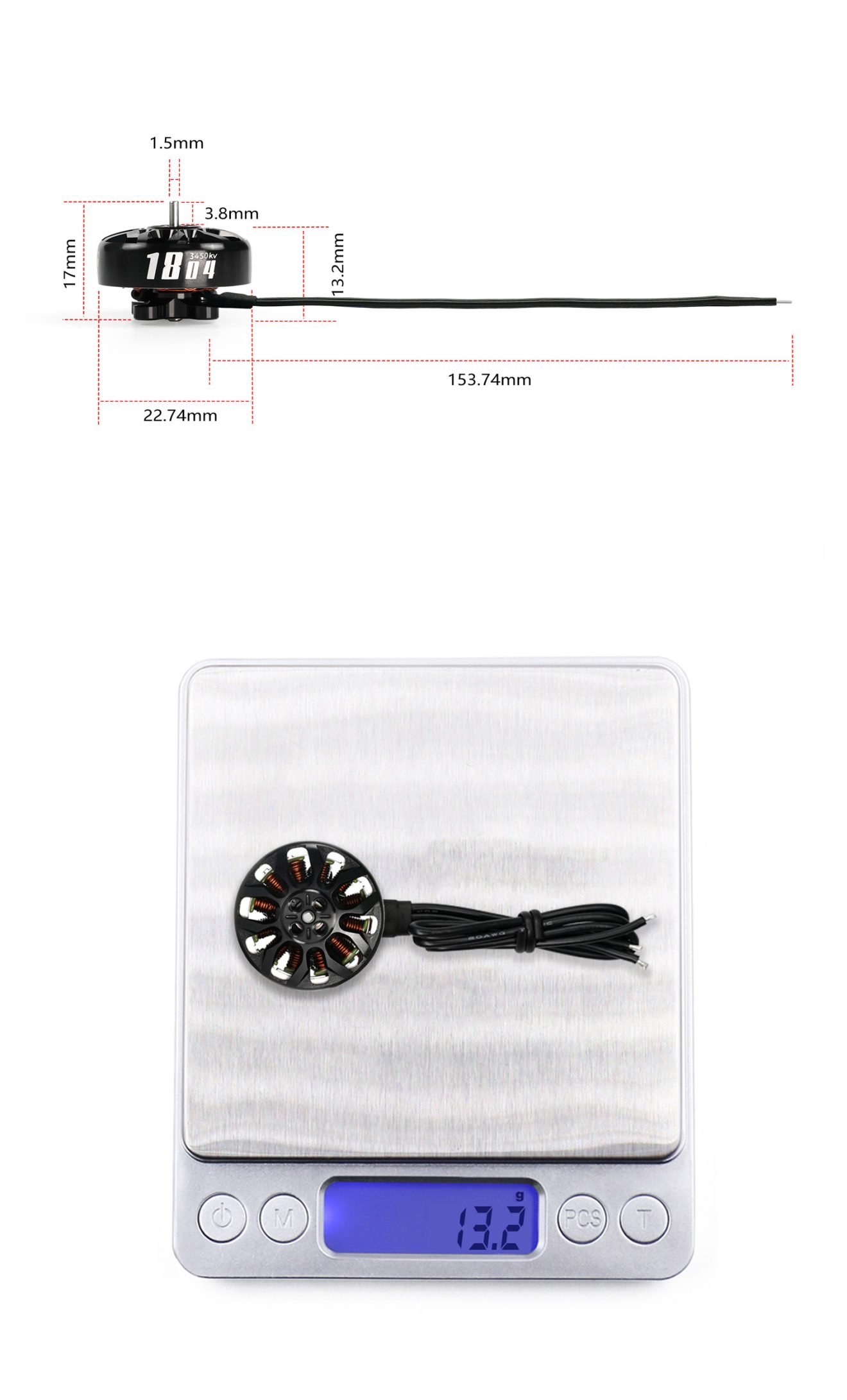

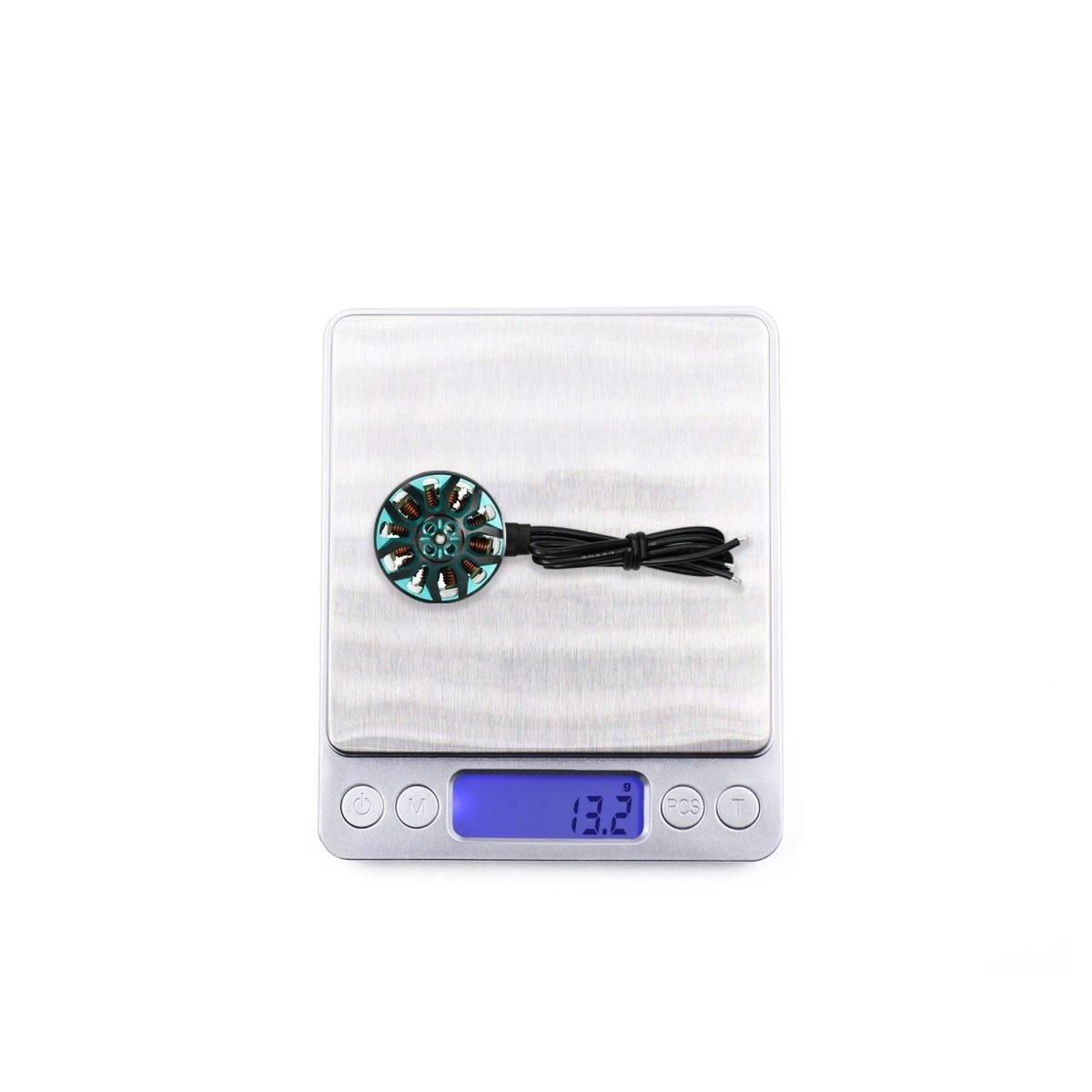

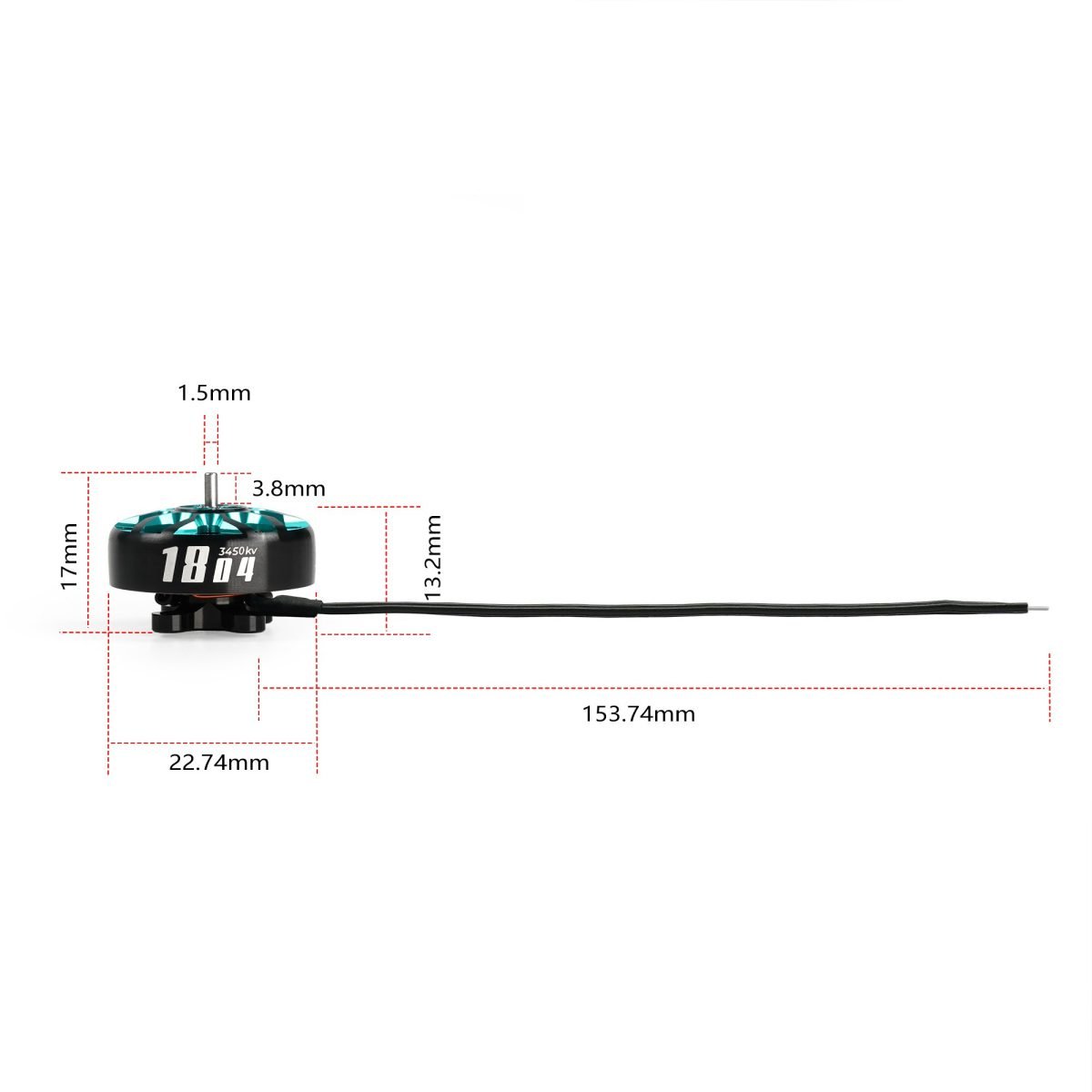

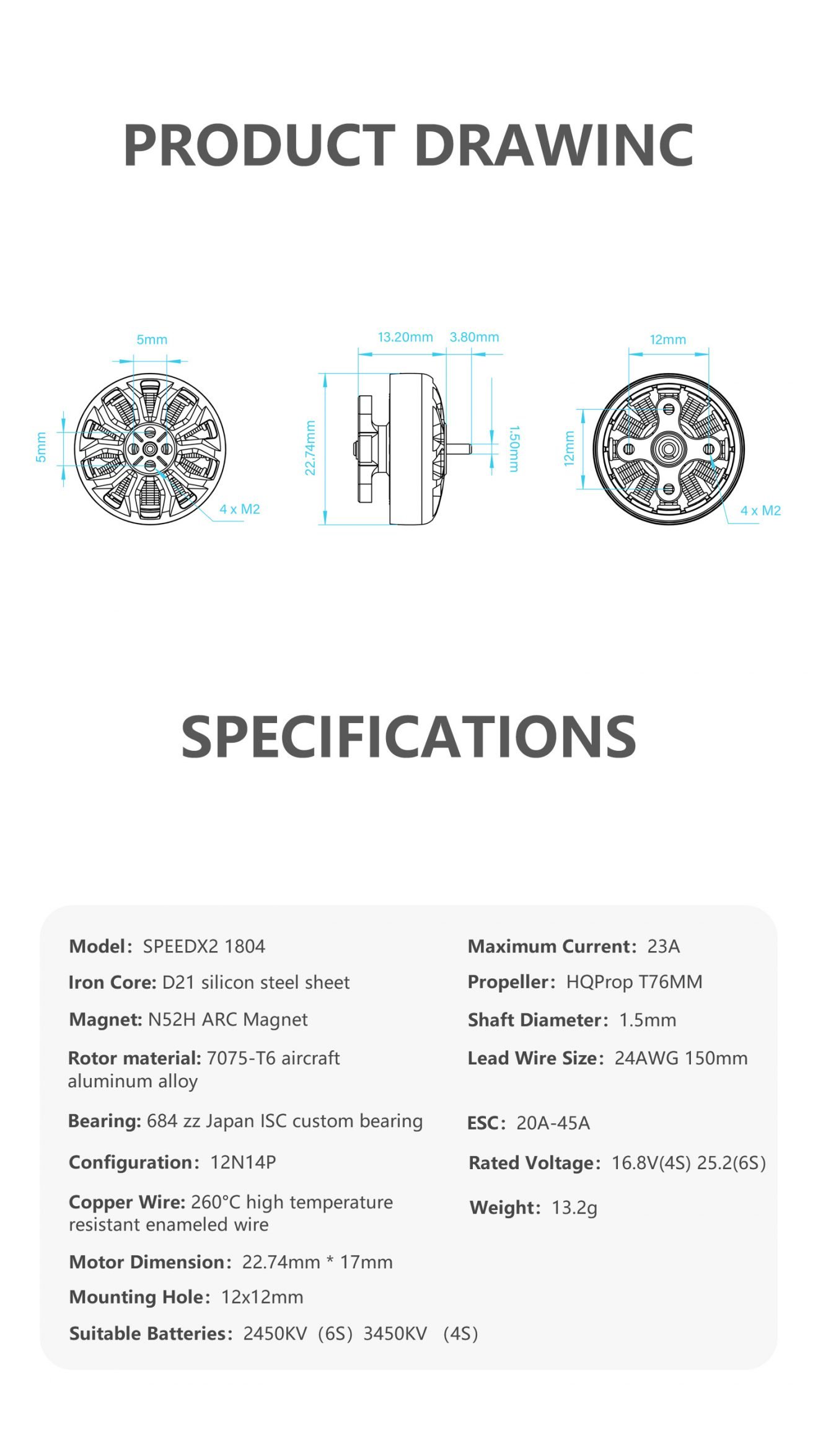

| Mechanical | 13.2g with 13cm wire; pusher-clearance narrative | Drawing, shaft, bolt pattern and propeller clearance |
| Electrical | Battery and current data absent from retained text | Cell count, propeller test table, ESC and connector |
| Use envelope | Three-inch whoop, 3–4-inch toothpick and long-range wording | One selected airframe mass and propulsion test |

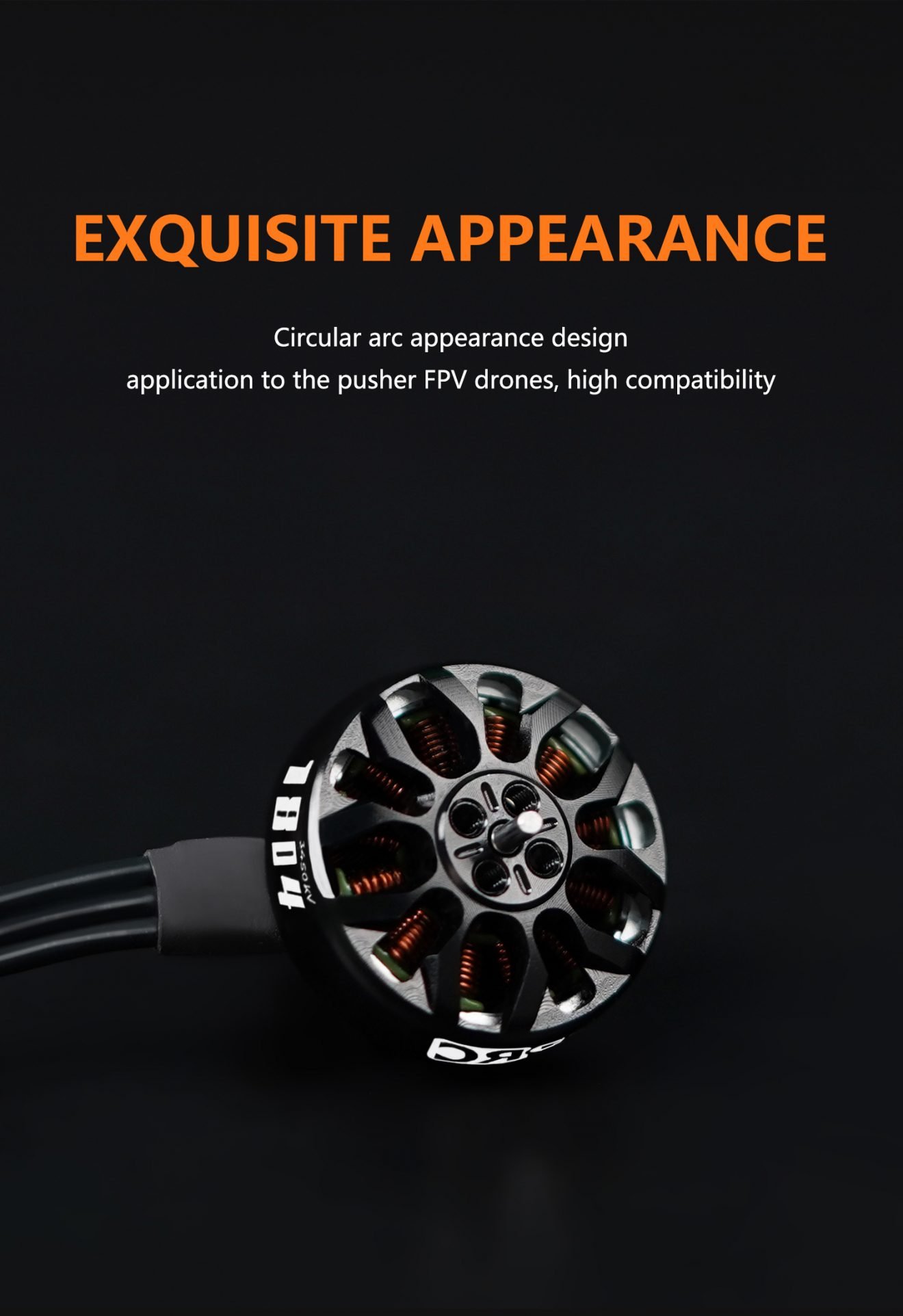

Check motor-bell height, propeller hub, frame arm, fastener length and wire exit with the actual orientation. The rounded profile described in the archive may reduce one interference risk, but it cannot replace a dimensioned assembly check.

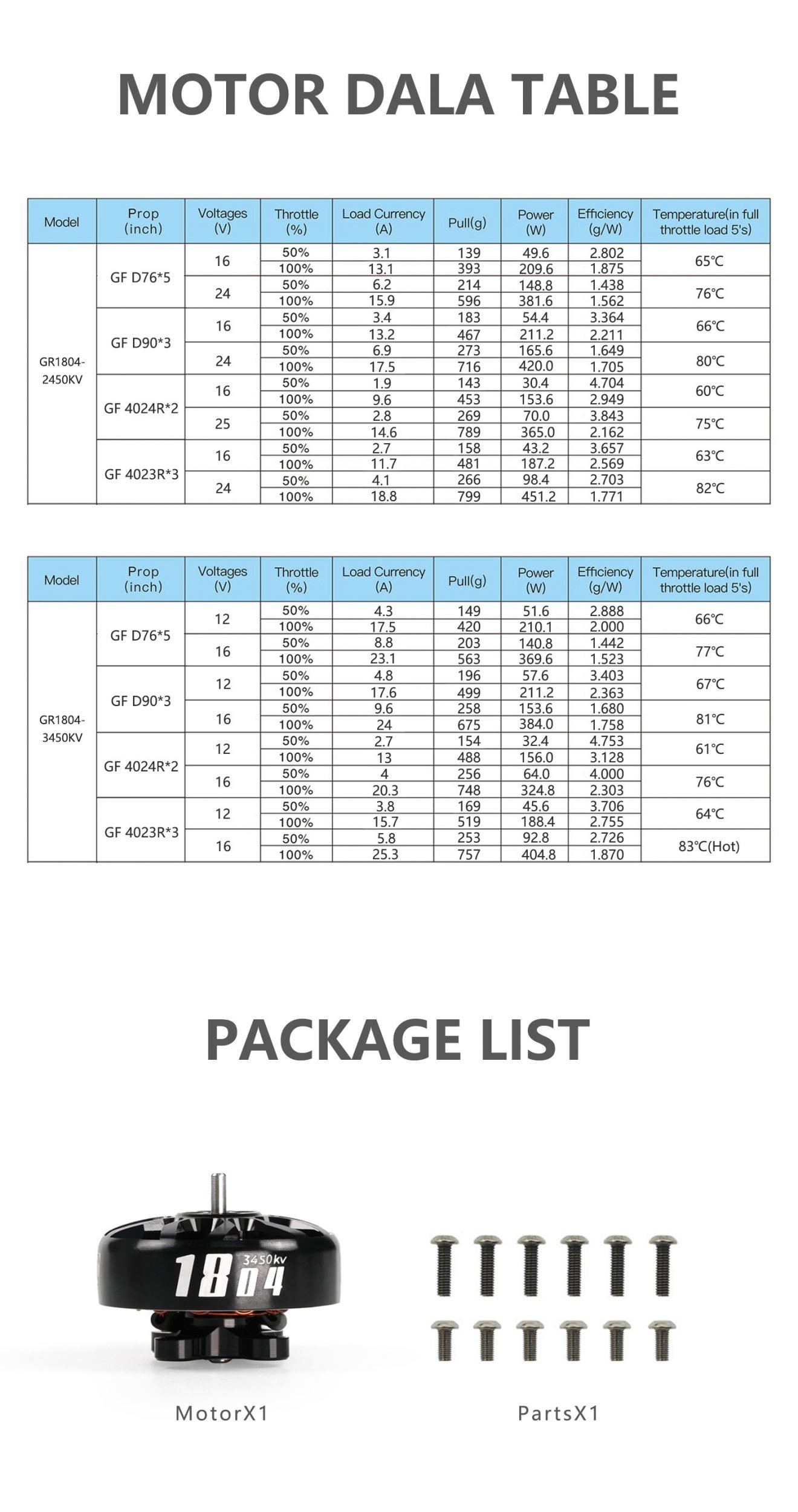

Request current, thrust, efficiency and temperature for the exact 3450KV winding, battery and propeller. Select an ESC and conductor with appropriate margin, then verify direction, vibration and temperature on the assembled civil aircraft.
Send frame, battery, propeller and ESC details to check mechanical and electrical fit.
Preserve the exact winding and mechanical fit through replacement and inspection.
