Civil illustration guide · Evidence C
From the bench overview to the center plate
A workshop overview and a closer frame photograph answer different orientation questions. Use the first to recognize the assembled outline, then the second to locate the parts named in an illustration key. This civilian reference does not verify the country, customer or project described by the retained Libya title.
Find the frame as a whole
The first picture shows several open quadcopter frames along a green workbench. For a reader unfamiliar with FPV equipment photographs, the repeated central bodies and outward-reaching arms are the useful visual landmarks. Start with that overall shape, rather than with the smallest wire or item on the bench.
A short key can call this view “workbench overview: open frames.” That label directs attention to the subject without asking the reader to identify a model or interpret the activity as a particular production stage.
- Frame
- The overall supporting structure being illustrated, rather than the surrounding bench equipment.
- Arms
- The members extending outward from the central portion. Name the visible member instead of referring vaguely to “the black part.”
- Center plate
- The plate in the middle of the closer frame view. Its raised presentation in the picture makes it a useful landmark for a written reference.
Use image directions, not aircraft directions

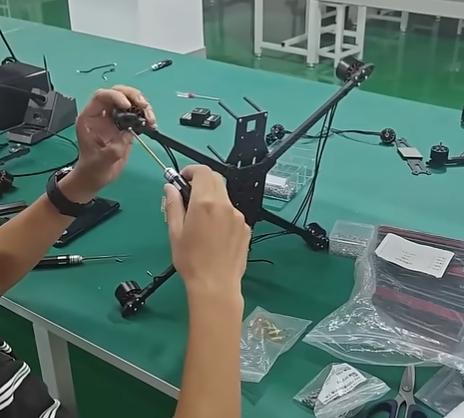

In the second photograph, hands hold the frame and the center plate stands prominently above its surrounding members. A reference such as “the raised center plate in the second picture” is easier to follow than “the part on the left,” especially if the image is later displayed at a different size.
Where a direction is necessary, make clear that it means the viewer's left or the top of the picture. Do not label a side as the aircraft's front solely from its position in this photograph. A rotated photograph does not change the name of the object.
