Navigation features depend on installed sensors
Firmware capability does not prove that a GNSS receiver or compass is present, correctly placed or configured. Describe the actual hardware and document the basic checks completed at handover.
Price:
$
Model:

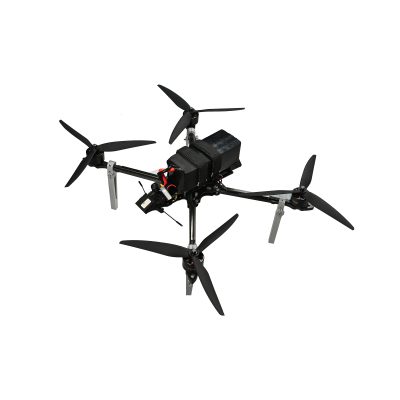

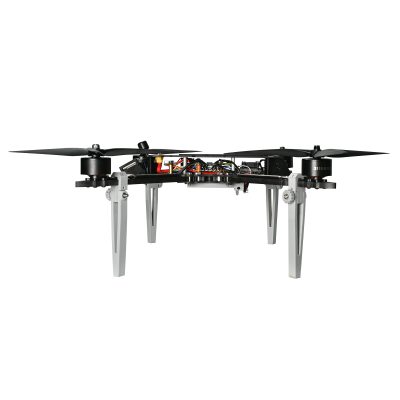

X4-7 INAV sensor handover
Wheelbase:

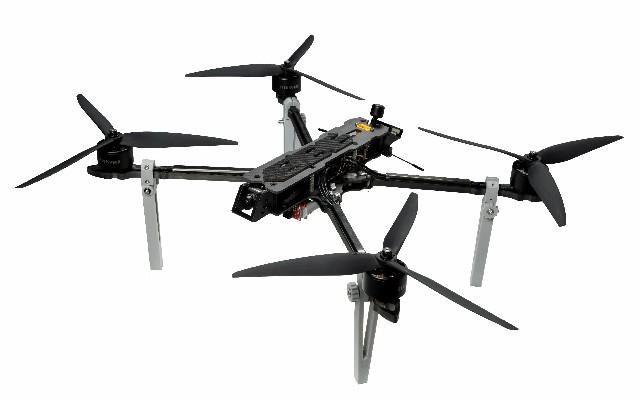

Archived: seven-inch X4-7
Flight Control:

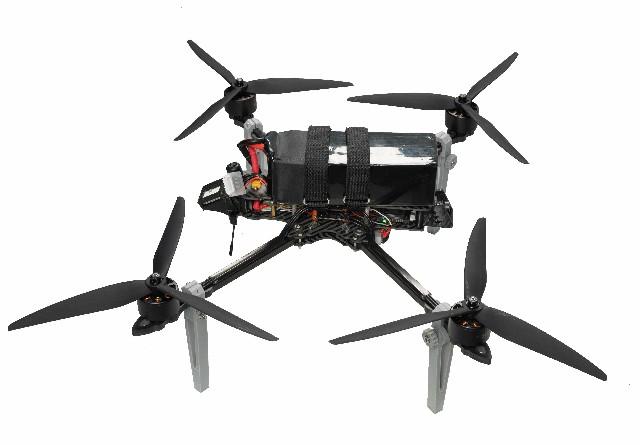

INAV — confirm controller board and target
Empty Weight:
Speed requires dated conditions
Power Battery:
Archived: 4S 5100mAh
Wingspan(without propellers):
Archived: 25 × 31 cm
Folded Size(without propellers):
Archived transport reference: 37 × 11 cm
Empty Weight:
Archived: 1.35kg — measure installed unit
Satellite Navigation System:
GNSS option — identify receiver and compass
Endurance Time:
Duration requires a configured test
Maximum Horizontal Speed:
Speed requires dated conditions
Image Transmission:
Video system model remains to be selected
Electronic Speed Controller:
Archived: 45A four-in-one ESC
The title identifies an INAV X4-7 while the older product fields list INAV or Betaflight. The preserved hardware outline includes a seven-inch frame, 45A four-in-one ESC, 4S 5100mAh battery and 915MHz receiver reference. For this page, the quotation should settle one INAV-supported controller, GNSS receiver, compass arrangement if fitted, firmware target and saved configuration.
| Layer | Required identity | Acceptance note |
|---|---|---|
| Controller | Board model, INAV target and firmware | Saved configuration matches unit |
| GNSS/compass | Receiver, constellations, compass and placement | Basic acquisition and orientation check |
| Control link | Transmitter, receiver, antenna and settings | Mapped controls and failsafe record |
| Power train | 45A ESC, motors, propellers and 4S pack | Mass and short controlled flight |
Firmware capability does not prove that a GNSS receiver or compass is present, correctly placed or configured. Describe the actual hardware and document the basic checks completed at handover.
No navigation feature replaces a lawful operating area, conservative reserve and site-specific recovery plan. Set those limits for the responsible operator after the configuration is verified.
No. Ask for the receiver model, antenna placement and delivered sensor list.
If one is fitted, its model, orientation, placement and calibration affect navigation behaviour.
Save firmware identity, controller configuration, calibration notes and radio mapping.
Name the navigation behaviour needed for lawful work and require the supporting hardware record.
Name the INAV board, sensors and saved configuration that belong to the supplied airframe.
