Price:
$
Model:
X4-1900H environmental data workflow
Wheelbase:
Archived: 1900mm X8 frame
Flight Control:
Fuel-cell and propulsion control revision — verify
Empty Weight:
Archived: 18m/s — set sampling profile
Power Battery:
Archived: two 6S 5300mAh auxiliary packs
Wingspan(without propellers):
Archived unfolded: 1500 × 1500 × 650 mm
Folded Size(without propellers):
Archived folded: 900 × 800 × 650 mm
Empty Weight:
Archived empty mass: 14.5kg — add sensor mass
Satellite Navigation System:
Multi-GNSS and RTK entry — identify receiver
Endurance Time:
Two hours without payload — sensor test required
Maximum Horizontal Speed:
Archived: 18m/s — set sampling profile
Image Transmission:
Archived link statement — identify regional equipment
Electronic Speed Controller:
Archived fuel-cell output: 48V, 3kW

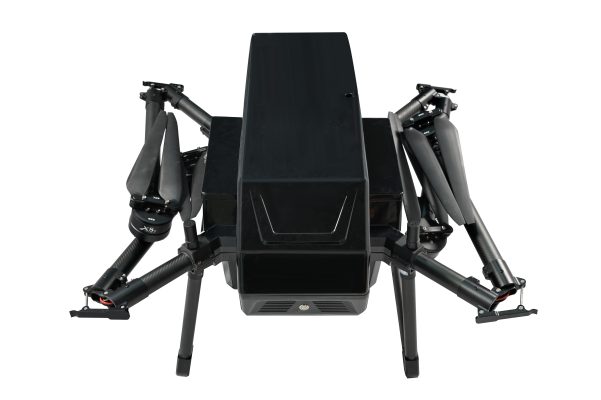

Environmental monitoring and patrol work require a project file that connects the RTK source, sensor, lawful operating plan, configured mass and data-quality checks. The aircraft name alone proves none of them. Environmental-monitoring source notes for the X4-1900H identify an X8 folding airframe with a 1900mm wheelbase. The energy entries cover a 48V 3kW fuel cell, 12L cylinder at 350 bar and two 6S 5300mAh auxiliary packs; the same record gives 14.5kg empty and 29kg maximum take-off figures. For measurement work, duration and RTK are support functions: accepted output depends on sensor identity, calibration, sampling interval, mounting, time alignment and data custody.
| Layer | What to specify | Acceptance evidence |
|---|---|---|
| Sensor | Parameter, model, range and response time | Certificate and pre-use check |
| Installation | Mount, airflow exposure, vibration and power | Drawing, mass and interference review |
| Sampling | Interval, position/time tags and route | Small-area dataset with known references |
| Custody | File format, naming, metadata and storage | Traceable export and quality notes |
Name sensor model, parameter range and calibration date.
Approve the mount, power connection and airflow exposure.
Record configured mass and centre of gravity.
Run a sample against known or co-located reference measurements.
Define file format, metadata, quality flags and archive owner.
An RTK solution may improve where a sample is located, but it does not correct sensor drift, contamination or response lag. Record navigation status alongside calibration and quality flags instead of merging them into one accuracy claim.
The old two-hour figure is explicitly without payload. Sensor, mount, wiring, weather, route and reserve change usable sampling time; measure the selected package and report useful data-collection time separately from total flight time.
Provide the parameter, sensor and output format so the mounting and acceptance plan can be reviewed.
Frame the RTK aircraft around lawful monitoring evidence and data custody.
Evaluate the X4-1900H equipment envelope by resolving its 14.5/16kg empty-weight conflict and documenting mount, balance and test evidence....
Define the X4-7 1080p digital FPV chain by camera, air unit, antennas, goggles, firmware, power and recording checks before quotation....
Plan an X4-900 RTK and LiDAR mapping package around correction logs, sensor calibration, dataset outputs, checkpoints and payload-specific endurance....
Audit the X4-10 30-minute endurance claim by resolving its 4S/6S battery conflict and recording mass, propulsion, weather, flight profile and reserve....
Assess the X4-1900H hydrogen drone through its airframe, fuel cell, cylinder, auxiliary batteries, transport, service and payload-specific endurance records....
Plan a portable X4-7 field kit with verified packed dimensions, case support, antenna and camera protection, battery handling and setup checks....
