| Price | On request |
|---|---|
| Model | UniRC 7 Pro |
| Display | 7-inch, 1920×1200, 1600 nit |
| Operating system | Android 13 |
| Handheld battery | 13400 mAh, handheld battery |
| Memory | 4 GB RAM |
| Storage | 64 GB ROM |
| Charging | PD 30W |
| Air-unit power input | 12–76 V, air-unit input |
| Ground-unit weight | 1.46 kg, Pro ground station |
| Ground interfaces | Ethernet / HDMI / USB-A / Type-C |
| Air-unit interfaces | 2× Ethernet; 2× UART; 16-channel S.Bus; 5 PWM channels |
SIYI UniRC 7 Pro · Handheld drone controller
SIYI UniRC 7 Pro combines a 7-inch touchscreen, Android 13 and physical controls in a handheld ground station. The Pro model adds a dual-frequency link and ground-side HDMI and Ethernet connections, making it a useful choice when your UAV project needs a clear operator screen and connections to other ground equipment.
For civil inspection, surveying support or FPV video observation, start with the application you want to run and the camera picture you need to receive. FD supplies this SIYI model as part of a specified controller-and-link package.

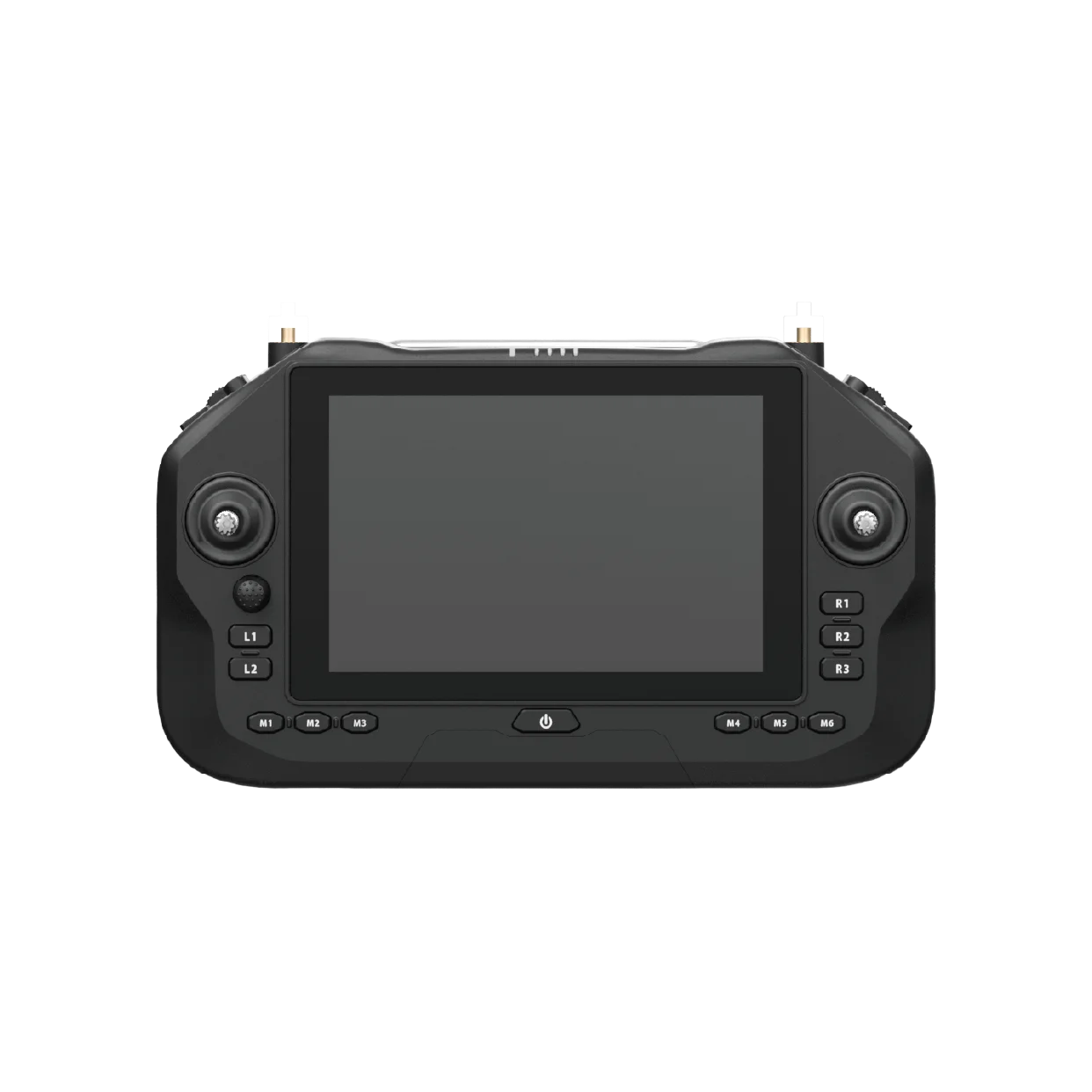

The main sticks, smaller joystick and flight-mode buttons give the operator several physical inputs alongside the touchscreen. Specify the ground-control application and the functions you want on those inputs. HDMI output can feed a ground-side display, while the Ethernet port provides a network connection.

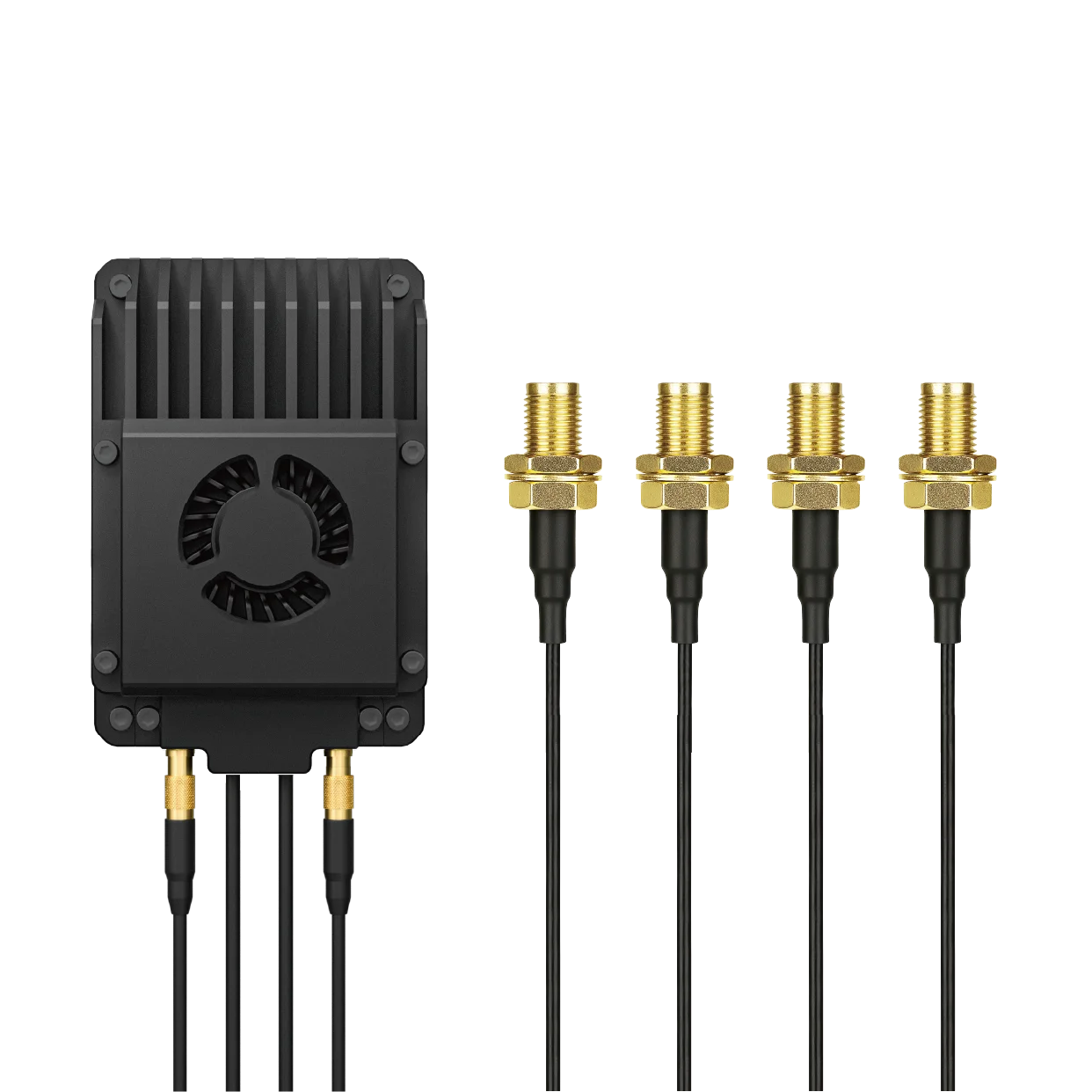

The Pro air unit has two Ethernet ports for image/data connections, two UART data ports, 16-channel S.Bus and five PWM outputs. Its listed 12–76 V power input belongs to the air unit. Choose its camera and flight-controller connections separately from the handheld battery and charging arrangement.
Request the Pro handheld station and paired Pro air unit, then list the camera, flight controller and ground software. Include the antenna set, battery, charger, power harness, Ethernet and control/data cables in the quotation. Add a second operator station if your project needs a separate camera operator.
Tell FD the working area, required link distance, quantity and delivery country so the package can be discussed around your actual equipment.
Pro has the 1920×1200 display, dual-frequency link and ground-side HDMI/Ethernet ports. Ask for UniRC 7 Pro by name when comparing quotes.
It is a video output for ground equipment. Share the camera's output format so its air-side connection and any conversion hardware can be selected.
Give the working area and expected obstructions. Flight height, interference and antenna installation affect the link, so distance belongs in the system discussion.
Name the GCS application, version, flight controller and camera-control requirements. These details guide the software build, connection cables and operator setup.
Manufacturer references: SIYI specifications and Pro package list.
| Display | 7-inch, 1920×1200, 1600 nit |
|---|---|
| Os | Android 13 |
| Memory | 4 GB RAM |
| Storage | 64 GB ROM |
| Battery | 13400 mAh, handheld battery |
| Charging | PD 30W |
| Video Output | Ground unit HDMI video output |
| Ground Interfaces | Ethernet / HDMI / USB-A / Type-C |
| Air Voltage | 12–76 V, air-unit input |
| Air Interfaces | 2× Ethernet; 2× UART; 16-channel S.Bus; 5 PWM channels |
| Ground Weight | 1.46 kg, Pro ground station |
| Air Weight | 115 g excluding antennas, Pro air unit |
Choose the SIYI UniRC 7 Pro controller with a 7-inch display, Android 13, ground HDMI and paired air unit. Specify camera connections and the complete kit....

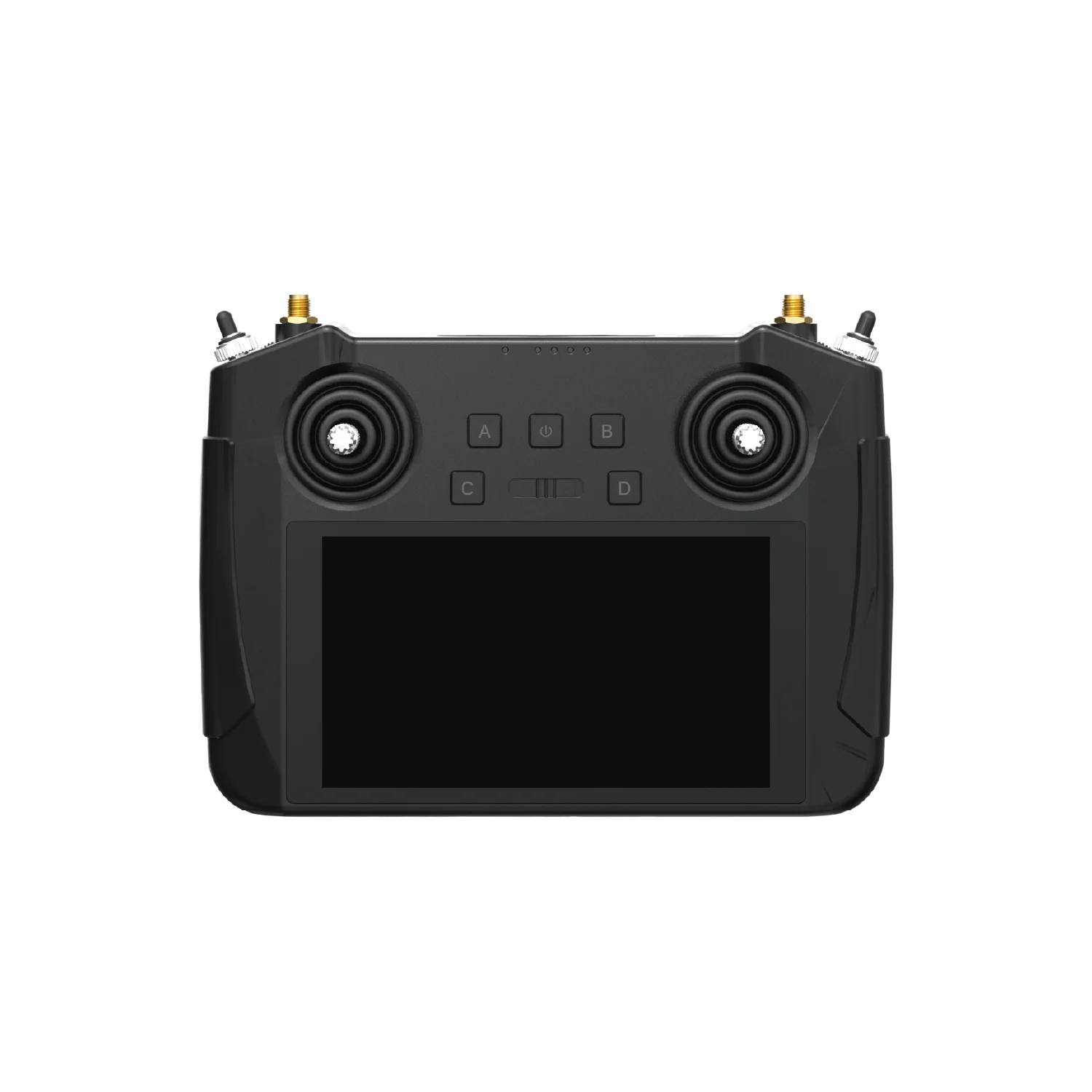

Specify the SIYI MK15 Enterprise station with a 5.5-inch screen and Android 9. Choose a network or HDMI camera package with the right air unit and cables....
