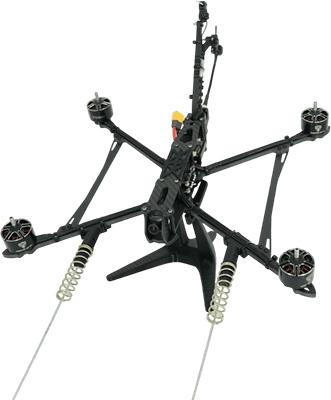

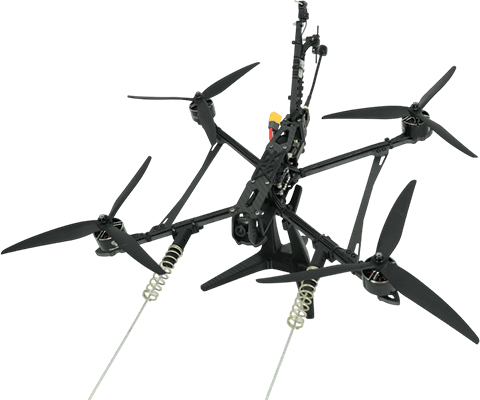

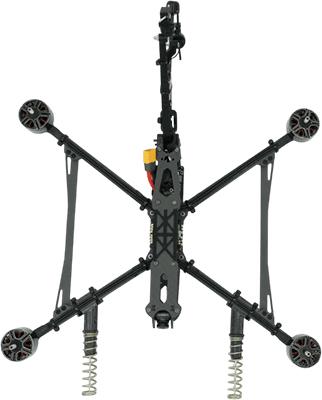

10 Inch Long Range FPV Drone 30km Max Range 25min Flight Time

Performance Overview

• Top Speed: up to 120 km/h

• Maximum Flight Distance: up to 30 km*

• Endurance: up to 25 minutes*

• Payload Capacity: supports warheads up to 3 kg

• Power is supplied by either a 6s3p or 6s4p battery pack, and the system includes a dual initiation mechanism with detonation possible via remote command or direct fuse lead connection.

Tactical & Technical Data

• Recommended Payload: 2.5 kg

• Maximum Payload: 3 kg

• Endurance: up to 25 minutes*

• Effective Range with Payload (round trip): up to 20 km*

• Maximum One-Way Range: up to 30 km*

• Cruising Velocity: around 80 km/h

• Peak Velocity: up to 120 km/h

• Normal Operating Altitude: 50 – 300 m

• Service Ceiling: up to 2000 m

*Flight time and distance may vary depending on battery configuration, weather conditions, payload mass, and operator handling.

Control & Video Transmission

• Control Protocols: ELRS or TBS systems

• Video Link: analog transmission

• Camera Options: analog day camera or thermal imaging camera (Caddx IRC-640CA / Caddx IRC-384CA depending on version)

Airframe & Components

• Frame: Carbon fiber structure designed for 10-inch propellers

• Motors: 3115 brushless motors, 900KV

• ESC: 55A electronic speed controllers

• FPV System: configurable analog FPV camera (daylight or thermal options)

• VTX: 2.5W video transmitter

• Propellers: 1050 series

• Top Speed: up to 120 km/h

• Maximum Flight Distance: up to 30 km*

• Endurance: up to 25 minutes*

• Payload Capacity: supports warheads up to 3 kg

Power is supplied by either a 6s3p or 6s4p battery pack, and the system includes a dual initiation mechanism with detonation possible via remote command or direct fuse lead connection.
