| Price | On request |
|---|---|
| Model | ZT6 |
| Visible camera | 8 MP visible sensor; fixed lens; 20 mm equivalent focal length; 6x digital zoom |
| Thermal imager | Uncooled VOx 640 × 512; fixed 13 mm F1.0 lens; 2× digital zoom |
| Stabilization | Three-axis yaw, pitch and roll |
| Video output | Ethernet / CVBS / micro-HDMI |
| Storage | MicroSD Class 10 up to 256 GB; JPG / MP4; FAT32 or exFAT |
| Power input | 11–25.2 V; average 6.5 W, maximum listed 15 W |
| Dimensions | 73.5 × 75 × 131.5 mm |
| Weight | 177 g excluding anti-vibration board; 197 g including anti-vibration board |
| Lens configuration | 13 mm F1.0 |
| Control interfaces | S.Bus / UART / Ethernet UDP or TCP |
| Measurement modes | Full-image, point and box thermometric modes |
SIYI · Visible and thermal UAV imaging

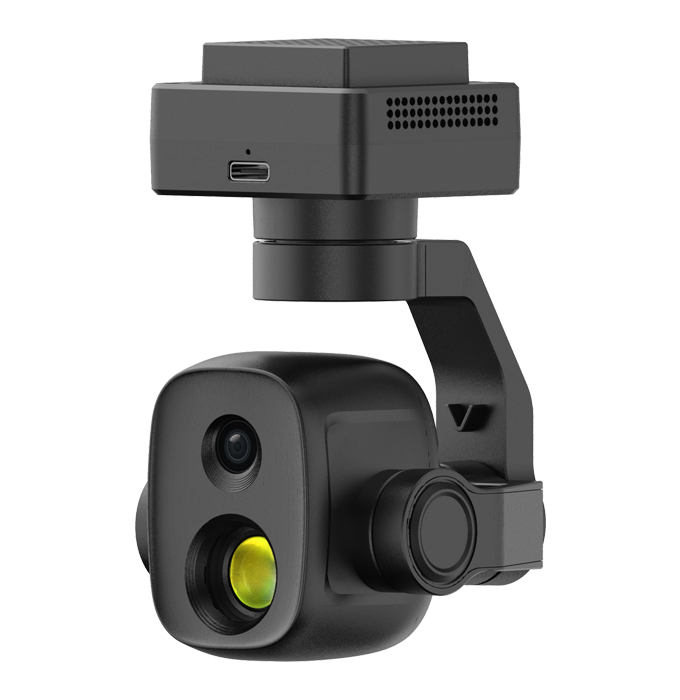

ZT6 brings a visible camera and a 640 × 512 thermal imager onto one three-axis gimbal. Its fixed lenses suit aerial inspection where the operator needs scene context and a heat view without carrying a large optical-zoom payload. For a solar array, roof survey or equipment inspection, choose the aircraft position and thermal field of view around the detail you need to see.
The 8 MP visible sensor supports 4K recording. The lens stays fixed; the listed 6× zoom is digital enlargement. Use the visible image to identify the panel, roof section or component being inspected and keep a record of the surrounding scene.
The uncooled 640 × 512 detector uses a fixed 13 mm lens. Its thermal view supports inspection of heat patterns, while 2× digital enlargement helps the operator examine part of the image. Match viewing distance to the smallest feature in your inspection plan.
Full-frame, point and box temperature measurement modes provide different ways to examine a thermal scene. Tell FD whether the deliverable is a live heat view, a selected temperature reading or files for later analysis. That choice helps define the camera settings, ground display and recording workflow together.
| Gimbal | Three-axis: yaw, pitch and roll |
|---|---|
| Visible imaging | 8 MP sensor; fixed lens; 4K recording; 6× digital zoom |
| Thermal imaging | 640 × 512; 13 mm fixed lens; 2× digital zoom |
| Camera mass | 177 g without the anti-vibration board; 197 g with it |
| Video connections | Ethernet, CVBS and micro-HDMI |
| Control connections | S.Bus, UART and Ethernet UDP/TCP |
| Local storage | MicroSD up to 256 GB; JPG photos and MP4 video |
Send your aircraft model, available payload mass, mounting space, power supply, video receiver and preferred control connection. Include the inspection distance and temperature-data requirement. FD can then quote the ZT6 with the mounting and connection items your installation needs. AI tracking uses an optional module; include it in the request if required.
No. Both lenses are fixed. The visible channel lists 6× digital zoom and the thermal channel lists 2× digital zoom.
Start with 197 g when using the anti-vibration board, then add your installation cables and any other mounting hardware.
Match the receiver to the chosen Ethernet, CVBS or micro-HDMI connection. Send the receiver model so the video and control connections can be included in the kit.
Choose an optical-zoom payload when the aircraft must stay farther from a small feature and the visible camera needs a narrower view.
Technical reference: SIYI ZT6 specifications and SIYI ZT6 User Manual v1.3.
| Stabilization | Three-axis yaw, pitch and roll |
|---|---|
| Visible Camera | 8 MP visible sensor; fixed lens; 20 mm equivalent focal length; 6x digital zoom |
| Visible Recording | 4K 3840 × 2160 at 30 fps; also 2K, 1080p and 720p recording |
| Thermal Imager | Uncooled VOx 640 × 512; fixed 13 mm F1.0 lens; 2× digital zoom |
| Temperature Modes | Full-image, point and box thermometric modes |
| Weight | 177 g excluding anti-vibration board; 197 g including anti-vibration board |
| Video Output | Ethernet / CVBS / micro-HDMI |
| Control | S.Bus / UART / Ethernet UDP or TCP |
| Storage | MicroSD Class 10 up to 256 GB; JPG / MP4; FAT32 or exFAT |
| Power | 11–25.2 V; average 6.5 W, maximum listed 15 W |
| Dimensions | 73.5 × 75 × 131.5 mm |
Choose SIYI ZT6 dual sensor gimbal camera for UAV inspection: 640 thermal imaging, fixed lenses, three-axis control and a matched video and mounting kit....

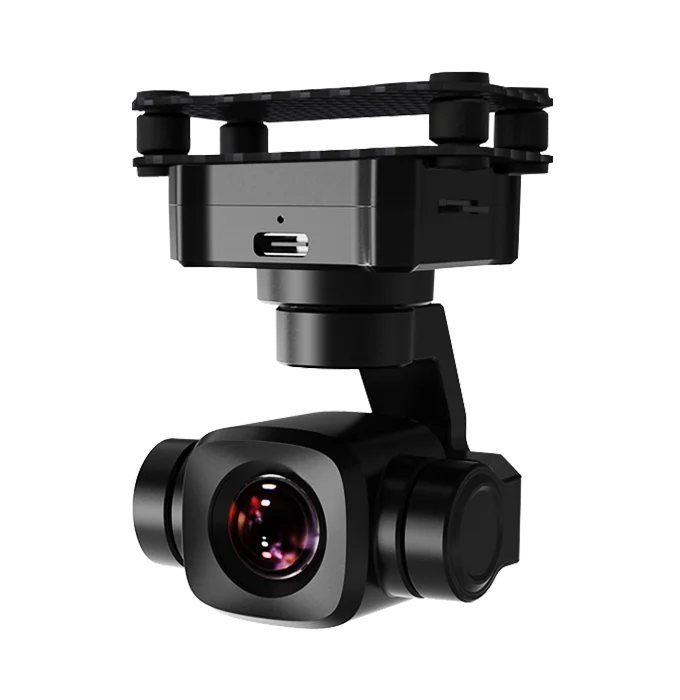

Select SIYI A8 mini 4K drone gimbal camera for compact UAV imaging. Compare recording modes, digital zoom, 95 g camera mass and video connection choices....
