SIYI A2 mini Single-Axis FPV Gimbal Camera for Agricultural Drones

Price	On request
Model	A2 mini
Visible camera	1/2.7-inch sensor; 2 MP effective resolution
Stabilization	Single pitch axis; controllable −90° to +25°
Video output	Ethernet; 1080p FPV video described by SIYI
Power input	12 V
Dimensions	65 × 43 × 50 mm
Weight	85 g
Lens configuration	160°
Control interfaces	S.Bus, PWM and Ethernet UDP

Get Quote

+86-13959965075

SIYI A2 MINI · WIDE-ANGLE FPV CAMERA

See more of the working area with a small pitch-controlled camera

The SIYI A2 mini is an 85 g single-axis FPV gimbal camera for agricultural drones and other compact unmanned platforms. Its 160° horizontal field of view favors a broad operating picture, while a controllable pitch axis lets the operator change the viewing angle. Ethernet video, a 12 V supply and a 65 × 43 × 50 mm body make it a candidate for projects that need a lightweight live-view camera rather than a long optical zoom payload.

SIYI A2 mini single-axis FPV camera with mounting base — SIYI A2 mini camera and its single pitch-axis housing.

Choose it for orientation and work-area visibility

A spraying-drone operator may want to see the surrounding crop area and the direction of travel in one picture. A camera framed tightly around a distant fitting solves a different problem. The A2 mini is designed around the wider view: SIYI lists a 1/2.7-inch sensor with 2 MP effective resolution and describes 1080p FPV video with distortion correction.

A very wide lens distributes the scene across the available pixels. It helps with context, but a small feature at the edge of the work area will occupy less of the picture than it would through a narrower lens. Select the A2 mini by the live overview you need. For a project centered on more detailed image capture, compare the SIYI A8 mini 4K gimbal camera before specifying the camera package.

What the pitch axis provides

The published controllable pitch range is −90° to +25°. That gives the operator an adjustable up-and-down camera view without treating the entire drone attitude as the camera adjustment. SIYI also documents an upside-down installation mode.

What requires another camera type

This is a single-axis camera. It does not provide the independent yaw and roll movement of a three-axis inspection gimbal, and the 160° lens is not an optical zoom lens. Choose a different payload when those movements or magnified visible detail determine the job.

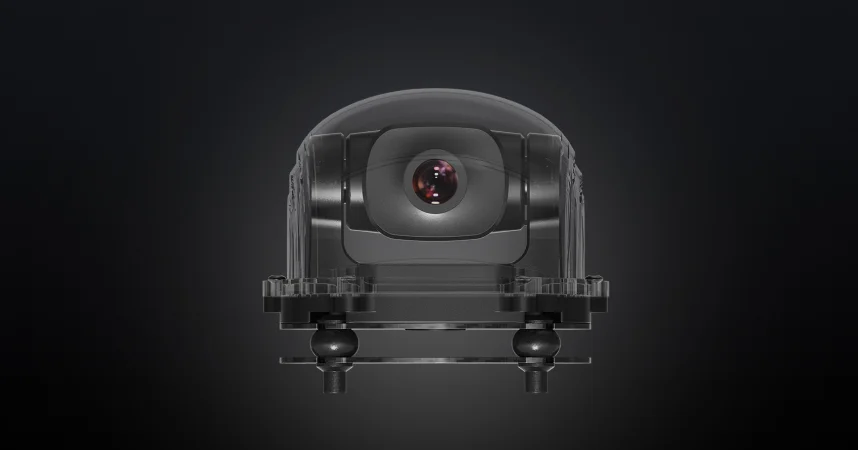

SIYI A2 mini installation illustration showing the camera in an inverted position — Manufacturer illustration of the A2 mini upside-down installation option.

A2 mini integration specifications

Camera	1/2.7-inch image sensor; 2 MP effective resolution
Horizontal field of view	160°
Gimbal movement	Single pitch axis; controllable −90° to +25°
Video connection	Ethernet
Control inputs	S.Bus, PWM and Ethernet UDP
Operating supply	12 V
Power consumption	2 W average; 12 W peak listed by SIYI
Camera body	65 × 43 × 50 mm; 85 g
Working temperature	−10°C to +50°C

Plan the camera, link and viewing device together

The Ethernet connection belongs in the video path; the S.Bus, PWM or UDP choice belongs in the camera-control plan. A suitable connector alone does not establish that the receiving link and application can display the stream and expose pitch control. Tell us which air unit and ground application you already use so the quotation can address those two jobs separately.

The 12 V camera input also needs to be included in the aircraft power design. The average consumption is useful for an initial power budget, while the listed peak should be considered when selecting the supply. Allow for the actual bracket and cable routing in addition to the small camera-body dimensions. Keep the movable view clear of the aircraft structure over the pitch range you intend to use.

Questions about the A2 mini

Can it pan left and right?

No. SIYI identifies the A2 mini as a single-axis gimbal with pitch movement. A requirement for independent pan or three-axis camera movement points to another model.

Does it need an HDMI input on the video link?

The A2 mini specification lists Ethernet video output. Check the receiving link for the appropriate network-video input and software support instead of choosing an HDMI-only path from the camera name.

Can it be installed upside down?

SIYI documents this installation mode. The bracket position, view clearance and the intended camera orientation should be considered together when selecting the mounting arrangement.

Ask for an A2 mini camera package

Send FD your drone type, proposed mounting position, available supply, air-unit model and the screen or application used by the operator. Include whether you need the camera alone or the associated mounting and connection items. These details help us quote a wide-view FPV camera package around your actual aircraft and viewing setup.

SIYI A2 mini specifications

Visible Camera	1/2.7-inch sensor; 2 MP effective resolution
Horizontal Field of View	160°
Gimbal Movement	Single pitch axis; controllable −90° to +25°
Video Output	Ethernet; 1080p FPV video described by SIYI
Camera Control	S.Bus, PWM and Ethernet UDP
Power Input	12 V
Power Consumption	2 W average; 12 W peak
Camera Weight	85 g
Body Dimensions	65 × 43 × 50 mm
Working Temperature	−10°C to +50°C
