| Price | On request |
|---|---|
| Model | DIF30S62-E |
| Image sensor | 2 MP CMOS sensor |
|---|---|
| Optical zoom | 30x optical; nominal 4.5–135 mm |
| Focal length / lens | 4.5–135 mm optical lens |
| Stabilization | Three-axis gimbal; electronic image stabilization |
|---|---|
| Power input | 12–26.2 V DC; Dynamic 3 W |
| Dimensions | Diameter 150 mm; height 166 mm |
| Weight | 770 ±10 g, excluding dampers |
| Video output | IP RTSP; 1080p at 30 fps |
|---|---|
| Storage | Local TF photo and video storage |
| Control interfaces | IP and UART |
30x optical zoom · Visible imaging · Network video
DIF30S62-E is a visible-light gimbal camera for UAV projects that need adjustable framing from one camera. Its 30x optical zoom lens spans nominal focal lengths of 4.5–135 mm, paired with a 2 MP sensor and three-axis stabilization. The camera sends 1080p video through an IP network and can record locally to a TF card.
Choose this model when the zoom lens is central to your inspection or observation task. A broad view helps establish the scene; a tighter frame lets the operator examine a selected feature while keeping the camera pointed independently of the aircraft.
The optical lens changes focal length rather than relying only on enlargement of the video image. For a building survey or a civil UAV observation project, that gives the operator a useful choice between scene context and a closer view. Include the expected working distance and the feature you need to see when selecting the camera.

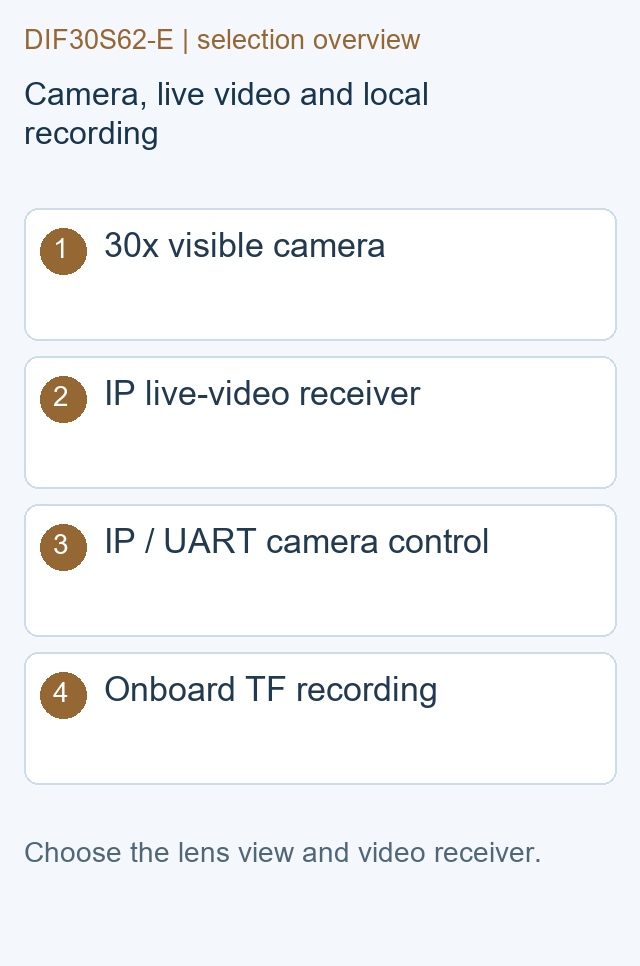

RTSP network video supports a receiving application or video system built around IP streams. Local TF storage provides a separate recording location on the payload. Decide who needs the live picture, where it will be recorded, and how the recorded files will be collected before choosing the rest of the video equipment.
| Visible camera | 2 MP CMOS sensor |
|---|---|
| Optical zoom | 30x; nominal 4.5–135 mm lens range |
| Stabilization | Three-axis gimbal with electronic image stabilization |
| Live video | IP network RTSP, 1080p at 30 fps |
| Recording | Local TF card storage for photos and video |
| Camera and gimbal control | IP and UART |
| Payload weight | 770 ±10 g, excluding dampers |
Start the aircraft payload calculation with the camera weight, then add the selected dampers, mounting bracket and cables. Check the available space beneath or ahead of the aircraft and the clearance needed as the gimbal moves. A mounting drawing and a photograph of the intended installation position are useful starting points for discussing fit.
The video connection and the command connection serve different jobs. Specify whether your project uses IP or UART to command the camera and gimbal, and name the application or equipment that will receive the RTSP picture.
Send FD your aircraft model, usable payload capacity, intended viewing distance and preferred video receiver. Include these items in the request:
This gives us a practical basis for discussing the camera configuration and the accessories your project needs.
Product reference: TOPOTEK DIF30S62-E product specifications.
| Visible Camera | 2 MP CMOS sensor |
|---|---|
| Optical Zoom | 30x optical; nominal 4.5–135 mm |
| Stabilization | Three-axis gimbal; electronic image stabilization |
| Video Output | IP RTSP; 1080p at 30 fps |
| Storage | Local TF photo and video storage |
| Control | IP and UART |
| Weight | 770 ±10 g, excluding dampers |
| Voltage | 12–26.2 V DC |
| Power | Dynamic 3 W |
| Dimensions | Diameter 150 mm; height 166 mm |
Choose DIF30S62-E 30x optical zoom imaging with 1080p RTSP video, IP/UART control and local TF storage for civil UAV observation....
Choose DHU03-E visible-only UAV imaging with nominal 3× optical zoom, HDMI and IP paths, three-axis pointing and a clearly specified recording configuration....
