TOPOTEK DIP30S4K 30x Optical Zoom UAV Camera with 4K IP Output

Price	On request
Model	DIP30S4K

Image and lens
Image sensor	1/2.8-inch 8MP CMOS
Optical zoom	30x

Stabilization and installation
Stabilization	3-axis; continuous 360-degree yaw listed
Power input	DC 12–26.2 V; listed dynamic power 10 W
Dimensions	140 ×162 ×144 mm
Weight	710 ±10 g, excluding dampers

Video and files
Video output	IP/RTSP; 4K30 or 1080p30
Storage	Local TF; H.264 in 4K or 1080p

Get Quote

+86-13959965075

Bring 30x optical framing and 4K network video into a UAV inspection build with room for a larger camera payload. TOPOTEK DIP30S4K pairs an 8MP visible-light sensor with a three-axis gimbal and IP/RTSP output. The published modes include 4K30 and 1080p30, alongside local TF recording. It is a visible camera for detailed visual work; a thermal channel is not part of its stated specification.

TOPOTEK DIP30S4K visible zoom camera on its three-axis gimbal — DIP30S4K product view with its visible zoom-camera housing and gimbal assembly.

Lens and image

The 30x optical lens is the relevant specification when comparing how the camera reframes a distant structure. The manufacturer’s larger mixed-zoom figure includes enlargement beyond the optical lens.

Aircraft allowance

The listed camera mass is 710 ±10 g excluding dampers. Check the complete installation, not simply whether the aircraft can lift the bare camera.

Work through the payload decision

01

Choose the deliverable

A client may need a local 4K recording, a live inspection view, or both. Name the required output first. The highest available recording mode is useful only if its file or stream can be handled by the rest of the inspection workflow.

02

Match the video endpoint

DIP30S4K uses network IP/RTSP video. Confirm the receiving application, intended mode and available link capacity. Camera resolution does not automatically establish the resolution of a ground display or a separately transmitted picture.

03

Review mounting and movement

Allow for the 140 ×162 ×144 mm published dimensions and the selected mounting arrangement. TOPOTEK lists continuous 360-degree yaw; the aircraft installation must still leave the camera and its cabling clear of nearby structure.

Choose the mode for the task

Inspection priority	Camera feature to evaluate	Decision for the buyer
Preserve detailed visible records	4K30 output and local TF recording	Check a native recorded file in the software used to review the inspection.
Fit a 1080p viewing workflow	Listed 1080p30 mode	Confirm the selected stream and receiver rather than downscaling by assumption.
Switch from overview to a tighter view	30x optical zoom	Assess field of view and useful detail on a representative scene.
Document thermal contrast	Visible-light sensor only	Choose a thermal or dual-sensor payload when the job depends on temperature information.

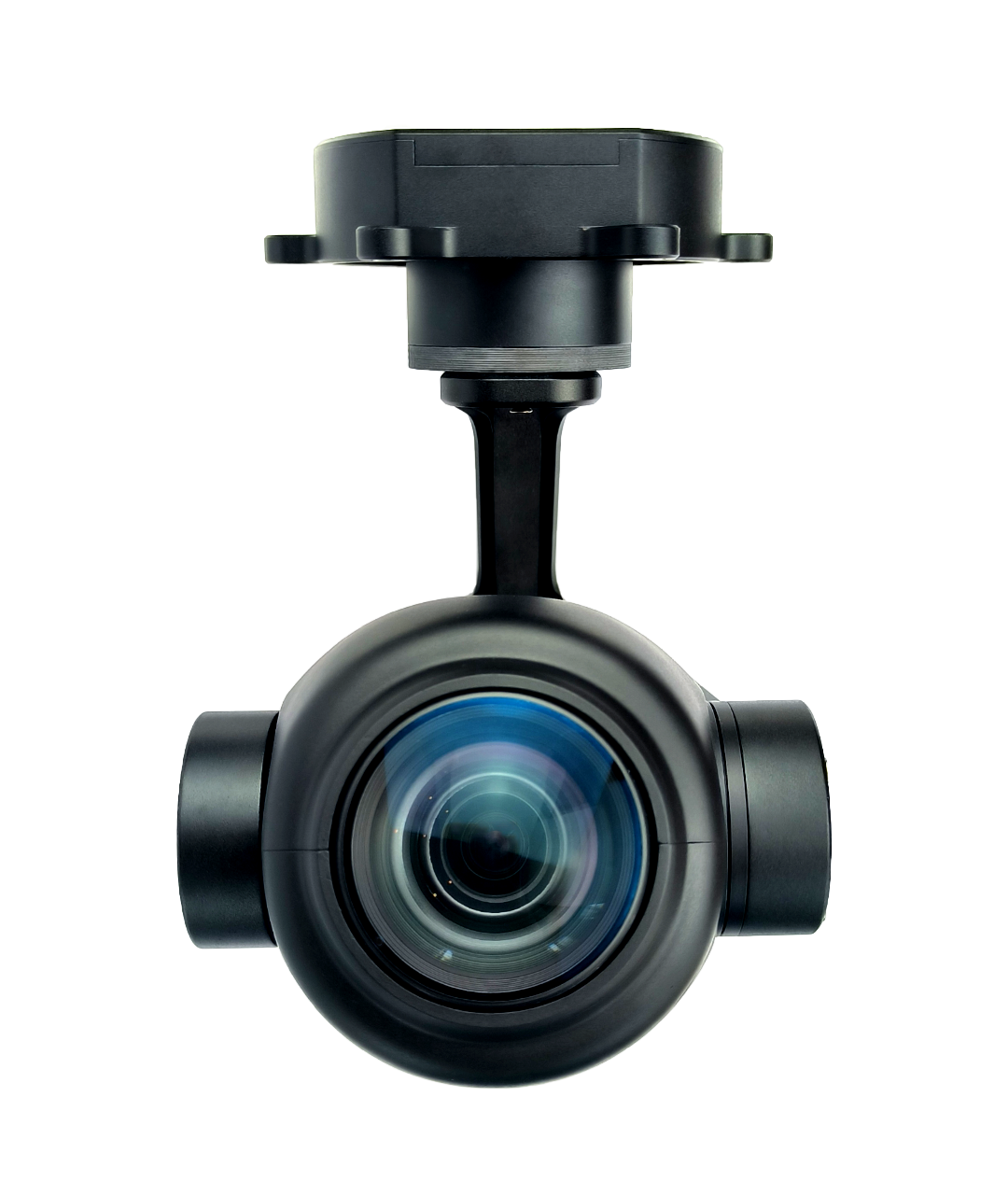

Front-facing TOPOTEK DIP30S4K camera with the central optical lens — A second view of the DIP30S4K lens and gimbal structure.

Power and recording belong in the order

The manufacturer specifies DC 12–26.2 V input and 10 W dynamic power. State the available aircraft supply and required connection when requesting the camera. Power conversion, mounting parts, TF media and any separate image-transmission equipment should be named in the quotation rather than assumed from a product photograph.

For local storage, TOPOTEK lists H.264 video in 4K and 1080p modes. Ask for the recording format and an export sample that can be opened by your inspection team. That is particularly helpful when a flight crew and an office reviewer use different devices.

Where this camera makes sense.

Consider it for visual examination of roofs, building façades and other civil structures where optical framing and a detailed visible record are useful. Select the aircraft, position and camera mode for the job; the zoom ratio is not a guaranteed inspection or recognition distance.

Before choosing DIP30S4K

Is all of the advertised enlargement optical?

No. The optical lens is rated 30x; TOPOTEK also describes mixed zoom. Compare optical performance separately from electronic enlargement.

Does IP output mean a radio is included?

No such package inclusion is established by the camera specification. Identify any required transmitter, receiver and antennas separately.

Is 710 g the complete installed weight?

No. The quoted 710 ±10 g excludes dampers; add the selected mount, damping hardware and cables to the aircraft’s allowance.

Request a DIP30S4K configuration.

Send FD the aircraft’s mounting envelope, power source, preferred 4K or 1080p mode and receiving software. Include whether you need local recording, a live link or both, so the quotation follows the inspection workflow.

TOPOTEK DIP30S4K specifications

Visible camera	1/2.8-inch 8MP CMOS
Optical zoom	30x
Gimbal	3-axis; continuous 360-degree yaw listed
Video output	IP/RTSP; 4K30 or 1080p30
Recording	Local TF; H.264 in 4K or 1080p
Power input	DC 12–26.2 V; listed dynamic power 10 W
Camera mass	710 ±10 g, excluding dampers
Dimensions	140 ×162 ×144 mm
