Price:
23.99$
Model:
SPEEDX2 2107.5 variant control

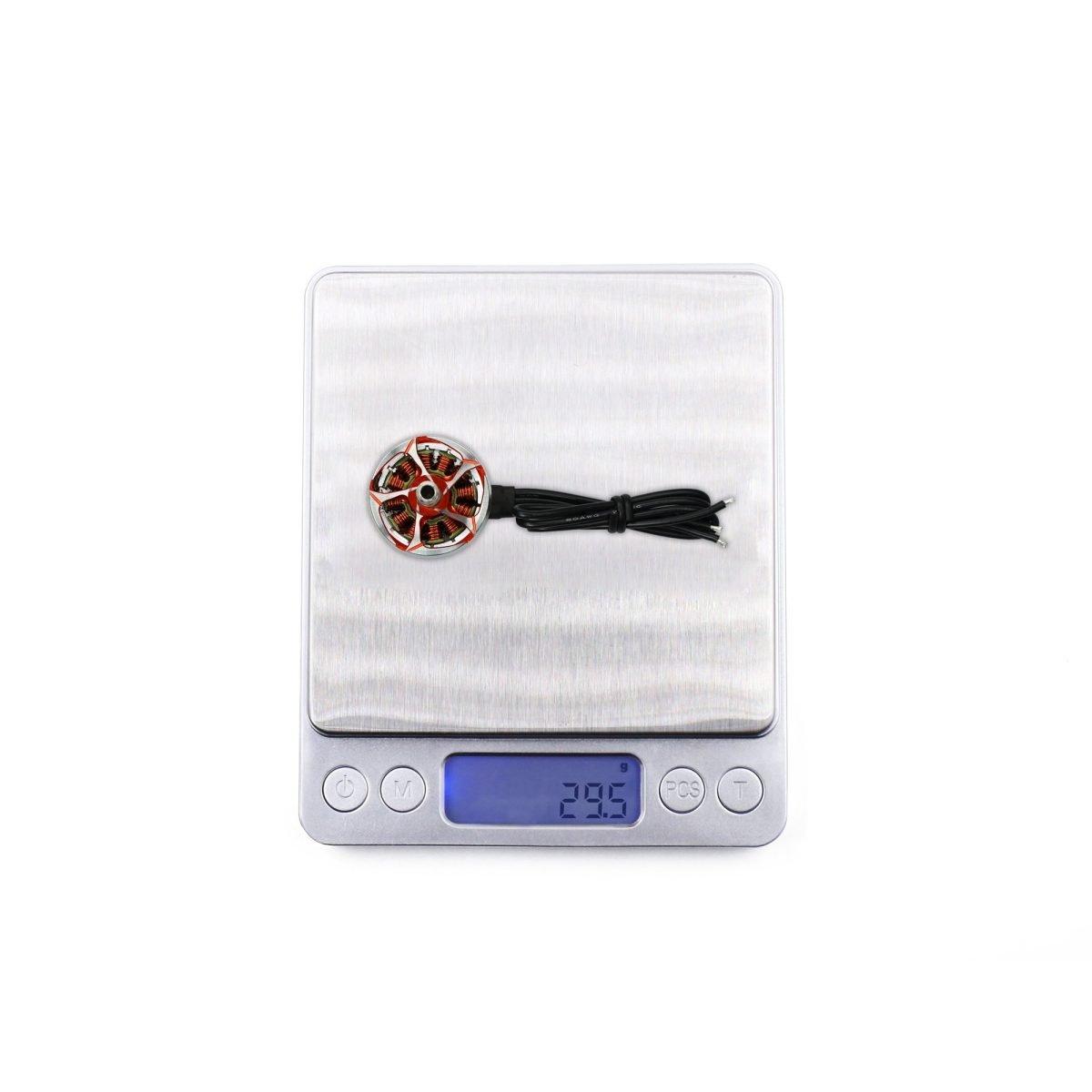

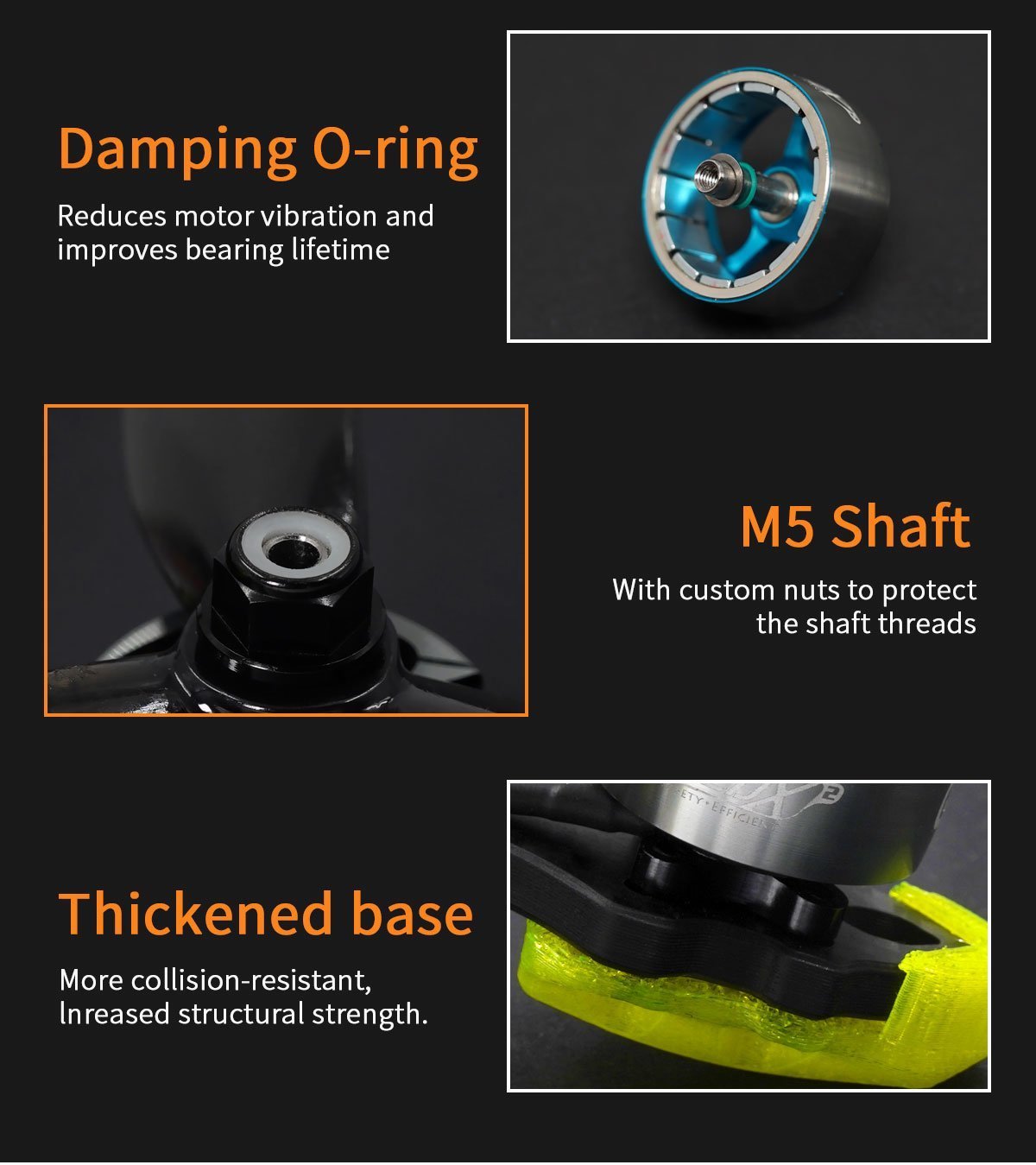

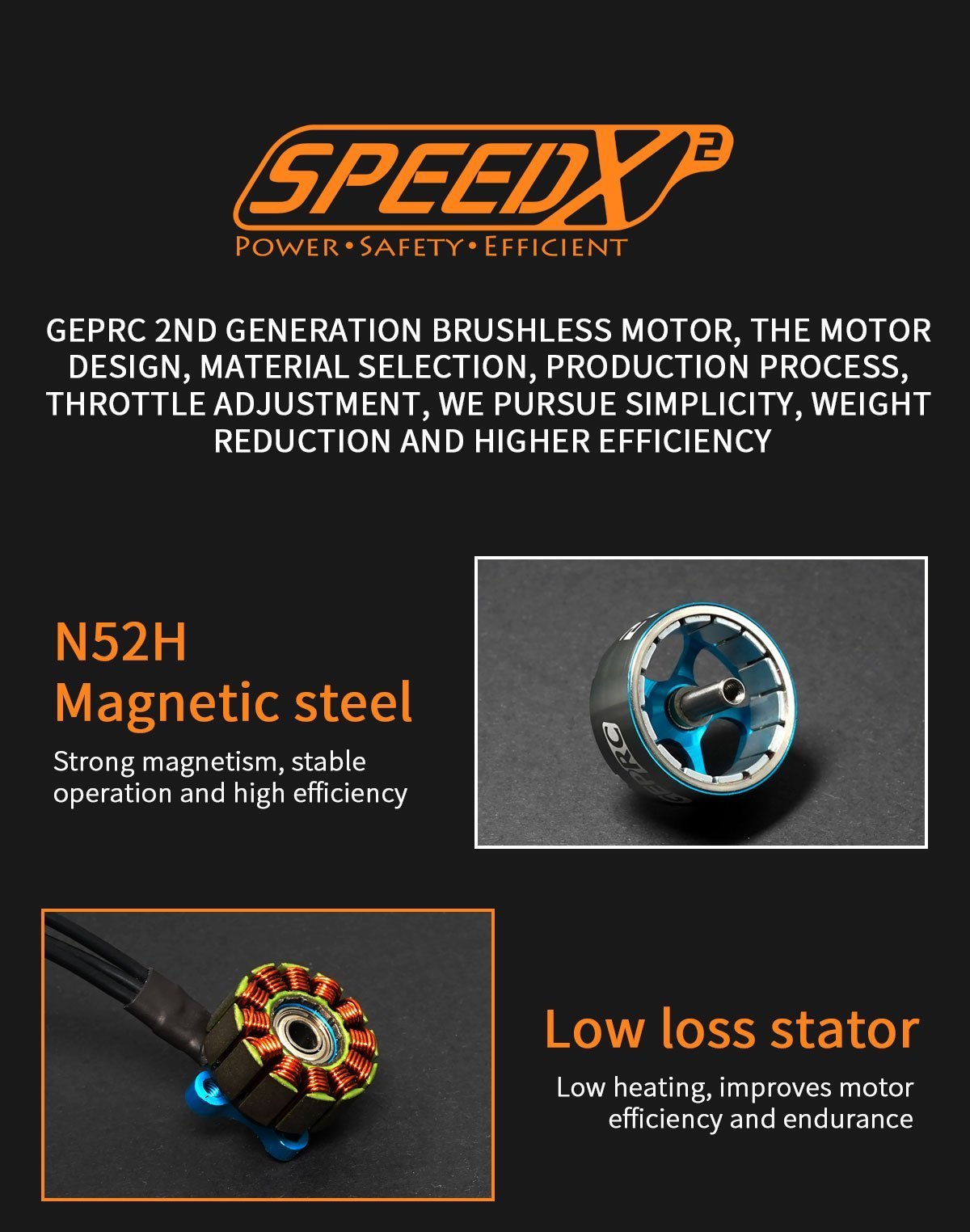

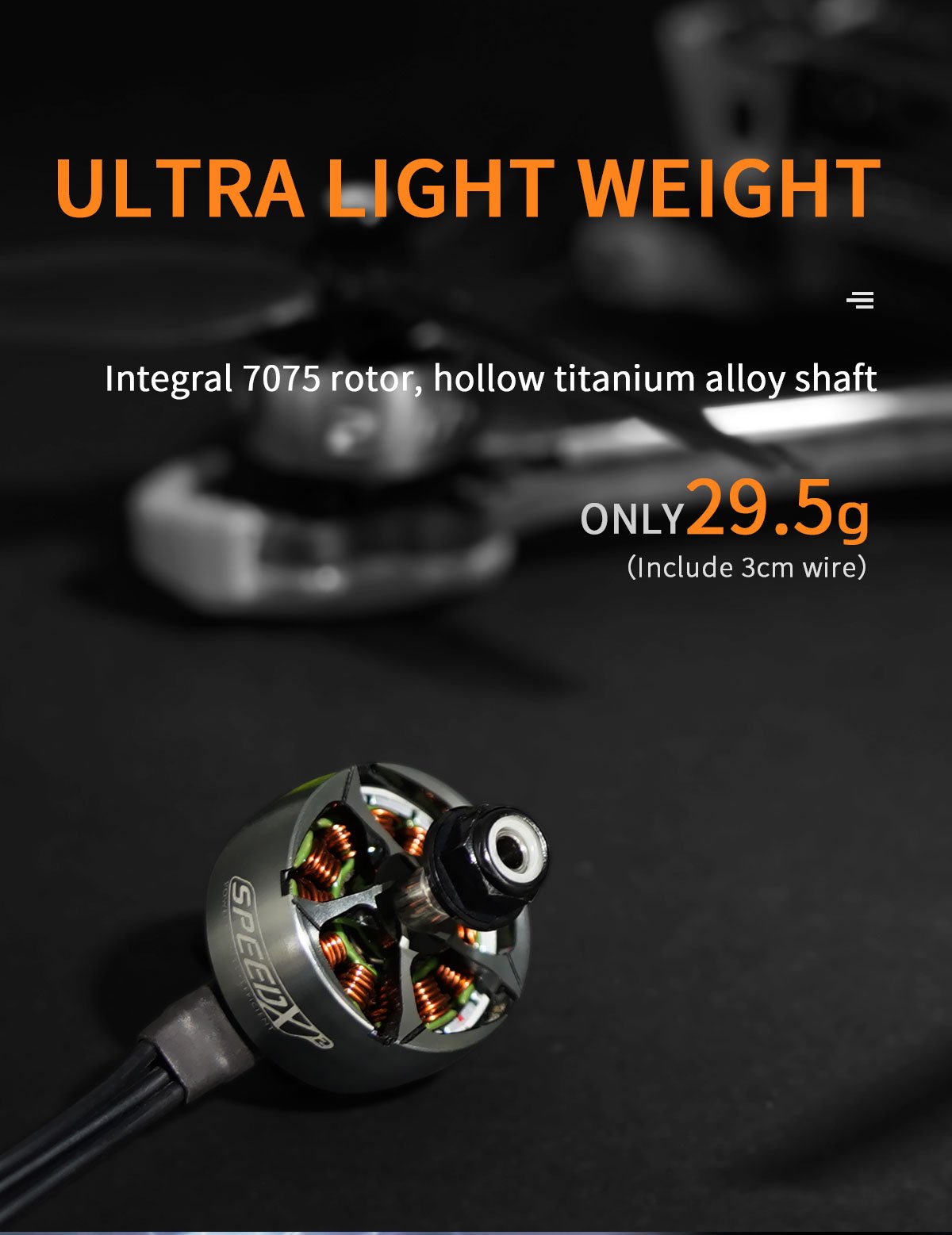

The 2107.5 record contains two winding options while the title preserves the 2450KV identity. A controlled matrix must separate winding, quantity, geometry and matching propulsion evidence before selection. The title is SPEEDX2 2107.5 2450KV Motors, yet the source specification lists both 1960KV and 2450KV options and separately suggests 6S 1050–1550mAh. The archived package list is one motor: the plural title preserves page identity but does not mean a four-motor set, so every quotation must state the ordered unit count. The record also gives a 12N14P configuration, 21 × 7.5mm stator, 5mm shaft, 26.83 × 30.85mm outer size, N52H arc magnet and 29.5g weight. Because voltage suitability can differ between windings, the delivered label and a matching test table must decide the battery and propeller combination.
| Variant item | Archived record | Purchase control |
|---|---|---|
| KV | Title 2450KV; body 1960KV and 2450KV | Label, part code and ordered winding |
| Quantity | Archived package: 1 × motor; plural page title | Explicit ordered unit count and packing list |
| Geometry | 12N14P; 21 × 7.5mm stator; 5mm shaft | Current drawing and frame/propeller clearance |
| Power pairing | 6S 1050–1550mAh suggestion | Winding-specific propeller, current, thrust and ESC table |

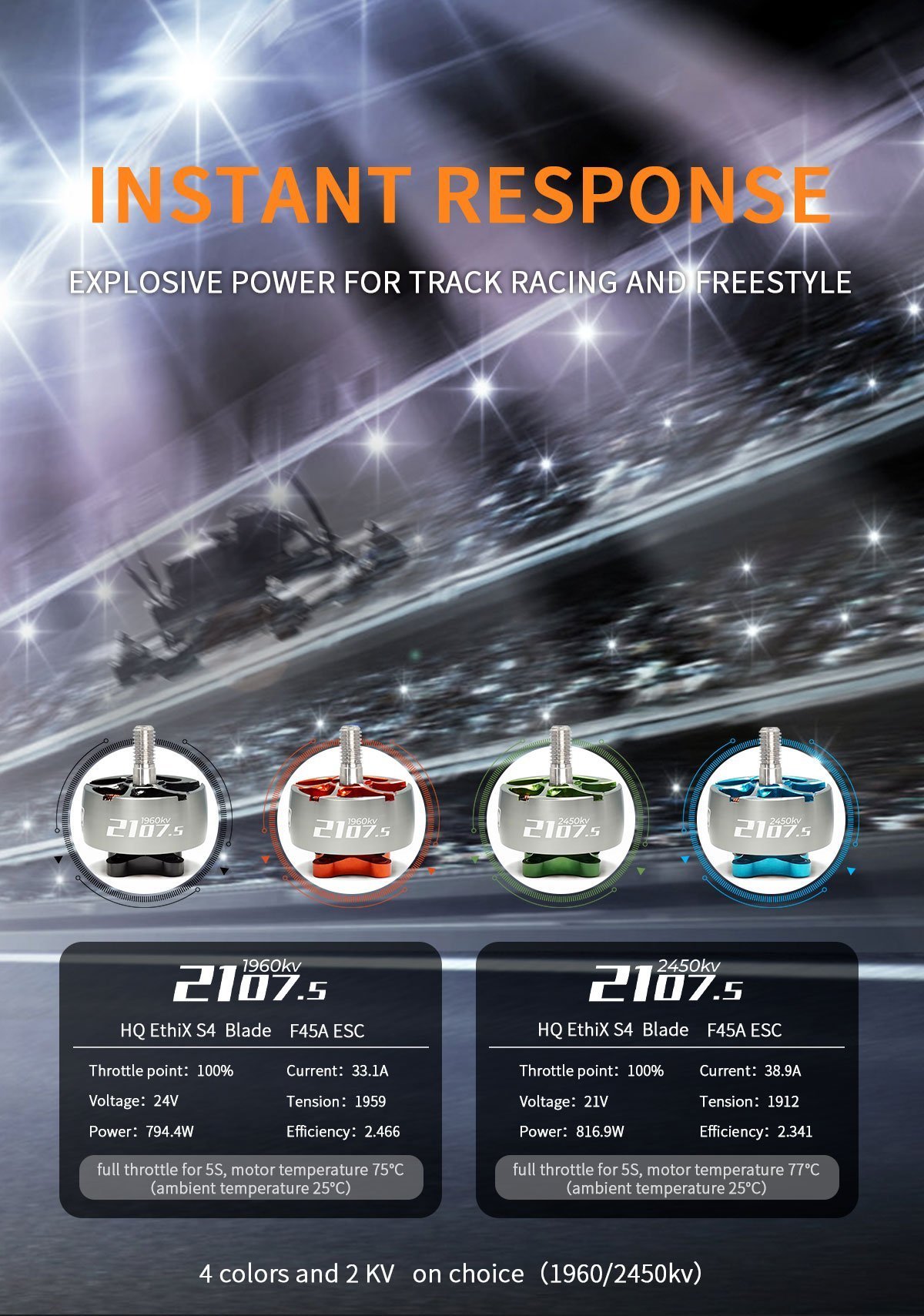

A 1960KV and 2450KV motor sharing the same housing can have different current, temperature and propeller limits. The quotation should name the winding and include only the performance rows produced for that exact variant.
Record label, color, shaft condition, wire length, mounting screws and rotation direction. When replacing one unit, compare it with the remaining motors and investigate vibration before assuming a mixed-age set will behave identically.
Use the title's 2450KV only if the delivered label and part code match it.
No. Add the exact propeller, current, thrust, temperature and ESC data for that winding.
Avoid mixing unless the manufacturer and controlled validation support the complete combination.
Share winding, frame, propeller and battery so the correct test row and hardware can be selected.
Separate the titled winding from the alternative retained in the source archive.
