TAKER F722 AIO integration map

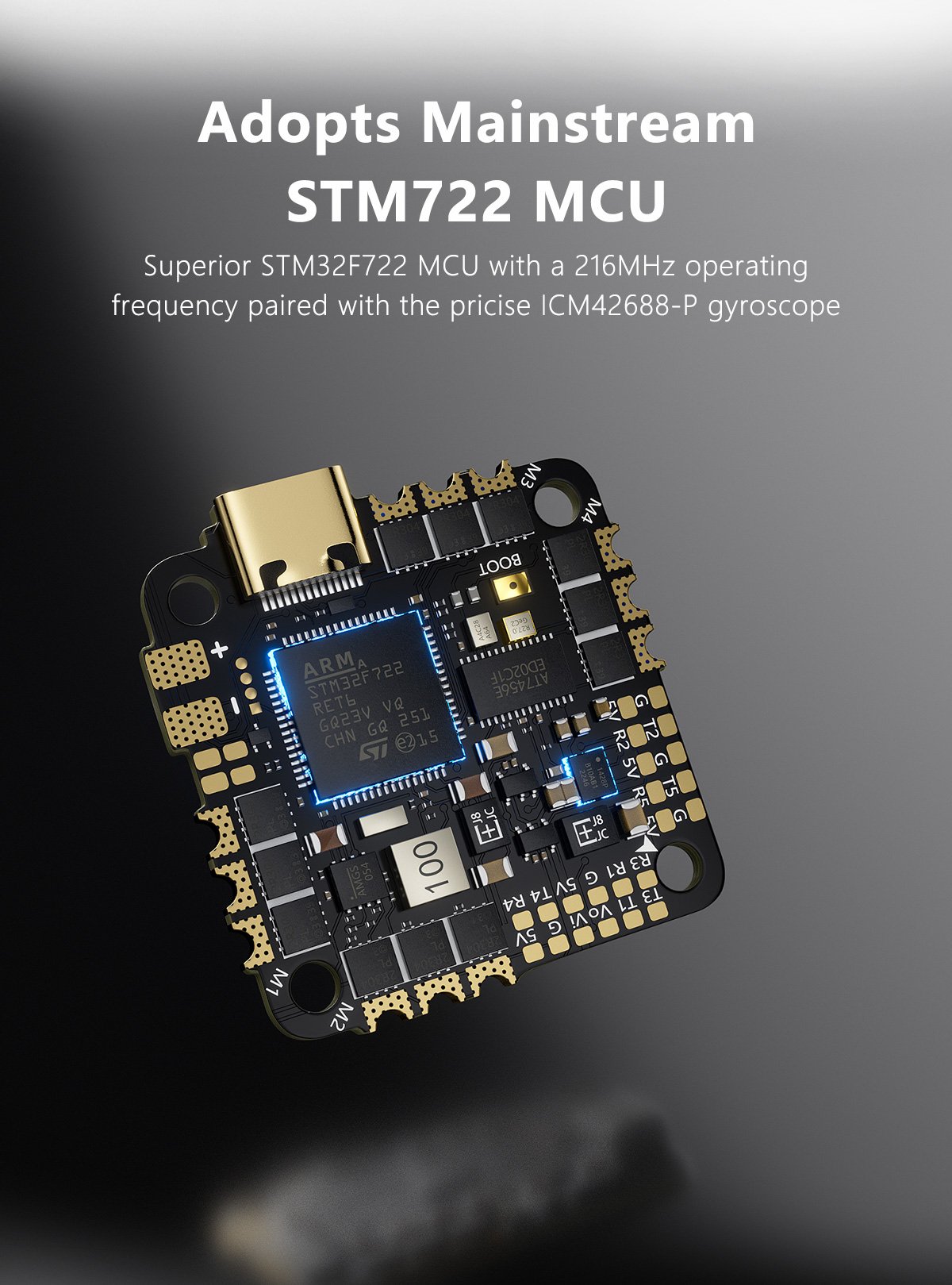

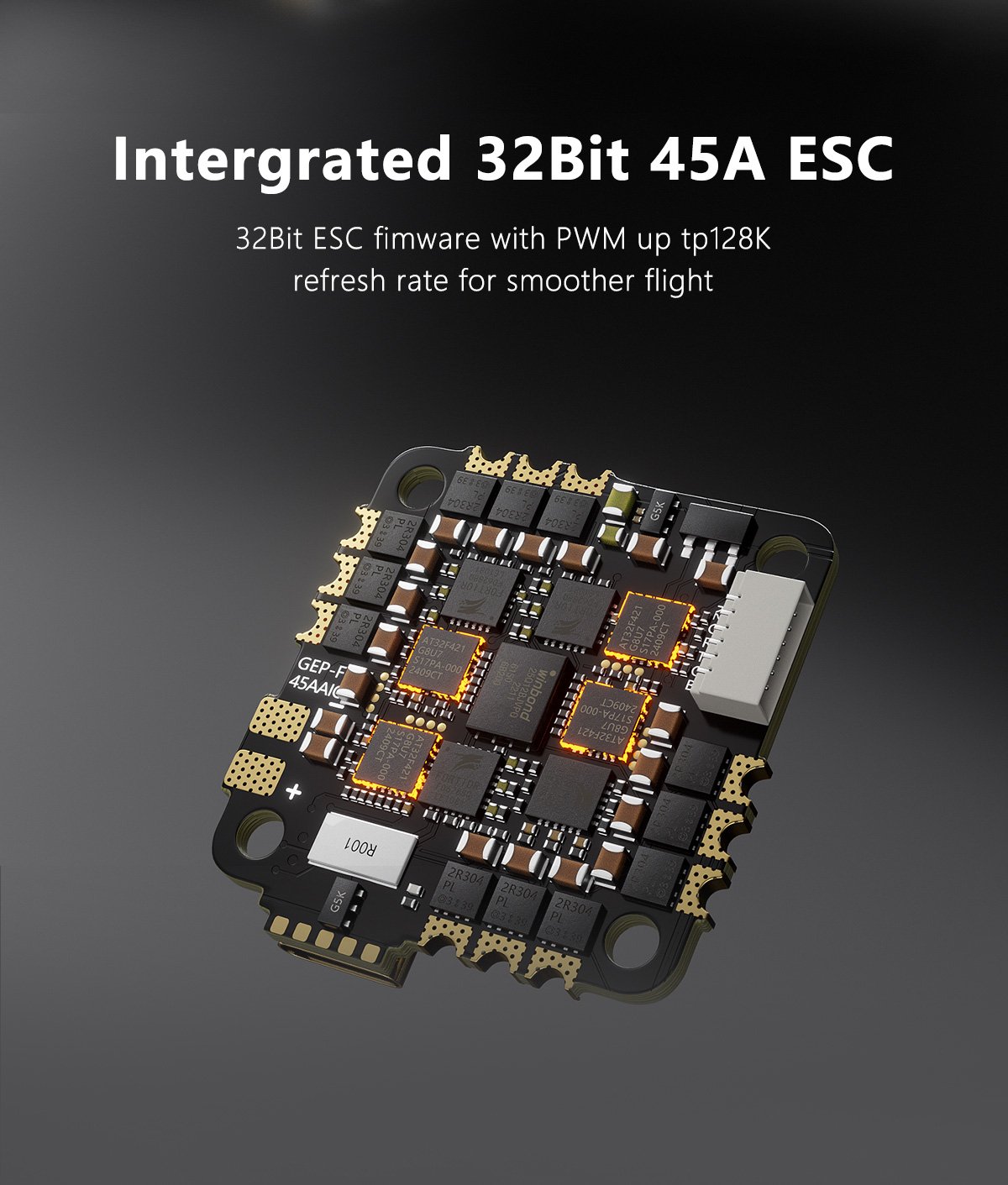

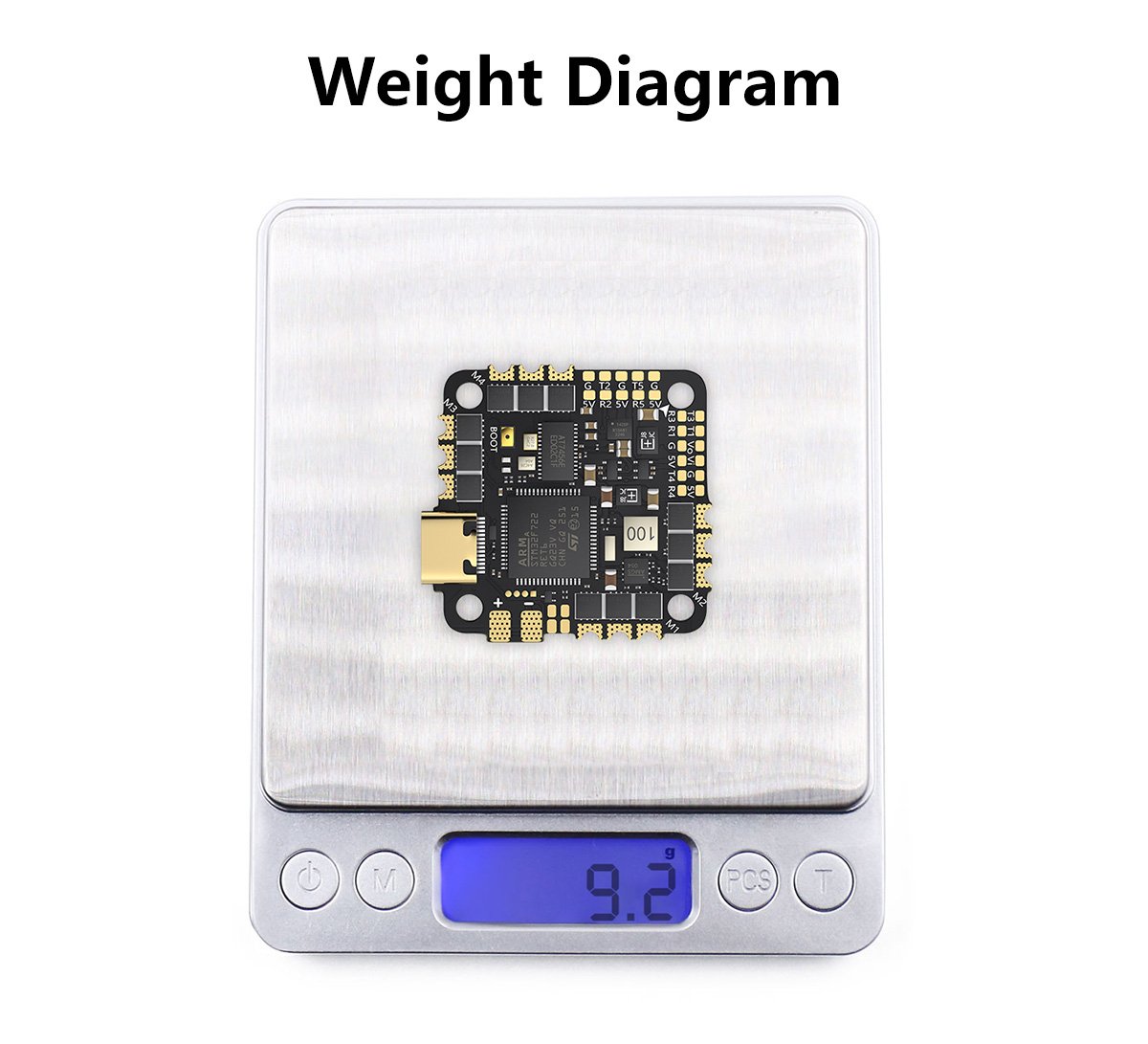

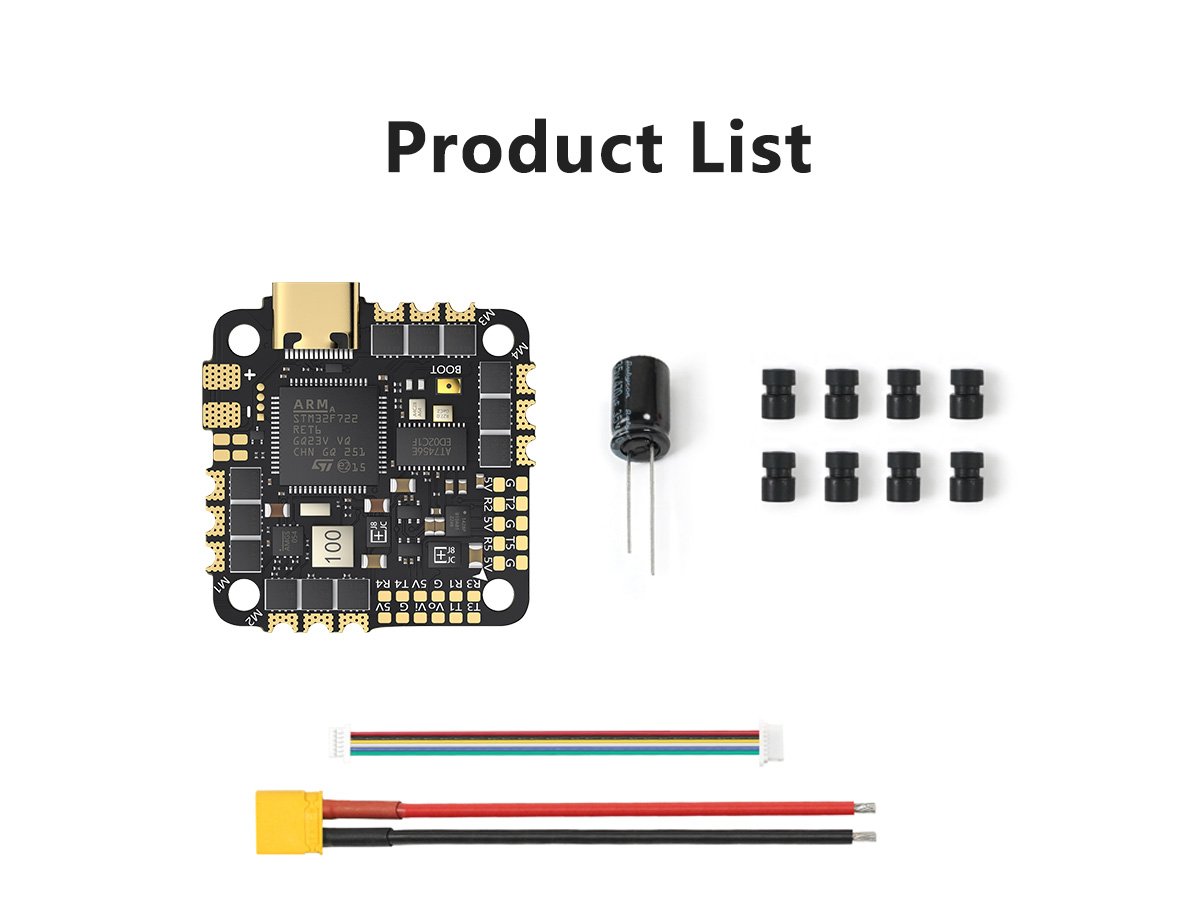

TAKER F722 AIO is an interface and revision record. Processor, gyro, firmware target, serial ports, video connector, power rails, ESC identity and logging capacity must be reconciled before installation. The archived TAKER F722 45A 32Bit AIO uses an STM32F722 controller, ICM42688-P gyro, onboard blackbox storage with an unresolved 16MB/16Mb source conflict, Type-C, five UARTs, AT7456E OSD and a dedicated six-pin HD video port. Its integrated four-in-one ESC is listed for 2–6S, 45A continuous and 55A for ten seconds, with a 5V 1A BEC. Dimensions are 35 × 33.5mm, mounting is 25.5 × 25.5mm and recorded weight is 9.2g. Compatibility still depends on the exact video harness, receiver, accessory draw, firmware target and propulsion data.
| AIO boundary | Archive detail | Integration proof |
|---|---|---|
| Controller/storage | STM32F722, ICM42688-P, five UARTs; 16MB/16Mb conflict | Firmware target, port map and verified blackbox unit |
| Power stage | 2–6S; 45A continuous; 55A ten seconds | Motor/prop row, connector, capacitor and cooling |
| Accessory rail | 5V 1A BEC | Receiver, navigation and video demand total |
| HD interface | Dedicated six-pin port and supplied adapter cables | Pinout, voltage, video-system model and continuity |

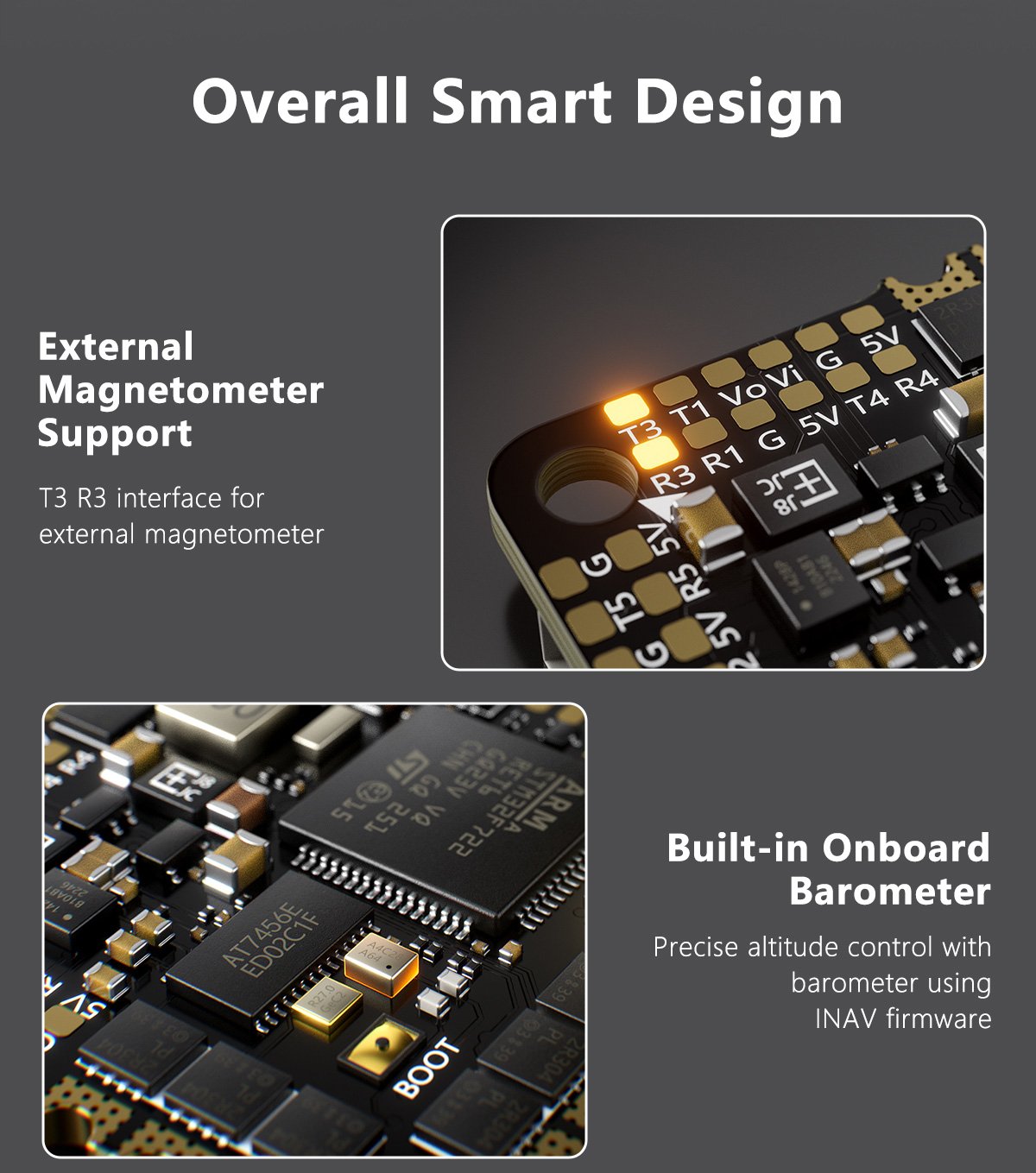

Match connector family, pin order, supplied adapter, voltage and serial assignment to the chosen HD unit. A plug that fits mechanically can still have an incompatible supply or signal arrangement.

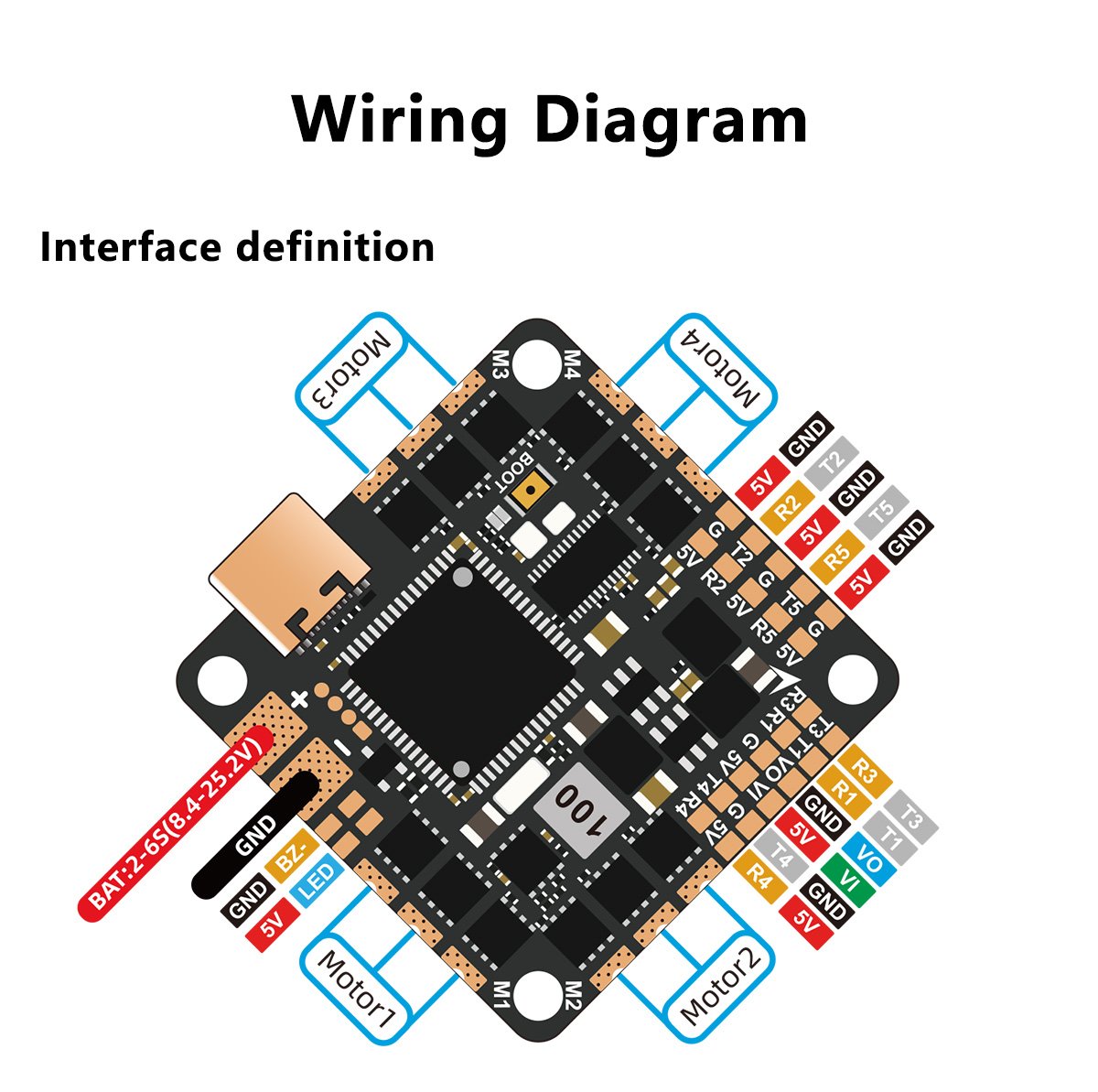

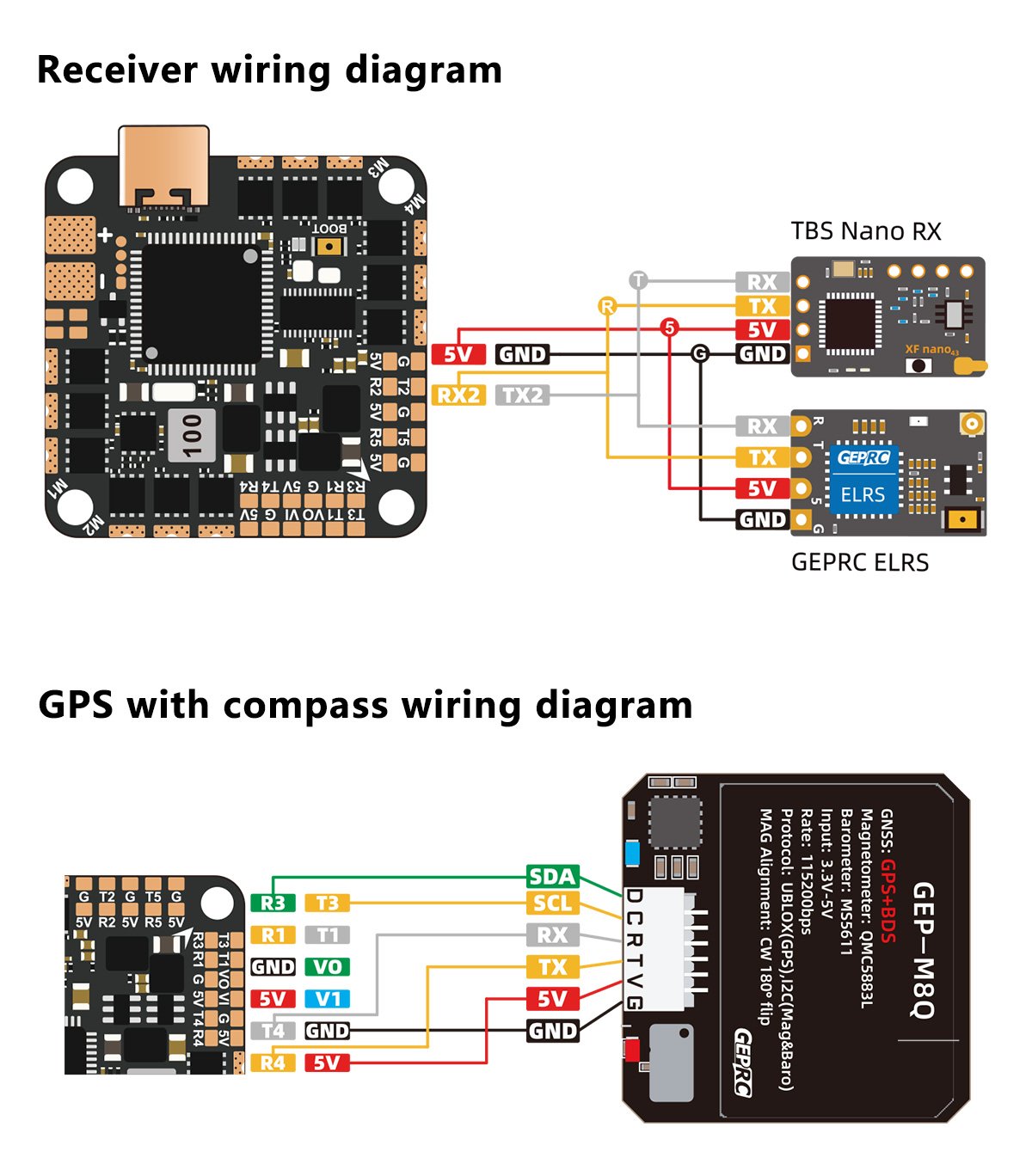

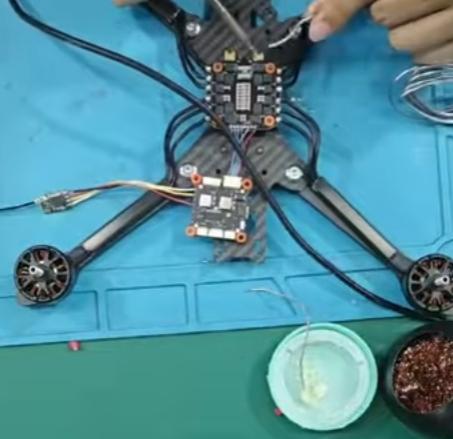

Allocate receiver, navigation, video control, buzzer and LEDs across the five UARTs and 5V rail. Save the board target and initial configuration, then inspect capacitor polarity and power wiring before a current-limited smoke test.
Send propulsion, receiver and video models to check ports, harnesses and the accessory rail.
Keep the board revision and every electrical interface on one acceptance record.
Evaluate G982-4G through receiver and modem identity, antennas, correction transport, timing, raw logs and checkpoint validation....
Resolve the SPEEDX2 2107.5 2450KV identity against its 1960KV option and match drawing, propeller, battery and ESC data....
Review S7 Mini compatibility through its STM32H743 board revision, sensor set, port map, rail limits, firmware and recovery file....
Review RW10 compatibility by resolving Windows/Ubuntu, 4400/5550mAh and 5.8GHz/1.4GHz records and defining kit deliverables....
Match the TAKER H743 controller and H80_BLS ESC through the current Bluetooth notice, unresolved 512M unit, harness, BEC, firmware and cooling evidence....
Review VW20 integration by resolving its 5V/12V conflict and documenting RF region, antennas, video interfaces, firmware and test conditions....
