MATEN VTX compliance and integration

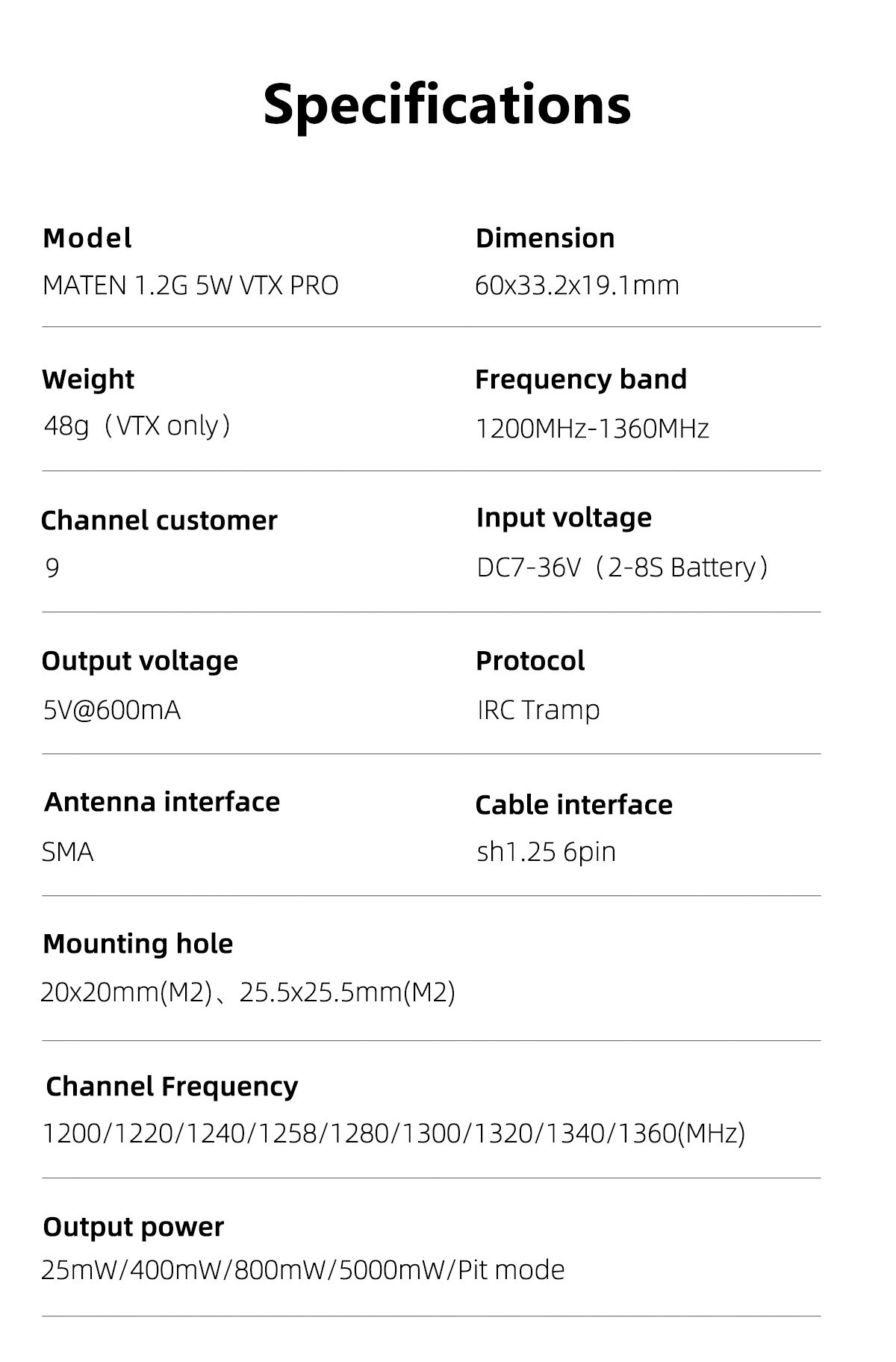

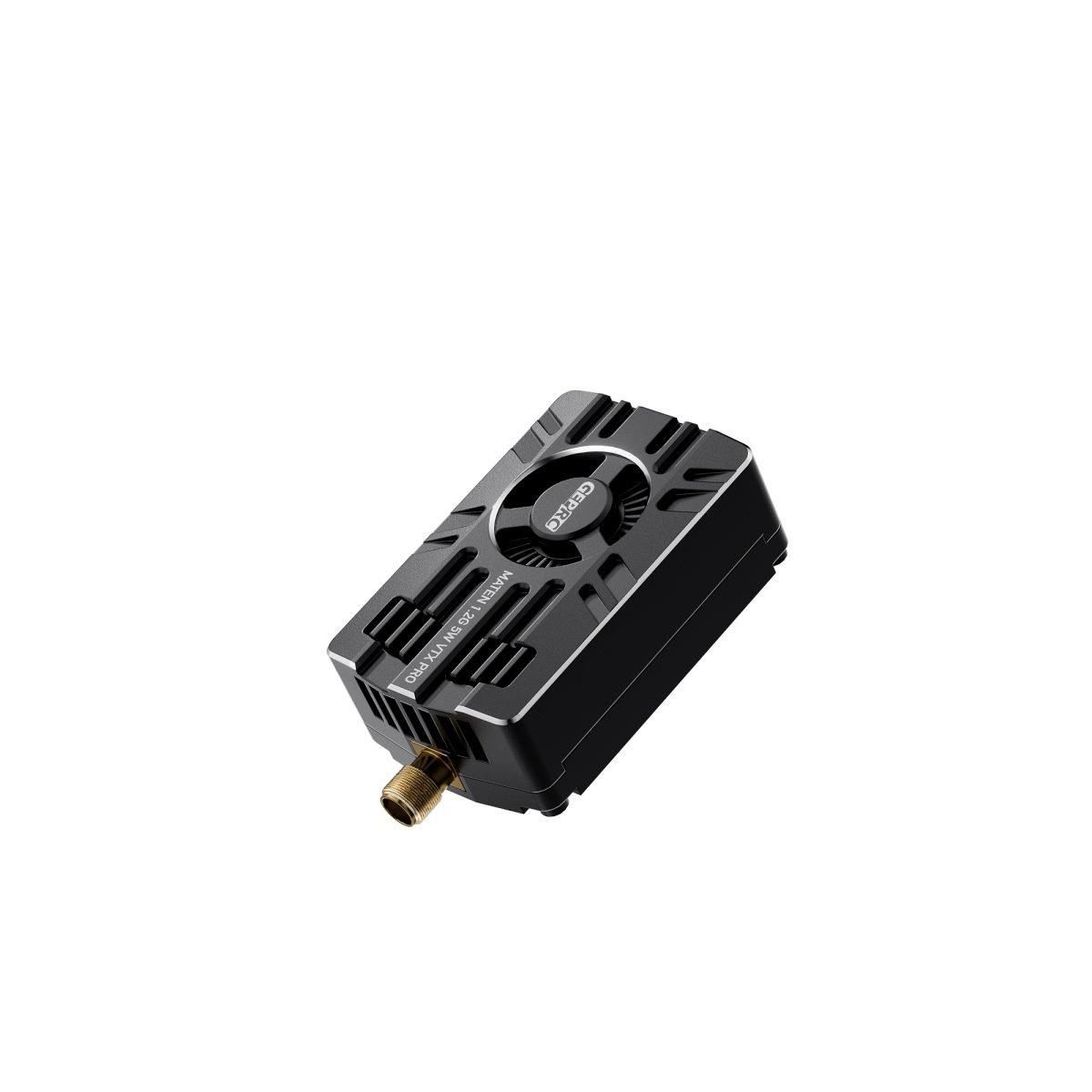

MATEN VTX release depends on a revision-controlled radio file. Frequency and channel conflicts, selectable power, mounting geometry, antenna, pinout, regional authorization and thermal checks must resolve together. The old article identifies a MATEN 1.2G 5W VTX PRO with nine channels from 1200 to 1360MHz. An official revision dated 2025-09-09 expands the stated range to 1080–1360MHz, while the current official page itself says 14 selectable channels in one place and 16CH in another. The source also lists pit, 25mW, 400mW, 800mW and 5000mW settings, 7–36V input, a 5V 600mA accessory output, IRC Tramp, SMA and 48g. Mounting wording conflicts between 20 × 20mm plus 30.5 × 30.5mm and 20 × 20mm plus 25.5 × 25.5mm. Final radio and mounting values must follow the delivered revision, current manual and regional permission.
| Control point | Archived statement | Evidence before use |
|---|---|---|

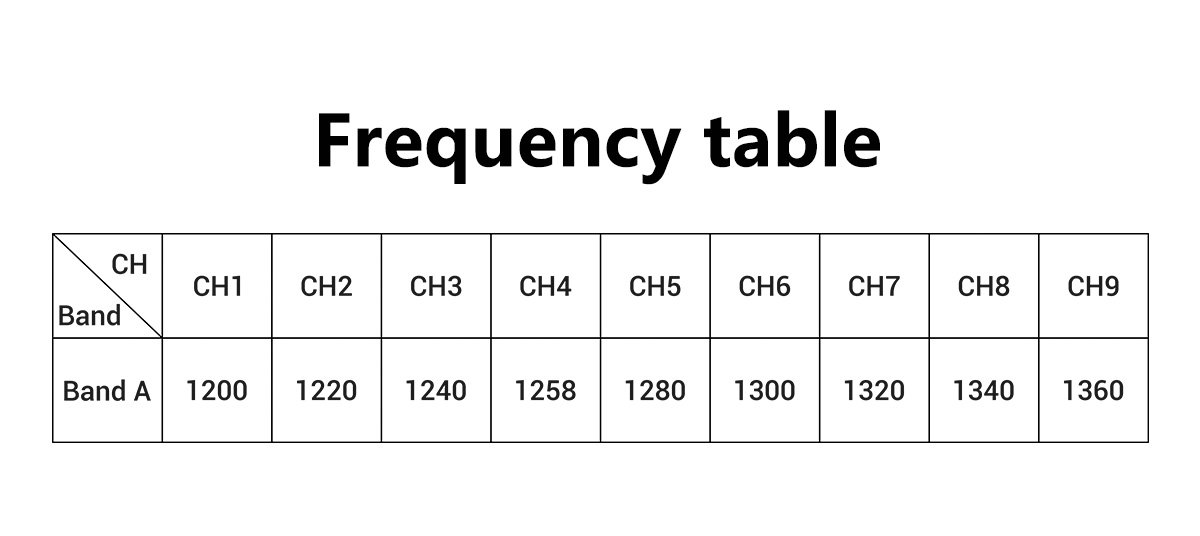

| Radio revision | Old: 1200–1360MHz/9CH; 2025-09-09: 1080–1360MHz; current page: 14 vs 16CH | Delivered label, current manual, permitted region and receiver match |

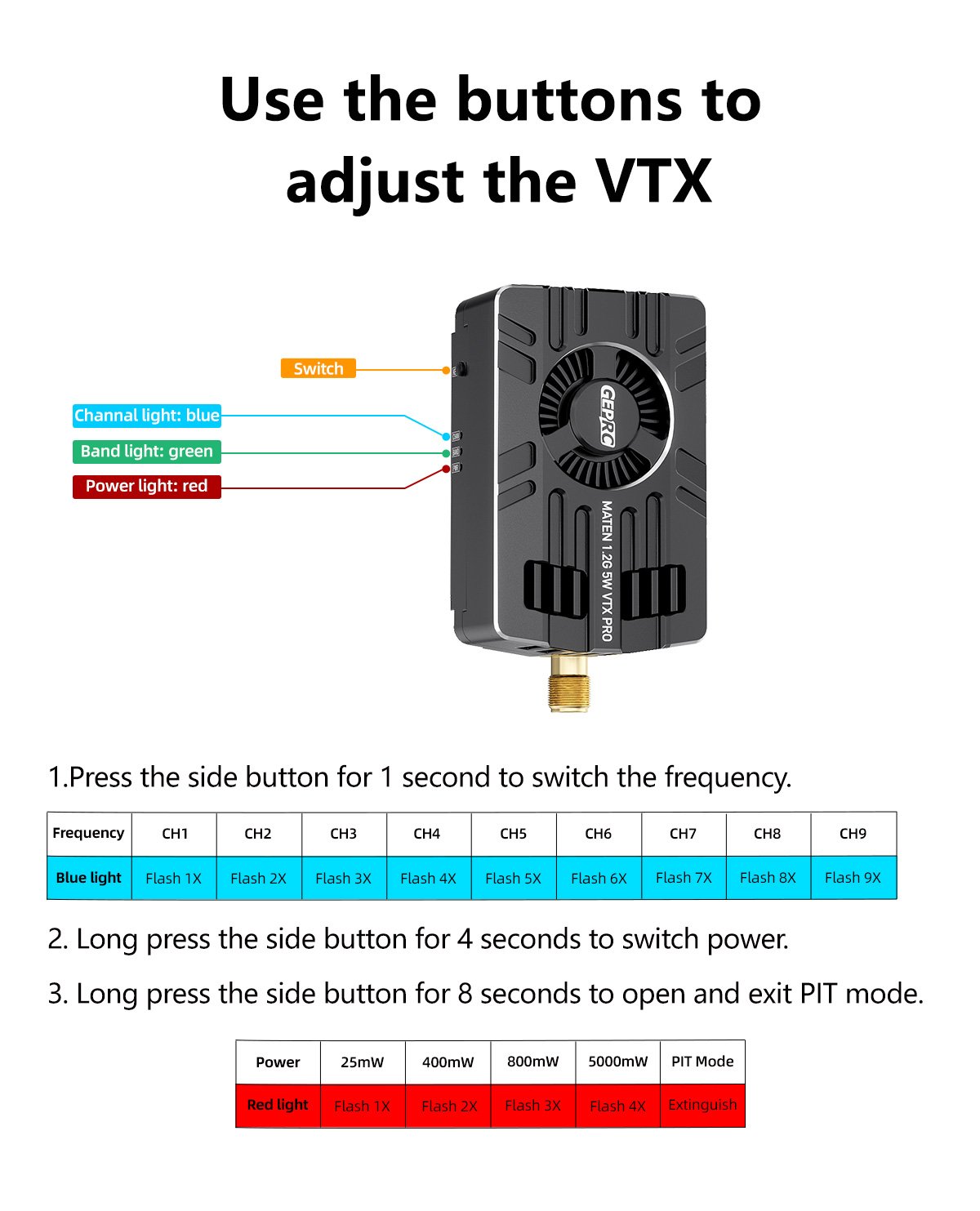

| RF power | Pit, 25, 400, 800 and 5000mW entries | Hardware revision, measured setting and legal limit |

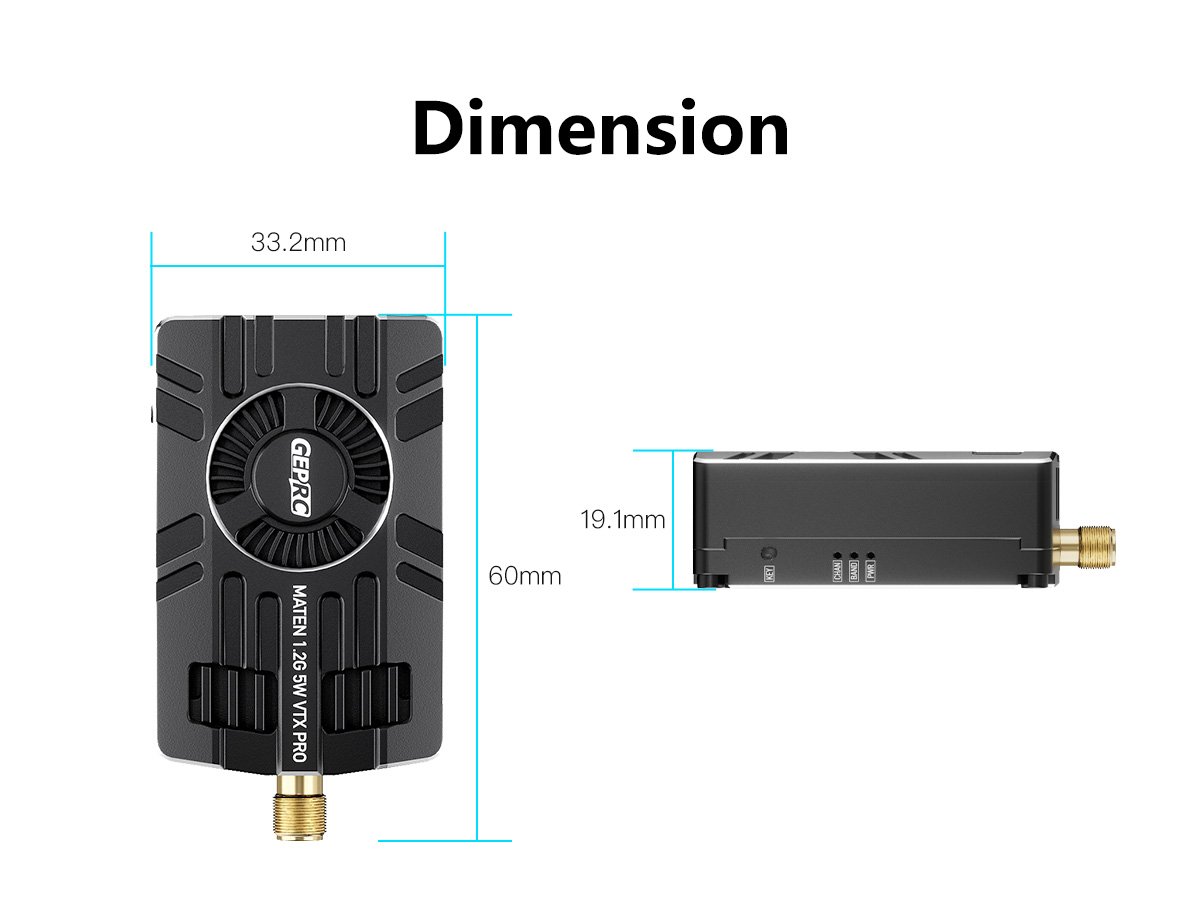

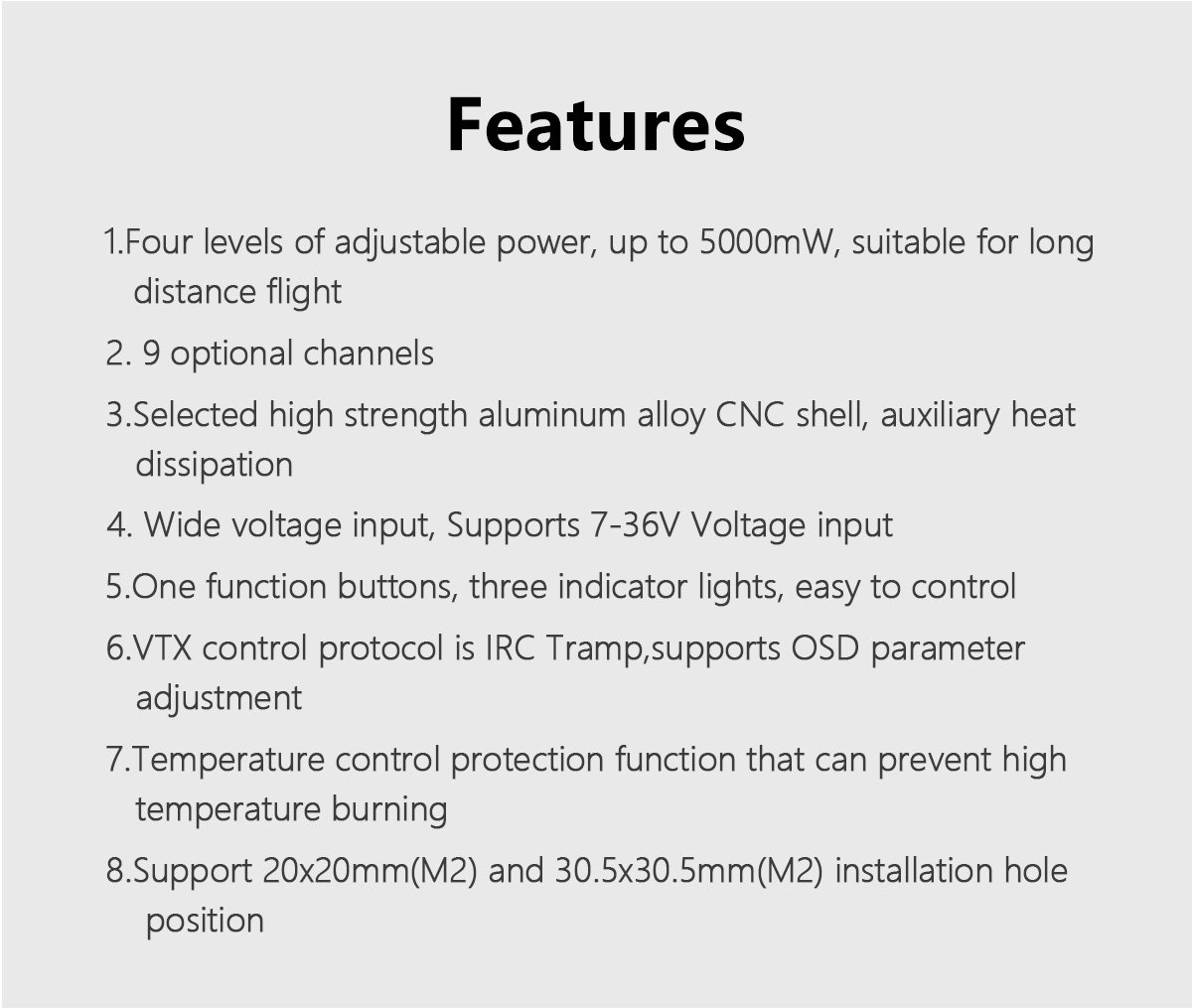

| Mounting | 20mm plus conflicting 30.5mm or 25.5mm patterns | Dimensioned drawing and actual-hole measurement |
| Electrical/thermal | 7–36V input; 5V 600mA output; alloy shell | Pinout, antenna-first procedure, airflow and temperature check |
Resolve the 25.5mm/30.5mm mounting conflict.
Identify hardware region and permitted channel set.
Install the approved antenna before controlled power-up.
Verify input and 5V-output pin assignments.
Record selected power, airflow and case temperature.
Name the camera format, receiver band and channel plan, antennas at both ends, cable losses, display or recorder and power wiring. The 5V auxiliary output is reserved by the source for a camera or fan; it is not a general battery rail.
The listed frequencies and power levels may not be permitted in a project location. Delivery should include hardware-region identity, approved antenna information and a signed settings sheet that prevents an archived high-power option from becoming the default assumption.
Provide region, receiver, antenna, camera and mounting layout for a compliant interface review.
Resolve radio, mounting and thermal conflicts against the delivered transmitter revision.
