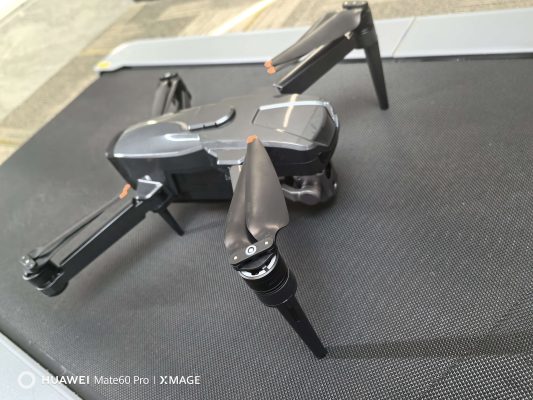

007-A Dual Camera Patrol Drone with Thermal Imaging and Visible Light

Key Features

• Dual-Sensor Camera System
  Combines a 48MP visible-light camera and a thermal imager (384×256) for versatile surveillance, search & rescue, and inspection missions.

• Long Flight Time and Range
  Up to 50 minutes of flight time and 40km max range in ideal conditions, suitable for extended operations.

• High-Precision Positioning
  Integrated RTK and multi-GNSS support (GPS, Galileo, BeiDou, GLONASS) provides centimeter-level positioning accuracy.

Model: 007-A UAV

• Maximum takeoff weight: 1050g

• Maximum ascent speed: 6m/s (normal mode), 8m/s (sport mode)

• Maximum descent speed: 6m/s (normal mode), 8m/s (sport mode)

• Maximum horizontal flight speed (near sea level without wind): 15 m/s (normal mode); forward flight: 21m/s, sideways flight: 20m/s; backward flight: 19m/s (sport mode)

• Maximum wind resistance speed: 12m/s

• Maximum takeoff altitude: 6000m (unloaded flight)

• Longest flight time (windless environment): 50min

• Longest hover time (windless environment): 45min

• Maximum range: 40km

• GNSS: GPS + GALILEO + BEIDOU + GLONASS (GLONASS supported only when RTK module is enabled)

• RTK position accuracy: RTK fixed solution: horizontal: 1CM+1PPM; vertical: 1.5CM+1PPM

• Hover accuracy (windless or light wind environment): vertical: ±0.1m (when visual positioning is working normally); ±0.5m (when GNSS is working normally); ±0.1m (when RTK is working normally); horizontal: ±0.3m (when visual positioning is working normally); ±0.5m (when high-precision positioning system is working normally); ±0.1m (when RTK is working normally)

• Operating temperature: -10°C to 40°C

Gimbal Camera

1. Visible light camera

• Image sensor: 1/2” CMOS, effective pixels 48 million

• Lens angle: 84° / 122°

• Equivalent focal length: 4.6mm

• Aperture: F/2.8

• Focus range: 2m to infinity

• ISO range: 100 to 25600

• Shutter speed: Electronic shutter, 8s to 1/8000s

• Maximum photo size: 8000×6000

• Photo shooting modes: Single shot: 12MP/48MP; Timed shooting: 12MP/48MP; JPEG intervals: 2/3/5/7/10/15/20/30/60s (2s interval not supported when shooting 48MP photos)

• Video coding and resolution: H.264, 4K: 3840x2160@30FPS, FHD: 1920x1080@30FPS

• Video bit rate: 4K: 85MBPS, FHD: 30MBPS

• Supported file system: EXFAT

• Photo format: JPEG

• Video format: MP4 (MPEG-4 AVC/H.264)

1. Thermal Imaging Camera

• Thermal imaging sensor type: Uncooled Vanadium Oxide (VOX)

• Pixel pitch: 12µm

• Frame rate: 30 Hz

• Lens: DFOV: 61°

• Equivalent focal length: 40mm

• Aperture: F/1.0

• Focus distance: 5m to infinity

• Sensitivity: <50MK@F1.1

• Temperature measurement method: Spot temperature measurement, area temperature measurement

• Temperature measurement range: -20°C to 150°C (high gain mode), 0°C to 500°C (low gain mode)

• Color palettes: Glow, black hot, iron red, rouge, thermal iron, north pole, medical, lava, rainbow1, rainbow2

• Photo format: JPEG (8-bit), R-JPEG (16-bit)

• Thermal imaging video resolution: 384×256@30FPS

• Video bit rate: 6MBPS

• Video format: MP4 (MPEG-4 AVC/H.264)

• Photo shooting modes: Single shot: 384×256; Timed shooting: 384×256; JPEG intervals: 2/3/5/7/10/15/20/30/60s

• Digital zoom: 28 times

• Infrared wavelength: 8µm to 14µm

• Infrared temperature measurement accuracy: ±2°C or 2%, whichever is greater

1. Gimbal

• Stabilization system: Three-axis mechanical gimbal (pitch, roll, pan)

• Structural design range: Pitch: -135° to 45°, Roll: -45° to 45°, Pan: -27° to 27°

• Controllable rotation range: Pitch: -90° to 35°, Pan: uncontrollable

• Maximum control speed (pitch): 100°/s

• Angle jitter: ±0.007°

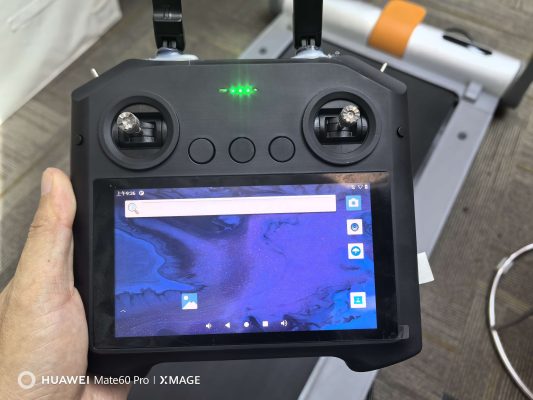

Remote Controller

• Equipped with full buttons to control aircraft and camera operations

• Built-in 5.5-inch 1920×1080p high-brightness touchscreen with Wi-Fi

• Longest working time: approx. 3 hours

• Screen resolution: 1920x1080

• Screen size: 5.5 inches

• Screen frame rate: 60FPS

• Screen brightness: 1000 nit

• Screen touch: 10-point touch

• Battery: Lithium battery (5000 mAh, 7.2V)

• Maximum effective signal distance (no interference or obstruction): 15km (FCC), 8km (CE/SRRC/MIC)

• Transmission frequency band: 2.400GHZ to 24835GHZ, 5.725 GHZ to 5.850 GHZ

• Antenna: 4 antennas, 2 transmitters and 4 receivers

• Transmission power (EIRP):

  • 2.4 GHZ: <33 DBM (FCC), <20 DBM (CE/SRRC/MIC)

  • 5.8 GHZ: <33 DBM (FCC), <14 DBM (CE), <23 DBM (SRRC)

• Wi-Fi protocol: 802.11A/B/G/N/AC/AX supporting 2x2 MIMO Wi-Fi

• Wi-Fi operating frequency bands: 2.400GHZ to 24835 GHZ, 5.150 GHZ to 5.250 GHZ, 5.725 GHZ to 5.850GHZ

• Wi-Fi transmission power (EIRP):

  • 2.4 GHZ: <26 DBM (FCC), <20 DBM (CE/SRRC/MIC)

  • 5.1 GHZ: <26 DBM (FCC), <23 DBM (CE/SRRC/MIC)

  • 5.8 GHZ: <26 DBM (FCC/SRRC), <14 DBM (CE)

• Video output interface: MINI-HDMI interface

• Operating temperature: -10°C to 40°C
