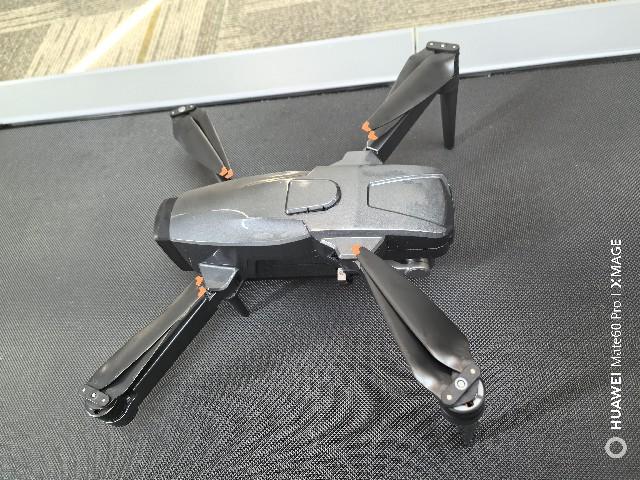

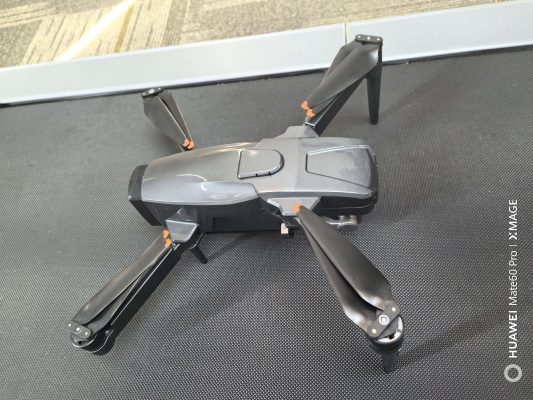

007 Patrol UAV Drone With Dual Cameras Thermal and Visible Light

Product Overview:
The 007 Patrol UAV is a powerful inspection drone equipped with both thermal imaging and visible light cameras. Designed for professional applications, it combines high-performance flight capabilities with accurate imaging technology. With a maximum flight time of up to 53 minutes and a range of 45km, it is ideal for large-scale inspections in challenging environments. The gimbal-stabilized dual-camera system offers 4K visible imaging and high-resolution thermal detection (640×512), making it suitable for powerline inspection, security patrols, fire detection, and infrastructure monitoring. Its RTK system ensures centimeter-level positioning accuracy, while the lightweight build ensures efficient and stable flight even in high altitudes or windy conditions.

Model: 007 UAV

Flight Performance

• Maximum takeoff weight: 1050g

• Max ascent speed: 6m/s (normal), 8m/s (sport)

• Max descent speed: 6m/s (normal), 8m/s (sport)

• Max horizontal speed: 15m/s (normal); forward 21m/s, sideways 20m/s, backward 19m/s (sport)

• Max wind resistance: 12m/s

• Max takeoff altitude: 6000m (unloaded)

• Max flight time: 53 min (windless)

• Max hover time: 50 min

• Max range: 45km

• GNSS: GPS, GALILEO, BEIDOU, GLONASS (GLONASS only with RTK)

• RTK positioning accuracy: Horizontal 1cm+1ppm, Vertical 1.5cm+1ppm

• Hover accuracy (windless/light wind):

  • Vertical: ±0.1m (vision), ±0.5m (GNSS), ±0.1m (RTK)

  • Horizontal: ±0.3m (vision), ±0.5m (GNSS), ±0.1m (RTK)

• Operating temperature: -10°C to 40°C

Gimbal Camera

Visible Light Camera

• Image sensor: 1/2” CMOS, 48MP

• Lens angle: 84°

• Equivalent focal length: 4.6mm

• Aperture: F/2.8

• Focus range: 2m to infinity

• ISO: 100 – 25600

• Shutter: 8s to 1/8000s (electronic)

• Max photo resolution: 8000×6000

• Photo modes:

  • Single shot: 12MP / 48MP

  • Timed shooting: JPEG 12MP / 48MP, intervals: 2–60s (no 2s at 48MP)

• Video codec and resolution: H.264

  • 4K: 3840x2160@30FPS

  • FHD: 1920x1080@30FPS

• Bitrate: 4K – 85Mbps, FHD – 30Mbps

• Photo format: JPEG

• Video format: MP4 (H.264)

Thermal Imaging Camera

• Sensor: Uncooled VOX, 12µm

• Frame rate: 30Hz

• DFOV: 61°

• Equivalent focal length: 40mm

• Aperture: F/1.0

• Focus distance: 5m to infinity

• Sensitivity: <50mK @ F1.1

• Temperature measurement: Spot & area

• Range:

  • High gain: -20°C to 150°C

  • Low gain: 0°C to 500°C

• Color palettes: Glow, Black Hot, Iron Red, Rouge, Thermal Iron, Arctic, Medical, Lava, Rainbow1, Rainbow2

• Photo format: JPEG (8-bit), R-JPEG (16-bit)

• Video resolution: 640×512@30FPS

• Bitrate: 6Mbps

• Video format: MP4 (H.264)

• Photo modes:

  • Single shot: 640x512

  • Timed: JPEG, intervals: 2–60s

• Digital zoom: 28×

• Infrared wavelength: 8µm to 14µm

• Temperature accuracy: ±2°C or 2%

Gimbal

• Stabilization: 3-axis mechanical (pitch, roll, pan)

• Range:

  • Pitch: -135° to 45°

  • Roll: -45° to 45°

  • Pan: -27° to 27°

• Controllable pitch: -90° to 35°

• Max control speed (pitch): 100°/s

• Angular jitter: ±0.007°

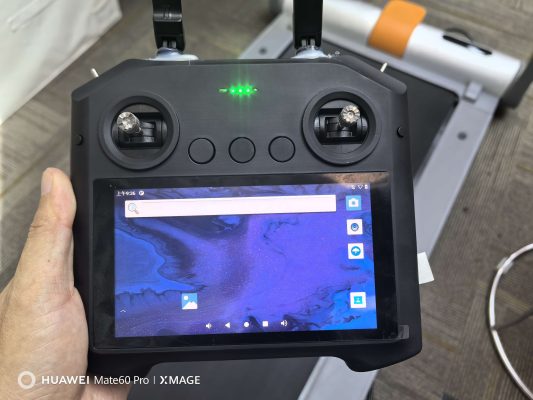

Remote Controller

• 5.5" touchscreen, 1920x1080p, 1000 nit brightness, 10-point touch

• Operating time: ~3 hours

• Screen FPS: 60FPS

• Battery: 5000mAh, 7.2V

• Max transmission range:

  • 15km (FCC), 8km (CE/SRRC/MIC)

• Transmission frequency bands:

  • 2.400GHz – 2.4835GHz, 5.725GHz – 5.850GHz

• Antennas: 4 (2 transmit, 4 receive)

• Transmission power (EIRP):

  • 2.4GHz: <33dBm (FCC), <20dBm (CE/SRRC/MIC)

  • 5.8GHz: <33dBm (FCC), <14dBm (CE), <23dBm (SRRC)

• Wi-Fi: 802.11a/b/g/n/ac/ax, 2×2 MIMO

• Wi-Fi bands:

  • 2.4GHz, 5.1GHz, 5.8GHz

• Wi-Fi EIRP:

  • 2.4GHz: <26dBm (FCC), <20dBm (CE/SRRC/MIC)

  • 5.1GHz: <26dBm (FCC), <23dBm (CE/SRRC/MIC)

  • 5.8GHz: <26dBm (FCC/SRRC), <14dBm (CE)

• Video output: Mini-HDMI

• Operating temperature: -10°C to 40°C

• Dual-Camera System: Equipped with both thermal and visible light cameras for versatile inspection and surveillance.

• Stable Long-Endurance Flight: Supports extended missions with strong flight stability and efficient power system.

• Real-Time HD Transmission: Delivers clear, real-time image feedback for timely decision-making in the field.
