Skydroid G12 Compact Drone Controller with Android 13 and a 5.5-Inch Screen

Price	On request
Model	G12
Display	5.5-inch; 1920 × 1080
Operating system	Android 13 (64-bit)
Handheld battery	10,000 mAh
Memory	4 GB
Storage	64 GB
Charging	Type-C
Control channels	12
Ground-unit weight	683 g
Ground interfaces	Serial, USB, SIM slot and Type-C

Get Quote

+86-13959965075

SKYDROID G12 · STANDARD MODEL

Keep the drone map and camera view in one compact controller

The Skydroid G12 combines a 5.5-inch 1920 × 1080 display with Android 13, physical sticks and a 12-channel control system. It suits UAV teams that want an integrated handheld screen without carrying a separate phone holder. Its 4 GB RAM and 64 GB storage provide the platform for the selected ground application; application and camera compatibility still depend on the complete package.

This page covers the ordinary G12. The G12-H is a separately named product, already available in our range. Specify the exact version when requesting a controller, receiver or replacement cable.

Skydroid G12 ordinary controller at an angle with screen and two antennas — Original Skydroid G12 product render. Screen content is illustrative.

Three decisions before choosing the G12

Screen size

A 5.5-inch screen keeps the equipment compact. Consider how easily your operator can read the actual telemetry and touch the app controls while a camera window is open.

Ground software

The controller uses a Qualcomm 6 nm processor and Android 13. Name the required app and version so its installation, video display and use of physical inputs can be checked.

Airborne package

Specify the receiver and camera together. A controller with a display is only one part of the video path; camera output and airborne connections must match.

G12 specifications that affect daily handling

Item	Published G12 specification	Selection use
Display	5.5-inch; 1920 × 1080	Check app readability at this screen size.
Memory and storage	4 GB RAM; 64 GB storage	Identify the apps and local files needed.
Control channels	12	List the aircraft and camera functions assigned to inputs.
Ground battery	10,000 mAh	Plan charging around the intended working session.
Weight	683 g	Compare handheld use and the chosen carrying support.
Dimensions	194.3 × 282.2 × 94.9 mm	Allow room in the transport case.

The manual gives a 4–8-hour operating-time reference. It is not an FD endurance measurement. Display settings, application workload and connected equipment affect the time available on a charge.

Separate the screen, control link and camera connection

For a civil inspection drone, describe the proposed system in three parts: the G12 ground unit, the airborne receiver and the camera. The manual lists serial, USB, SIM and Type-C connections on the ground unit. Their presence does not make every flight controller or video source interchangeable.

Supply the autopilot model and the camera's real output format. If the operator needs to adjust a gimbal from a wheel or button, include those functions in the request. Viewing video and controlling a gimbal are different requirements, even when both appear in the same application.

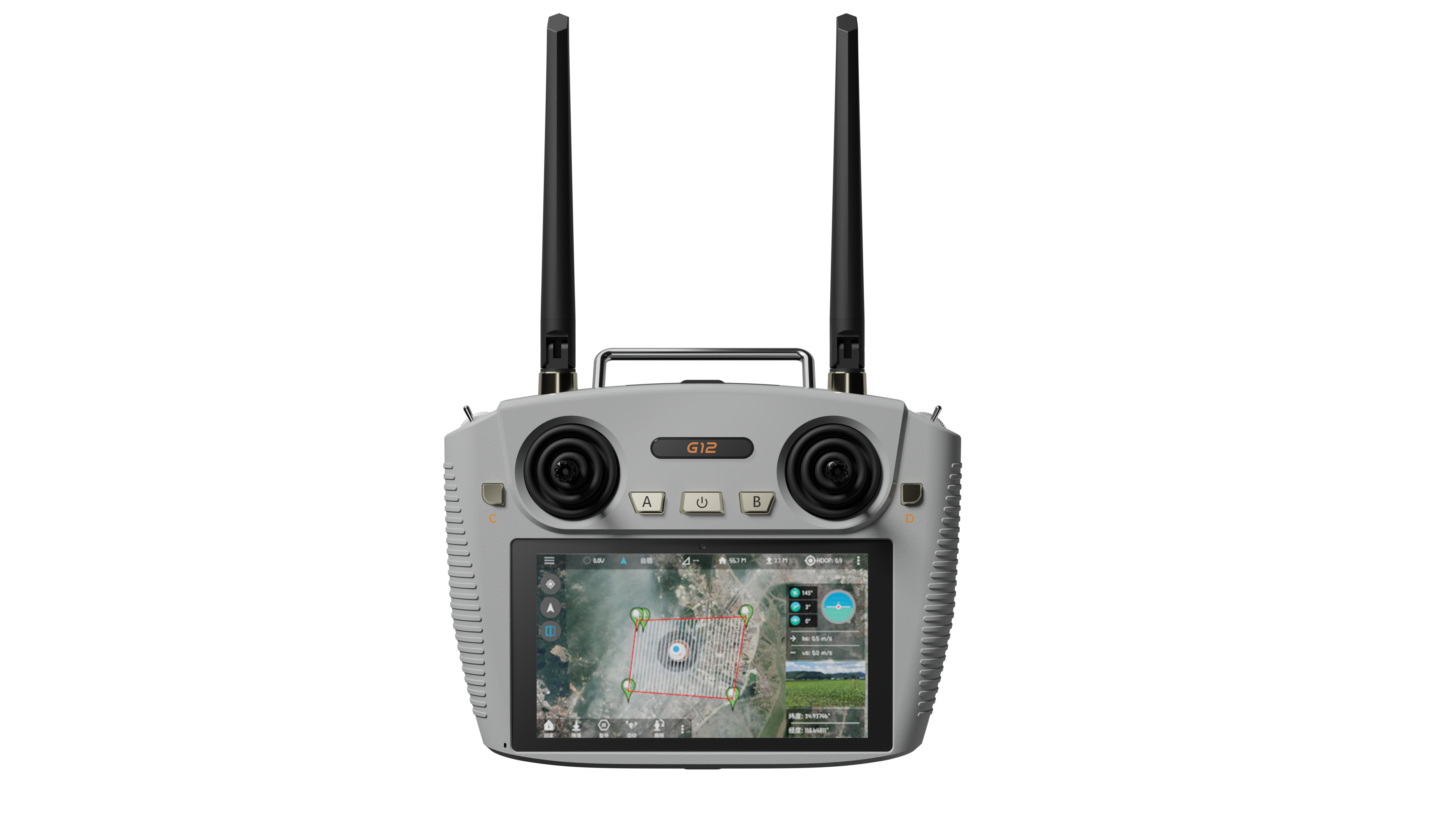

Front view of the Skydroid G12 ordinary model and its physical controls — Second original G12 view; the visible G12 badge identifies the ordinary model.

Questions from UAV buyers

Is this the same controller as G12-H?

No. This listing is for the G12 named in the linked G12 manual. We keep it separate from the G12-H so the quotation can identify the supplied version.

Does a camera come with every G12?

The manual describes a camera as an optional accessory. Request the camera, receiver, antennas and cables explicitly if you need a complete video-and-control package.

Is the published radio distance a working guarantee?

No. Range depends on installation, terrain, local radio conditions and permitted operation. We do not use the conflicting website distance headlines as a guaranteed specification for this listing.

Request a G12 package for your drone

Send FD the aircraft and autopilot model, preferred ground app, camera output and required control functions. Tell us whether you need a new system or a replacement ground unit. We can quote the matching components and identify the differences from G12-H before you order.

Reference: Skydroid G12 product page and linked user manual.

Skydroid G12 specifications

Display	5.5-inch; 1920 × 1080
Operating system	Android 13 (64-bit)
Processor	Qualcomm 6 nm
RAM	4 GB
Storage	64 GB
Control channels	12
Ground battery	10,000 mAh
Listed ground endurance	4–8 hours; manufacturer reference
Ground weight	683 g
Ground dimensions	194.3 × 282.2 × 94.9 mm
Charging interface	Type-C
Listed ground interfaces	Serial, USB, SIM slot and Type-C
Published radio bands	2.4 / 5.8 GHz
