Choose the operator workspace
Compare screen size, controls and handling space. A larger terminal can make video and mission information easier to view, while a compact handset can suit a lighter field kit.
SKYDROID · UAV CONTROL
Start with the display and camera connection your aircraft needs. A handheld controller, receiver and camera must form a compatible system; the screen alone does not determine the video feed.
Compare screen size, controls and handling space. A larger terminal can make video and mission information easier to view, while a compact handset can suit a lighter field kit.
Identify the supplied receiver, camera video interface and flight-controller connection. Compare the model specifications below before choosing cables, camera options and mounting hardware.
Send the aircraft or flight-controller model, camera output and intended inspection, mapping or FPV workflow with your inquiry. FD can quote the controller and the required air-side configuration together.
Review the RA10 ground control station, Android or Ubuntu options, software compatibility and delivery scope for a selected UAV configuration....
Review DF-T836 and DF-T838 wireless and fiber-optic video systems, product roles, connection requirements and compatibility checks....
Review the RE35 radio transmitter and 5G Cloud Box, including control options, streaming interfaces and system compatibility checks....
Review the Exceed GC30 dual sensor gimbal camera, visible and thermal imaging, video outputs and optional temperature measurement....
At the beginning of 2025, a customer from Saudi Arabia requested a Long Range FPV drone application designed for long-distance surveillance and monitoring purposes. Ease of control and system reliability w...
Remove an unwanted civilian FPV review shot, move the following clip earlier and check the revised join and ending....
Identify whether an FPV edit comment uses source or sequence timecode, with a 25 fps example locating one moment in two different placements....
Later in 2024, a client from Libya reached out regarding a Long Range FPV drone project designed for extended-distance missions. The main requirements included long endurance, stable long-range communicati...
Open a separate catalog recovery copy and reconnect verified photo backups without replacing the original working library....
Turn FPV construction footage into comparable dated views, a visible-change register and versioned reports without treating images as measured progress....
Order a civilian FPV review slide so its title and picture information precede the question, keeping meaningful imagery included and decoration separate....
For a later stage of cooperation, the Polish client evaluated the performance of Long Range FPV drones in Poland under real operational conditions. Reliability, ease of control, and consistent video transm...
Use consistent exterior-condition wording for civil equipment records without turning a visual description into a repair diagnosis or clearance....
At the beginning of 2025, an Iraqi customer requested a Long Range FPV drone application for long-distance surveillance and monitoring tasks. Ease of operation and system reliability were key priorities. ...
Find evidence-led answers about FPV configuration, compatibility, documentation and acceptance checks for lawful decisions....
Find evidence-led answers about FPV configuration, compatibility, documentation and acceptance checks for lawful decisions....
Find evidence-led answers about FPV configuration, compatibility, documentation and acceptance checks for lawful decisions....
| Price | On request |
|---|---|

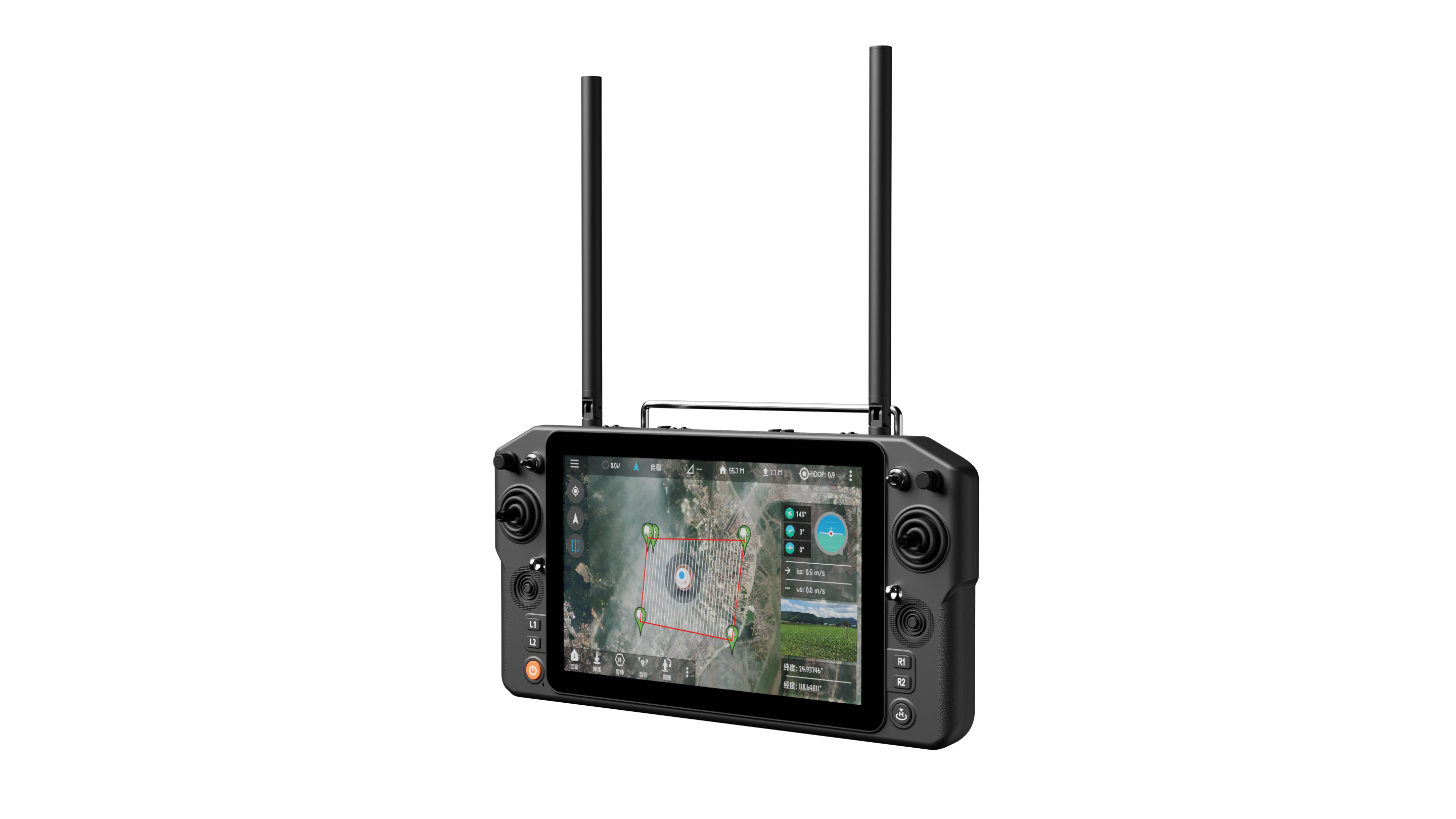

| Model | H30 |
| Display | 10.1-inch IPS; 1920 × 1200 |
| Operating system | Android 9, 64-bit; Snapdragon 660 |
| Handheld battery | 20,000 mAh; listed operation about 5 hours |
| Memory | 4 GB |
| Storage | 64 GB |
| Charging | Type-C |
| Control channels | 16 |
| Air-unit power input | 7.2–72 V; applies to the R30 documented in this manual |
| Ground-unit weight | 1.5 kg |
| Ground interfaces | HDMI, RJ45, SIM, USB, Type-C, TF and PPM |
| Air-unit interfaces | 2 network ports, 2 serial ports and SBUS |
MORE
| Price | On request |
|---|---|
| Model | G20 |
| Display | 7-inch industrial touchscreen; 1920 × 1200 |
| Operating system | Android 13; Qualcomm 6 nm processor |
| Handheld battery | 20,000 mAh; manufacturer-listed 6–8 hours |
| Memory | 4 GB |
| Storage | 64 GB |
| Charging | Type-C |
| Control channels | 16 |
| Ground-unit weight | 1.2 kg |
| Ground interfaces | USB, SIM slot and Type-C |
| Air-unit interfaces | GR01: network, data/serial, SBUS and 3 PWM; G12 RX: network, data/serial, SBUS and 2 PWM |
MORE
| Price | On request |
|---|---|

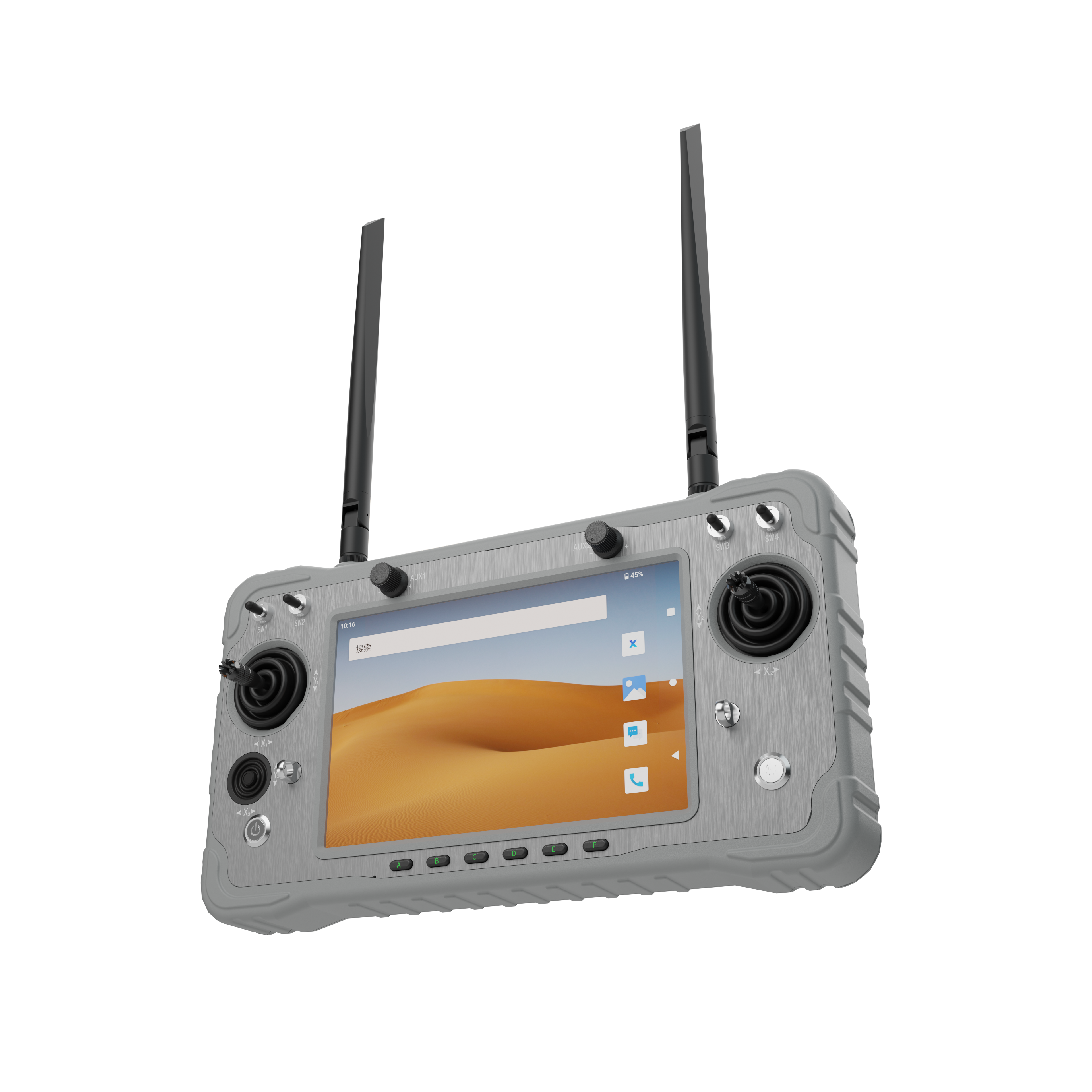

| Model | G16 |
| Display | 7-inch industrial touchscreen; 1920 × 1200 |
| Operating system | Android 13; Qualcomm 6 nm processor |
| Handheld battery | 20,000 mAh; listed operation about 9–10 hours |
| Memory | 4 GB |
| Storage | 64 GB |
| Charging | Type-C |
| Control channels | 16 |
| Ground-unit weight | 1.05 kg |
| Ground interfaces | USB-A, SIM slot, Type-C and PPM |
| Air-unit interfaces | GR01 or G12 RX options; network, data/serial, SBUS and receiver-specific PWM outputs |
MORE
| Price | On request |
|---|---|

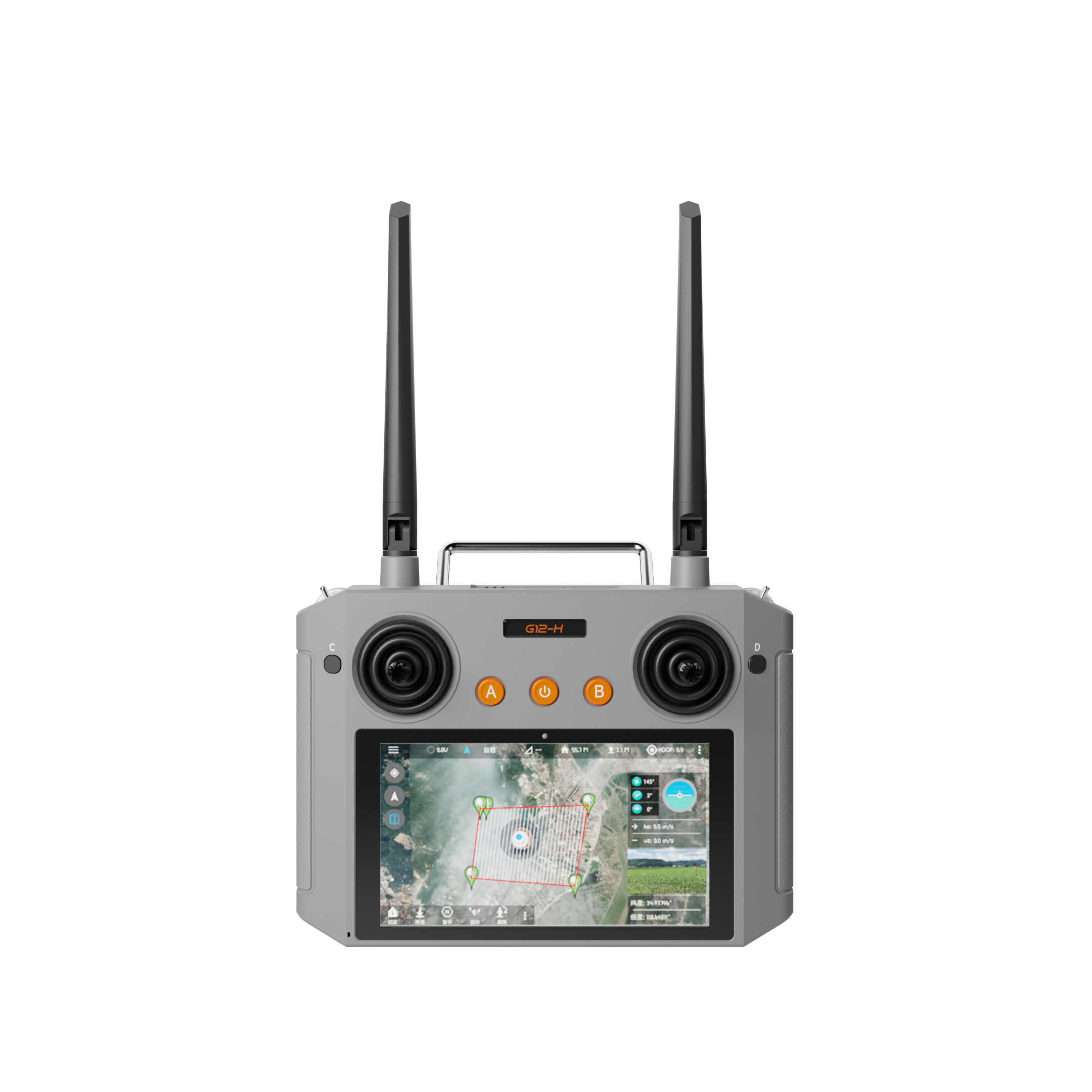

| Model | G12-H |
| Display | 5.5-inch industrial touchscreen; 1920 × 1080 |
| Operating system | Android 13; Qualcomm 6 nm processor |
| Handheld battery | 10,000 mAh; listed 4–8 hours |
| Memory | 4 GB |
| Storage | 64 GB |
| Charging | Type-C |
| Control channels | 12 |
| Ground-unit weight | 658 g |
| Air-unit interfaces | GR01 or G12 RX options; network, serial/data, SBUS and receiver-specific PWM outputs |
MORE
